740mm Width Offset Printing Machine
1 set
$1,000,0001 set
$250,000Product information
High-quality 740mm Width Offset Printing Machine supplied by Good Choice Machinery Co., Ltd. Bulk wholesale pricing ranges from $250,000 to $1,000,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Sheet Thickness:
0.06-0.7mm
Printing Speed:
12000
Production Capacity:
20 Sets/Month
Min. Sheet Size:
360*520mm
Printing Section:
4
Printing Color:
4-8 Color
Motor Power (KM/HP):
60kw
Max. Image Area:
720*1020mm
Specifications
Sheet Thickness:
0.06-0.7mm
Printing Speed:
12000
Production Capacity:
20 Sets/Month
Min. Sheet Size:
360*520mm
Printing Section:
4
Printing Color:
4-8 Color
Motor Power (KM/HP):
60kw
Max. Image Area:
720*1020mm
Printing Paper Size:
740*540mm
HS Code:
8443131390
Specification:
9560*3450*2150mm
Automatic Grade:
Automatic
Origin:
China
Trade Term:
FOB, CIF
Trademark:
JD
Model NO.:
JD4740
Payment Term:
LC, T/T
Color & Page:
Multi-Colour
Type:
Offset Printing Machine
Usage:
Paper Printer, Label Printer, Card Printer
Port Of Loading:
Shanghai port
Transport Package:
Standard Export Package
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-11-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
6
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Shanghai port
Product descriptions from the supplier

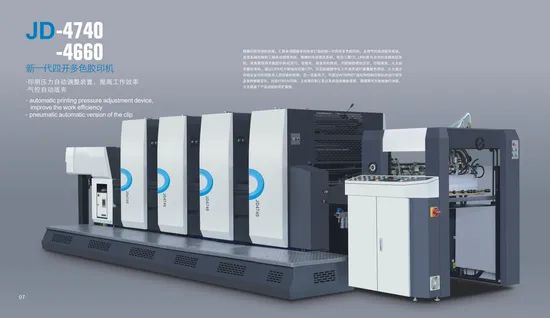

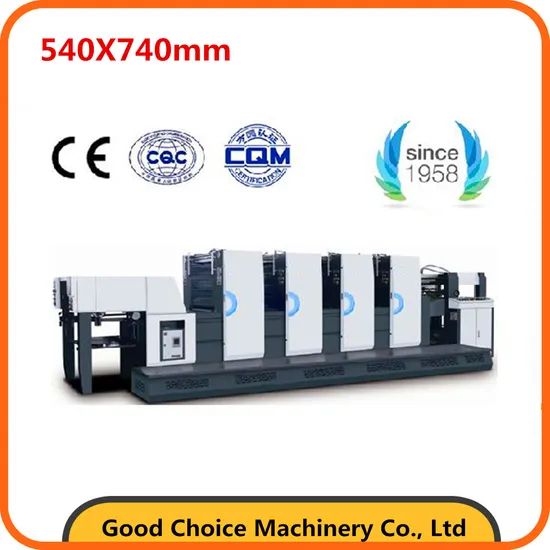

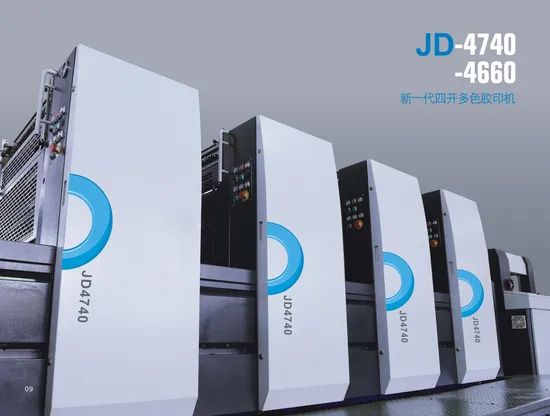

740mm Width Offset Printing Machine
1. The semi APC (Automatic Plate Changer) shortens the make-ready time.
2 . To preset paper thickness when printing different kinds of paper. To adjust printing pressure in every unit automatically, quickly and synchronously.
3 . Impression cylinders with double-diameter and transfercylinders are better forprinting of thick paper.At the same time reduce thetimesof paper handover,it is better for registration.
4 . Three directions (circumferential,lateral, diagonal) loadingplateerrorcan be controlled by centralized control of DC electric plate control,which isconvenient and quick calibration of four-color printing plates.
5 . Excellent alcoholdampening system, achieve the quick ink-water balance and reduce paper consumption.
JD4740 folio four-color offset printing machine features short water and inkroller distancesto enable a more economical printing with low, or no, alcohol. Suitable for middle format and0.06-0.6mmthick paper,12,000 sheets per hourfor high production packaging printing.
* Designed formiddle sizespaper printing - greater printing flexibility
* Short water and inkrollerdistance with onlythree-rollers - saving more materials
* Rollers have high-precision bearing supports- offering greater stability
* Paper infeed via vacuum - allows the machine to run smoothly
* Central ink console and touch screen panel - operator friendly control unit
| Machine speed | 12,000 s.p.h |
| Maximum sheet size | 540X740mm |
| Minimum sheet size | 273X393mm |
| Sheet thickness | 0.06-0.6mm |
| Maximum image area | 530X730mm |
| Plate size | 677X755X0.3mm |
| Blanket size | 740X760X1.90mm |
| Maximum feeder pile height | 940mm |
| Maximum delivery pile height | 780mm |
| Machine overall dimension | 7380X2250X1895mm |
| Total power of motors | 27.6KW |
| Gross weight | 20700KG |
Equipment:
| No. | Standard equipment | Remarks |
| 1 | Ink remote control | Optional |
| 2 | Alcohol dampening | |
| 3 | Bearer by bearer | |
| 4 | Double-diameter impression cylinder and transfer cylinder | |
| 5 | Special treatment on the surface of impression cylinder | |
| 6 | Semi-automatic clamp bar | |
| 7 | Electric register in axial and circumferential direction | |
| 8 | Electric cocking | |
| 9 | Automatic pressure adjustment | |
| 10 | Pneumatic impression on-off | |
| 11 | Swing-down gripper system | |
| 12 | Swing-down front lay | |
| 13 | Electric powder sprayer | |
| 14 | Lubrication like shower, partial thick lubrication | |
| Ancillary Equipment: |
||
| 15 | Photoelectric puncher (Plate can be bend) | |
| 16 | Air pump | |
| 17 | Air compressor | |
| 18 | Dampening rollers | |
| 19 | Vacuum feeder | |
| 20 | Ultrasonic double sheet detector | |
| Package: |
||
| 21 | Wooden fumigation | Optional |
| 22 | Manual instruction, Packing list, spare parts book | |
Machine structure:
