8 Inch Resistance Touch Screen Industrial Computer Type IPC Warranty 1 Year Trademark WQ/OEM Frequency 1.0GHz Customize
1-49 Piece
$14950-98 Piece
$13599 Piece
$120Product information
High-quality 8 Inch Resistance Touch Screen Industrial Computer Type IPC Warranty 1 Year Trademark WQ/OEM Frequency 1.0GHz Customize supplied by Guangzhou Weiqian Computer Technology Co.,ltd. Bulk wholesale pricing ranges from $120 to $149 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Warranty:
1 Year
Frequency:
1.0GHz
Production Capacity:
100000PCS/Year
Transport Package:
1PC/ OPP Bag/ Carton Box
Flash:
256MB Nandflash
Screen Type:
4-Wire Resistance
Memory:
512MB DDR3
Screen Size:
7 Inch
Specifications
Warranty:
1 Year
Frequency:
1.0GHz
Production Capacity:
100000PCS/Year
Transport Package:
1PC/ OPP Bag/ Carton Box
Flash:
256MB Nandflash
Screen Type:
4-Wire Resistance
Memory:
512MB DDR3
Screen Size:
7 Inch
Resolution:
800X600
HS Code:
8473309000
Certification:
CE Certificate
CPU:
Cortex -A8 Architecture
Power Supply Type:
DC 12V~24V
Installation:
Embedded/Wall-Mounted
Trade Term:
FOB, CIF, CFR, EXW
Origin:
Guangdong Province, China
Port Of Loading:
Guangzhou Port
Screen Defend Degree:
IP65 (Frontpanel)
Type:
IPC
Payment Term:
LC, T/T, Western Union, Small-amount payment
Customize:
OEM/ODM
Shell Material:
Plastic
Touch Screen:
Touch Screen
Model NO.:
WLT-080R-AP20
Trademark:
WQ/OEM
Operating System:
Windows CE 6.0
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2005-12-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
77
Preferred Payment Term:
LC, T/T, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Guangzhou Port
Certificates:
CE
Product descriptions from the supplier

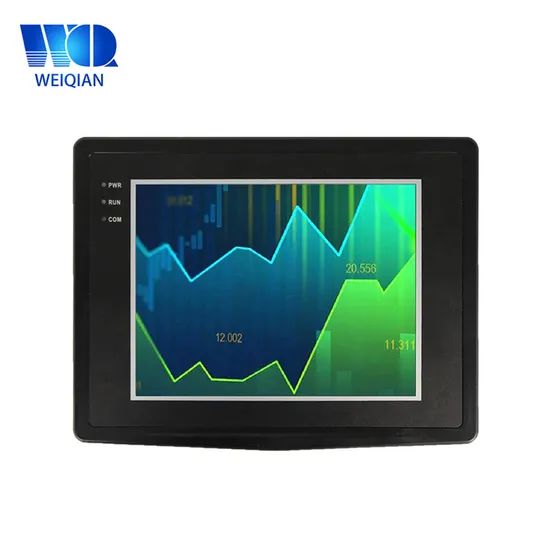

8 inch resistance touch screen industrial computer
8 inch resistance touch screen industrial computer
1.Parameters
| Product model | WLT-080R-AP20 |
| Basic parameters |
CPU: Cortex -A8 architecture,frequency 1.0GHZ
Memory: 512MB DDR3
Flash:256MB NandFlash
|
| Display screen |
Size:8inch
Resolution:800×600
Wide-temperaturetype,64K colors or 260K colors
LCD backlight:lifetime >50000 hours
|
| Touch screen | 4-wireResistance touch screen(driver inside) |
| Hardware interface |
4 channel 3-wire RS-232serial port(COM1,COM2,COM3,COM4),and which can be modified as RS-485 bus interface .
2channel RS-485 interface,multiplexingas COM1/COM2ofRS-232 ( DB9).
1 channel isolatedCAN bus(driver inside).(optional)
1 channelUSBdevice interface,support ActiveSync connect to PC to exchange data and debug application.
1channel USB Host interface,support mouse, keyboard, U disk,etc
1 channel 100MEthernet interface.
1 channel SD/MMC slot,supportSD/MMCcard.
1 channel 3.5mm audio output interface.
1 channelDC12V~24V,industrial isolatedpower solution,higher reliability.
|
| Attention | When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication. |
| OS | Windows CE 6.0 R3 |
| Defend degree | IP65 (front panel) |
| Working environment |
power:DC12V as recommendation ,DC12V~24VPower supply ,600mA
working temperature:-10~60ºC
storage temperature:-20~80ºC
workinghumidity:10~90%RH
|
| Size |
shell structure:plastic
panel size:240.80×187.50(mm)
trepanning size:226.00×166.80 (mm)
|
| Application area |
industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application. SupportCANbus network deployment. |
| Software support |
Flash power-down protection function.
IDE: Visual Studio 2005/2008 net( net 2.0 Compact),EVC++, Labviewdevelopment.
Easy change the user-defined splash screen.
Support display screen rotation (degree:0°/90°/180°/270°)
|

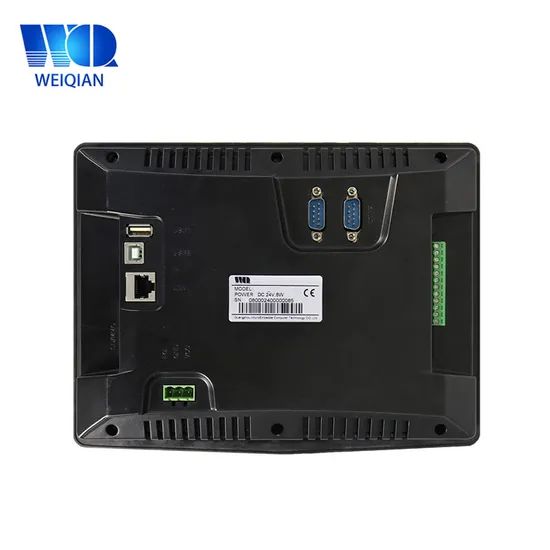

2.Interface definition
| 1 CAN (CAN-orCANL)(Optional) | 2 CAN (CAN+ orCANH) |
| 3 GND | 4 RS-232 COM3--RX |
| 5 RS-232 COM3--TX | 6 RS-232 COM4--RX |
| 7 RS-232 COM4--TX | 8 RS-485 COM2--485B |
| 9 RS-485 COM2--485A | 10 GND |
| 11 RS-485 COM1--485B | 12 RS-485 COM1--485A |
2.1 RS-232 interface
4 channelswith light isolated serial port,support the highest-level baudrate 115200bps. The correspondinginterfaceinWinCEsystem is COM1 ~ COM4. Speciallyoutput mode ofCOM1 and COM2is DB9 (RS-232),COM3 and COM4 can be modified as RS-485 interfaces.
2.2 RS-485 interface
The corresponding port inWinCEsystem is COM1,COM2.And RS-485 (COM1/COM2) ismultiplexingasRS-232(COM1/COM2) .
2.3 CAN Bus interface
The function of Can-bus interface is optional.Support the highest-level baudrate 1Mbps
2.4 Power interface
2.5 Power interface
3. Exterior size
Exterior size:240.8×187.5×40.7(mm)Trepanning size:226×166.8(mm)
Transport and Packing process
Express (UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available.
Delivery Time
Samples: 1-5 working days
100PCS or More orders: 10-20 working days
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any otherquestions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions
1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller's permit.
industrial touch scree panel pc
FAQ
Q: whether your industrial panel pc support the OEM / ODM?
A: Yes, our industrial panel PC support the customization with size, function, appearance, resolution, high brightness and etc.
Q: Where is your panel pc / Tablet pc apply?
A: Restaruant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores,industrial control,detection device,instruments and meters,security monitoring,intelligent terminals embedded high-end application,etc .
Q: What is the main size for your panel pc and industrial monitor?
A: 7",8", 10.1", 10.4",11.6", 12", 13.3" 15", 15.6", 17" 19" 21.5" 22" and wide screen the same zise. We also support the customized.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs .
Q: What kind of inspection you can provide?
A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment.
Q: What is your guarantee period?
A: 1 Years Quality Quarantee !
