800m Laser Infrared Lighting Module Laser Light of PTZ Components
1 Piece
$1601 Piece
$130Product information
High-quality 800m Laser Infrared Lighting Module Laser Light of PTZ Components supplied by Hangzhou Huanyu Vision Technology Co., Ltd.. Bulk wholesale pricing ranges from $130 to $160 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Operating Temperature:
-20c~+50℃
Size:
55mmx57mmx100mm
Production Capacity:
99999PCS/Year
Effective Distance:
>80m
Weight:
About 230g
Kind:
Autofocus Lens
Certification:
CE
Transport Package:
Carton
Specifications
Operating Temperature:
-20c~+50℃
Size:
55mmx57mmx100mm
Production Capacity:
99999PCS/Year
Effective Distance:
>80m
Weight:
About 230g
Kind:
Autofocus Lens
Certification:
CE
Transport Package:
Carton
Trade Term:
FOB, CIF, CFR
HDMI Format:
H.264/H.265
Origin:
Hangzhou, China
Feature:
High Definition
Sensor:
Laser Chip
Type:
Laser Light
Spot Diameter:
Max Distance<16m (0.3°)
Port Of Loading:
Ningbo Port, Shanghai port
Horizontal Resolution:
None
Sensor Size:
None
Protocol:
Pelco_D
Payment Term:
T/T
Model NO.:
UV-LS800
Communication Mode:
Uart_Ttl, RS485
Remote Control:
Without Remote Control
Netd:
≤35 Mk @F1.0, 300K
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-07-16
Annual Revenue Amount:
Not specified
Numbers Of Employees:
33
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Ningbo Port, Shanghai port
Certificates:
CE
Product descriptions from the supplier
Optical design Patent, high efficiency, conversion rate of photoelectric range up to 90%.
Ultra-low power, precision current design, less heat, less heat than similar products saving up to 20~50%.
Smart temperature protection, convector air-cooled coaxial design to ensure long continuous operation within the whole temperature range still working.
Universal mounting interface and installation location, easy to install in a variety of monitoring equipment.
Contact for more detailed information and customization options
| Parameters | Values and Description |
| Model | UV-LS800-VP |
| Lighting Distance | 800m |
| Wavelength | 850±10nm |
| Laser Chip Power | 4.2±0.3W |
| Output power | 3.9±0.3W· |
| Lighting Angles | Minimum Angle 2.0°; Lighting Distance >800m; Spot Diameter <28m; Near Angle 70°; Lighting Distance >80m |
| Working Voltage | DC12V±10% |
| Power Consumption | <20W |
| Control Mode | TTL232\485 |
| Communication Mode | UART_TTL |
| Communication Protocol |
Pelco_D(Baud Rate 9600bps by default or 4800bps / 2400bps) |
| Storage Temperature | -40ºC~+80ºC |
| Operating Temperature | -20ºC~+50ºC |

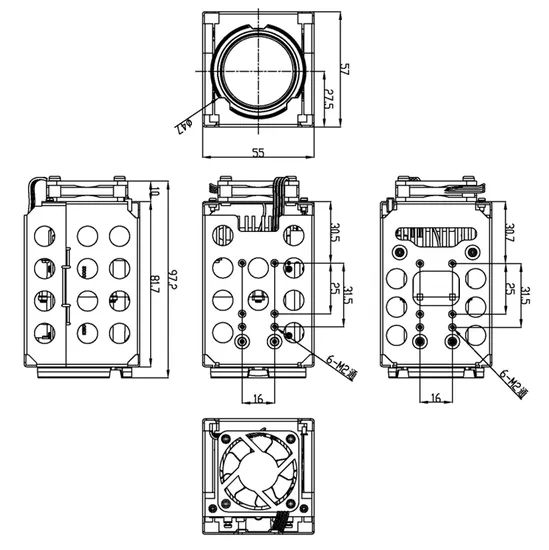

| Dimension | 55mmx57mmx100mm |
| Weight | About 230g |
