8051 Microcontroller Keypad Matrix Key Pad Led_array 8 Led Array Reset_button Reset Button Real_time_clock Rtc Ds1307 I2c_eeprom 24cxx I2c
Negotiable
Product information
High-quality 8051 Microcontroller Keypad Matrix Key Pad Led_array 8 Led Array Reset_button Reset Button Real_time_clock Rtc Ds1307 I2c_eeprom 24cxx I2c supplied by Silver Green Technologies. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Crystal Frequency:
11.0592mhz
I2c Eeprom:
24cxx I2c Eeprom
Interrupt Switchers:
4 Interrupt Switchers
Regulated Power Supply:
5v, 12v Supply
Seven Segment Display:
7seg Multiplexed Display
Led Array:
8 Led Array
Microcontroller Features:
8051 Based Cmos Controller With Pca, Dual Dptr, Wdt, 32 I/o Lines, 3 Timers/counters, 7 Interrupts/4 Priority Levels, 64k Bytes Isp Flash, 256 Bytes On-chip Ram, 768 Bytes Xram
Power Input Options:
Ac And Dc Power Supply Adapters
Specifications
Crystal Frequency:
11.0592mhz
I2c Eeprom:
24cxx I2c Eeprom
Interrupt Switchers:
4 Interrupt Switchers
Regulated Power Supply:
5v, 12v Supply
Seven Segment Display:
7seg Multiplexed Display
Led Array:
8 Led Array
Microcontroller Features:
8051 Based Cmos Controller With Pca, Dual Dptr, Wdt, 32 I/o Lines, 3 Timers/counters, 7 Interrupts/4 Priority Levels, 64k Bytes Isp Flash, 256 Bytes On-chip Ram, 768 Bytes Xram
Power Input Options:
Ac And Dc Power Supply Adapters
Microcontroller Socket:
Dil40 Zif Socket (zero Insertion Force) Microcontroller Socket
Flash Capability:
Easy To Flash 89v51rd2 Through Flash Magic Software
Example Programs:
Example Programs For Led, 7seg, Lcd, Rs232, Matrix Key Pad, Adc
Keypad:
Matrix Key Pad
Lcd Ready Interface:
Rdy Interface For Lcd Display 2linex16character
Reset Button:
Reset Button
Rs232 Interface:
Rs232 Tx, Rx Interface With Max232 Ic On Socket
Real Time Clock:
Rtc Ds1307
Serial Port For Isp:
Serial Port For Isp
Trade Term:
To be discussed
Payment Term:
To be discussed
Stepper Motor And Relay Driver:
Uln 2803
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2011
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
INTRODUCTION :

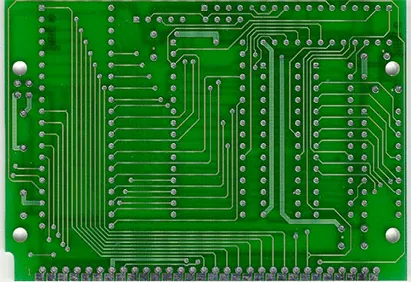

With this board you can develop and prototype with any of 8051 40 pin microcontrollers. The RS232 driver on board allows easy connection with PC or other embedded hardware ( Easy to falsh 89v51Rd2 Thru flash magic ). The board have User buttons and status LEDs. The bridge rectifire allow this board to be powered with both AC and DC power supply adapters.
MAIN FEATURES :
MAIN FEATURES :
With this board you can develop and prototype with any of 8051 40 pin microcontrollers. The RS232 driver on board allows easy connection with PC or other embedded hardware ( Easy to falsh 89v51Rd2 Thru flash magic ). The board have User buttons and status LEDs. The bridge rectifire allow this board to be powered with both AC and DC power supply adapters.
MAIN FEATURES :
- RS232 Tx, Rx interface with MAX232 IC on socket
- DIL40 ZIF Socket ( Zero Insertion Force) microcontroller socket - To Reduce Microcontroller Damages
- ULN 2803 To Drive Stepper Motor&Relays
- Quartz crystall 11.0592Mhz
- Reset button
- Power plug-in jack
- Extension slot on every uC pin
- GND bus
- Vcc bus.
- Four mounting holes 3,3 mm (0,13")
MAIN FEATURES :
- On board Regulated Power Supply 5v,12v supply.
- A Serial Port for ISP
- An RS232 Serial Port
- 7Seg Multiplexed Display
- DC Power Supply Connector(12v Ac or Dc)
- Rdy Interface For LCD display 2linex16Character
- 24Cxx I2C EEPROM
- RTC DS1307
- 8 LED array
- Matrix Key Pad
- 4 Interrupt Switchers
- Example Programs for LED,7seg,LCD,RS232 ,Matrix Key Pad, ADC
- Easy To flash 89V51RD2 Through Flash Magic Software
- Features of 89V51RD2 - 8051 based CMOS controller with PCA, Dual DPTR,WDT,32 I/O lines, 3 Timers/Counters, 7 Interrupts/4 Priority Levels,64K Bytes ISP FLASH, 256 Bytes on-chip RAM, 768 Bytes XRAM
