80GHz Non-Contact Radar Tank Level Transmitter Liquid Level Meter Radar Level Sensor Level Meter
1 Piece
$8001 Piece
$159Product information
High-quality 80GHz Non-Contact Radar Tank Level Transmitter Liquid Level Meter Radar Level Sensor Level Meter supplied by Aister Instrument (Shanghai) Co., Ltd.. Bulk wholesale pricing ranges from $159 to $800 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Process Temperature:
-20℃~80℃
Range:
0-50m
Warranty:
1 Year
Accuracy:
1%
Package Gross Weight:
15.000kg
Measurement Accuracy:
1mm
Package Size:
35.00cm * 25.00cm * 25.00cm
Output Signal:
4 ~ 20mA or RS-485
Specifications
Process Temperature:
-20℃~80℃
Range:
0-50m
Warranty:
1 Year
Accuracy:
1%
Package Gross Weight:
15.000kg
Measurement Accuracy:
1mm
Package Size:
35.00cm * 25.00cm * 25.00cm
Output Signal:
4 ~ 20mA or RS-485
Production Capacity:
500 Piece/ Week
Frequency:
76GHz ~ 81GHz, 5GHz Fmcw Bandwidth
HS Code:
9026801000
Model NO.:
ATRD
Structure:
All in One
Certification:
CE
Transport Package:
Carton Box with PP Film Wooden Box
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Power Supply:
DC 15 -28V
Explosion Proof Grade:
Exdiaiict6
Trade Term:
FOB, EXW, CIF
Ingress Protection:
IP67
Payment Term:
LC, T/T
Communication:
Modbus, Hart/Series
Material:
PTFE, ABS, PVC
Kind:
Radar
Port Of Loading:
Shanghai, Ningbo
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-07-09
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CIF
Port Of Loading:
Shanghai, Ningbo
Certificates:
Gas Roots Flowmeter Ex-proof, Gas Turbine Flowmeter Ex-proof, Precession Vortex Flowmeter Ex-Proof, Thermal Mass Flowmeter Ex-proof, Vortex Flowmter Ex-proof
Product descriptions from the supplier
76-81GHz frequency modulation wave FMCW radar product (also called millimeter wave radar), it uses a millimeter wave band with high frequency, it can detect smaller targets and achieve more precise positioning than microwave radar with higher resolution and stronger confidentiality. Therefore, it has important applications in long-distance target detection, strong smoke and dust environment, long-distance imaging, multi-spectral imaging, etc.
Measure the level of solid particles, chemical liquid tank, oil tank and process containers.
1.Radar level meter is working based on electromagnetic wave. So it could have max 120m measure range.
2.Compared with other type level meter, 80G radar level meter could measure different kinds of oil, chemical liquids, solid powder,and many other mediums.
3. 80G radar level meter could work in harsh working condition. It won't be affected by temperature, pressure and humidity. With PTFE horn, it even could work in corrosive condition, such as acid liquid.
4.Customer also could choose different connection methods, such as flange, thread, bracket.
| Frequency | 76GHz ~ 81GHz, 5GHz FMCW bandwidth |
| Measuring range | x0: 0.3 m ~ 60m x1: 0.08m~30m x2: 0.6m ~ 120m |

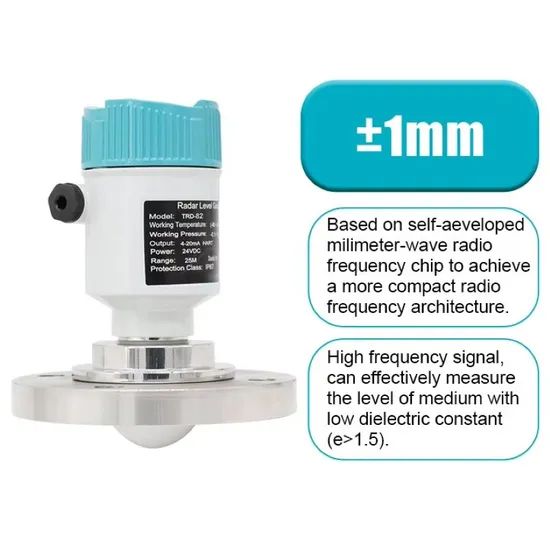

| Measurement accuracy | ±1mm |

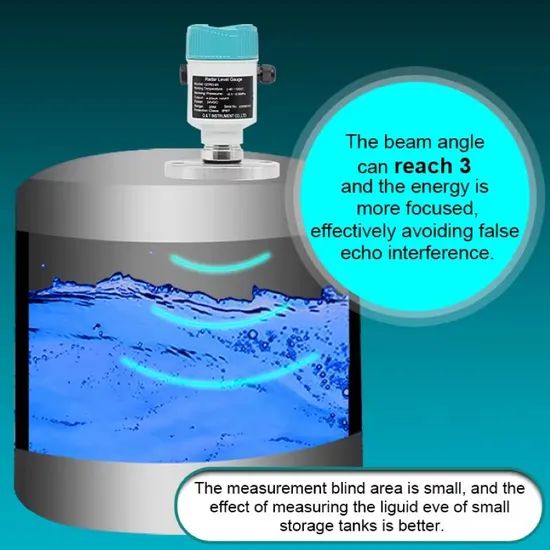

| Beam angle | 3°/6° |
| Minimum measured dielectric constant | >=2 |
| Power | 15~28VDC |
| Communication | 2x: MODBUS 3x: HART/Series |
| Signal output | 2x: 4 ~ 20mA or RS-485 3x: 4~20mA |
| Fault output | 3.8mA, 4mA, 20mA, 21mA, hold |
| Field operation / programming | 128 × 64 dot matrix display / 4 buttons PC software Bluetooth |
| humidity | ≤95%RH |
| Enclosure | Aluminum alloy, stainless steel |

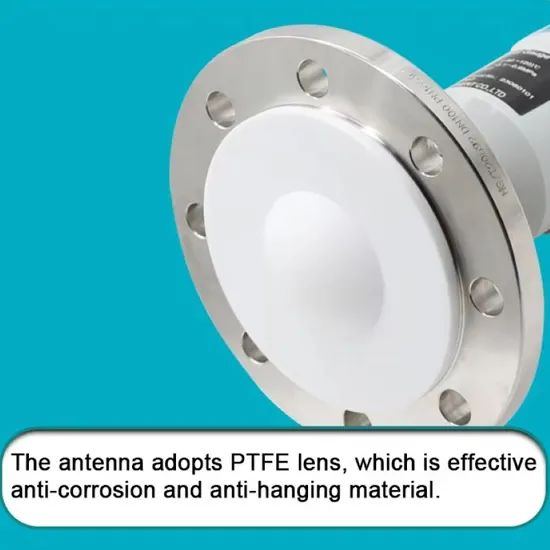

| Antenna type | Lens antenna/anti-corrosive antenna / flange isolated by quartz |
| Process temperature | T0:-40~85ºC; T1:-40~200ºC; T2:-40~500ºC; T3:-40~1000ºC |
| Process pressure | -0.1~2MPa |
| Product Size | Ø100*270mm |
| Cable entry | M20*1.5 |
| Recommended cables | AWG18 or 0.75mm² |
| Protection class | IP67 |
| Explosion-proof grade | ExdiaIICT6 |
| Installation method | Thread or flange |
