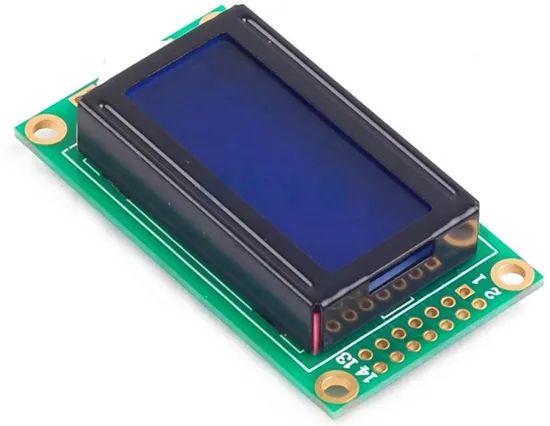

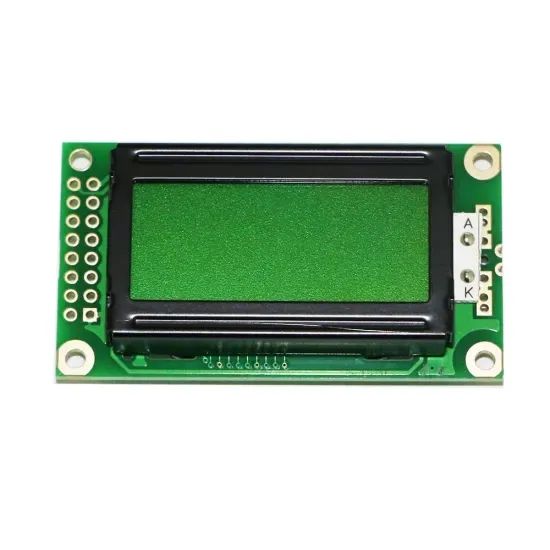

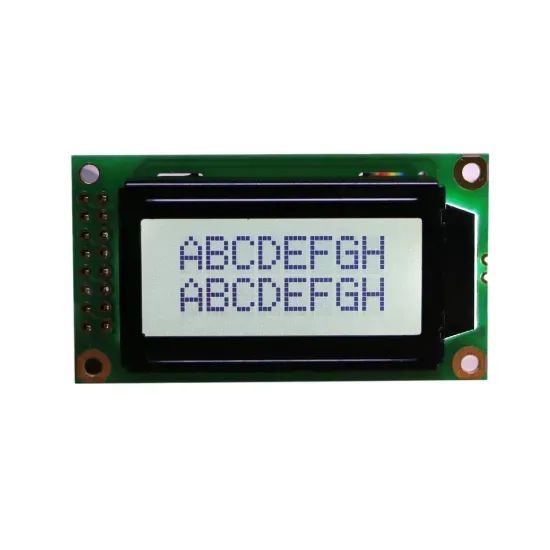

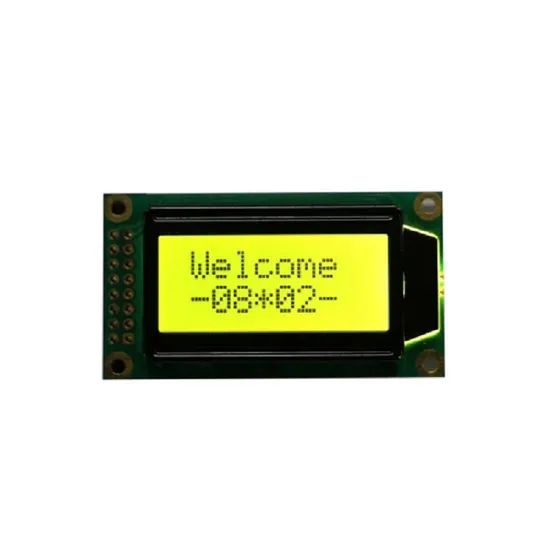

8X2 Character LCD Display Module with Splc780d IC 8-Bit Mpu Interface
500-1999 Piece
$1.152000-4999 Piece
$0.985000 Piece
$0.85Product information
High-quality 8X2 Character LCD Display Module with Splc780d IC 8-Bit Mpu Interface supplied by Royal Display Co., Ltd.. Bulk wholesale pricing ranges from $0.85 to $1.15 per Piece with a minimum order of 500 Piece. Inquiry for latest prices.
Driver Condition:
1/16duty, 1/5bias
Response Time:
2ms
Production Capacity:
30K/M
Viewing Area:
38(L) * 16( W)
Outline (Mm):
58(L) * 32(W) * Max 13.8(T)
Viewing Direction:
6 O’clock
Viewing Angle:
6:00
Interface:
8-Bit Mpu Interface
Specifications
Driver Condition:
1/16duty, 1/5bias
Response Time:
2ms
Production Capacity:
30K/M
Viewing Area:
38(L) * 16( W)
Outline (Mm):
58(L) * 32(W) * Max 13.8(T)
Viewing Direction:
6 O’clock
Viewing Angle:
6:00
Interface:
8-Bit Mpu Interface
HS Code:
8531200000
DOT Format:
8X2
Specification:
8x2 dots
Type:
Character
DOT Matrix Graphic LCD Module Type:
Character LCD
Origin:
China
Customized:
Customized
Trade Term:
FOB, CIF, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Touch Screen Type:
No
Backlight Color:
Optional
Transport Package:
Plastic Plate
Model NO.:
RYP0802B
Trademark:
Royal Display
Display Technology:
STN
Port Of Loading:
Shenzhen, HONGKONG
LCD Drive Mode:
Splc780d
Driver IC:
Splc780d
Display Type:
Stn
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-05-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
Shenzhen, HONGKONG
Certificates:
Business License, Customs Registration Certificate, GB/T19001-2016 idt ISO9001 :2015 standard, IATF16949:2016, ISO14001:2015, ISO9001, Marketing Agent Certificate
Product descriptions from the supplier
8x2 Character LCD Display Module with SPLC780D IC 8-bit MPU interface
| RYP0802B is the smallest-sized character 8x2 LCD module in our product line. This 8x2 LCD display module is powered by voltage 5V or negative voltage 3V. Backlight is optional, you can choose module with backlight or without it. There are a lot of combinations for backlight, for example, yellow-green, blue, white, amber, red, and RGB backlight. This 8x2 character monochrome LCD display has built-in IC SPLC780D. |
|
Model NO. |
RYP0802B |
|
Resolution |
8x2 dots |
|
Interface |
8-bit MPU |
|
LCD Type |
Character LCD |
|
Viewing Direction |
6:00 |
|
Outline Dimension |
58(L) * 32(W) * Max 13.8(T) |
|
Active Size |
38(L) * 16( W) |
|
Specification |
ROHS REACH ISO |
|
Operating Temp |
-20ºC ~ +70ºC |
|
Storage Temp |
-30ºC ~ +80ºC |
|
IC Driver |
SPLC780D |
|
Application |
Portable electronics; Automotive displays; Industrial equipment; Medical devices; Home automation systems; Consumer electronics |
|
Country of Origin |
China |
The standard character display resolution includes 8x2 ,12x2,16x1,16x2,16x4,20x2,20x4,24x2,40x2,40x4 character LCD display. Character LCD modules are available in COB and COG types with different interfaces in 8080,SPI,I2C.LCD character display modules are in STN/FSTN/FFSTN LCD displays with different LED backlight in Yellow-Green, White and Blue color. The character module font options are English/Japanese, European, eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. We offer character displays with 5V operating voltage as standard and 3V or 3.6V options are also available by request.
-
Compact Size
-
Ideal for applications with limited space (small devices, handheld equipment, etc.).
-
-
Low Power Consumption
-
Efficient for battery-powered or energy-sensitive designs.
-
-
Cost-Effective
-
Inexpensive compared to graphic displays or larger character LCDs.
-
-
Easy to Interface
-
Standard interface (usually parallel) with many microcontrollers (e.g., Arduino, STM32, PIC).
-
-
Widely Supported
-
Supported by many libraries, especially in open-source ecosystems like Arduino.
-
-
Reliable and Durable
-
Simple, mature technology with a long lifespan and resistance to environmental fluctuations.
-
-
Custom Characters
-
Allows definition of up to 8 custom characters in CGRAM for simple icons or graphics.
-
-
Good Visibility
-
Available with backlight options for use in various lighting conditions.
-
Royal Display Co., Ltd.
Specializing in the design, development, and production of LCD display modules for over 10 years, we provide comprehensive display solutions tailored to meet diverse industry needs.
Our product portfolio includes two main series: standard and custom-made displays. We offer a wide range of display technologies, such as:
-
Segment LCD Displays: Ideal for numeric and alphanumeric applications.
-
Character LCD Displays: Perfect for text-based interfaces.
-
Graphic LCD Displays: Suitable for complex graphics and icons.
-
COG (Chip-on-Glass) LCD Displays: Compact and reliable for space-constrained designs.
-
TFT Color Displays: High-resolution, full-color screens for vibrant visuals.
-
OLED Displays: Superior contrast and flexibility for modern applications.
-
7-Segment LED Displays: Simple and efficient for numeric indicators.
We support various film types, including TN (Twisted Nematic), HTN (High-Twist Nematic), STN (Super-Twist Nematic), FSTN (Film-compensated STN), and TFT (Thin-Film Transistor). Our advanced manufacturing processes, such as COG (Chip-on-Glass), TAB (Tape Automated Bonding), COB (Chip-on-Board), and SMT (Surface Mount Technology), ensure high-quality and reliable products.
With a production capacity of 300,000 LCD/LCM units per month, we cater to industries such as consumer electronics, industrial equipment, medical devices, automotive, smart home appliances, and IoT devices.
At Royal Display, we are committed to delivering innovative, high-performance display solutions that meet the evolving needs of our global clients.
