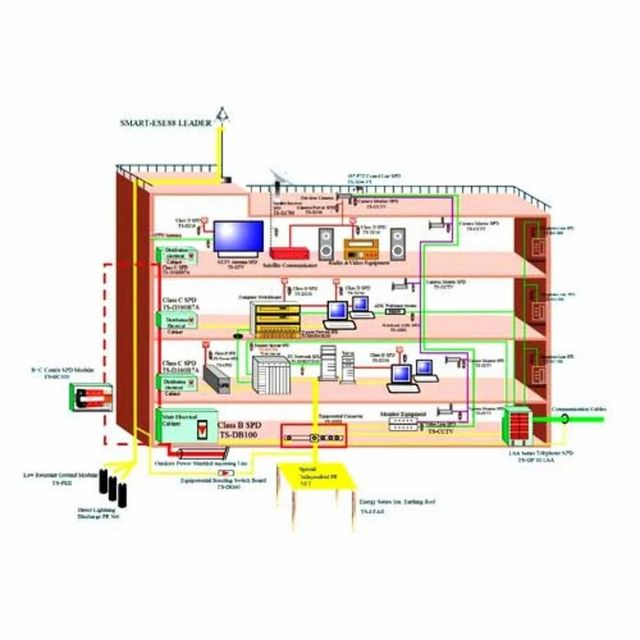

ABB Silver Advanced Lightning Protection Systems Brand ABB Color Silver Warranty 1 year Usage/Application industrial Country of Origin Made in

We hold expertise in trading and supplying a quality tested range of Advanced Lightning Protection Systems that are used to protect residential and commercial buildings from the effect of lightning. Our entire product range is easy to install and is performance oriented. Our entire product range is tested on well defined parameters using advanced technologies, thereby rendering utmost client satisfaction.

Who is ERCO?

ERICO is dedicated to providing the best lightning-protection solution for any given application, whether this involves the use of the standards compliant ERITECH SYSTEM 2000, the ERITECH SYSTEM 3000 or a hybrid design utilizing a combination of both system types.

ERICO manufactures lightning protection systems in full accordance with more than twelve National and international standards, as well as non-conventional systems based on enhanced air terminals and insulated conductors for applications where these provide an advantageous solution for the customer.

ERICO’s approach is solutions driven. The aim is to provide the best solution for a given application. Some structures are more suited to the traditional conventional lightning protection – designs that require protection via complete building structure bonding. Other structures are more suited to a method that utilizes protection via isolation. Whatever the application or protection problem presented, ERICO offers a solution.

What Is The Eritech® System 3000?

The ERITECHR SYSTEM 3000 is a technically advanced lightning protection system. The unique features of this system allow the achievement of reliable lightning capture and control.

The ERITECHR DYNASPHERE air terminal provides a preferred point for lightning discharges which would otherwise strike and damage an unprotected structure and/or its contents. The ERITECHR DYNASPHERE is optimally connected to an ERITECHR ERICORE down conductor and low impedance grounding system in such a way as to provide a totally integrated system.

Eritech System 3000 includes the following elements:

• Eritech Dynasphere air terminal

• Eritech Ericore down conductor

• Lightning event counter

• Purpose designed low impedance grounding system.

These components form an integral part of the ERICO Six Point Plan of Protection. Each component must be considered independently and ultimately integrated together to form the complete lightning protection system. Without such integration there is limited protection.

While it is possible to implement a hybrid system using other components, it is important to realize that inefficiencies in any substitute represent inefficiency in the protection system as a whole.

1. The Air Terminal

The primary function of an air terminal, or air termination system, is to capture the lightning strike to a preferred point, so that the discharge current can be directed via the down conductor(s) to the grounding system.

2. The Down conductor

The function of a down conductor is to provide a low impedance path from the air termination to the ground system so that the lightning current can be conducted to earth, without the development of excessively large voltages. In order to reduce the possibility of dangerous sparking (side-flashing), the down conductor route(s) should be as direct as possible with no sharp bends or stress points where the inductance, and hence impedance, is increased under impulse conditions.

Features:

• No external power required
• No moving parts
• Non radioactive technology
