API Certified Workover Rig / Oilfield Rig / Drilling Rig / Well Servicing Rig / Mobile Rig with High Efficiency for Oilfield Operations
1-4 sets
$900,0005 sets
$850,000Product information
High-quality API Certified Workover Rig / Oilfield Rig / Drilling Rig / Well Servicing Rig / Mobile Rig with High Efficiency for Oilfield Operations supplied by Goldenman Petroleum Equipment Co., Limited. Bulk wholesale pricing ranges from $850,000 to $900,000 per sets with a minimum order of 1 sets. Inquiry for latest prices.
Drill Hole Diameter:
250-300mm
Dimension(L*W*H):
60.7X9.5X13.8FT
Package Size:
8000.00cm * 4000.00cm * 3000.00cm
Weight:
82000 Kg
Package Gross Weight:
82000.000kg
Motor:
AC Motor
Specification:
API 4F
Power System:
Cat C-16
Specifications
Drill Hole Diameter:
250-300mm
Dimension(L*W*H):
60.7X9.5X13.8FT
Package Size:
8000.00cm * 4000.00cm * 3000.00cm
Weight:
82000 Kg
Package Gross Weight:
82000.000kg
Motor:
AC Motor
Specification:
API 4F
Power System:
Cat C-16
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Voltage:
Customized
Bit Type:
Diamond Bit
Keyword:
Drilliing Rig
Application:
Drilling Wells
Key Selling Points:
Easy to Operate
Applicable Industries:
Energy & Mining
Trade Term:
FOB, CIF, EXW, CFR
Market:
Gloabl
Trademark:
Goldenman
Feature:
High Drilling Efficiency
Certification:
ISO 9001:2008
Drilling Depth:
Max.1500m
Condition:
New
Use:
Oil Well
Transport Package:
Plywood Case
Video Outgoing Inspection:
Provided
Port Of Loading:
Qingdao Port
Drilling Way:
Rotary
Type:
Rotary Drilling Rig
Payment Methods:
Support payments in USD
Payment Term:
T/T, D/P, Western Union, PayPal, LC, Small-amount payment
Name:
Zj40/2250CZ Truck-Mounted Drilling Rig
Model NO.:
xj
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2006-03-09
Annual Revenue Amount:
Not specified
Numbers Of Employees:
21
Preferred Payment Term:
T/T, D/P, Western Union, PayPal, LC, Small-amount payment
Preferred Trade Term:
FOB, CIF, EXW, CFR
Port Of Loading:
Qingdao Port
Certificates:
CERTIFICATE, Invention Patent
Product descriptions from the supplier

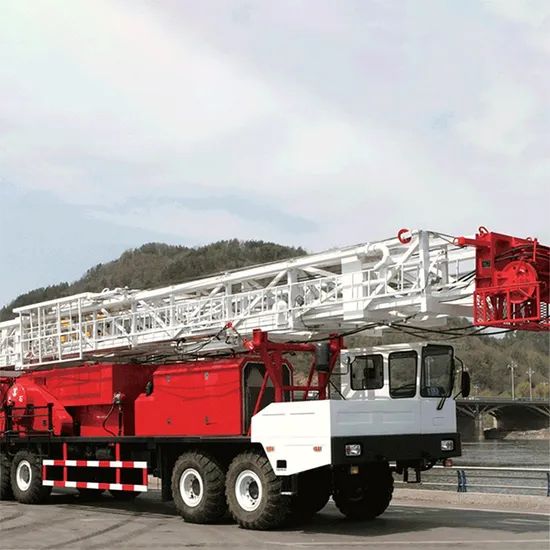

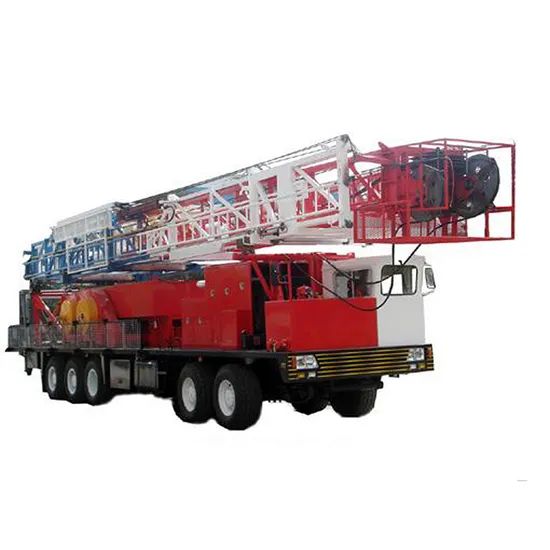

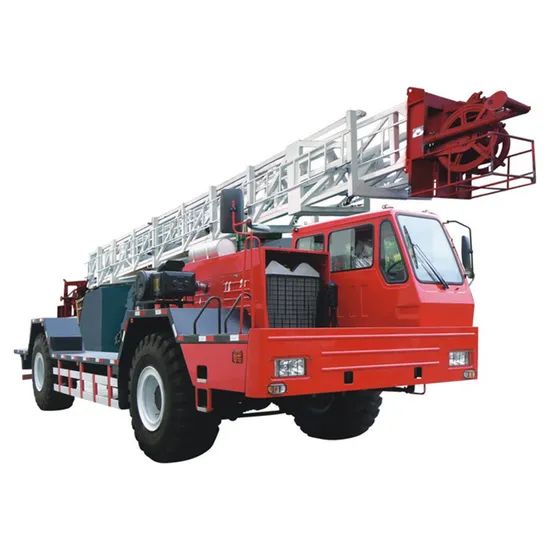

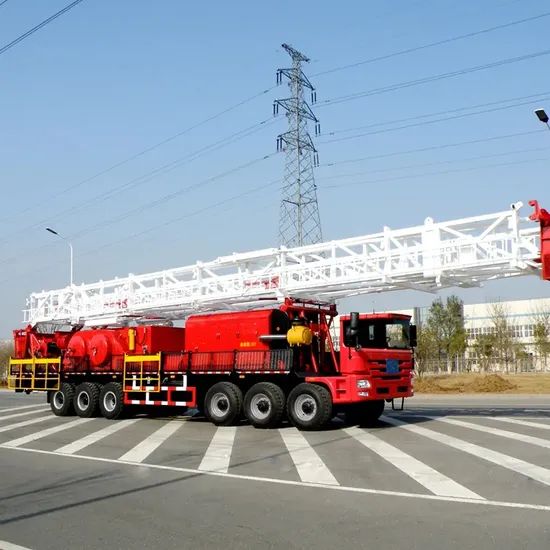

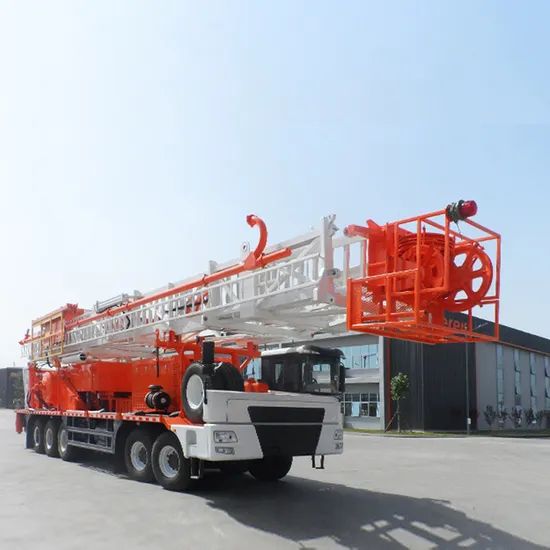

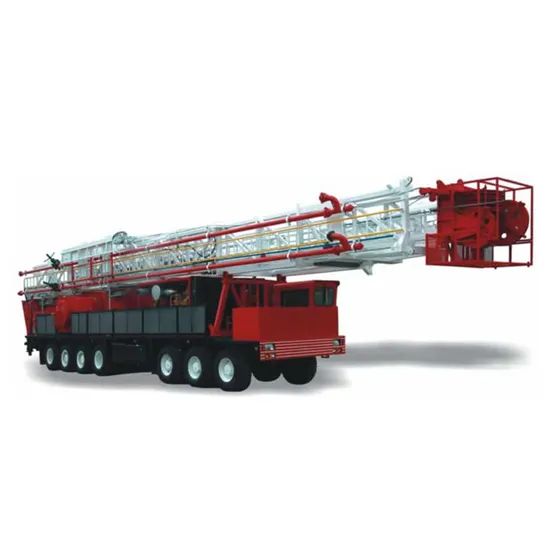

ZJ40/2250CZ Truck-mounted Drilling Rig
These magnificent drilling rigs are meticulously crafted in compliance with the esteemed API Spec Q1, 4F, 7k, 8C, and RP500 standards,
as well as GB3826.1, GB3836.2, GB7258, and SY6584 Standards, along with the unavoidable '3C' compulsory standard.
The entire rig boasts a compact and streamlined structure, allowing for a minimal installation footprint, thanks to its superior high integration.
Featuring a robust, self-propelled chassis with options like 8×6, 10×8, 12×8, 14×8, 14×12, and 16×12, along with an advanced hydraulic steering system, this rig promises exceptional navigation and off-road capabilities.
The smart assembly of the CATERPILLAR engine paired with the ALLISON transmission box guarantees peak driving efficiency and reliable performance during operation.
The primary braking system utilizes a hydraulic disc brake or band brake, with auxiliary options including an Air brake, hydromatic brake, or FDWS brake, ensuring comprehensive control.
The rotary table transmission box offers forward-reverse shifting capabilities suitable for all DP rotary operations while the anti-torque release device ensures safe DP deformation force release.
Proudly featuring a mast that is front-open and double-section type with an adjustable inclination angle or an erective double-section type, it is designed to be hydraulically erected, lowered, and telescoped with ease.
The drill floor is engineered as a twin-body telescopic type or with a sophisticated parallelogram structure, ensuring effortless hoisting and
transportation. The drill floor's height customization is available to cater to the client's specific needs.
With exemplary configurations of the solid control system, well control system, high-pressure manifold system, generator house, engine & mud pump house, doghouse, and other auxiliary facilities, these rigs are perfectly adaptable to diverse user requirements.
Under the guiding principle of 'Humanism Above All,' safety and inspection measures are rigorously enhanced to fulfill stringent HSE standards.
as well as GB3826.1, GB3836.2, GB7258, and SY6584 Standards, along with the unavoidable '3C' compulsory standard.
The entire rig boasts a compact and streamlined structure, allowing for a minimal installation footprint, thanks to its superior high integration.
Featuring a robust, self-propelled chassis with options like 8×6, 10×8, 12×8, 14×8, 14×12, and 16×12, along with an advanced hydraulic steering system, this rig promises exceptional navigation and off-road capabilities.
The smart assembly of the CATERPILLAR engine paired with the ALLISON transmission box guarantees peak driving efficiency and reliable performance during operation.
The primary braking system utilizes a hydraulic disc brake or band brake, with auxiliary options including an Air brake, hydromatic brake, or FDWS brake, ensuring comprehensive control.
The rotary table transmission box offers forward-reverse shifting capabilities suitable for all DP rotary operations while the anti-torque release device ensures safe DP deformation force release.
Proudly featuring a mast that is front-open and double-section type with an adjustable inclination angle or an erective double-section type, it is designed to be hydraulically erected, lowered, and telescoped with ease.
The drill floor is engineered as a twin-body telescopic type or with a sophisticated parallelogram structure, ensuring effortless hoisting and
transportation. The drill floor's height customization is available to cater to the client's specific needs.
With exemplary configurations of the solid control system, well control system, high-pressure manifold system, generator house, engine & mud pump house, doghouse, and other auxiliary facilities, these rigs are perfectly adaptable to diverse user requirements.
Under the guiding principle of 'Humanism Above All,' safety and inspection measures are rigorously enhanced to fulfill stringent HSE standards.
|
Main parameters of Truck-mounted drilling rigs
|
|
|
|
|
|
|||||
|
Model
|
ZJ10/1125CZ
|
ZJ15/1350CZ
|
ZJ20/1470CZ
|
ZJ30/1700CZ
|
ZJ40/2250CZ
|
|||||
|
Drilling depth(4 1/2"drill pipe)m(ft)
|
1000(3280)
|
1500(4920)
|
2000(6560)
|
3000(9840)
|
4000(13120)
|
|||||
|
Workover depth(3 1/2"drill pipe) m(ft)
|
3500(11483)
|
4000(13123)
|
5500(18045)
|
6500(21325)
|
7500(24606)
|
|||||
|
Max. hook load kN(lb)
|
1125(253000)
|
1350(303696)
|
1470(330700)
|
1700(381260)
|
2250(505800)
|
|||||
|
Drill line diameter mm(in.)/lines
|
φ26(1")/8
|
φ26(1")/8
|
φ29(1-1/8")/8
|
φ29(1-1/8")/8
|
φ32(1-1/4")/10
|
|||||
|
Max. hook speed m/s(ft/s)
|
1.23(4)
|
1.33(4.36)
|
1.31(4.3)
|
1.36(4.46)
|
1.36(4.46)
|
|||||
|
Overall dimensions(m)
|
17.5×3.1×4.18 (57.4×10.17×13.7)
|
19.6×2.9×4.3 (64.3×9.5×13.8)
|
20.13×3.2×4.4 (66×10.5×14.44)
|
21.25×3.3×4.47 (69.7×10.8×14.67)
|
22.45×3.3×4.48 (73.65×10.8×14.7)
|
|||||
|
Weight kg(lb)
|
42000(92590)
|
51000(112430)
|
56000(123456)
|
76000(167548)
|
82000(180776)
|
|||||
|
Power system
|
CAT3406C
|
CAT3408
|
CAT3412
|
CAT3406C
|
CAT C-16
|
|||||
|
Engine power kW(hp)(2100r/min)
|
343(460)
|
354(480)
|
485(650)
|
343×2(460×2)
|
448×2(600×2)
|
|||||
|
Model, transmission
|
ALLISON-S5600DB
|
ALLISON-S5600HR
|
ALLISON-S6610HR
|
ALLISON-S5600×2
|
ALLISON-S6610×2
|
|||||
|
Emergency power(eletrical motor)
|
Optional
|
Optional
|
Optional
|
- -
|
- -
|
|||||
|
Chassis driving type
|
10×8(8×8)
|
10×8
|
12×8
|
14×8
|
14×10
|
|||||
|
Min. turning dia. m(ft)
|
34(111.55)
|
34(111.55)
|
36(118.11)
|
42(137.8)
|
44(144)
|
|||||
|
Min. ground clearanec in. mm(in.)
|
340(13.39)
|
340(13.39)
|
340(13.39)
|
340(13.39)
|
340(13.39)
|
|||||
|
Drawworks type
|
Double drum(Single drum)
|
Double drum(single drum)
|
Double drum(single drum)
|
Double drum(Single drum)
|
Double drum(single drum)
|
|||||
|
Drawworks power hp
|
450
|
550
|
650
|
750
|
1000
|
|||||
|
Dia. Length,main drum in.(in.)
|
φ429×965(φ16.9×38)
|
φ429×965(φ16.9×38)
|
φ480×914.5(φ18.9×36)
|
φ480×914.5(φ18.9×36)
|
φ635×1254(φ25×49.4)
|
|||||
|
Main brake type, main drum
|
Band type(or hydraulic disc type) Force spray water cooling-forced
|
Band type(or hydraulic disc type)
|
Band type(or hydraulic disc type)
|
Band type(or hydraulic disc type)
|
hydraulic disc
|
|||||
|
Auxiliary brake, main drum
|
22"SR hydro brake
|
22"SR hydro brake(force spray water cooling-forced)
|
22"SR hydro brake(force spray water cooling-forced)
|
WCB324 disc brake
|
WCB224 disc New
|
|||||
|
Speeds of drawworks
|
5 forward 1 reverse
|
5 forward 1 reverse
|
five forward 1 reverse
|
five forward one reverse
|
five forward one reverse
|
|||||
|
Mast type
|
JJ119/33.1-W
|
JJ135/34-W
|
JJ155/35-W
|
JJ180/36-W / JJ180/38-W
|
JJ225/39-W
|
|||||
|
Mast height m(ft)
|
31.3(102.69)
|
34(111.55)
|
35(114.83)
|
36(118.11) / 38(124.6)
|
39(127.92)
|
|||||
|
Height,Monkey boardm(ft)
|
19.7/20.7(55.77/64.6)
|
20/21.5(65.62/70.54)
|
20/21.5(65.62/70.54)
|
20.4(66.9)
|
20.4(66.9)
|
|||||
|
Max. wind load km/h(kn)
|
110(60)
|
110(60)
|
110(59.35)
|
110(60)
|
110(60)
|
|||||
|
Control/lighting/power system
|
24V/220V/380V(China)
|
24V/220V/380V(China)
|
24V/220V/380V(China)
|
24V/220V/380V(China)
|
24V/220V/380V(China)
|
|||||
|
Reted pressure, hydraulic/air system Mpa(psi)
|
14/0.833-0.93(2002/119.12-133)
|
14/0.833-0.93(2002/119.12-133)
|
14/0.833-0.93(2002/119.12-133)
|
14/0.833-0.93(2002/119.12-133)
|
14/0.833-0.93(2002/119.12-133)
|
|||||
|
Substructure
|
ZT1470/3.7-S telescoping substructure
|
ZT1470/4.5-S telescoping substructure
|
ZT1690/4.5-Z foldable substructure
|
ZT2250/5-Z foldable substructure
|
ZT3000/6.7-Z foldable substructure
|
|||||
|
Rotary table
|
ZP175(ZP105)
|
ZP175
|
ZP175
|
ZP205
|
ZP275
|
|||||
|
Travelling block
|
YG150
|
YG150
|
YG150
|
YG170
|
YG225
|
|||||
|
Swivel
|
SL120
|
SL135(SL160)
|
SL160
|
SL225
|
SL225
|
|||||
