API Stamped Solid Casing Rigid Centralizer
Piece
Negotiable
Product information
High-quality API Stamped Solid Casing Rigid Centralizer supplied by Puyang Zhongshi Group Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
HS Code:
0
Rigid Casing Centralizer Size 06:
10-3/4"
Production Capacity:
1000PCS/Month
Rigid Casing Centralizer Size 01:
4-1/2"
Rigid Casing Centralizer Size 02:
5"
Rigid Casing Centralizer Size 03:
5-1/2"
Rigid Casing Centralizer Size 04:
7"
Rigid Casing Centralizer Size 05:
9-5/8"
Specifications
HS Code:
0
Rigid Casing Centralizer Size 06:
10-3/4"
Production Capacity:
1000PCS/Month
Rigid Casing Centralizer Size 01:
4-1/2"
Rigid Casing Centralizer Size 02:
5"
Rigid Casing Centralizer Size 03:
5-1/2"
Rigid Casing Centralizer Size 04:
7"
Rigid Casing Centralizer Size 05:
9-5/8"
Model NO.:
API
Specification:
API Solid Rigid Centralizer Standard
Origin:
China
Trade Term:
FOB, CIF, CFR
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Qingdao Port
Casing Centralizer Type 03:
Rigid Casing Centralizer
Casing Centralizer Type 04:
Steel Rigid Casing Centralizer
Casing Centralizer Type 02:
Straight Blade
Casing Centralizer Type 01:
Straight Vane
Transport Package:
Wooden Case
Trademark:
ZHONGSHI
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
1997-12-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
CCC
Product descriptions from the supplier
Product information:

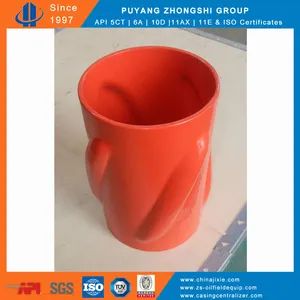

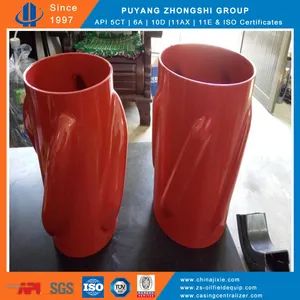

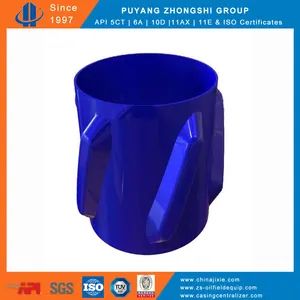

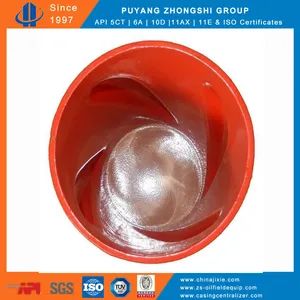

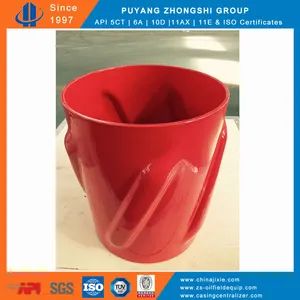

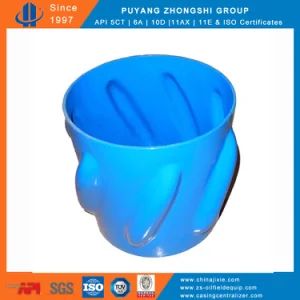

Straight vane/blade steel solid rigid casing centralizers provide ultimate drag adn torque reduction with maximum fluid bypass.With low friction factor straight blade steel solid casing centralizers withstand high wellbore temperatures while providing maximum horizontal standoff.Staight blade steel solid casing centralizers are wellhead friendly and have high impact with shock resistance along with optimum tensile and yield strength.
If the casing will be rotated or reciprocated during cementing operations, the Straight blade centralizer can float on the casing joint between the stop collars.
The Straight vane/blade solid rigid centralizer is normally 8" long, but it can be manufactured to any length the customer requires. These centralizers are available with or without set screws for eliminating of stop collars.
Straight vane/blade solid rigid casing centralizers are available for casing Sizes 4 ½" to 20".
Casing Centralizer Technical Parameters:
Our Services
Our products and services are closely related to oil drilling and oil well cementation. Our products include integral casing centralizer, welded casing centralizer, bow spring centralizer, float shoe, float collar, Suck Rod Pump, api pumping unit, Thread Protector, Thread Gauge, Api Valve Ball and Valve Seat, coupling and pump plungers.
Packing and Shipping
Wooden case, standard export packaging, firm enough for long distance sea-shipped, air transportation and even railway transportation.
Company information
The predecessor of Henan Puyang Zhongshi Group Co.,Ltd. was the 5th Machine Repairing Factory of Puyang Zhongyuan Oil field, Sinopec Corp. In 1997, after being restructured according to the modern corporate system, the factory was named Puyang Zhongshi Group Co.,Ltd.
With registered capital of 60,840,000 yuan, Puyang Zhongshi Group is composed of 9 subsidiaries, including 8 manufacturers and 1 trade company. Zhongshi Group covers an area of 200,000 sq.m, including workshop area of 50,000 sq.m. Various kinds of production equipment values 38,600,000 yuan. It has a strong mechanical processing capability.
Our leading products are pumping unit , wellhead (X-mas tree), tubing pump & sucker rod pump, cementing accessories, down-hole tools,casing centralizer, drilling solid control series,float collar, pressure vessel ,camping house, air cannon, belt feeder ,float shoe and so on. They are mainly supplied to Central Asia, Southeast Asia, Africa and Middle East and many other countries.
Zhongshi Group has been the Tier One internet service provider of Sinopec. We passed ISO9001 quality management system certification and got approved to use API monograms on its oil machineries. So far, we have attained API 5CT, API 10D, API 11AX, API 11E and more are applying for.
With strong technical backup, reliable product quality, advanced marketing regime and good service system, this company wins popularity and recognition of vast consumers home and abroad.
Straight vane/blade steel solid rigid casing centralizers provide ultimate drag adn torque reduction with maximum fluid bypass.With low friction factor straight blade steel solid casing centralizers withstand high wellbore temperatures while providing maximum horizontal standoff.Staight blade steel solid casing centralizers are wellhead friendly and have high impact with shock resistance along with optimum tensile and yield strength.
If the casing will be rotated or reciprocated during cementing operations, the Straight blade centralizer can float on the casing joint between the stop collars.
The Straight vane/blade solid rigid centralizer is normally 8" long, but it can be manufactured to any length the customer requires. These centralizers are available with or without set screws for eliminating of stop collars.
Straight vane/blade solid rigid casing centralizers are available for casing Sizes 4 ½" to 20".
Casing Centralizer Technical Parameters:
| No. | Type | Inside diameter (mm) | Height (mm) | Total height (mm) | Largest diameter (mm) |
| 1 | 5"*12-1/4" | 128-131 | 105 | 690 | 330 |
| 2 | 5"*20" | 128-131 | 105 | 720 | 535 |
| 3 | 5-1/2"*7" | 142-148 | 55 | 650 | 215 |
| 4 | 5-1/2"*8-1/2" | 142-148 | 55 | 650 | 225 |
| 5 | 6"*8-1/2" | 156-158 | 55 | 650 | 235 |
| 6 | 7"*8-1/2" | 181-186 | 55 | 650 | 235 |
| 7 | 7"*9-5/8" | 181-186 | 55 | 650 | 255 |
| 8 | 7-5/8"*9-5/8" | 197-201 | 55 | 650 | 275 |
| 9 | 9-5/8"*12-1/4" | 250-255 | 55 | 650 | 330 |
| 10 | 13-3/8"*17-1/2" | 342-347 | 55 | 650 | 450 |
| 11 | 5-1/2"*8-1/2" | 142-148 | 110 | 650 | 225 |
| 12 | 7"*9-5/8" | 181-186 | 110 | 650 | 255 |
| 13 | 7"*8-1/2" | 181-186 | 110 | 650 | 235 |
| 14 | 5"*6-1/2" | 128-131 | 110 | 650 | 175 |
| 15 | 7-5/8"*9-1/2" | 196-200 | 110 | 650 | 250 |
| 16 | 10-3/4"*12-1/4" | 274-276 | 110 | 650 | 330 |
| 17 | 5"*6-1/4" | 130-132 | 110 | 650 | 170 |
| 18 | 9-5/8"*12-1/4" | 250-255 | 110 | 650 | 330 |
| 19 | 13-3/8"*17-1/2" | 342-347 | 110 | 650 | 450 |
| 20 | 5-1/2"*8-1/2" | 142-148 | 55 | 650 | 225 |
Our Services
Our products and services are closely related to oil drilling and oil well cementation. Our products include integral casing centralizer, welded casing centralizer, bow spring centralizer, float shoe, float collar, Suck Rod Pump, api pumping unit, Thread Protector, Thread Gauge, Api Valve Ball and Valve Seat, coupling and pump plungers.
Packing and Shipping
Wooden case, standard export packaging, firm enough for long distance sea-shipped, air transportation and even railway transportation.
Company information
The predecessor of Henan Puyang Zhongshi Group Co.,Ltd. was the 5th Machine Repairing Factory of Puyang Zhongyuan Oil field, Sinopec Corp. In 1997, after being restructured according to the modern corporate system, the factory was named Puyang Zhongshi Group Co.,Ltd.
With registered capital of 60,840,000 yuan, Puyang Zhongshi Group is composed of 9 subsidiaries, including 8 manufacturers and 1 trade company. Zhongshi Group covers an area of 200,000 sq.m, including workshop area of 50,000 sq.m. Various kinds of production equipment values 38,600,000 yuan. It has a strong mechanical processing capability.
Our leading products are pumping unit , wellhead (X-mas tree), tubing pump & sucker rod pump, cementing accessories, down-hole tools,casing centralizer, drilling solid control series,float collar, pressure vessel ,camping house, air cannon, belt feeder ,float shoe and so on. They are mainly supplied to Central Asia, Southeast Asia, Africa and Middle East and many other countries.
Zhongshi Group has been the Tier One internet service provider of Sinopec. We passed ISO9001 quality management system certification and got approved to use API monograms on its oil machineries. So far, we have attained API 5CT, API 10D, API 11AX, API 11E and more are applying for.
With strong technical backup, reliable product quality, advanced marketing regime and good service system, this company wins popularity and recognition of vast consumers home and abroad.
