Achromatic Lens/Plano Convex Lens/Optical Mirror Origin China Trademark Raytek HS Code 9002909090 Model NO. RAY-LH393# Customized
100-499 Piece
$25500-999 Piece
$201000 Piece
$10Product information
High-quality Achromatic Lens/Plano Convex Lens/Optical Mirror Origin China Trademark Raytek HS Code 9002909090 Model NO. RAY-LH393# Customized supplied by Shanghai Rui Tai Photoelectric Technology Co., Ltd.. Bulk wholesale pricing ranges from $10 to $25 per Piece with a minimum order of 100 Piece. Inquiry for latest prices.
Production Capacity:
100000PCS Per Year
Specification:
12.7mm/25.4mm/50.8mm or custom manufacturing
Surface Quality:
40-20 Scratch-Dig or Custom Manufacturing
Wavelength Range:
488-694 Nm/700-950nm
HS Code:
9002909090
Transport Package:
Cartons or Wood Case
Origin:
China
Customized:
Customized
Specifications
Production Capacity:
100000PCS Per Year
Specification:
12.7mm/25.4mm/50.8mm or custom manufacturing
Surface Quality:
40-20 Scratch-Dig or Custom Manufacturing
Wavelength Range:
488-694 Nm/700-950nm
HS Code:
9002909090
Transport Package:
Cartons or Wood Case
Origin:
China
Customized:
Customized
Shape:
Cylindrical Shaped Lens
Coating Type:
Dielectric Coating
Trade Term:
FOB, CIF, CFR
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Surface Flatness:
Lambda/10 at 632.8nm with Power Removed
Material:
Optical Glass
Model NO.:
RAY-LH393#
Trademark:
Raytek
Certification:
RoHS, ISO9001, CE
Port Of Loading:
Shanghai Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-04-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
5
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
General introduction:Chromatic aberration is caused by the difference in dispersion and refractive index of light of different wavelengths in glass, resulting in different focal points of light of different wavelengths. Using the combination of different materials, the dispersion of each glass can be compensated by the other glass, so that the overall chromatic aberration is minimized.

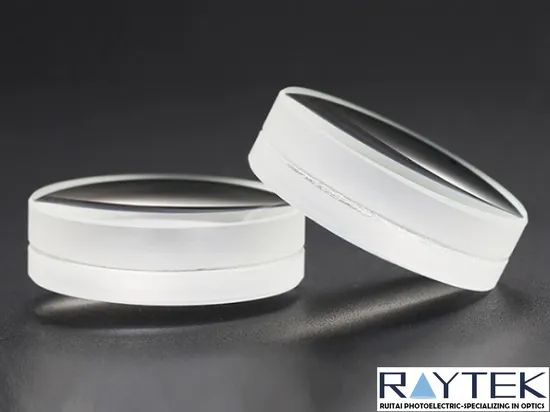

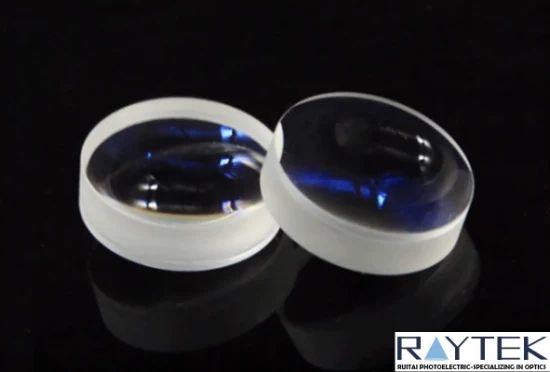

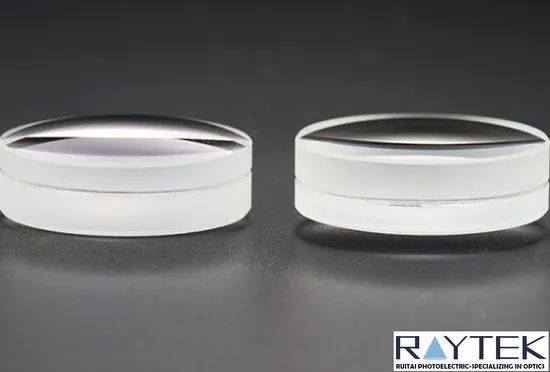

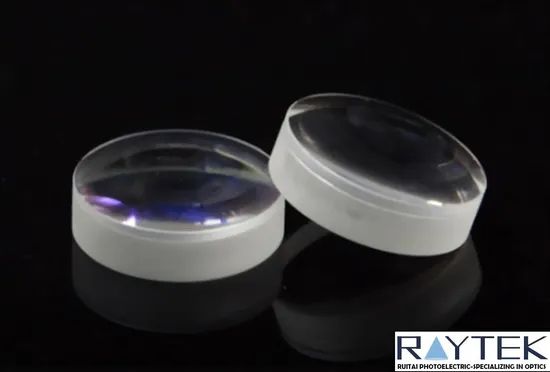

Achromatic lenses are made by cementing convex and concave lenses made of two glasses with different optical properties. Crown glass with smaller refractive index and larger dispersion power is commonly used to make convex lenses, and flint glass with larger refractive index and smaller dispersion power is used to make concave lenses. Achromatic lenses generally can only overlap the image points of the two main colors that are considered to be the main colors to eliminate the chromatic aberration of the two colors.
Product Description:Achromatic Lenses, also known as doublet lenses, are made of two concave and convex lenses with different refractive indices and different dispersion rates, which can minimize or eliminate chromatic aberration. For better performance, generally the side with the larger radius of curvature (the flat side) should face away from the collimated beam. Chromatic aberration originates from the difference in dispersion and refractive index of light with different wavelengths in the transmission material, so that light with different wavelengths converges at different focal points. The double cemented achromatic lens is designed by cementing different material lenses to make the dispersion of the two materials. Compensate each other, thereby reducing the comprehensive chromatic aberration.
The achromatic design also helps to improve the imaging aberration of the light source (composite light source) with a wide wavelength range, improves the spherical aberration under the appropriate curvature radius, and can simultaneously improve the coma aberration under the condition of any material selection. Compared with optical systems using a single lens, achromatic lenses have sharper images and can form smaller light spots, further improving the optical performance of the lens. Achromatic lenses are suitable for a variety of applications such as fluorescence microscopy, image relay, detection or spectroscopy.
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
Achromatic lenses are made by cementing convex and concave lenses made of two glasses with different optical properties. Crown glass with smaller refractive index and larger dispersion power is commonly used to make convex lenses, and flint glass with larger refractive index and smaller dispersion power is used to make concave lenses. Achromatic lenses generally can only overlap the image points of the two main colors that are considered to be the main colors to eliminate the chromatic aberration of the two colors.
Product Description:Achromatic Lenses, also known as doublet lenses, are made of two concave and convex lenses with different refractive indices and different dispersion rates, which can minimize or eliminate chromatic aberration. For better performance, generally the side with the larger radius of curvature (the flat side) should face away from the collimated beam. Chromatic aberration originates from the difference in dispersion and refractive index of light with different wavelengths in the transmission material, so that light with different wavelengths converges at different focal points. The double cemented achromatic lens is designed by cementing different material lenses to make the dispersion of the two materials. Compensate each other, thereby reducing the comprehensive chromatic aberration.
The achromatic design also helps to improve the imaging aberration of the light source (composite light source) with a wide wavelength range, improves the spherical aberration under the appropriate curvature radius, and can simultaneously improve the coma aberration under the condition of any material selection. Compared with optical systems using a single lens, achromatic lenses have sharper images and can form smaller light spots, further improving the optical performance of the lens. Achromatic lenses are suitable for a variety of applications such as fluorescence microscopy, image relay, detection or spectroscopy.
| Diameter | 3.00mm |
| Center Thickness | Tc(mm)2.90mm |
| Edge thickness | Te(mm)2.32mm |
| Focal length | EFL4.00mm |
| Coating | Ravg<0.5% @400~700nm |
| Material | H-ZBAF52/H-ZF7LA |
| Applicable Lens Mounting Ring | N/A |
| Diameter Error | +0.0/-0.1 |
| Center thickness error | ±0.2mm |
| Focal length error | (EFL) ±2% |
| Lens centering error | 3~5 points |
| Surface finish | 3~4 grades |
| Chamfer | 0.2mmX45° |
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
