Advanced 12 Leads Wireless ECG Stress Testing System with Software
Piece
Negotiable
Product information
High-quality Advanced 12 Leads Wireless ECG Stress Testing System with Software supplied by Yangzhou Kindsway Biotech Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Lead:
12-Lead
Production Capacity:
500 Units/Week
HS Code:
901811009
Specification:
94mm(L) *66mm(W)*31mm(H)
Group:
All
Certification:
CE, ISO13485
Transport Package:
Carton
Origin:
China
Specifications
Lead:
12-Lead
Production Capacity:
500 Units/Week
HS Code:
901811009
Specification:
94mm(L) *66mm(W)*31mm(H)
Group:
All
Certification:
CE, ISO13485
Transport Package:
Carton
Origin:
China
Model NO.:
EC8000S
Trade Term:
FOB, CIF, EXW
Trademark:
SANSHUN
Port Of Loading:
Shanghai
Payment Term:
T/T, Western Union
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-09-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, Western Union
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
Shanghai
Certificates:
business license
Product descriptions from the supplier
Introduction
Features
2. Observation of the changes of ST segment in real-time, enlargement display of user selected lead, automatic calculation of ST related data.
3. Stress ECG Adopt anti-interference technology to ensure the stabilization of baseline, reduce the effect on ECG waveform from EMG interference, baseline drift and AC interference.
4. Available for both standard and user-defined exercise scheme, automatic instantaneous notice of print and BP measure can be set according to exercise phrase.
5. Operator can mark events during exercise, the ECG waveform of marked event can be compared with current waveform. The event can be observed, edited and printed after excise.
6. Display and print of all kinds of trend chart. Mainly including: HR, BP, METS, HR*BP, exercise trend, ST segment level/influence/slope/3D/J level and ST/HR, etc.
7. Dynamic/static review function after exercise, representation of the whole exercise testing process.
8. Case Import/Export function. Compress the case for storage, which takes up less disk space. The compressed case shall be associated with the file type in operation system. This will make the import operation much more simple and quick.
9. System setting function includes multiple setting items. For example, switching Chinese/English language, format and mode of displaying waveform (12 leads * 1column / 6leads * 1column / 6leads * 2columns / 3leads * 2columns / 3 leads * 1column, etc), color of background, print related setting, filter setting and displaying of optional parameters, etc.
10. Provide multiple functional tools, which are used for device management, cases statistics and other operations.
11. Wireless mode of ECG data sampling, improves the anti-interference capability.

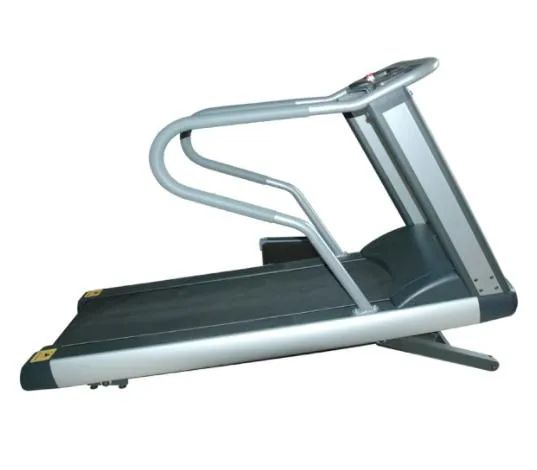

12. Supportive for variety types of exercise equipment
Performance
| Patient leak current | <10µA |
| Input impedance | ≥50MΩ |
| Frequency response | 0.05Hz~150Hz (-3dB~+0.4dB) |
| Time constant | ≥3.2s |
| Common mode rejection ratio (CMRR) | >60dB, >100dB (filter on) |
| Calibration voltage | 1mV |
| Sampling frequency | max. 1000 Hz |
| Sampling accuracy | max. 24bits |
| Input loop current | ≤50nA |
| Polarization resistance voltage | ±500mV |
| Noise level | ≤15µVp-p |
| Safety type | internally powered equipment, type BF |

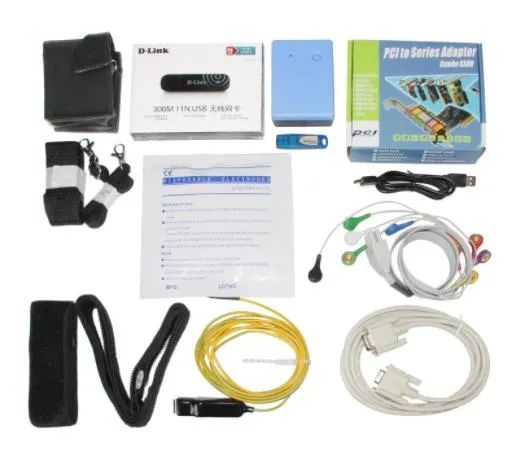

Accessories

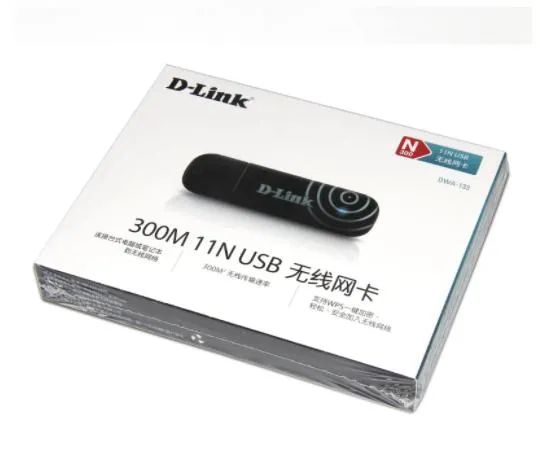

1.Wireless network card 1pc2.Lead cables 1pc
3.Electrodes 1pc
4.Grounding wire 1pc
5.Velcro 2pcs
6.Serial-port cable 1pc
7.CD 1pc
8.Software dog 1pc

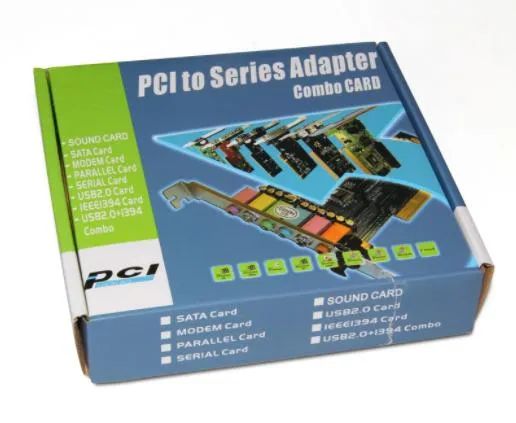

9.Serial-port card 1pc
Physical Characteristic(host)
Dimension: 94mm(L) *66mm(W)*31mm(H)Weight: about 94.6g (without battery)
