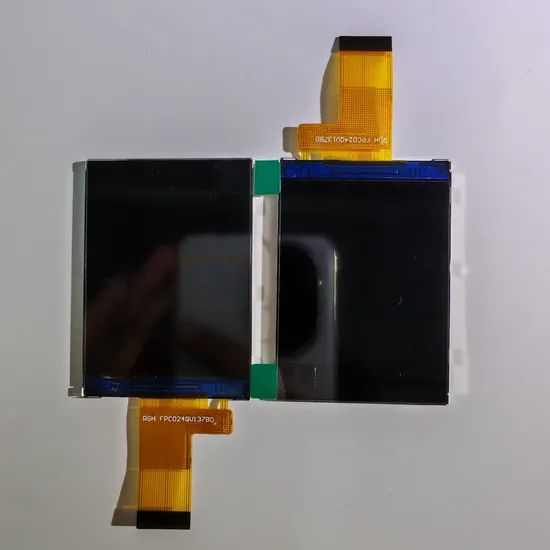

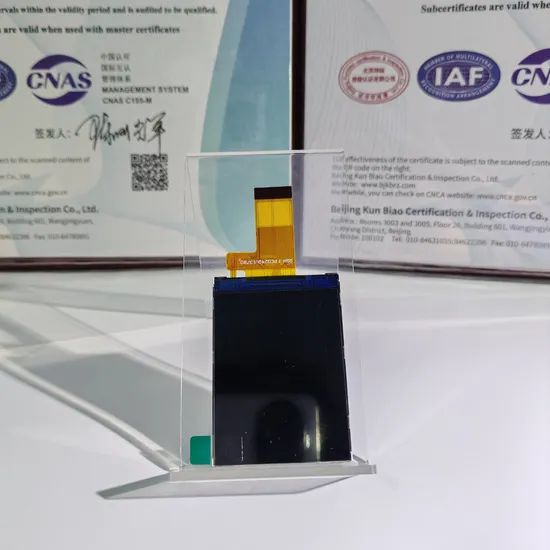

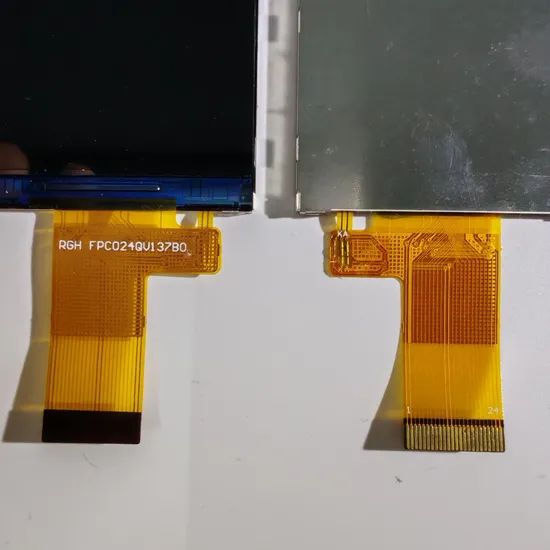

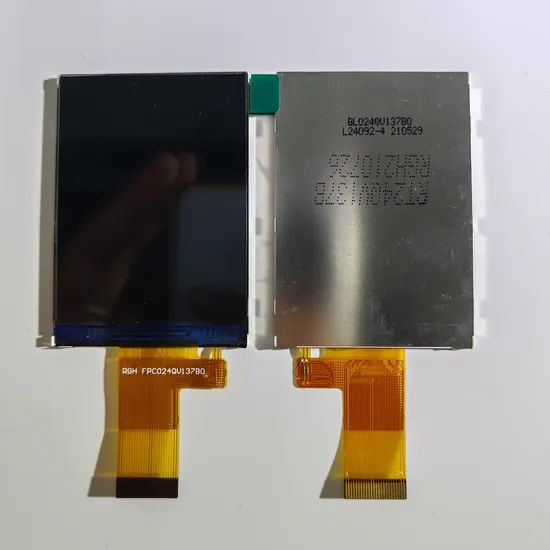

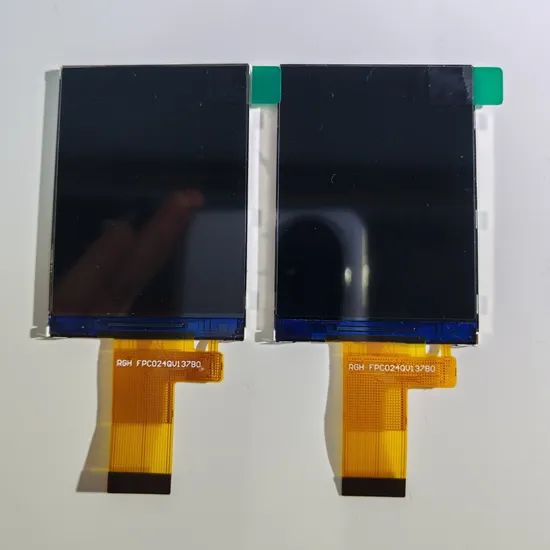

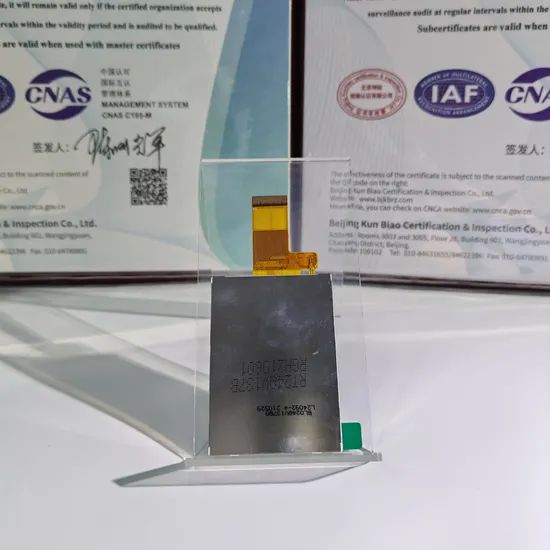

Advanced 2.4" 262K Color LCD Display Module for Embedded Systems
1 Piece
$2Product information
High-quality Advanced 2.4" 262K Color LCD Display Module for Embedded Systems supplied by Shenzhen Rongguanghui Optoelectronics Technology Co., Ltd. Bulk wholesale pricing is $2 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Optimum Resolution:
240*320
Production Capacity:
3000
Specification:
30cm x 40cm
Active Area:
36.72(W)X48.96(H)
LCM Outline Dimension:
40.85(H)X57.45(W)X3.21(T)
Response Time:
50
Aspect Ratio:
5:4
Viewing Direction:
All
Specifications
Optimum Resolution:
240*320
Production Capacity:
3000
Specification:
30cm x 40cm
Active Area:
36.72(W)X48.96(H)
LCM Outline Dimension:
40.85(H)X57.45(W)X3.21(T)
Response Time:
50
Aspect Ratio:
5:4
Viewing Direction:
All
Transport Package:
Box
Origin:
China, Shen Zhen
Trade Term:
FOB, CIF, CFR, EXW
Driving IC:
Ili9340X
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Feature:
LED Backlight Display
3D:
Not 3D
Interface Type:
RGB
Model NO.:
RTP24QV137B
Port Of Loading:
Shenzhen Port
Type:
TFT
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
17
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
Others, ISO14001
Product descriptions from the supplier
| LCD MODULE PHYSICAL DATA General Description |
|||||||
| ltem | Standard Value | Unit | |||||
| LCD Type | Transmissive TFT,262K color | --- | |||||
| Number of Dots | 240X(RGB)X320 | --- | |||||
| Viewing Direction | ALL | o'clock | |||||
| LCM Outline Dimension | 40.85(H)X57.45(W)X3.21(T) | mm | |||||
| Viewing area | 37.72(W)X49.96(H) | mm | |||||
| Active area | 36.72(W)X48.96(H) | mm | |||||
| Operating temperature | -20ºC~70ºC | --- | |||||
| Storage temperature | -30ºC~80ºC | --- | |||||
| Driving IC | ILI9340X | --- | |||||
Approx.weight |
TBD | g | |||||
| The backlight electrical-optical characteristics | |||||||
| ltem | Symbol | Min | Typ | Max | Unit | Unit | |
| Forward voltage | Vf | 2.9 | 3.0 | 3.1 | V | lf=80mA/Ta=25ºC | |
| Uniformity | △Bp | 80 | % | ||||
| Luminance for LCD | Lv | 8000 | Cd/m^2 | f=80mA/Ta=25ºC | |||
| ELECTRO-OPTICAL CHARACTERISTICS | |||||||
| ltem | Symbol | Condition | Min | Typ | Max | Unit | Remark |
| Response time | Tr+Tf | O=0°; φ=0°; |
TBD | ms | Note4 | ||
| Contrast ratio | Cr | - | Note3 | ||||
| Luminance uniformity |
δ WHITE |
88 | % | Note7 | |||
| Surface luminance | Lv | 400 | cd/m² | Note6 | |||
| View angle range (with polarizer) |
Top | CR≥10 | 80 | Degree | Note5 | ||
| Bottom | 80 | ||||||
| Left | 80 | ||||||
| Right | 80 | ||||||
| CIE (X,Y) | Rx | O=0° | TBD | Note8 | |||
| Ry | TBD | ||||||
| Gx | TBD | ||||||
| Gy | TBD | ||||||
| Bx | TBD | ||||||
| By | TBD | ||||||
| Wx | TBD | ||||||
| Wy | TBD | ||||||
FAQ
1. What are your payment terms?
A: We typically accept T/T and PayPal. Other payment terms can be negotiated based on mutual agreement.
2. What is the lead time?
A: For sample orders, the lead time is usually 3 to 5 days if the items are in stock. For mass production, it typically takes 3 to 5 weeks, depending on the quantity and product specifications.
3. Do you support custom logos on LCMs?
A: Yes, we offer custom logo printing on LCMs. Please send us your detailed inquiry, and our sales team will get in touch with you as soon as possible.
4. How can I place a sample order?
A: Simply send us your inquiry, and our sales team will contact you promptly to assist with your order.
5. What sizes of LCD displays do you offer?
A: We provide TFT LCD displays ranging from 0.96 inches to 21.5 inches.
6. What is your minimum order quantity (MOQ)?
A: Our standard MOQ is 1,000 units, as we are a manufacturer specializing in LCD displays.
7. What shipping methods do you offer?
A: Shipping options can be discussed based on your preferences and requests.
