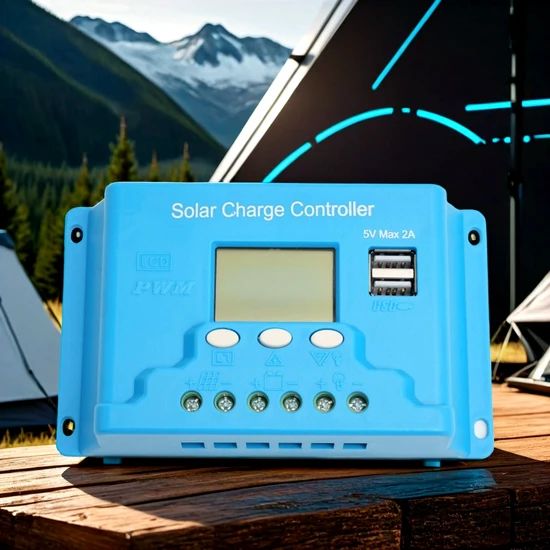

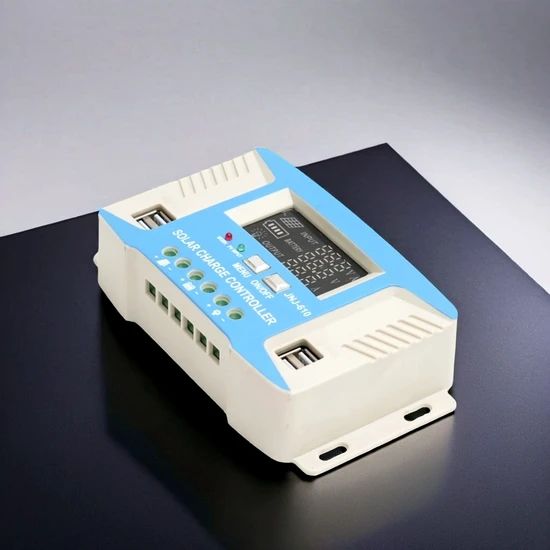

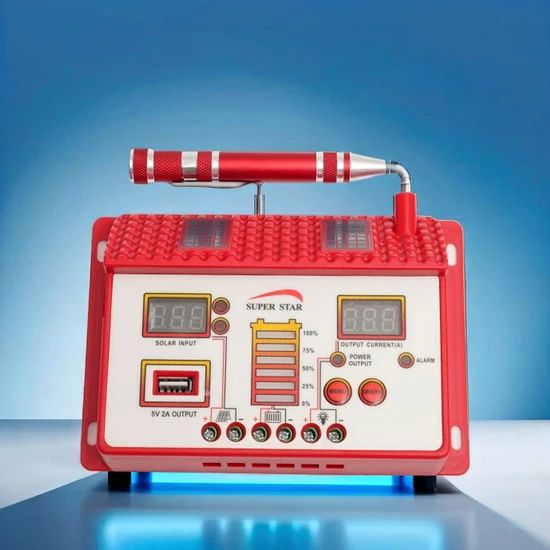

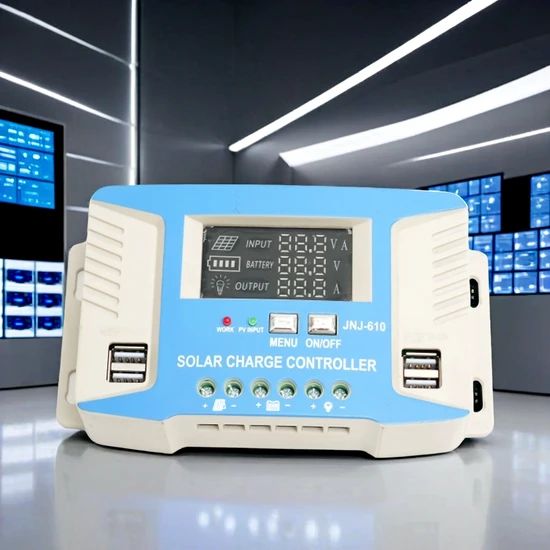

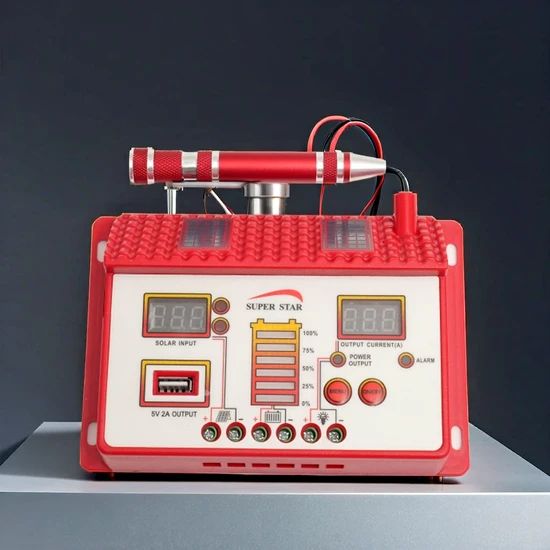

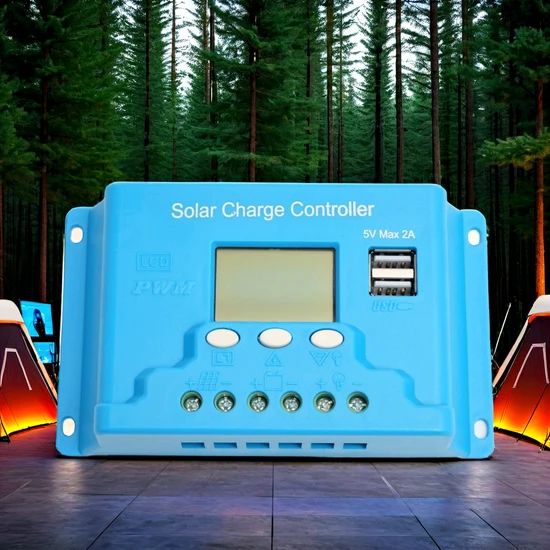

Advanced 24V Solar Charge Controller with Overcharge Protection

1.What is a solar controller?
A solar charge regulator is a component that regulates the flow of electricity between photovoltaic panels and storage batteries. It ensures batteries aren’t subjected to excessive charging or discharging, enhances their longevity, and improves the overall performance of the solar power setup.

2.What is the role of a solar controller?
Charging management: Controls the process of charging the battery by the solar panels to prevent overcharging.
Discharge protection: Prevents the battery from over-discharging and protects the battery life.
Load control: Manages the power supply to the loads (such as lights, devices) connected to the controller.
System monitoring: Some controllers provide functions for displaying and monitoring data such as voltage, current, and battery capacity.

3.What is the difference between a PWM controller and an MPPT controller?
PWM controller:
Directly reduces the voltage of the solar panels to the battery voltage, with relatively low efficiency.
Suitable for small-scale systems or situations with limited budgets.
MPPT controller:
Maximizes the output power of the solar panels by dynamically adjusting the operating point.
Has higher efficiency and is especially suitable for high-power systems or low-temperature environments.

4.What types of batteries can a solar controller be used with?
Most solar controllers support multiple battery types, including:
Lead-acid batteries (sealed type, open type)
Lithium batteries (lithium iron phosphate, ternary lithium, etc.)
Gel batteries

5.When choosing, you need to confirm whether the controller supports your battery type.
Does a solar controller have overload protection?
Absolutely, the majority of solar controllers include overload protection. If the current drawn by the load surpasses the controller’s specified limit, it automatically stops power delivery to safeguard the entire setup.

6. How does a solar controller work at night?
During nighttime, the solar controller halts charging and regulates the battery's power delivery to the connected devices as per predefined parameters, ensuring the battery doesn't drop below safe levels.
