Advanced CNC Copy Router for Precision Aluminum Window Profiles
1 Set
$48,8881 Set
$51,888Product information
High-quality Advanced CNC Copy Router for Precision Aluminum Window Profiles supplied by Jinan Tianchen Smart Machine Co., Ltd.. Bulk wholesale pricing ranges from $48,888 to $51,888 per Set with a minimum order of 1 Set. Inquiry for latest prices.
X Axis Speed:
0-106m/Min
Y Axis Speed:
0-30m/Min
Z Axis Speed:
0-30m/Min
Positioning Accuracy:
0.1 mm
Production Capacity:
100 Sets Per Month
Maximum Processing Range:
160 X 160 X 3200 mm
X Axis Stroke:
3200mm
Z Axis Stroke:
350mm
Specifications
X Axis Speed:
0-106m/Min
Y Axis Speed:
0-30m/Min
Z Axis Speed:
0-30m/Min
Positioning Accuracy:
0.1 mm
Production Capacity:
100 Sets Per Month
Maximum Processing Range:
160 X 160 X 3200 mm
X Axis Stroke:
3200mm
Z Axis Stroke:
350mm
Number Of Clamp:
4
Transport Package:
40gp
Specification:
4500*2300 mm
Y Axis Stroke:
450mm
HS Code:
8461409000
Electric Spindle Power:
9.0kw
Automatic Grade:
Automatic
CNC Or Not:
CNC
Voltage:
Customized
Trade Term:
FOB, CFR, CIF, EXW
Model NO.:
GSXZ4D-CNC-3200
Certification:
ISO, CE
Origin:
Jinan. Shandong, China
Payment Term:
LC, T/T, PayPal
Condition:
New
Port Of Loading:
Qingdao
Trademark:
Tianchen
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-03-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Qingdao
Certificates:
Environmental Management System Certificate of Conformity, Information Security Management System Certificate of Conformity, Occupational Health And Safety Management System Certificate Of Conformity, Quality Management System Certificate Of Conformity, Welding machine
Product descriptions from the supplier

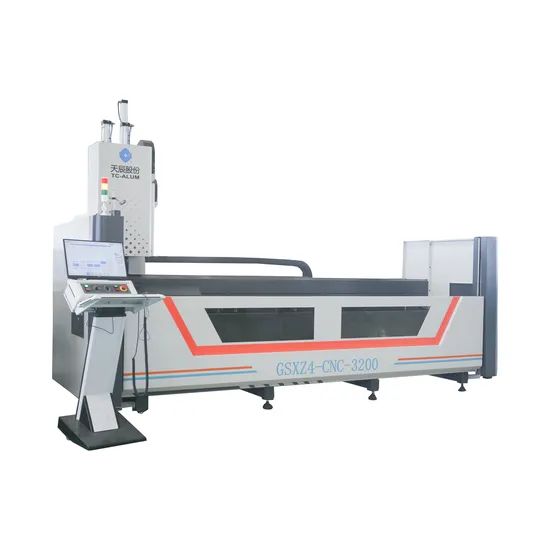

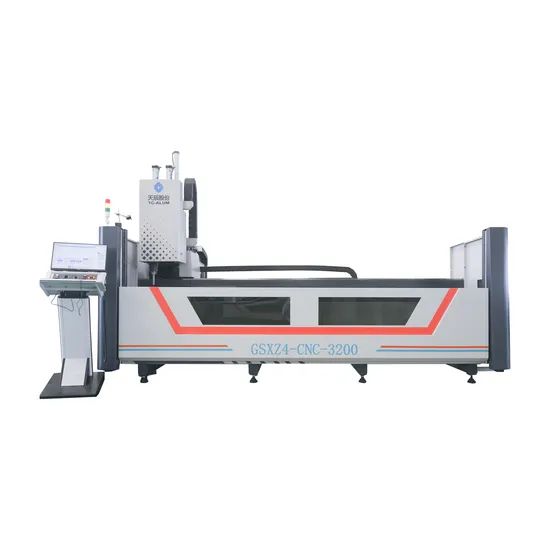

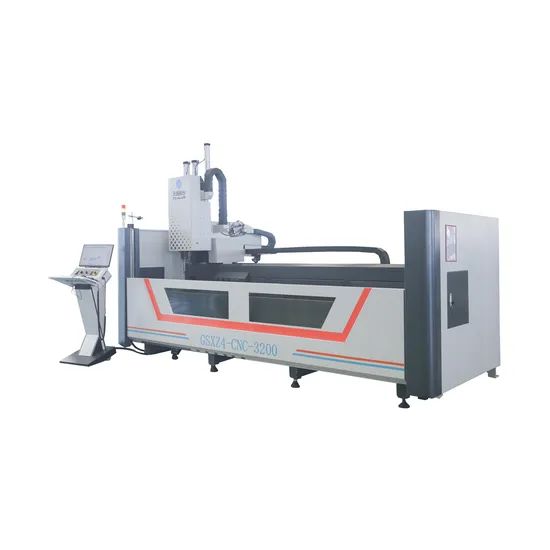

3m CNC Copy Router Milling Machine for Window Profile Aluminum Window Door Profile Drilling Milling Tapping Machining Center
1.Machine Characteristic
☆ Suitable for efficient CNC drilling and milling of various types of holes and grooves in aluminum
door and window profiles (including drainage grooves, locking holes, installation holes, injection holes,
pin holes, air pressure balancing holes, middle stile holes, etc.), and can also meet the oblique downward
cutting of hidden drainage grooves.

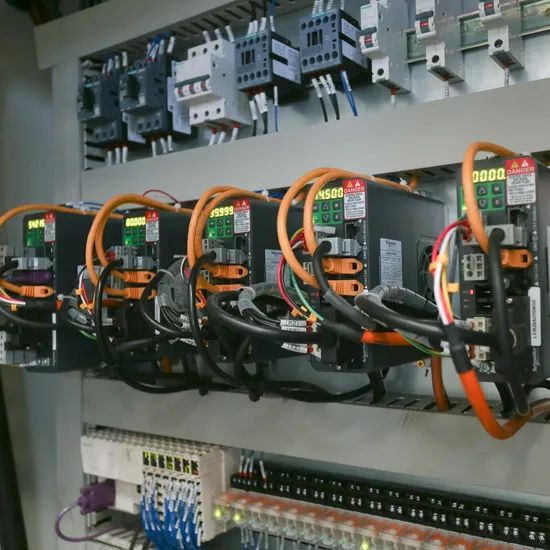

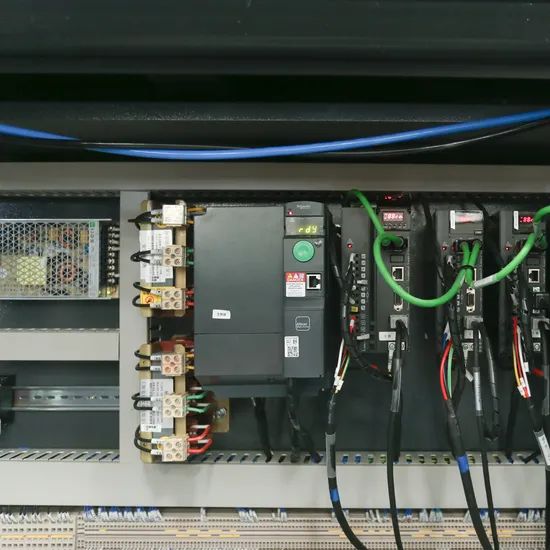

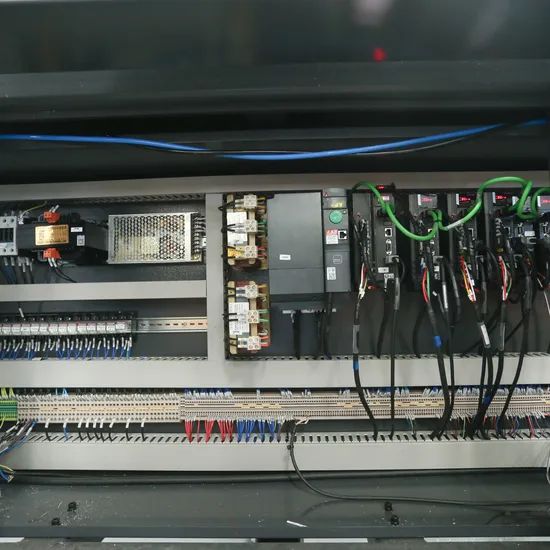

☆ Adopt high precision guide rail pair, ball screw, gear rack and imported high quality servo system,
make sure the stable working, with better positioning and processing accuracy.
☆The rotary worktable is driven by a servo motor for rotation, The rotary work table is able to change
among the -90°,0°, and 90°, realized the milling and drilling.
☆ The spindle is a 9.0kW high-speed automatic tool changing electric spindle, with stable and reliable
Performance.
☆ Each clamp is directly driven by servo motors, with the function of fast automatic displacement and
quick avoidance of position;
☆ Four position inline tool magazine, capable of automatic tool change for electric spindle;
☆ The CNC system can support online communication with MES to achieve automatic loading and
unloading of materials by robots;
☆ Install specialized auxiliary programming software, perform 3D graphical programming and
prefabricate multiple graphic blocks, making programming simple and intuitive;
☆ Adopting a semi enclosed cover and bottom receiving tray, it has high safety and effectively avoids
the pollution of aluminum shavings on the working environment, creating a good working environment;
Intelligent CNC system and simple and intuitive human-machine interface make operation more
convenient and fast.
2. Technical Parameters:
☆ X-axis stroke: 3200mm ☆ X-axis speed: 0-106m/min
☆ Y-axis stroke: 450mm ☆ Y-axis speed: 0-30m/min
☆ Z-axis stroke: 350mm ☆ Z-axis speed: 0-30m/min
☆ Electric spindle power: 9.0kW ☆ Number of clamp: 4
☆ Positioning accuracy: ± 0.1 mm ☆ Processing accuracy: ± 0.1 mm
☆ Processing roughness: Ra12.5um ☆ Cooling system: Micro atomization cooling
☆ Maximum processing range: 160 x 160 x 3200 mm
☆ Spindle taper : ISO30 ☆ Tool magazine capacity: 4 pieces
☆Air source: 0.5~0.8Mpa ☆ Power supply: 380V/50Hz
☆ Contour dimensional : 4500 x 2300mm ☆ Weight: 2500 kg
