Advanced Cold Roll Forming Machine for CZ Purlin Steel Frames
1 Set
$69,0001 Set
$28,000Product information
High-quality Advanced Cold Roll Forming Machine for CZ Purlin Steel Frames supplied by Xiamen Newrise Machinery Co., Ltd.. Bulk wholesale pricing ranges from $28,000 to $69,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Thickness:
1.5-3.0mm
Production Capacity:
1000set/Year
Forming Station:
21
Yield Strength:
235-500MPa
Production Speed:
25-30m/Min
Power:
30kw+7.5kw
Shipping Dimensions:
40FT Containers
Shaft:
80/90mm
Specifications
Thickness:
1.5-3.0mm
Production Capacity:
1000set/Year
Forming Station:
21
Yield Strength:
235-500MPa
Production Speed:
25-30m/Min
Power:
30kw+7.5kw
Shipping Dimensions:
40FT Containers
Shaft:
80/90mm
HS Code:
8455221000
Automatic Grade:
Automatic
Trademark:
Beenew
Certification:
CE, GS, ISO9001
Control Type:
CNC
Origin:
China
Roller Material:
Cr12
Customized:
Customized
Trade Term:
FOB
Cutting Type:
Hydraulic Cutting
Decoiler:
Manual/Hydraulic for Options
Condition:
New
Transport Package:
Standard Export Package
Payment Term:
To be discussed
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
Certificates
Product descriptions from the supplier
|
Item |
Parameters |
|
Driving Motor |
30KW |
|
Forming Speed |
25-30m/min |
|
Roller Material |
Gcr15/Cr12 |
|
Shaft Diameter |
φ80/90mm |
|
Shaft Material |
45# steel |
|
Pump Motor |
7.5KW |
|
Cutting Type |
Hydraulic Cutting |
|
Control System |
PLC |
Product Details
3 Ton*600 mm Hydraulic un-coiler
3-Ton Hydraulic Uncoiler
Uncoil Type: Hydraulic loosen and tension, Electric uncoiling
Maximum capacity: 3 Ton
Coil Inner-diameter: 480-510mm;
Coil Outer-diameter: 1300mm
Structure: Steel plate and beam welded
Function: Supporting and uncoiling the steel coils
Hydraulic Station Power: 3 KW
Uncoiling Electric Motor Power: 5.5 KW
3-Ton Hydraulic Uncoiler
Uncoil Type: Hydraulic loosen and tension, Electric uncoiling
Maximum capacity: 3 Ton
Coil Inner-diameter: 480-510mm;
Coil Outer-diameter: 1300mm
Structure: Steel plate and beam welded
Function: Supporting and uncoiling the steel coils
Hydraulic Station Power: 3 KW
Uncoiling Electric Motor Power: 5.5 KW

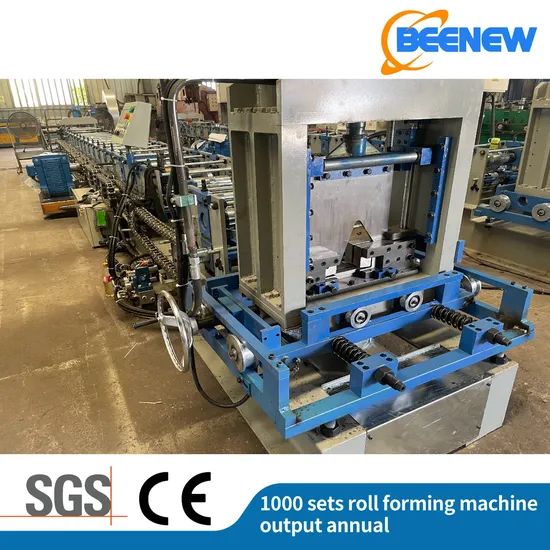

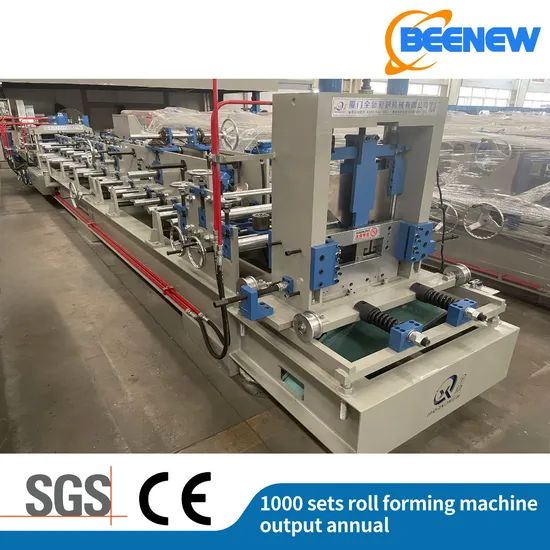

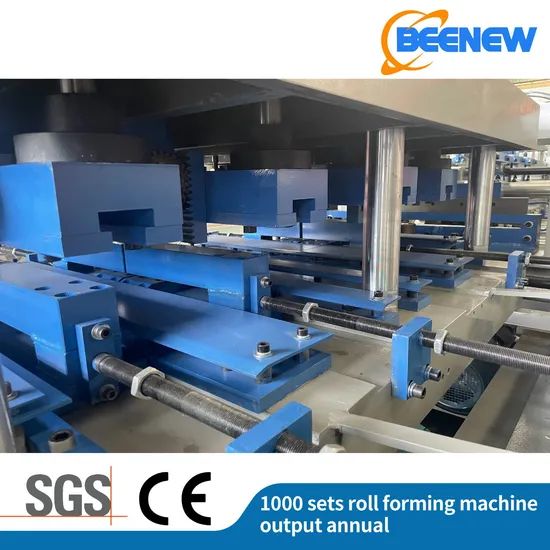

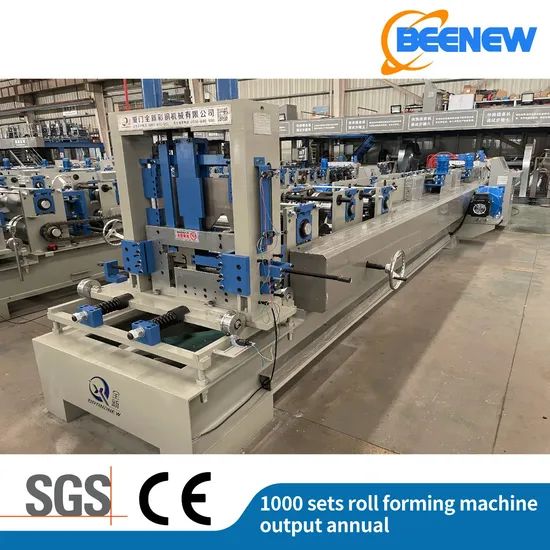

Roll Forming Machine
Machine base frame: 400mm H beam and chromed roll forming stands
Roll station: 21 forming steps
Roller material: 45# steel chrome plated surface with hardness 58-62 degree, CNC ,
Side Roller Material: 40Cr/Cr12
Shaft diameter: ¢80/90 mm, 45# steel. All spacers surface are chromed
Main motor: 30 kW
Transmission: 1.2 inch chain, To avoid accidents, all drive part adopt protect cover
Forming speed: Max. 30 m/min
Machine base frame: 400mm H beam and chromed roll forming stands
Roll station: 21 forming steps
Roller material: 45# steel chrome plated surface with hardness 58-62 degree, CNC ,
Side Roller Material: 40Cr/Cr12
Shaft diameter: ¢80/90 mm, 45# steel. All spacers surface are chromed
Main motor: 30 kW
Transmission: 1.2 inch chain, To avoid accidents, all drive part adopt protect cover
Forming speed: Max. 30 m/min

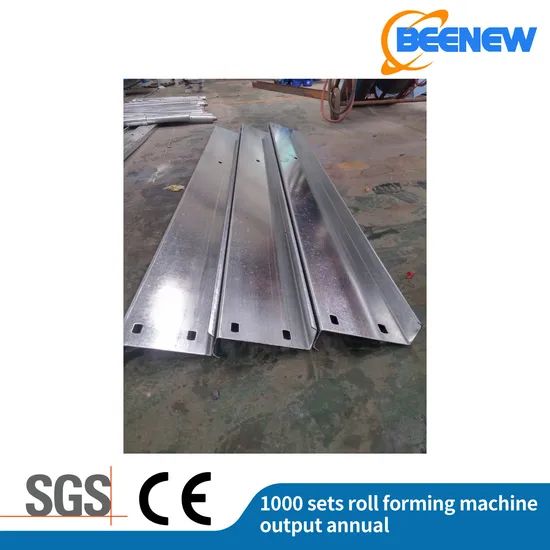

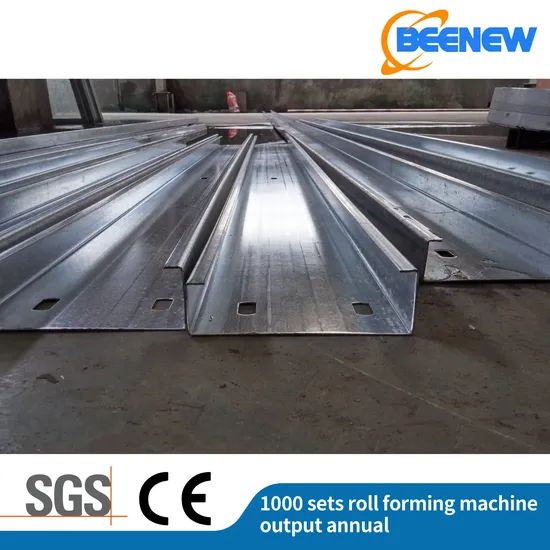

Sample
1. Metal Building Industry/PEB (Pre-Engineered Buildings)
HAYES-style Quick-Change CZ Purlin Machines (Automatic & Quick-Change C Purlin & Z Purlin Machines)
PU Sandwich Panel Production Line
Roof Panel Forming Machines
2. Door & Window Industry
Door Frame Forming Machines
Rolling Shutter Door Machines
3. Cable Tray Industry
Cable Ladder Forming Machines
4. Solar Industry
Solar Panel Frame/Solar PV Structure Forming Machines
5. Shelving & Storage Industry
Shelving Upright/Plate Roll Forming Production Lines
6. Customized Roll Forming Machines & Accessories
We also provide tailor-made roll forming solutions to meet specific customer requirements, along with essential accessories for enhanced productivity.
Xiamen Beenew Machinery is a branch company of Xiamen Brandnew Machinery. factory covers 30,000 square meters withmore than 200 employees.
Our company is the first Chinese manufacturer to use large-scale mass production in roll forming machine industry, and it is
also the only Chinese manufacturer's annual output meets 1000 sets and has gotten many patents in sheet roll forming industries in the past 28 years, includes: CZ interchange, automatic changeover, feeding device, rewinding device, transmission
device, cutting device, shearing device, leveling device, and many other patent certificates. They are all good for improving our
roll forming machine's performance.
Comprehensive Range of Metal Sheet Cold Roll Forming Machines & Solutions.
Why Choose Beenew Machinery?1.28+ Years of Expertise
One of China's TOP 3 high-end roll forming machine manufacturers & exporters
Exported 50+ countries
2. Certified Quality Assurance
ISO 9001 certified
CE certification (issued by sGs)
Italian rollforming technology for superior precision & durability
3. Large-Scale Production Capacity
8 factories (30000 m² total)
200+ skilled workers & 10+ machining centers
Factory-direct pricing & fast delivery
4. Industry-Leading Warranty & Support
2-year parts warranty
2-year labor warranty
24/7 customer service
