Advanced Dry and Wet Integration Laser Particle Analyzer for Precision Measurement
1 set
$14,800Product information
High-quality Advanced Dry and Wet Integration Laser Particle Analyzer for Precision Measurement supplied by Synotherm Ltd.. Bulk wholesale pricing is $14,800 per set with a minimum order of 1 set. Inquiry for latest prices.
Scanning Speed:
0-3950r/Min.Adjustable
Test Range:
0.1-1250 Um/0.01-2000 Um (Full Range Te
Appearance Size:
1040mm × 505mm × 335mm
Production Capacity:
500 Sets/Year
Instrument Weight:
50kg
HS Code:
9031499090
Humidity:
<85%
Power Supply:
AC 220V 50Hz or 60Hz
Specifications
Scanning Speed:
0-3950r/Min.Adjustable
Test Range:
0.1-1250 Um/0.01-2000 Um (Full Range Te
Appearance Size:
1040mm × 505mm × 335mm
Production Capacity:
500 Sets/Year
Instrument Weight:
50kg
HS Code:
9031499090
Humidity:
<85%
Power Supply:
AC 220V 50Hz or 60Hz
Repeatability Error:
Better Than 0.5%
Origin:
China
Filtering Method:
Dual Lens Filtering Technology, Fourier Transform
Trade Term:
FOB, EXW, CFR, CIF, CIP
Measurement Principle:
Full Range Laser Diffraction
Laser:
Imported High-Power Fiber Laser Output Semiconduct
Payment Term:
LC, T/T, Western Union
Concentration Range:
Minimum Shading 3%, Maximum Shading 90% (Optical C
Specification:
NKT6100-B
Model NO.:
NKT6100-B
Port Of Loading:
SHENZHEN, SHANGHAI, GUANGZHOU
Trademark:
SYNOTHERM
Measurement Time:
Typical Value of Measurement Time
Testing Method:
Wet Testing/Dry Testing

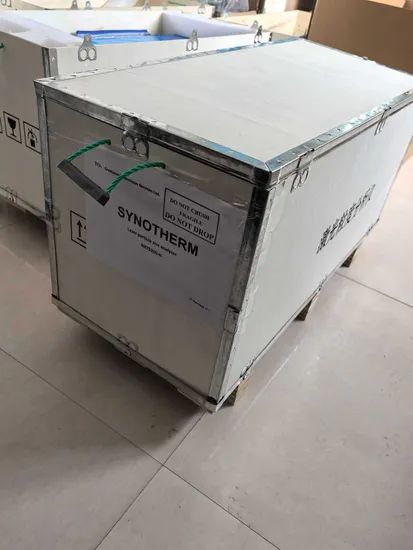

Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-05-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, CIP
Port Of Loading:
SHENZHEN, SHANGHAI, GUANGZHOU
Certificates:
CE CERTIFICATE of MICROWAVE SINTERING FURNANCE, Quality management system certificate
Product descriptions from the supplier
Product Overview
NKT6100-B integrates the world's leading Mie scattering theory with a focused light Fourier transform light path. By employing a dual-lens setup of Fourier transform and filter lenses, the device achieves precise measurement performance. A high-density sensor array combined with a continuous, full-spectrum testing approach guarantees consistent and repeatable outcomes. The innovative wet circulation and dispersion mechanism features a pipeline-free design, preventing particle buildup during testing and eliminating residual liquid after drainage, thus validating test precision across various samples and ensuring reliable results on repeat. Switching between dry and wet modes is fully automatic, requiring no manual intervention.
Scope Of Application
The NKT6100-B laser particle size analyzer finds broad application across a range of metallic and non-metallic powder applications including heavy calcium, light calcium, talc, kaolin, graphite, wollastonite, brucite, barite, mica, bentonite, diatomite, clay, silica, garnet, zirconium silicate, zirconia, magnesium oxide, zinc oxide, river silt, lithium battery components, catalysts, phosphors, cement, abrasives, pharmaceuticals, agrochemicals, foodstuffs, paints, dyes, ceramic precursors, chemical compounds, nanomaterials, paper coating fillers, and diverse emulsions, among others
Product Parameters
Measuring principle Full range laser diffraction
Particle size range 0.1 μ m-1250 μ m/0.01 μ m-2000 μ M (full range test)
Detection system 96/127 channel uniform cross and area compensated multidirectional array
Imported high-power fiber laser output semiconductor laser, wavelength 635nm, maximum power 20mw
Full range full Michaelis scattering theory of optical model, including high concentration multiple scattering dynamic compensation technology
Filtering mode Dual lens filtering technology, Fourier transform lens+filtering lens
Acquisition motherboard The sixth generation ultra-high speed acquisition motherboard 16bit, 200kps ultra-high speed acquisition motherboard
Concentration range: minimum shading 3%, maximum shading 90% (optical concentration)
Special coating process for sample cell, optical signal transmittance>99.7%
Optical alignment system Mechanical center+optical center double positioning automatic alignment system
Typical value of measurement time < 10s
The accuracy and repeatability of measurement Dv50 are better than ± 0.5% (NIST traceable standard sample)
Measurement mode SOP editable full-automatic measurement
Ambient temperature 0 ° C-45 ° C
Ambient humidity 10% - 85% relative humidity (no condensation)
Power supply requirements: 220V (± 20V), 50Hz - 60Hz
Executive standard GB/T19077-2016/ISO13320:2009
Appearance size 1040mm × 505mm × 335mm
Instrument weight 50kg
Technical Explanation
This instrument employs a state-of-the-art laser intelligence system to continuously track its operational status. Upon receiving a start signal, the system immediately activates the laser, which stabilizes to full performance in just 3 seconds. Following each sample analysis, the system automatically shuts down the laser, which remains stable and does not lose intensity. Theoretically, the particle size analyzer can operate indefinitely without requiring laser replacement.
In full intelligent mode, selecting the editable operation SOP triggers automatic execution of all steps including water supply, bubble release, baseline acquisition, sample distribution, data gathering, storage, and system cleansing. The user simply places the samples into the system, ensuring results remain fully independent of manual intervention.
Features include automatic prevention against accidental operation, ultrasonic dry-burn prevention, and overflow protection when water levels exceed limits.
In certain cases, samples using the auto-dispersant filling feature exhibit significant clumping, requiring targeted dispersant supplementation. Hand-based dispensing lacks precision and consistency. The automated system delivers the exact amount of dispersant needed, ensuring reliable and consistent test outcomes.
Dual lens system By combining a Fourier transform lens with a filter lens in a shared optical pathway, this design efficiently blocks unwanted ambient light, enhances the optical signal clarity, and boosts detection accuracy. High-speed processing board The board supports 16-bit precision, delivering reliable data when the sample is exposed to the laser for 0.1 seconds at a sampling rate of 200 kbps.
One button automatic switch between dry and wet, one button automatic completion, without any manual operation, ensuring the stability and reliability of the instrument.
Sample residue-free design The system's tubing and drainage layout was refined. No liquid remained in the tubing or the patented circulation pump, ensuring no interference with subsequent test results.
The new sample window swap system enables rapid replacement of the sample window, significantly simplifying and speeding up the changeover process (window disassembly takes just 10 seconds).
