Advanced FRP Tank Winding Machine for Ultimate Corrosion Protection
1 Set
$50,0002 Set
$48,0003 Set
$45,000Product information
High-quality Advanced FRP Tank Winding Machine for Ultimate Corrosion Protection supplied by Hebei Aoliande Chemical Equipment Co., Ltd.. Bulk wholesale pricing ranges from $45,000 to $50,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Package Gross Weight:
100.000kg
Production Capacity:
100set/Year
Package Size:
600.00cm * 200.00cm * 200.00cm
HS Code:
8477800000
Trademark:
ALD
Automation:
Automatic
Trade Term:
CIF, FOB, CFR, EXW
Origin:
China
Specifications
Package Gross Weight:
100.000kg
Production Capacity:
100set/Year
Package Size:
600.00cm * 200.00cm * 200.00cm
HS Code:
8477800000
Trademark:
ALD
Automation:
Automatic
Trade Term:
CIF, FOB, CFR, EXW
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Specification:
DN600-25000mm or customized
Model NO.:
DN600-25000mm or customized
Tank Marerial:
FRP GRP Fiberglass Reinforced Plastics
Product Name:
FRP Tank Filament Winding Making Machine
Production Situation:
Factory Production and Field Production
Production Process:
Filament Winding
Type:
High Pressure Storage & Transportation Equipment
Certification:
ISO9001, GS, CE SGS
Provided Services:
Installation and Commissioning, Training
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Support:
Lifetime Technical Support
Storage Objects:
Liquid
Condition:
New
Usage:
Produce FRP/GRP Tank
Video Outgoing Inspection:
Provided
Machinery Test Report:
Provided
Transport Package:
Seaworthy, According to Your Needs
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
Quality:
Top
Form:
Vertical and Horizontal
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-11-28
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
CIF, FOB, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
CE
Product descriptions from the supplier

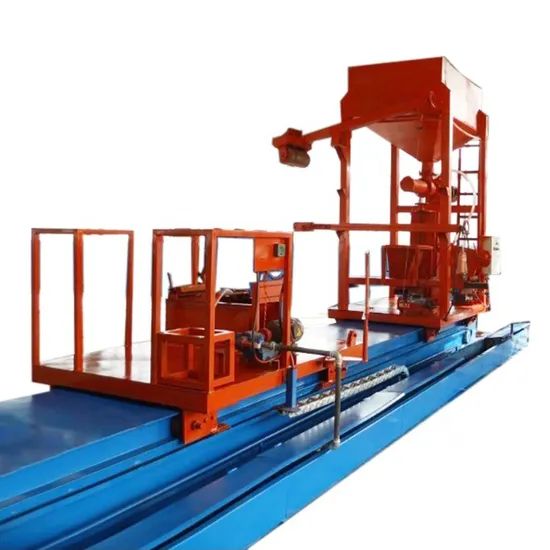

Brief Introduction of FRP Tank Filament Winding Machine
The whole set of filament winding machine is mainly used for fiberglass tanks making, such as grp horizontal tanks, grp vertical tanks, frp fuel tanks, ect.
FW-4000III computer control filament winding machine is our bestseller and the high-end product in our winding tank line!
Input parameters, the computer can automatically complete the winding, easy operation, small error, and its large diameter range, suitable for making storage tanks of various sizes! Ideal for new plants, plant expansions.
If you are interested in frp storage tank production line, kindly tell me the model number, the size and quantity of mold, and I will send you our catalogue and quotation, thank you!
|
Model number
|
Control
|
Maxi diameter (mm)
|
Maxi length
(mm)
|
Rang of idameter (mm)
|
Total power (kw)
|
Maxi width of roving sheet (mm)
|
Productivity (kg/h)
|
|
FW-4000III
|
computer
|
4000
|
12000
|
600~4000
|
10
|
150
|
500
|
|
JFW-1500
|
semi-automatic
|
1500
|
6000
|
25~1500
|
5.5
|
150
|
450
|
|
JFW-2500
|
semi-automatic
|
2500
|
12000
|
25~2500
|
7.5
|
150
|
500
|
1. FW-4000lll computer control filament winding machine
The key elements such as the transducer, servo system and photo electrical encoder are from Siemens, Germany; the industrial control computer is made by Yanhua Corporation, Taiwan, showing the English ideograph chrominance, operating easily; after the parameters inputted into the computer, it can be finished the relative design of winding linearity automatically. The combined movements of the main axle and the carriage controlled by the computer, conforms the winding rules, the technical parameters and its inner quality have arrived the advanced level in China, and the properties are below:
1. The range of diameter can be wound: DN600~ DN4000mm
2. The maxi length: 12000mm
3. The winding angle: 45°<α<90°
4. The tolerance of positioning: <1mm
1. General
VFW-25000 computer control vertical site winding machine is the most advanced winding machine (hereinafter called Winding Machine) with super large diameter developed by our company, absorbing the foreign advanced technique. It is controlled by computer, specially used for site winding of large caliber FRP tanks. This machine can produce FRP tanks with the diameter from 4m to 25m with the suitable mandrel. The control center of this machine is industrial computer made in Taiwan. Once input the parameters of winding product, the computer can finish the design of linearity of the tank automatically, and then control the compound movement of mandrel rotation and the shift of trolley, put the fiberglass immersed by resin on the inner liner fully in order. This winding machine is the combination of technique and science, such as mandrel rotation, shift of the trolley, and layout of winding roving are all precisely controlled by computer software. The FRP products wound by this machine are widely used in chemical industry, petroleum, and brewery and so on.
2. Parameters of the Winding Machine
Winding diameter scope: 4m-25m
Max height for each section: 6m (Note: if it is more than 6m, it can be formed by many sections )
Winding angle: 60°-90°
Max rotating speed of the mandrel: 4.6rpm
Woven roving strands: 70*
Productivity: 500Kg/h*
*Note:The productivity and the quantity of strand is based upon the quality of roving
2. The maxi length: 12000mm
3. The winding angle: 45°<α<90°
4. The tolerance of positioning: <1mm
Machine for making large storage tanks on site:
The specific model is as follows:
Large-scale site winding machine
Be restricted by the transportability, the tank which its diameter is more than DN4000mm has been become the difficult point between the ordering party and the contracting party. To meet the requirements of the order party, our company developed this set of large scale site winding, this set is combined structure, can be assembling or dismountable, the set can be transported to the client site .The set is to be assembled beside the foundation of the large tank according to the requirements of the client. Then the large tank can be finished.
FW-15000 Computer Control Horizontal Site Winding Machine
The major properties of the equipment are below.
1.The maxi diameter can be wound: 15000mm
2.The maxi length can be wound: 12000mm
3.The range of diameter: DN4000~DN15000mm
4.The maxi torque: 68350N·m
5.The total power: 18.6kw
6.The maxi width of roving sheet: 1680mm
7.The productivity: 550kg/h
VFW-25000 Computer Control Vertical Site Winding Machine|
Moder number
|
Features
|
Type of tank
|
Rang of diameter (mm)
|
|
FW-10000
|
computer control
|
Horizontal
|
4000~10000
|
|
FW-15000
|
computer control
|
Horizontal
|
4000~15000
|
|
VFW-25000
|
computer control
|
Vertical
|
4000~25000
|
Large-scale site winding machine
Be restricted by the transportability, the tank which its diameter is more than DN4000mm has been become the difficult point between the ordering party and the contracting party. To meet the requirements of the order party, our company developed this set of large scale site winding, this set is combined structure, can be assembling or dismountable, the set can be transported to the client site .The set is to be assembled beside the foundation of the large tank according to the requirements of the client. Then the large tank can be finished.
FW-15000 Computer Control Horizontal Site Winding Machine
The major properties of the equipment are below.
1.The maxi diameter can be wound: 15000mm
2.The maxi length can be wound: 12000mm
3.The range of diameter: DN4000~DN15000mm
4.The maxi torque: 68350N·m
5.The total power: 18.6kw
6.The maxi width of roving sheet: 1680mm
7.The productivity: 550kg/h
1. General
VFW-25000 computer control vertical site winding machine is the most advanced winding machine (hereinafter called Winding Machine) with super large diameter developed by our company, absorbing the foreign advanced technique. It is controlled by computer, specially used for site winding of large caliber FRP tanks. This machine can produce FRP tanks with the diameter from 4m to 25m with the suitable mandrel. The control center of this machine is industrial computer made in Taiwan. Once input the parameters of winding product, the computer can finish the design of linearity of the tank automatically, and then control the compound movement of mandrel rotation and the shift of trolley, put the fiberglass immersed by resin on the inner liner fully in order. This winding machine is the combination of technique and science, such as mandrel rotation, shift of the trolley, and layout of winding roving are all precisely controlled by computer software. The FRP products wound by this machine are widely used in chemical industry, petroleum, and brewery and so on.
2. Parameters of the Winding Machine
Winding diameter scope: 4m-25m
Max height for each section: 6m (Note: if it is more than 6m, it can be formed by many sections )
Winding angle: 60°-90°
Max rotating speed of the mandrel: 4.6rpm
Woven roving strands: 70*
Productivity: 500Kg/h*
*Note:The productivity and the quantity of strand is based upon the quality of roving
Sea packing
1. Choose the appropriate container according to the customer's needs.
2. Molds that exceed the container size need to be shipped separately.
3. The exact package size, please tell me the specific size, I will quote for you!
Main products:
FRP tank and chemical equipment
High, middle, low pressure
FRP pipe
FRP small-scaled wastewater treatment tank
FRP septic tank
FRP cooling tower
FRP pultrusion, molded series products
FRP polymer electrolytic cells
S/F, F/F double-wall oil fuel storage tank
Whole set of FRP prodcution machines
Whole set of computer control filament winding machine
Whole set of FRP pultrusion machine
Whole set of FRP molded hydraulic press
Whole set of FRP grating molded machine ETC
High, middle, low pressure
FRP pipe
FRP small-scaled wastewater treatment tank
FRP septic tank
FRP cooling tower
FRP pultrusion, molded series products
FRP polymer electrolytic cells
S/F, F/F double-wall oil fuel storage tank
Whole set of FRP prodcution machines
Whole set of computer control filament winding machine
Whole set of FRP pultrusion machine
Whole set of FRP molded hydraulic press
Whole set of FRP grating molded machine ETC
Hengshui Aoliande Trade Co.,Ltd. not only have ability to sell & supply products, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation,installation supervision etc service.
Main application:
Urban water supply and drainage
Desalination of sea water
Chemical industry
Metallurygy Brewing
Electric power
Oil storing
Sewage treatment
Building Municipal works
Highway facilities
Urban water supply and drainage
Desalination of sea water
Chemical industry
Metallurygy Brewing
Electric power
Oil storing
Sewage treatment
Building Municipal works
Highway facilities
We specialize in this field for several years with top quality competitive price and best service. More advantage we can supply:
Manufacturer
Superior quality&Good service
Timely delivery&Competitive price ISO9001:2008
Special size is available OEM support
Low MOQ
1.More than 10 Years manufacturing experience.
2.Professional research and development team
3.Zero Customer Complaints for several Years
4.Human-based management
5.Environmental Protection
6.Excellent after-sales service.
Our service
We offer professional products and fast delivery.
We will help you solve problems when you use our products.
Any question can turn to the technology department of our company.
1. Fast delivery (Our factory has high production capacity and there is enough inventory to insure fast delivery for you)
2. Competitive price (We are manuafacturer of our products, so we can provide you both high quality products and competitive price)
3. Quick response each inquiry within 24hours
4. Quality control strickly
5. Quick delivery imporve your effciency
Are you a factory or a trading company?
We are a factory, is a professional manufacturer, we have more than 200 skilled technicians, in addition, we have professional equipment mold engineers for design and production.
Where is your factory located? How can I visit you?
Our sales office is located in Shijiazhuang, Hebei Province. And our factory in Hengshui, Hebei Province.
Can you do OEM?
Yes, we can do OEM and ODM products, no problem. We can make all kinds of customized products according to drawings or samples.
Can you provide technical advice?
We provide you with professional technical advice free of charge.
What volume do you have?
With an annual output of 60,000 tons, we have multiple production lines to meet customer requirements for fast delivery.
What are your payment methods?
We accept TT /LC/Credit insurance orders.
What are your delivery items?
We accept EXW,FOB,CNF,CIF, etc. You can choose the one that is most convenient and cheapest.
