Advanced Grain Cleaning and Separation Machine for Optimal Purity
Set
Negotiable
Product information
High-quality Advanced Grain Cleaning and Separation Machine for Optimal Purity supplied by Hebei Yuanda Shuangxuan Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Delivery Time:
15days
Package Size:
181.00cm * 101.00cm * 116.00cm
Capacity:
2-4t/H
Package Gross Weight:
200.000kg
Production Capacity:
200pieces/Year
Voltage:
220V/380V
Specification:
3150mm×3500mm×2500mm
HS Code:
8437109000
Specifications
Delivery Time:
15days
Package Size:
181.00cm * 101.00cm * 116.00cm
Capacity:
2-4t/H
Package Gross Weight:
200.000kg
Production Capacity:
200pieces/Year
Voltage:
220V/380V
Specification:
3150mm×3500mm×2500mm
HS Code:
8437109000
Shipment Mark:
According to Your Client's Request
Application:
Cereal
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Press Materials:
Customization
Press Series:
Customization
Transport Package:
Customized
Paching Size:
Customized
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Appearance:
Horizontal
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Condition:
New
Model NO.:
QXSZ-60
Type:
Screening Installation
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
OEM Service:
Yes
Trademark:
shuangxuan
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2003-07-08
Annual Revenue Amount:
Not specified
Numbers Of Employees:
51
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
ISO9001:2015
Product descriptions from the supplier

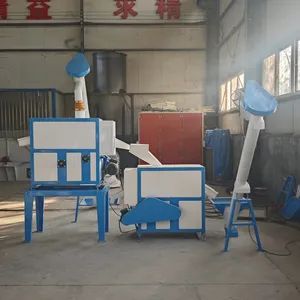

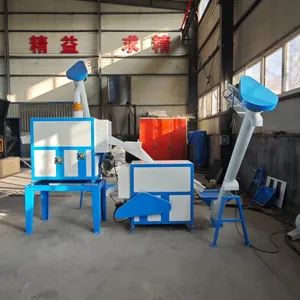

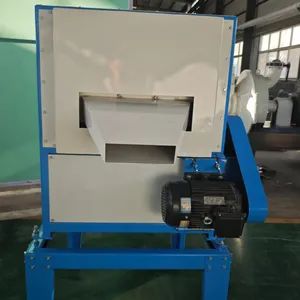

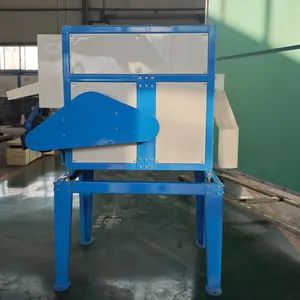

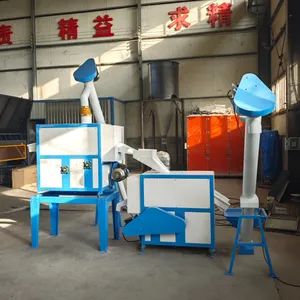

Shuangxuan Grain Cleaning Complete Set of Equipment
The Shuangxuan Grain Cleaning Screen is a dual-purpose impurity filtration system engineered for use with powdered and granular substances. It effectively isolates contaminants based on density differences using airflow to separate corn from lighter debris like husks, skins, and fine dust, as well as heavier items such as stones and metal fragments. This results in a markedly cleaner final product, ensuring superior quality for downstream operations. Designed to address particle separation challenges across sectors including agriculture, animal feed, chemicals, and food production, it handles up to 1.5 tons per hour with a removal efficiency of at least 95%. The unit offers intuitive handling, easy servicing, and adaptable configurations. It serves as a vital tool for small to mid-sized operations aiming to enhance product integrity and lower operational expenses.
I. Core Working Principle
Utilizing material density variations and vibrational sorting technology, once the machine is powered on, its internal vibration mechanism causes substances to stratify on the sieve: denser desired components are drawn down by gravity and move along the screen to the final output port; lighter contaminants like dust, fragments, and other foreign matter rise and exit via a specific exhaust path; the entire operation requires no extra supplies. This is a fully mechanical process that preserves the inherent characteristics of the original materials.
II. Technical Specifications and Performance Advantages
| Project | Details |
| Handling capacity | 1.5 tons per hour (for granular materials, with slight fluctuation depending on the material's compactness) |
| Impurity Removal Rate | ≥ 95% (measured values from both laboratory and mass production scenarios) |
| Vibration Frequency | Adjustable range of 500 - 1200 r/min, suitable for different material characteristics |
| Screen Surface Size | 300mm (width) × 950mm (length) ,450mm×950mm,600×950 and support customization |
| Equipment Power | 3kW (high-efficiency asynchronous motor, providing sufficient power, with high continuous working efficiency) |
| Material | Primary structure constructed from Q235 carbon steel (treated with powder coating to resist rust and corrosion), critical contact components available in 304 stainless steel option |
| Screen Surface Angle | Adjustable range of 5° - 15°, suitable for different flowable materials |
Covering the material purification needs of multiple industries:
- Grain processing: Separation of chaff and stalk debris from wheat, corn, and rice grains;
- Feed production: Screening of impurities and moldy materials in feed raw materials.
- Chemical particles: Removal of light impurities (dust, debris) from plastic particles and fertilizer particles;
- Food processing: Removal of shells and debris from nuts and legumes;
- Light industrial raw materials: Separation of light impurities from ceramic particles and papermaking fillers.
IV. Equipment Features
1. Precise power matching: The 3kW motor is compatible with long screen surface, ensuring more uniform material distribution and more stable separation efficiency;
2. Convenient operation: One-click start/stop, dual adjustment of vibration frequency and screen inclination, enabling novices to quickly match material parameters;
3. Simple maintenance: The screen surface adopts a quick-release clip design, allowing for replacement/cleaning within 10 minutes;
4. Strong stability:Use adjustable outriggers and drive in anchor bolts for fixation, with continuous operation noise ≤ 72dB, without resonance shaking;
5. Flexible customization: Options such as upgrading to a full stainless steel body and installing material diversion plates can be provided.
V. Core Strengths
The system combines loading, sanitation, and unloading into a single compact unit, removing the requirement for standalone support machinery, thereby reducing facility footprint and setup expenses, while streamlining workflow.
2. Advanced multi-stage purification: Utilizing a vibrating sieve for size-based sorting, high-pressure air jets to eliminate fine contaminants, and a density-based platform to filter out heavier particles, the system achieves more than 98% purity, significantly enhancing grain purity and boosting the overall quality of the raw materials.
3. Reliable performance: The machine features reinforced steel structures and durable drive elements, offering excellent resistance to earthquakes and shocks, along with minimal downtime during prolonged use; it includes a variable frequency drive that modifies operating speed based on grain type, meeting diverse manufacturing requirements.
4. Energy efficiency and eco-friendliness: The air separation unit incorporates quiet centrifugal blowers, cutting energy use by 15% versus conventional single-unit systems, and the particulate capture system efficiently controls workshop dust, fulfilling environmental compliance requirements.
A Comprehensive Grain Cleaning System is a unified solution engineered to handle impurity extraction prior to grain processing. Combining operations like conveyance, sieving, air jet separation, and density-based sorting, it effectively eliminates contaminants such as chaff, fine particles, sand, and rocks from different types of grains. Ideal for cleaning wheat, rice, corn, soybeans, and blended grain batches, this system is commonly deployed in grain buying centers, flour production facilities, rice processing units, and animal feed manufacturing sites.
Specializing in grinding machinery over 15KW, along with associated feeding, dust extraction, conveying systems, and full integrated solutions covering process planning, fabrication, and on-site setupElectric control cabinet design and assembly, automation upgrade and other business.The firm's machinery finds broad application across feed, pepper powder, cellulose, and food, pharmaceutical, chemical, and other fine grinding sectors, serving both elite clients and the majority of end-users.
Hebei Yuanda Shuangxuan Technology Co., Ltd., established in 2003, is a top-tier developer and producer of shredding equipment in China, holding multiple invention and utility model patents, and has been recognized as a "Hebei Province science and technology SME" by the Hebei Provincial Department of Science and Technology;In 2017, it was rated as a provincial enterprise R & D institution (Level B).
Passed the ISO quality system certification in 2018, and was rated as "high-tech enterprise" by the state in 2019.
Q:Can this crusher machine be customized?
A:Absolutely, we'll strive to fulfill your expectations. Should you have unique requests, like branded logos, feel free to reach out. We’ll promptly address your needs to the best of our ability.
Q:Why should you buy from us not from other suppliers?
A:We integrate product design, production, and post-sale support, backed by robust technical expertise and a skilled workforce. We look forward to hosting you at our facility soon!
Q:Are you manufacturer?
A:Yes, we are manufacturer with more than 20 years' experience, and can supply any spare parts for the machine.
Q:If we are traders, may we get your permission to open a shop in our local area?
A:Sure, we're not just serving individuals, stores, and ranchers
Q:Does you have stock now?
A:Yes we have enough stock to meet your larger orders.
Q:Can you provide more information about production and quote the best price?
A:Sure, but we need to first understand your requirements. Based on those, we’ll tailor the ideal processing steps for your application. After finalizing the equipment, we’ll provide our most competitive offer.
Q: How can I know your machine working well?
A: Before delivery, we will test and adjust the machine working condition for you, then you can use directly when you get it.
Q: Do you have a ISO certificate?
A: For every model of machine, it has a ISO certificate.
Q: Warranty period
A:We provide 2 years warranty, and provide online guidance
