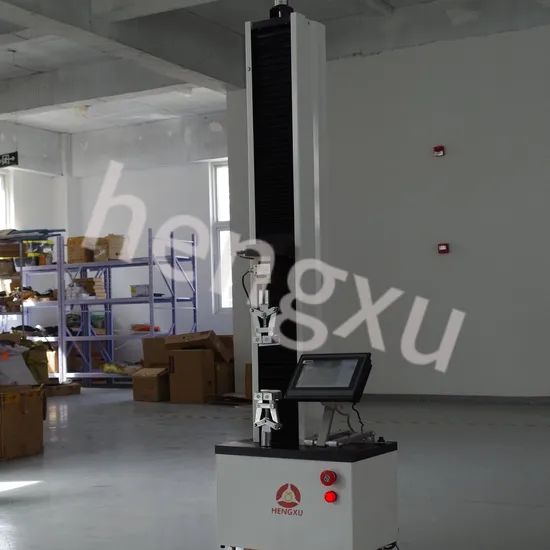

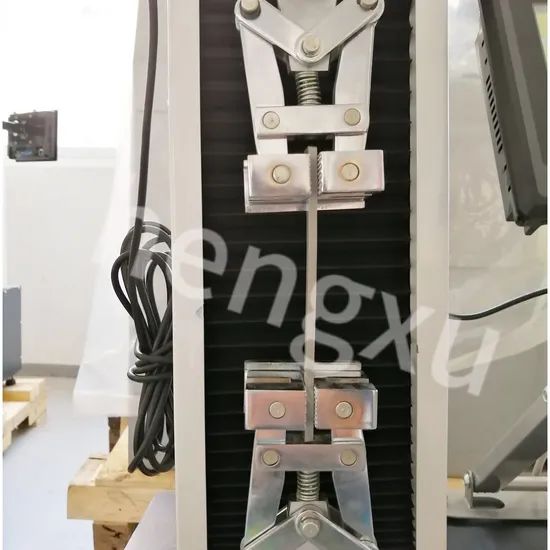

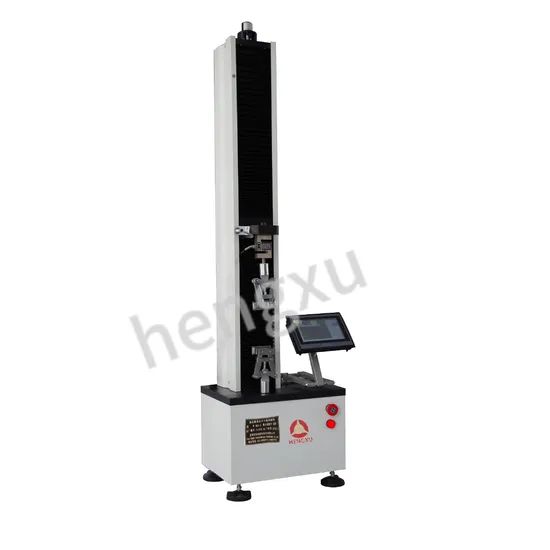

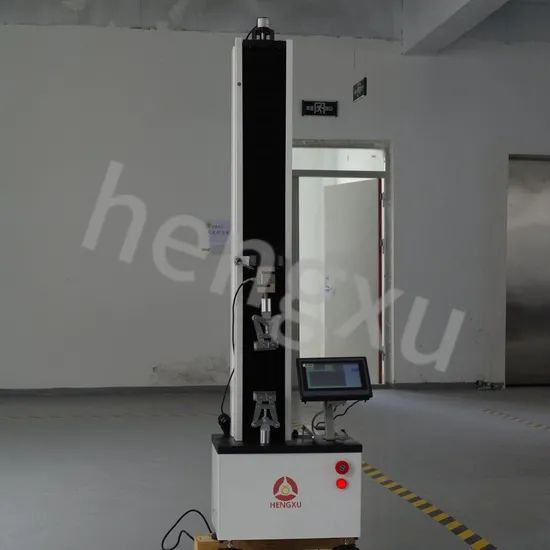

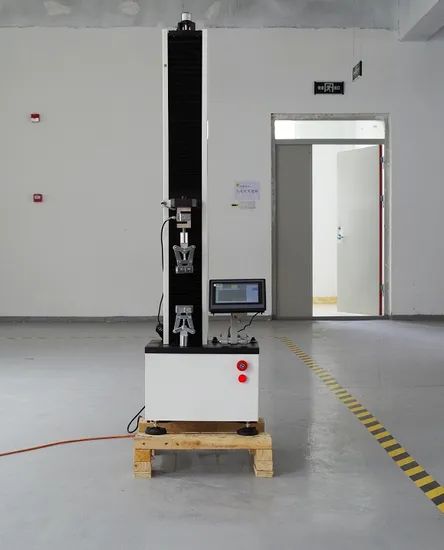

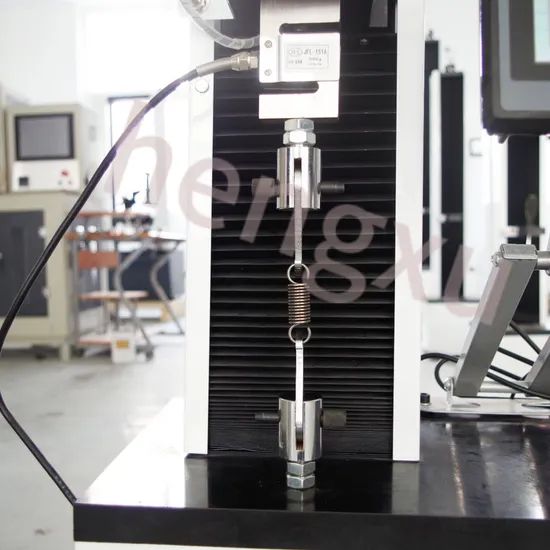

Advanced Hds Single Column Digital Display Universal Tensile Testing Machine
1 Set
$5,0001 Set
$1,500Product information
High-quality Advanced Hds Single Column Digital Display Universal Tensile Testing Machine supplied by Jinan HengXu Testing Machine Technology Co., Ltd. Bulk wholesale pricing ranges from $1,500 to $5,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Displacement Resolution:
0.001mm
Displacement Speed Control Range:
0.01mm/Min~300mm/Min (Normal Configuration)
Accuracy Grade:
0.5
Weight:
100-500Kg
Production Capacity:
1000
Package Gross Weight:
120.000kg
Test Stroke:
300mm
Package Size:
480.00cm * 280.00cm * 1480.00cm
Specifications
Displacement Resolution:
0.001mm
Displacement Speed Control Range:
0.01mm/Min~300mm/Min (Normal Configuration)
Accuracy Grade:
0.5
Weight:
100-500Kg
Production Capacity:
1000
Package Gross Weight:
120.000kg
Test Stroke:
300mm
Package Size:
480.00cm * 280.00cm * 1480.00cm
Specification:
480× 280× 1480
HS Code:
9024800000
Maxcapacity:
<1000KN
Mass Scope Of Workpiece:
<1kg
Max Diameter Of Workpiece:
<30mm
Power Source:
AC220V
Displacement Speed Control Accuracy:
Better Than 1%
Test Force Accuracy:
Better Than ±1%
Displacement Measurement Accuracy:
Better Than ±1%
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Display:
Computer
Control:
Computer Control
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Load Way:
Electronic Load
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
HDS
Trademark:
HENGXU
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Transport Package:
Meet Export Requirements Wooden Box
Appearance:
Meets GB/T2611 Requirements
Complete Set:
Meets Standard Requirements
Oil Cylinder Position:
No
Port Of Loading:
Qingdao
Loading Method:
Static Load
Payment Methods:
Support payments in USD
Type:
Tensile Testing Machine
Protection Function:
The Testing Machine Has Overload Protection Functi
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-01-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
18
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao
Certificates:
Certificate1, Certificate2, Certificate3, Certificate4, Certificate5, patent
Product descriptions from the supplier
HDS Series Microcomputer Control Universal Testing Machine
Main Application
This series of tensile testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.and suitable for testing the mechanical properties of various metals, non-metals and composite materials such as rubber, plastics, textiles, waterproof materials, wires and cables, net ropes, metal wires, etc. For example, various tensile tests can be easily completed by changing the accessories to complete compression, bending, shearing, tearing, peeling, puncture and other tests.
Main Application
This series of tensile testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.and suitable for testing the mechanical properties of various metals, non-metals and composite materials such as rubber, plastics, textiles, waterproof materials, wires and cables, net ropes, metal wires, etc. For example, various tensile tests can be easily completed by changing the accessories to complete compression, bending, shearing, tearing, peeling, puncture and other tests.
| The product name | Microcomputer control universal Testing machine specification | ||||
| Model | HDS-02 | HDS-05 | HDS-1 | HDS-2 | HDS-5 |
| Structure | Single column | ||||
| Max. Load(N) | 200 | 500 | 1000 | 2000 | 5000 |
| Load Range | 2%~100% full Scale or 0.4%-100% Full Scale | ||||
| Load Accuracy | ±1% or ±0.5% | ||||
| Resolution of load | 1/300000 of full scale | ||||
| Measuring Range Of Deformation | 2%~100% | ||||
| Resolution of Displacement | 0.001mm | ||||
| Accuracy measure Of Deformation | ±%or±0.5% | ||||
| Control Speed | 0.1-500(mm/min) | ||||
| Relative Error of Speed: | ≤±1% | ||||
| Tensile Test Space | 600mm or 1000mm | ||||
| Compression Test Space | 600mm or 1000mm | ||||
| Load Cell Configuration | One(Max Load), more load cells can be added according to customer requirement. | ||||
| Extend Configuration | Large deformation extensometer, high or low temperature test chamber, high temperature oven. | ||||
| Protection function | The test machine has the function of overload and limit protection | ||||
| Test machine size(mm) | 480×280×1480 | ||||
| Power Supply | AC110V / 220V / 380V±10%, 50Hz-60Hz | ||||
| Weight(KG) | 150 | ||||
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer with many years of manufacturing experience. Our factory is equipped with advanced production equipment and a skilled team, committed to providing customers with high-quality products and services. At the same time, we also welcome you to visit our factory at any time to better understand our production process and capabilities.
Q: How long does it take to produce and deliver?
A: The production and delivery cycle of the equipment is generally 10-20 days, depending on the equipment model and customization requirements you choose. If your order requires customized functions, the delivery time may need to be extended to about 4 weeks. We can provide a detailed delivery plan after confirming your complete requirements. If you have urgent order requirements, please let us know at any time, we will try our best to arrange a priority production plan for you!
Q: How is the equipment transported and protected?
A: To ensure the safety of equipment transportation, we use shock-proof and moisture-proof export-grade wooden boxes for packaging, and all precision parts will be properly handled with foam and protective film.
In terms of transportation methods, we can arrange sea or air transportation, and provide various documents (such as invoices, packing lists, certificates of origin, CE certificates). Before the equipment is packaged, we will complete all debugging procedures to ensure that it can be used after installation.
Q: How long is the equipment warranty period? How about after-sales support?
A: We provide a 1-year warranty service for all friction and wear testers, and provide free technical support and maintenance services (non-artificial damage) during the warranty period. In addition:
Remote technical guidance (such as installation and operation) can be provided;
Support on-site installation and commissioning and operation training when necessary (negotiable fees);
Provide lifetime paid equipment maintenance and supply wearing parts and accessories.
If you need to extend the warranty period or other after-sales service arrangements, please feel free to contact us!
Q: Can the test effect be verified before the equipment is delivered?
A: Of course! After the equipment is produced, you can choose the following methods:
Remote video acceptance: We will show you the equipment test operation and performance;
On-site acceptance: You are welcome to visit our factory for equipment function acceptance;
Provide sample testing: You can send samples to our company, we will shoot test videos for you, and provide detailed reports.
I hope the acceptance method can meet your expectations, and welcome further communication!
Q: We are using this equipment for the first time, can you provide training?
A: We provide detailed technical guidance and training support for all customers who purchase equipment, including:
The operating manual and operation guidance video that comes with the equipment;
Remote installation guidance: Demonstrate the operation steps through online videos;
On-site training (negotiable): If necessary, we can arrange for technicians to come to your factory for installation guidance and training (extra charge).
After the training, we guarantee that your team can operate the equipment proficiently and complete related testing work. Any follow-up questions also support lifelong technical consultation!
