Advanced LJ57 Broaching Machine Internal Lathe with 1-7m/min Speed Control
Set
Negotiable
Product information
High-quality Advanced LJ57 Broaching Machine Internal Lathe with 1-7m/min Speed Control supplied by Yuhuan Cnc Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Processing Precision:
/
Control Method:
/
Pulling Speed(Servo Speed Regulation):
1-7m/min
Rated Pull:
100kN
Rated Travel:
1250/1600mm
Maximum Length Of The Puller:
1450/1800mm
Package Size:
3200.00cm * 2800.00cm * 3585.00cm
Specification:
3600×3200×4000mm
Specifications
Processing Precision:
/
Control Method:
/
Pulling Speed(Servo Speed Regulation):
1-7m/min
Rated Pull:
100kN
Rated Travel:
1250/1600mm
Maximum Length Of The Puller:
1450/1800mm
Package Size:
3200.00cm * 2800.00cm * 3585.00cm
Specification:
3600×3200×4000mm
Package Gross Weight:
5000.000kg
Total Electrical Capacity:
About 27kW
Numerical Control:
CNC/MNC
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Performance Classification:
High-End CNC Machine Tools
Origin:
Hunan, China
Certification:
ISO 9001
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Model NO.:
LJ5710
Movement Method:
Linear Control
Application:
Metal
Process Usage:
Metal-Forming CNC Machine Tools
Condition:
New
Transport Package:
Provided
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Trademark:
YUHUAN
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-08-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
241
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
01, 02, 03, 04, 05
Product descriptions from the supplier

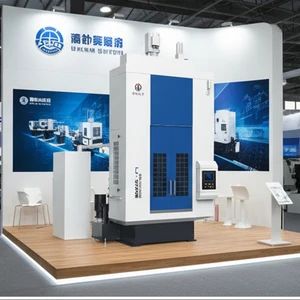

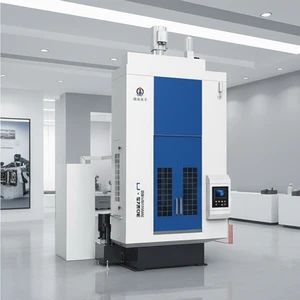

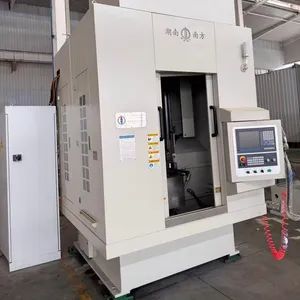

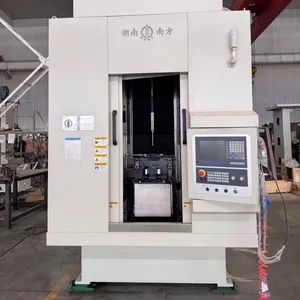

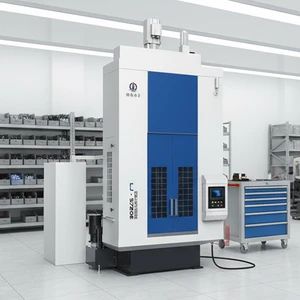

Advanced LJ57 Broaching Machine Internal Lathe with 1-7m/min Speed Control
The LJ57 Series Servo-Pull-Up Internal Broaching Machine represents cutting-edge technology in internal broaching.
This mechanical CNC pull-up internal lathe combines high-precision, unmatched efficiency, and remarkable stability for through-hole processing of internal teeth and diverse geometric shapes. It is highly sought after in industries such as new energy, humanoid robotics, planetary gearboxes, aerospace, and construction machinery, where precision and reliability are paramount.
Outstanding Features:
1. Enhanced low overturning torque design
Our E-type model incorporates an innovative four-wire rail bearing structure, developed as a 'stable trapezoidal formation.' This includes one driving center and one pulling center aligned with two linear rails, ensuring symmetry and minimizing the 'pulling overturning moment' typically found in traditional lathe architectures. This is safeguarded under Invention Patent No.: ZL 2020 10920618. 5.
2. Built for endurance and unwavering stability
Utilizing large steel balls and large diameter, our machinery integrates imported heavy-duty ball screws and high-precision, high-rigidity branded heavy-duty roller linear guides for superior longevity and durability.
3. Unrivaled precision control
With an advanced servo drive coupled with screw drive, our machines boast a well-engineered force structure, delivering cutting accuracy that is truly impeccable.
4. Adaptive and versatile spatial configuration
The layout of our equipment can be customized to meet specific customer requirements, offering flexibility and versatility to accommodate various forms of automation seamlessly.
5. Effortless intelligent control
Equipped with an intelligent CNC system, embedded program capabilities, and highly advanced secondary development, our machine allows parameter filling and usage, facilitating zero programming operations that are both safe and efficient.
6. User-friendly and straightforward operation
Experience the ease of quick tooling change, automatic positioning, and effortless machine operations, even for those with 'zero foundation' in machining.
| SERIAL NUMBER |
TECHNICAL PARAMETER NAME |
UNIT | LJ5705 | LJ5710 | LJ5715 | LJ5720 | LJ5730 | LJ5740 |
| NUMERICAL VALUE | ||||||||
| 1 | Rated Pull | kN | 50 | 100 | 150 | 200 | 300 | 400 |
| 2 | rated travel | mm | 800 | 1250/1600 | 1250/1600 | 1600/1800 | 1600/1800 | 1800 |
| 3 | Pulling speed (servo speed regulation) |
m/ min |
1~7 | 1~7 | 1~7 | 1~7 | 1~7 | 1~5 |
| 4 | Maximum length of the puller |
mm | 1000 | 1450/1800 | 1450/1800 | 1800/2000 | 1800/2000 | 2000 |
| 5 | Total electrical capacity |
kW | About 22 | About 27 | About38 | About 45 | About 53 | About 60 |
| 6 | Net weight of machine tool |
kg | About 5000 | About 8000 (Stroke 1250) |
About 8500 (Stroke 1250) |
About 12000 (Stroke1600) |
Approximately 12500 (Stroke1600) |
Approximately 19500 (itinerary 1800) |
| 7 | Machine tool workspace (lengthx width x height) |
mm | 3200×2800 ×3585 |
3600×3200 ×4000 (Stroke1250) |
3600×3200 ×4100 (Stroke1250) |
3850×3800 ×4800 (Stroke1600) |
3850×3800 ×4900 (Stroke1600) |
4000×3800 ×5500 (Stroke1800) |
Q: What types of machine tools does YUHUAN CNC offer?
A: YUHUAN specializes in CNC double-end grinding machines, vertical/horizontal polishing machines, CNC broaching machines, and fully automated grinding-polishing lines.
Q: Can l request customized solutions based on my part drawings?
A: Yes, We provide one-stop custom solutions. Just share your workpiece drawings, materials, and tolerance requirements, and our R&D team will design a suitable plan.
Q:What industries are your machines widely used in?
A: Our machines are widely used in the automotive, aerospace, hydraulic, bearings, semiconductors, and precision machinery industries.
Q: What is the lead time for standard and customized machines?
A: Standard machines: approx.30-45 working days.
Customized machines: 60-90 working days depending on complexity.
Q: What are your payment terms?
A: We usually accept T/T, L/C, or negotiable international payment methods.
Q: How does YUHUAN guarantee product quality before shipment?
A: We conduct full machine testing, geometric accuracy inspection, trial operation, and issue inspection reportsbefore every shipment.
Q: What after-sales service do you provide to overseas clients?
A: We provide remote video technical support, online troubleshooting, overseas engineer dispatch, spare partssupply,and training services.
Q: Can you help with international logistics and customs clearance?
A: Yes, We work with reliable freight forwarders and can handle FOB, ClF, DAP terms. Export documentation andcustoms support are available.
Q: How can l get a quotation or start cooperation?
A: Please contact us via email, send your inquiry or part drawing, and our sales team will respond within 24 hours.
