Advanced Marine Ultrafiltration System with Energy Efficiency Features
Piece
Negotiable
Product information
High-quality Advanced Marine Ultrafiltration System with Energy Efficiency Features supplied by Ningbo Huanjie Ultrafiltration Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Voltage:
380V
Folw Rate:
480L/H
Model NO.:
ES-CS203-SP
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
H
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Nibo Port
Origin:
Ningbo City, China
Specifications
Voltage:
380V
Folw Rate:
480L/H
Model NO.:
ES-CS203-SP
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
H
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Nibo Port
Origin:
Ningbo City, China
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2017-07-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
37
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Nibo Port
Certificates:
ISO14001, ISO45001:2018, Others, ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
Marine Ultrafiltration and Energy-Saving Equipment
Lubrication oil is compared to the blood of engine, it must be kept clean and its performance should be normal. The pollution of lubrication causes the performance index exceeding because of accelerating the deterioration, promotes the wear of the engine component. This leads to the increase of maintenance cost, the shortening of engine life and the reduction of ship operation rate.
Based on the tribology theory , the particle concentration of about 5um is the major factor causing the deposition and blockage of lubrication system, while the particle concentration of larger than 10umplays a leading role in the wear of equipment parts. The proportion of 1-25um particles in lubricating oil is the largest, more than 99%. ME series is specially developed for engine lubricating oi. The sludge solidification separation technology and adsorption filtration technology are used to effectively remove particles above 0.5um in lubricating oil.
Specification
Applications
This ES serials machines can be used for all types of operating ship main engine system and suxiliary engine system lubricating oil.
Standard Components' Functions
• Main supply disconnector
• One-button start/stop
• PLC / touch screen intelligent control
• Real-time monitoring of pressure and temperature sensors
• Running time display
• Automatic stop and alarm at high differential pressure
• Alarm at overload of oil supply pump and circulating pump
• Alarm on high/low liquid level of the oil tank
• One-button start/stop
• PLC / touch screen intelligent control
• Real-time monitoring of pressure and temperature sensors
• Running time display
• Automatic stop and alarm at high differential pressure
• Alarm at overload of oil supply pump and circulating pump
• Alarm on high/low liquid level of the oil tank
Product Feature
•Multistage filtration and adsorption depth filtration, minimum capture particle size 0.5um.
•With the ability to remove water, a set of filter element can absorb 5 liters of water, and can break the emulsion.
•Sludge solidification and separation, zero waste oil, energy saving and environmental protection
•Independent electric heating system, used to preheat the engine system
•Prolong the oil change interval by at least 3 times
•Engine overhaul cycle is extended 2-3 times
•Reduce engine spare parts usage to 50%
•It has the function of dewatering and demulsification
•Reduce fuel consumption by 1.5-4%
Detecting moisture on line (optional)
Simplicity
• No need for heating up the oil before cleaning
• Easy retrofit and installation
• No need for treated water or pressurized service air
• Small footprint
• Easy retrofit and installation
• No need for treated water or pressurized service air
• Small footprint

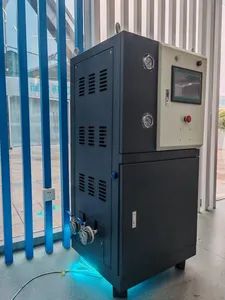

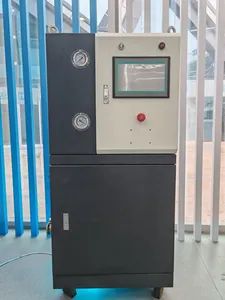

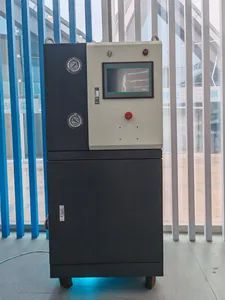

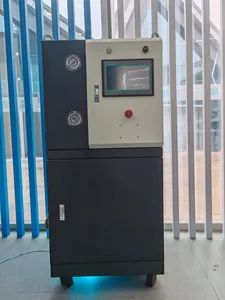

ES-CS203 front
ES-CS203 back
ES-CS203 inside
Technical Specifications
(Custom configurations available upon request.)
Model | ES-CS203-SP | ES-CS305-HSP | ES-CS307-HSP |
Rated Flow Rate (L/H) | 480 | 600 | 1200 |
Oil Tank Capacity (L) | 0 - 500 | 500 - 5000 | 5000 - 50000 |
Work Pressure (bar) | ≤5 | ≤5 | ≤5 |
Work Temperature(℃) | 65 - 85 | 65 - 85 | 65 - 85 |
Inlet & Outlet Caliber (mm) | DN15 | DN20 | DN25 |
Rated Power (KW) | 2 | 12 | 20.5 |
Power Supply (V) | 380/ 440 | 380/ 440 | 380/ 440 |
Filtration Ration | β3 ≥1000 | β3 ≥1000 | β3 ≥1000 |
Minimum Capture Particle Size (µm) | 0.5 | 0.5 | 0.5 |
Weight (kg) | 190 | 650 | 780 |
Dimension (mm) | 640 x 595 x 1300 | 1050 x 1020 x 1360 | 1150 x 1250 x 1500 |
Working Principle
The lube oil enters the centrifugal unit through the oil supply unit, and the centrifugal unit removes the large particles in the oil, then the lubricating oil enters the ultrafilter for secondary fine filtration, and finally the lubricating oil returns to the target oil tank.
After Sales Service
Environmental:The filter element material is 100% natural fiber, no metal, no plastic and no chemicals, which can be burned.
Standard Warranty:3 years for machine and 12 months or 2,000 operating hours for elements(whichever comes first).
Extended Warranty:We provide lifelong maintenance and technical service.
Global Support:We provide technical assistance and spare parts supply for free in warranty and charged lower after guarantee period.
Training:On-site or remote operation/maintenance training.
Extended Warranty:We provide lifelong maintenance and technical service.
Global Support:We provide technical assistance and spare parts supply for free in warranty and charged lower after guarantee period.
Training:On-site or remote operation/maintenance training.
Hotline Service:Our customer service hotline is available from 8 a.m. to 10 p.m at Beijing time.
Company Profile
Ningbo Huanjie Ultrafiltration Technology Co.,Ltd
Huanjie New Energy Technology Co., Ltd is a leading high-tech enterprise of lubricating oil ultrafiltration purification technology in China, which is a subsidiary of Taihe Marine Science and Technology Group. It was established in Ningbo in 2017, which mainly engaged in the design and manufacture of filtration solutions for lubricating oil, hydraulic oil, gear oil etc.
Our main products include marine ultrafiltration energy-saving equipment, marine ultrafiltration oil separator, methanol fuel supply system, ultrafiltration purification device, ultrafiltration energy-saving machine, hydraulic oil ultrafiltration machine, high-pollution oil fine filtration equipment, vacuum emulsion-breaking and water-removing fine filtration equipment and so on. Our equipment are adopted various technologies to achieve oil purification and energy saving, and our filter elements are made of materials from sustainable resources with low carbon emission: No metal, no plastics and no chemicals. Our products are widely used in the industry of ship, harbour, petrochemical, metallurgy, iron and steel, coal mining, construction machinery, electric power, wind energy, automobile manufacturing, hydraulic manufacturing and other fields.
We have acquired ISO9001:2015 quality management system certification and ISO14001:2015 environmental management system certification. Besides we have some patents as well as GB/T29490-2013 intellectual property management certification, and our products have been certified by China Classification Societies and Japan ClassNK. Our customers include some global famous enterprises such as CNOOC, China Merchants, SINOTRANS, China Communications Construction, Shanghai Port Group, ZOOMLION, Shanghai Zhenhua Heavy Industry and Zhejiang Energy company etc.
Our company adheres to the 'Quality First, Customer Foremost, Integrity Cooperation, Sustainable Development' and to provide customers with high quality products and reliable oil purification system solutions. We are committed to promoting the development and change of the industry.
Why Choose Us?
Our Certificate
• We have strong R&D team with senior professor and Dr. engineers.
• Reduce fuel consumption by 1.5-4% after using our equipment.
• The oil change interval is extended by at least 3 times.
• Reduce the replacement of engine spare parts by 50%
• Reduce the failure rate of valve parts in the system of customers' site
• Competitive price and good quality
• Reduce fuel consumption by 1.5-4% after using our equipment.
• The oil change interval is extended by at least 3 times.
• Reduce the replacement of engine spare parts by 50%
• Reduce the failure rate of valve parts in the system of customers' site
• Competitive price and good quality
These are part of our certificates.
ISO9001:2015 quality management system certificate
ISO14001:2015 environmental management system certificate
Products certificated by China Classification Societies and Japan ClassNK
Invention patents
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 25–35 days; customized units require 35–50days.
A: Standard models ship in 25–35 days; customized units require 35–50days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized equipment?
A: Absolutely! We offer customize filtration equipment according to the requirements of customers.
A: Absolutely! We offer customize filtration equipment according to the requirements of customers.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
