Advanced Metal Lathe for Arbitrary Pitch Thread Cutting
Piece
Negotiable
Product information
High-quality Advanced Metal Lathe for Arbitrary Pitch Thread Cutting supplied by Shandong Shansen Cnc Technology Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Processing Precision:
0.01~0.02(mm)
Center Height:
250mm
3 Jaw Chuck Diameter:
250mm
Package Gross Weight:
2880.000kg
Swing Over Carriage:
290mm
Max. Processing Length:
2920mm
Max. Workpiece Length:
3000mm
Package Size:
443.00cm * 114.50cm * 174.00cm
Specifications
Processing Precision:
0.01~0.02(mm)
Center Height:
250mm
3 Jaw Chuck Diameter:
250mm
Package Gross Weight:
2880.000kg
Swing Over Carriage:
290mm
Max. Processing Length:
2920mm
Max. Workpiece Length:
3000mm
Package Size:
443.00cm * 114.50cm * 174.00cm
Production Capacity:
5000PCS/Years
Swing Over Bed:
500mm
HS Code:
84581900
Transport Package:
Box
Model No.:
CD6150-3000
Model NO.:
CD6150-3000
Certification:
CE, ISO 9001
Numerical Control:
CNC/Mnc
Processing Accessory:
Chuck Lathe
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR
Setting Mode:
Floor-type
Tool Holder:
Four-Station Tool Holder
Precision:
High Precision
Guide Rail:
Horizontal Guide Rail
Type:
Horizontal Lathe
Payment Term:
LC, T/T
Controlling Mode:
Lathe Controller
Process Usage:
Metal-Cutting CNC Machine Tools, CNC Non-Conventio
Condition:
New
Specification:
Product size4430/1145/1740 mm
Port Of Loading:
Qingdao Port
Trademark:
SHANSEN CNC
Automatic Grade:
Semiautomatic
Power Source:
Servo Motor
Payment Methods:
Support payments in USD
Origin:
Tengzhou, Shandong, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-07-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
270
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
CE, ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
Click image to visit the products:
Product Description
The uses of the electronic lathe
The CD6150 electronic lathe is a new product independently developed by our company and possessing independent intellectual property rights. It is an ideal substitute for ordinary lathes. Through the coordination of mechanical and electrical systems, it can conveniently complete the processing of internal and external cylindrical surfaces, conical surfaces, end faces, and various threads, and is suitable for use in mechanical processing, tool manufacturing, equipment maintenance, and processing workshops with batch production.
The structural features of the machine tool
A )It possesses all the functions of a conventional lathe and also incorporates some of the functions of a CNC lathe.

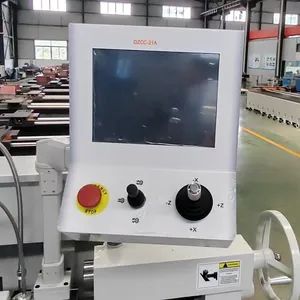

B )The large screen provides an intuitive display. It has both Chinese and English interfaces. The input is simple and the operation is extremely convenient.
C )X and Z axes can perform fixed-length processing, manual feed, automatic feed, and rapid movement.
D )The real-time dynamic display of processing process operating parameters is available. It also has the function of constant linear speed cutting.
A )It possesses all the functions of a conventional lathe and also incorporates some of the functions of a CNC lathe.
B )The large screen provides an intuitive display. It has both Chinese and English interfaces. The input is simple and the operation is extremely convenient.
C )X and Z axes can perform fixed-length processing, manual feed, automatic feed, and rapid movement.
D )The real-time dynamic display of processing process operating parameters is available. It also has the function of constant linear speed cutting.
E )It can achieve processing of various types and any pitch of threads.
F )Servo motor drive, with a wide speed range.
G )Centralized transmission, featuring a mechanical structure capable of meeting the requirements of low-speed and high-torque cutting.
H )The high-precision spindle bearing structure can meet the requirements of various cutting processes and precision levels.
I )The bed material is high-strength cast iron, and the guide rails are processed by surface hardening and precision grinding, which makes them extremely durable.
J )The appearance is beautiful and simple, the layout is reasonable, and the safety protection and functional accessories are complete.
F )Servo motor drive, with a wide speed range.
G )Centralized transmission, featuring a mechanical structure capable of meeting the requirements of low-speed and high-torque cutting.
H )The high-precision spindle bearing structure can meet the requirements of various cutting processes and precision levels.
I )The bed material is high-strength cast iron, and the guide rails are processed by surface hardening and precision grinding, which makes them extremely durable.
J )The appearance is beautiful and simple, the layout is reasonable, and the safety protection and functional accessories are complete.
Specification
Items | Parameter | Unit | CD6140 | CD6150 | CD6132 |
Capacity | Swing over bed | mm | 400 | 500 | 330 |
Swing over carriage | mm | 230 | 290 | 160 | |
Center height | mm | 220 | 250 | 175 | |
Max workpiece length | mm | 1000/1500/2000 | 1000/1500/2000/3000 | 750 | |
Max processing length | mm | 950/1450/1950 | 950/1450/1950/2920 | 750 | |
Bed width | mm | 400 | 400 | 295 | |
Spindle | 3-jaw chuck diameter | mm | 200 | 250 | 160 |
Speed ranges | Stepless | Stepless | Stepless | ||
Speeds | rpm | 20-2000 | 16-1600 | 20-2600 | |
Spindle bore | mm | 58 | 82 | 43 | |
Spindle taper | mm | MT6 | Metric 90 | MT6 | |
Spindle nose | C6 | C8 | C5 | ||
Slides | Top slide travel | mm | 150 | 150 | 65 |
Cross travel (X axis) | mm | 260 | 260 | 190 | |
Longitudinal travel (Z axis) | mm | 1000/1500/2000 | 1000/1500/2000/3000 | 750 | |
Toolpost | Number of stations | 4 | 4 | 4 | |
Tool shank size | mm | 25X25 | 25X25 | 16 | |
Tailstock | Movement | manual | manual | manual | |
Quill travel | mm | 160 | 160 | 130 | |
Quill diameter | mm | 75 | 75 | 60 | |
Quill taper | MT5 | MT5 | MT4 | ||
Feed | Rapid (Z/X axes) | mm/min | 3000/1500 | 3000/1500 | 3000/1500 |
XCross feed (X axis) | mm/min | 15-1500 | 15-1500 | 15-1500 | |
Longitudinal feed (Z axis) | mm/min | 30-3000 | 30-3000 | 30-3000 | |
Movement per rotation / grade of top slide handwheel | mm/mm | 5/0.1 | 5/0.1 | 3/0.03 | |
Movement per rotation / grade of cross slide handwheel (X axis) | mm/mm | 5/0.02 | 5/0.02 | 5/0.05 | |
Movement per rotation / grade of longitudinal slide handwheel (Z axis) | mm/mm | 30/0.1 | 30/0.1 | 25/0.1 | |
Threads | Metric threads | mm | 0.25-24 | 0.25-24 | 0.25-24 |
Inch threads | in | 0.01-1 | 0.01-1 | 0.01-1 | |
Modular threads | mm | 0.08-8 | 0.08-8 | 0.08-8 | |
Diametrical threads | in | 0.01-0.32 | 0.01-0.32 | 0.01-0.32 | |
Motor | Servo spindle motor | kW | 5.5 | 7.5 | 3.7 |
Drive belt | Type | XPA2282 | XPA2282 | XPA1882 | |
Quantity | Pcs | 5 | 5 | 4 | |
Others | Length | mm | 2430/2930/3430 | 2430/2930/3430/4430 | 1900 |
Width x Height | mm | 1145×1740 | 1145x1740 | 850×1650 | |
Weight | kg | 2060/2210/2360 | 2130/2280/2430/2880 | 1260 |
Certifications
Certified with CE / ISO
The company owns a number of proprietary invention patents.
Independently verified to meet global safety, environmental, and quality management standards.
packing list | |||
serial number | name | specification | Single unit quantity |
1 | three jaw chuck | K11250/C6 | 1set |
2 | chuck wrench | 1 | |
3 | tip | Mori No. 5 | 2 |
4 | Top-grade variable-diameter sleeve | 1 | |
5 | Stuck socket wrench | 17X19 | 1 |
22X24 | 1 | ||
27X30 | 1 | ||
6 | hex wrench | 4—10 | 1set |
7 | Blade press wrench | 17 | 1 |
8 | Cross-slot screwdriver | 4 inches | 1 |
9 | slotted point screwdriver | 4 inches | 1 |
10 | oil gun | 80milliliter | 1 |
11 | Electrical cabinet door lock key | 1 | |
12 | Base bolts and nuts | M20X400 | 6 groups |
13 | Random technical documents | operating manual | 1 |
Certificateof compliance | 1 | ||
packing list | 1 | ||
12-Month Warranty & After-Sales Support
Proven by Global Customer Case
Our commitment doesn't stop at delivery. We provide a full one-year warranty with responsive technical support, replacement options, and remote troubleshooting if needed. Operators can rely on continuous uptime with zero worries.
Client On-site Operational Demonstration
Packaging & Shipping
100% Inspection Before Shipment
Every unit is checked by a dedicated Quality Control team, ensuring flawless operation out of the box.
Packing
1. Premium Packaging: The interior is wrapped with waterproof plastic film, and then packed in wooden packing cases suitable for export.
2. Simple Packaging: Wrapped with waterproof plastic film, with solid wood pallets used at the bottom.
2. Simple Packaging: Wrapped with waterproof plastic film, with solid wood pallets used at the bottom.
Delivery
1. If goods are in stock, they will be shipped on the same day upon receipt of payment. If goods are out of stock, they will be shipped within 40 working days.
