Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI

Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 1
Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 2
Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 3
Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 4
Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 5
Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 6
Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 1
Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 2
Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 3
Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 4
Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 5
Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI - Image 6

1 Piece

$750

Product information

High-quality Advanced Mode Water Level Gauge System Origin China Size DN100-500 Model NO. M38Y1 Accuracy ±0.6-1% Certification JIS Trademark CHENMAI supplied by Xiamen Chenmai Wisdom Technology Co., Ltd.. Bulk wholesale pricing is $750 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.

Package Gross Weight:

10.000kg

Package Size:

50.00cm * 50.00cm * 50.00cm

Trademark:

CHENMAI

Transport Package:

Carton

Origin:

China

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Size:

DN100-500

Specifications

Package Gross Weight:

10.000kg

Package Size:

50.00cm * 50.00cm * 50.00cm

Trademark:

CHENMAI

Transport Package:

Carton

Origin:

China

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Size:

DN100-500

Measuring Principle:

Electrical Principles

Trade Term:

FOB, CIF, CFR, EXW

Certification:

JIS

Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Measuring Media:

Liquid

Model NO.:

M38Y1

Specification:

Metal

Measurement Object:

Open Channel

Payment Methods:

Support payments in USD

Application:

Transportation

Sensor:

Tube/Flange

Type:

Vortex Flow Meter

Main Application:

Water

Port Of Loading:

Xiamen Port

Accuracy:

±0.6-1%

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Year Established:

2021

Annual Revenue Amount:

Not specified

Numbers Of Employees:

Not specified

Preferred Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Preferred Trade Term:

FOB, CIF, CFR, EXW

Port Of Loading:

Xiamen Port

Certificates:

1, 2, 3, 4, 5

Product descriptions from the supplier

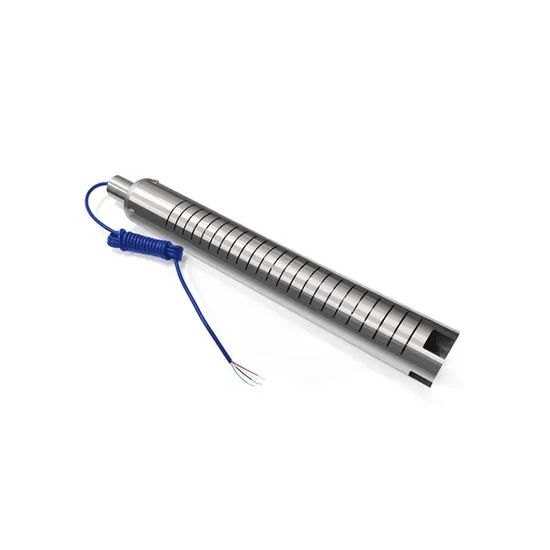

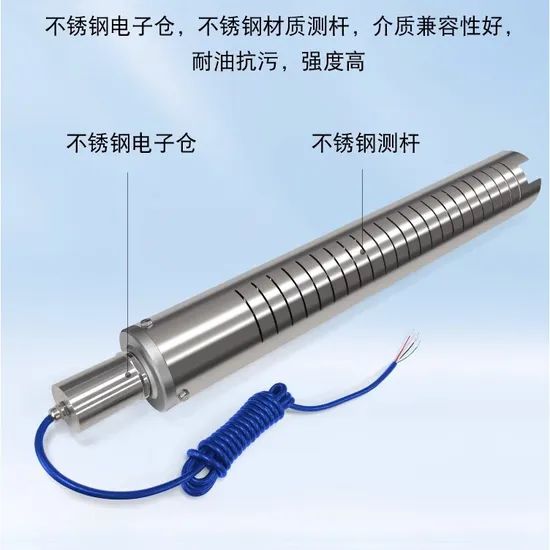

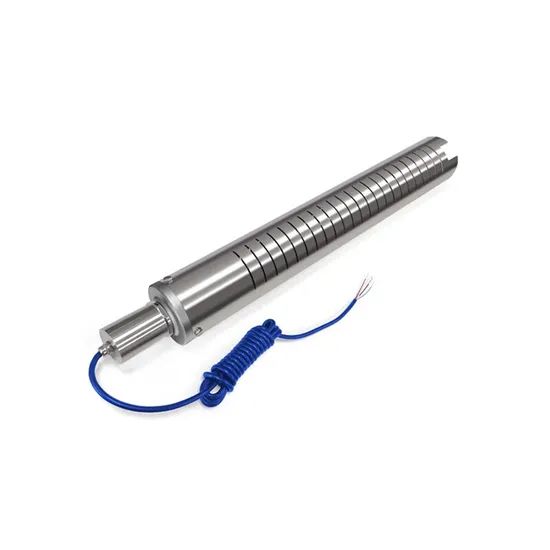

Model M38Y1-K1 Magnetostrictive Flume Water Level Gauge is suitable for long-term water level measurement in flumes of rivers, lakes, reservoirs, dams and other water conservancy structures. It serves as an effective monitoring device for tracking variations in water level and flow rate.
This gauge adopts a magnetostrictive liquid level sensor for measurement, and boasts advantages such as high resolution, excellent stability, reliable performance, fast response speed and long service life.
The main functions of the magnetostrictive flume water level gauge include linear measurement, absolute position output, non-contact continuous measurement, and zero wear. The sensor requires no calibration or regular maintenance, offers multiple output signal options (RS485, voltage, current), and features simple and convenient installation.

Product Features:
  • Easy installation and simple maintenance
  • Unique integrated design allows for overall device debugging and reduces equipment errors caused by multiple components
  • Non-contact measurement: The measuring element has no direct contact with the measured medium, ensuring reliable sensor operation and a long service life
  • Excellent safety performance: Features a corrosion-resistant design and high protection rating, and is capable of adapting to various harsh working environments
  • Customizable solutions: The measurement range can be customized to meet the operational requirements of different application scenarios
  • Item Description
    Measurement Range 0mm~500mm (range selectable)
    Sensitivity ≤0.01mm
    Measurement Accuracy ≤0.1%F.S
    Output Signal RS485
    Debugging Method Address code and baud rate self-setting
    Insulation Resistance ≥50Ω
    Storage Temperature -30ºC~+70ºC

Advanced Mode Water Level Gauge SystemAdvanced Mode Water Level Gauge SystemAdvanced Mode Water Level Gauge SystemAdvanced Mode Water Level Gauge SystemAdvanced Mode Water Level Gauge System
