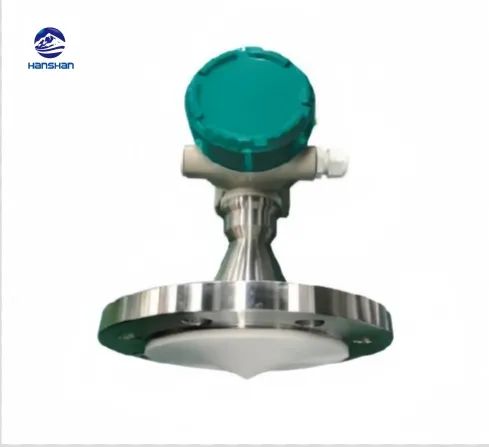

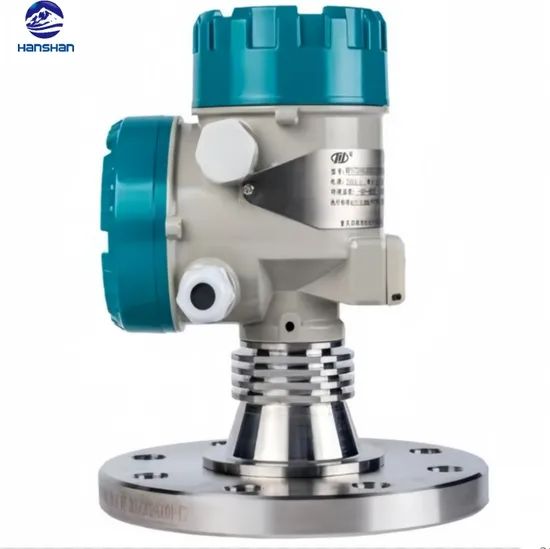

Advanced Mps3000 Series Pulse Radar Level Meter for Accurate Measurements
1 Piece
$2,000Product information
High-quality Advanced Mps3000 Series Pulse Radar Level Meter for Accurate Measurements supplied by Cold Valley Intelligent Technology (Shanghai) Co., Ltd.. Bulk wholesale pricing is $2,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Measurement Range:
0-50m
Accuracy Grade:
0.5G
Production Capacity:
100000peices/Years
HS Code:
9026100000
Certification:
CE
Origin:
China
Customized:
Customized
Display Type:
Decile Calibration
Specifications
Measurement Range:
0-50m
Accuracy Grade:
0.5G
Production Capacity:
100000peices/Years
HS Code:
9026100000
Certification:
CE
Origin:
China
Customized:
Customized
Display Type:
Decile Calibration
Trade Term:
FOB, EXW, CIF
Type.:
Guided Wave Radar Level
Pressure Range:
High Pressure
Trademark:
Highpeak
IP Rating:
IP65
Payment Term:
LC, T/T, D/P, PayPal
Measuring Medium:
Liquid Solid
Model NO.:
MPS3300
Port Of Loading:
Shanghai, ningbo
Transport Package:
Wooden
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2024-10-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal
Preferred Trade Term:
FOB, EXW, CIF
Port Of Loading:
Shanghai, ningbo
Certificates:
Hanshan award 1, Hanshan award 2, SGS, Trademark Registration Certificate
Product descriptions from the supplier
Function and measurement system
measuring principle
The MPS3000 series pulse radar level meters are "overhead" measurement systems based on the time-of-flight principle. This instrument measures by emitting a 1mW micro-power microwave pulse from the radar antenna (for example, a 26G frequency radar, which sends a △t-1nS pulse with a 26GHz sine wave signal). The pulse travels through space at the speed of light and reaches the surface of the medium being measured. Part of its energy is reflected back and received by the same antenna. The time interval between the emitted and received pulses is proportional to the distance from the antenna to the surface of the medium.
import
The antenna receives microwave pulse signals reflected from the material surface and transmits them to the electronic component. The microprocessor processes the signal, identifying the echo generated by the microwave pulse on the material surface. Accurate echo signal recognition is completed by intelligent software, with precision reaching the millimeter level. The measurement distance D is proportional to the time travel t of the pulse:
D=c*t/2-- where c is the speed of light
According to the known empty tank value E, the level L is:
The reference point of the empty tank value E in L=E-D-- is shown in the figure above
output
According to the field conditions, the instrument can automatically adapt to the measurement environment by inputting the empty tank height (zero point), full tank height (full scale) and setting the application parameters.
The 4-20mA output is calibrated according to the user's range setting. Communication can be carried out through HART protocol.
Overview of the instrument
Technical features
Technical indicators Working frequency: 26GHz
Measurement range: MPS3100,0~20m MPS3200,0~35m MPS3300,0~20m MPS3600,0~35m MPS3700,0~70m
Repeatability: ±1.5mm resolution: 1mm
Response speed:>1S (depending on the specific use)
Output signal: 4~20 mA HART Accuracy: 3mm or 0.1% for the larger value
Antenna material MPS3100: PTFE or PVDF
MPS3200:316L
MPS3300:316L+PTFE MPS3600:316L
MPS3700:316L
Communication interface HART, communication protocol
Process connection MPS3100: G1.5, G3A, M64X2 threads or flanges are optional
MPS3200: Directly inserted flange
MPS3300: Directly inserted flange
MPS3600: straight plug flange, universal flange MPS3700: straight plug flange, universal flange
Process temperature MPS3100: -40ºC~150ºC MPS3200: -40ºC~400ºC MPS3300: -40ºC~150ºC
MPS3600: -40ºC~400ºC MPS3700: -40ºC~400ºC
Process pressure MPS3100: -1.0~3 kgf/cm2 MPS3200: -1.0~40 kgf/cm2 MPS3300: -1.0~16 kgf/cm2
MPS3600: -1.0~40 kgf/cm2 MPS3700: -1.0~40 kgf/cm2
Power supply 24VDC two-wire ordinary power supply: 18~36VDC, ripple voltage: 100mV.vp.p maximum current 22.5mA
24VDC two-wire intrinsically safe power supply: 18~28VDC, ripple voltage: 100mV.vp.p maximum current 22.5mA
24VDC two-wire intrinsically safe + explosion-proof power supply: 20~36VDC, ripple voltage: 100mV.vp.p maximum current 22.5mA 24VDC four-wire power supply: 20~72VDC, power consumption: 3W
220VAC four-wire power supply: 90~260VAC, 50/60Hz, power consumption: 3W
Environmental conditions-40ºC~+80ºC
The enclosure protection class is IP67
Safety certification information: Exia IIC T6/T2 Ga Explosion-proof: Ex dia [ia Ga] IIC T6/T2 Gb
Cable entrance M20*1.5 or 1-1/2NPT (cable diameter 9~13mm)
Selection guide

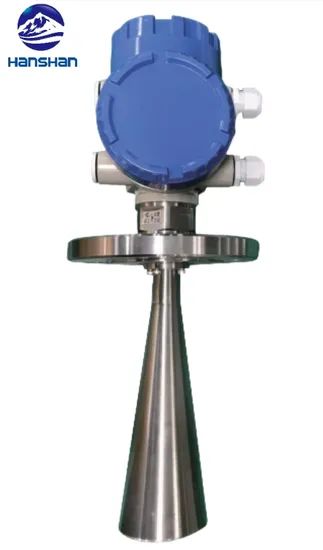

·MPS3300 Horn antenna pulse radar can be widely used in the measurement of strong corrosive and complex working conditions of liquids, slurries and other media in storage containers or process containers according to the different horn aperture, such as: water liquid storage tank, acid and alkali storage, slurry storage tank, etc.
1) For class A medium, please choose waveguide (20m).
measuring condition
• The measurement range starts from the point where the beam touches the bottom of the tank. Especially when the storage tank is a disc-bottom tank or the tank body adopts a conical discharge port, the level below this point cannot be measured.
• For media with low dielectric constant (Class A and Class B), if the medium is at a low level (entering the right figure C), the bottom of the tank can be seen. Measurement in this range will reduce the measurement accuracy, so it is recommended to set the measurement zero point at the position of C away from the bottom of the tank (as shown in the figure).
• The theoretical measurement range can reach the end of the instrument antenna. Considering the influence of corrosion and adhesion, the distance between the end of the measurement range and the top of the antenna should be at least A (as shown in the figure). In particular, special attention should be paid when condensation occurs.
Minimum measurement range B is related to the selected antenna type (see table below).
The diameter of the tank shall be greater than D (as shown in the table below), and the height of the tank shall be at least H (as shown in the table below).
· Influence of gas phase
When steam is present on the liquid surface, high pressure will slow down the transmission speed of the signal. This effect is related to the type of steam and is particularly prominent in low temperature environment. When the distance between the measurement zero point (flange) and the material surface increases, the measurement error caused by this effect increases. The measurement error caused by this effect is shown in the following table.
Note! When the pressure value is known and constant, the measurement error can be compensated by methods such as linearization.
Frequently Asked Questions
Q: How do I select the right product?
A: Upon receiving your inquiry, we will equip you with an all-encompassing technical document, allowing you to meticulously verify the process parameters and technical specifications you need. Our expert team will then tailor the best model recommendation to suit your unique requirements.
Q: I would like a confirmed model. Can you provide that?
A: Absolutely. Once you inform us of the model you're interested in, we will ensure it meets your needs. If there's a more cost-effective option available, we'll offer those as well. After confirming the model's suitability, we will gladly provide a formal quotation
measuring principle
The MPS3000 series pulse radar level meters are "overhead" measurement systems based on the time-of-flight principle. This instrument measures by emitting a 1mW micro-power microwave pulse from the radar antenna (for example, a 26G frequency radar, which sends a △t-1nS pulse with a 26GHz sine wave signal). The pulse travels through space at the speed of light and reaches the surface of the medium being measured. Part of its energy is reflected back and received by the same antenna. The time interval between the emitted and received pulses is proportional to the distance from the antenna to the surface of the medium.
import
The antenna receives microwave pulse signals reflected from the material surface and transmits them to the electronic component. The microprocessor processes the signal, identifying the echo generated by the microwave pulse on the material surface. Accurate echo signal recognition is completed by intelligent software, with precision reaching the millimeter level. The measurement distance D is proportional to the time travel t of the pulse:
D=c*t/2-- where c is the speed of light
According to the known empty tank value E, the level L is:
The reference point of the empty tank value E in L=E-D-- is shown in the figure above
output
According to the field conditions, the instrument can automatically adapt to the measurement environment by inputting the empty tank height (zero point), full tank height (full scale) and setting the application parameters.
The 4-20mA output is calibrated according to the user's range setting. Communication can be carried out through HART protocol.
Overview of the instrument
| Instrument type | MPS3300 | MPS3600 | MPS3700 |
 |
 |
||
| apply | Strong corrosive complex working condition liquid measurement | Bulk, granular and powdered solid measurement | |
| range ability | 20m | 35m | 70m |
| procedure linkage | flange | flange | |
| Process temperature | -40ºC~150ºC | -40ºC~400ºC | |
| Process pressure | -1~16 kgf/cm2 | -1~40 kgf/cm2 | |
| certainty of measurement | Take the larger value of 3mm or 0.1% | Take the larger value of 3mm or 0.1% | |
| Instrument blind spot | End of sensor | End of sensor | |
| signal frequency | 26GHz | 26GHz | |
| signal output | Output signal: 4~20 mA HART | Output signal: 4~20 mA HART | |
source |
24VDC, 4-20mA, HART, two-wire 24VDC, 4-20mA, HART, four-wire 220VAC, 4-20mA, HART, four-wire |
24VDC, 4-20mA, HART, two-wire 24VDC, 4-20mA, HART, four-wire 220VAC, 4-20mA, HART, four-wire |
|
Application industry
· Petrochemical industry (oil field, petrochemical, oil production plant, refinery, chemical plant, coking plant, etc.)
Measurement media-crude oil, light oil, natural gas, methanol, ethanol, ammonia water, benzene, polyphenylene, ester, water vapor, liquid carbon dioxide, liquid nitrogen · Power industry (power plants, etc.)
Measurement media-raw coal bin, pulverized coal bin, fly ash bin, chemical water · Metallurgical industry (steel plant, etc.)
Measuring media-limestone, coking coal powder, cold return ore, raw material bin, powder bin, fly ash bin, chemical water · cement industry (cement plant, etc.)
Measuring media-clinker storage, powder storage, raw coal storage, chemical water, etc
· Petrochemical industry (oil field, petrochemical, oil production plant, refinery, chemical plant, coking plant, etc.)
Measurement media-crude oil, light oil, natural gas, methanol, ethanol, ammonia water, benzene, polyphenylene, ester, water vapor, liquid carbon dioxide, liquid nitrogen · Power industry (power plants, etc.)
Measurement media-raw coal bin, pulverized coal bin, fly ash bin, chemical water · Metallurgical industry (steel plant, etc.)
Measuring media-limestone, coking coal powder, cold return ore, raw material bin, powder bin, fly ash bin, chemical water · cement industry (cement plant, etc.)
Measuring media-clinker storage, powder storage, raw coal storage, chemical water, etc
product superiority
· non-blind area
· High precision, two-wire technology, is the replacement of differential pressure, magnetostrictive, radio frequency conductance, magnetic flip board and other level instruments.
· The measurement results are stable and reliable without the influence of environmental factors such as pressure change, vacuum, temperature change, inert gas, dust and steam. · Dual CPU, stronger hardware processing ability, more intelligent algorithm and more stable system
· Dual-cylinder housing, standard magnetic key, high protection level · Special hand controller, support remote debugging, diagnosis
· Standard surge protector, 4 levels of electromagnetic compatibility
· Suitable for high temperature conditions, up to 150ºC process temperature, when using high temperature extended antenna can reach 350ºC
· The instrument graphic dot matrix LCD supports complex operations such as on-site waveform display and false echo establishment, which reduces the difficulty of instrument operation and maintenance workload.
· The LCD display unit can be connected to 50m (I2C) and 2km (HART) to form the tank side display operation unit. It reduces the risk and labor intensity of daily inspection of instruments in high-risk areas such as large tanks, high temperature, high pressure and toxic substances.
· The instrument sold in China has a Chinese menu preset, which further reduces the difficulty of instrument debugging.
· non-blind area
· High precision, two-wire technology, is the replacement of differential pressure, magnetostrictive, radio frequency conductance, magnetic flip board and other level instruments.
· The measurement results are stable and reliable without the influence of environmental factors such as pressure change, vacuum, temperature change, inert gas, dust and steam. · Dual CPU, stronger hardware processing ability, more intelligent algorithm and more stable system
· Dual-cylinder housing, standard magnetic key, high protection level · Special hand controller, support remote debugging, diagnosis
· Standard surge protector, 4 levels of electromagnetic compatibility
· Suitable for high temperature conditions, up to 150ºC process temperature, when using high temperature extended antenna can reach 350ºC
· The instrument graphic dot matrix LCD supports complex operations such as on-site waveform display and false echo establishment, which reduces the difficulty of instrument operation and maintenance workload.
· The LCD display unit can be connected to 50m (I2C) and 2km (HART) to form the tank side display operation unit. It reduces the risk and labor intensity of daily inspection of instruments in high-risk areas such as large tanks, high temperature, high pressure and toxic substances.
· The instrument sold in China has a Chinese menu preset, which further reduces the difficulty of instrument debugging.
Technical features
Technical indicators Working frequency: 26GHz
Measurement range: MPS3100,0~20m MPS3200,0~35m MPS3300,0~20m MPS3600,0~35m MPS3700,0~70m
Repeatability: ±1.5mm resolution: 1mm
Response speed:>1S (depending on the specific use)
Output signal: 4~20 mA HART Accuracy: 3mm or 0.1% for the larger value
Antenna material MPS3100: PTFE or PVDF
MPS3200:316L
MPS3300:316L+PTFE MPS3600:316L
MPS3700:316L
Communication interface HART, communication protocol
Process connection MPS3100: G1.5, G3A, M64X2 threads or flanges are optional
MPS3200: Directly inserted flange
MPS3300: Directly inserted flange
MPS3600: straight plug flange, universal flange MPS3700: straight plug flange, universal flange
Process temperature MPS3100: -40ºC~150ºC MPS3200: -40ºC~400ºC MPS3300: -40ºC~150ºC
MPS3600: -40ºC~400ºC MPS3700: -40ºC~400ºC
Process pressure MPS3100: -1.0~3 kgf/cm2 MPS3200: -1.0~40 kgf/cm2 MPS3300: -1.0~16 kgf/cm2
MPS3600: -1.0~40 kgf/cm2 MPS3700: -1.0~40 kgf/cm2
Power supply 24VDC two-wire ordinary power supply: 18~36VDC, ripple voltage: 100mV.vp.p maximum current 22.5mA
24VDC two-wire intrinsically safe power supply: 18~28VDC, ripple voltage: 100mV.vp.p maximum current 22.5mA
24VDC two-wire intrinsically safe + explosion-proof power supply: 20~36VDC, ripple voltage: 100mV.vp.p maximum current 22.5mA 24VDC four-wire power supply: 20~72VDC, power consumption: 3W
220VAC four-wire power supply: 90~260VAC, 50/60Hz, power consumption: 3W
Environmental conditions-40ºC~+80ºC
The enclosure protection class is IP67
Safety certification information: Exia IIC T6/T2 Ga Explosion-proof: Ex dia [ia Ga] IIC T6/T2 Gb
Cable entrance M20*1.5 or 1-1/2NPT (cable diameter 9~13mm)
Selection guide
·MPS3300 Horn antenna pulse radar can be widely used in the measurement of strong corrosive and complex working conditions of liquids, slurries and other media in storage containers or process containers according to the different horn aperture, such as: water liquid storage tank, acid and alkali storage, slurry storage tank, etc.
| Fully plastic sealed horn pulse radar | MPS3300 | ||||||
Typical application conditions |
Bore size (mm) |
Type of measured medium | |||||
| A | B | C | D | ||||
| Measuring range (m) | |||||||
storage tank |
 |
Smooth the surface of the medium (For example, intermittent feeding, bottom feeding, Submerged tube) |
50 |
- |
0~5 |
0~10 |
0~15 |
80 |
- |
0~10 |
0~15 |
0~20 |
|||
100 |
0~15 |
0~20 |
0~20 |
||||
buffer tank |
 |
Volatility surface (such as continuous feeding, top feeding, mixture injection) |
50 |
- |
0~2.5 |
0~5 |
0~7.5 |
80 |
- |
0~8 |
0~7.5 |
0~10 |
|||
100 |
- |
0~7.5 |
0~10 |
0~12.5 |
|||
A process tank with a stirrer |
  |
Disrupt the surface, single stage stirring <60U/min |
50 |
0~1.5 |
0~2 |
0~3 |
|
80 |
- |
0~2 |
0~3 |
0~5 |
|||
100 |
- |
0~3 |
0~5 |
0~7 |
|||
guided waves The tube , side siphuncle |
 |
50~100 |
0~20 |
||||
measuring condition
• The measurement range starts from the point where the beam touches the bottom of the tank. Especially when the storage tank is a disc-bottom tank or the tank body adopts a conical discharge port, the level below this point cannot be measured.
• For media with low dielectric constant (Class A and Class B), if the medium is at a low level (entering the right figure C), the bottom of the tank can be seen. Measurement in this range will reduce the measurement accuracy, so it is recommended to set the measurement zero point at the position of C away from the bottom of the tank (as shown in the figure).
• The theoretical measurement range can reach the end of the instrument antenna. Considering the influence of corrosion and adhesion, the distance between the end of the measurement range and the top of the antenna should be at least A (as shown in the figure). In particular, special attention should be paid when condensation occurs.
Minimum measurement range B is related to the selected antenna type (see table below).
The diameter of the tank shall be greater than D (as shown in the table below), and the height of the tank shall be at least H (as shown in the table below).
| Instrument type | A[mm] | B[m] | C[mm] | D[m] | H[m] |
| MPS3100 | 50 | >0.2 | 50~250 | >0.2 | >0.3 |
| MPS3200 | 150 | >0.2 | 50~250 | >0.2 | >0.3 |
| MPS3300 | 50 | >0.2 | 50~250 | >0.2 | >0.3 |
| MPS3600Φ200 Sigh | 300 | >1 | 50~250 | >1 | >1.3 |
| MPS3700Φ250 Cough | 300 | >1 | 50~250 | >1 | >1 .3 |
· Influence of gas phase
When steam is present on the liquid surface, high pressure will slow down the transmission speed of the signal. This effect is related to the type of steam and is particularly prominent in low temperature environment. When the distance between the measurement zero point (flange) and the material surface increases, the measurement error caused by this effect increases. The measurement error caused by this effect is shown in the following table.
gaseous phase |
temperature | pressure | |||||
| ºC | ºF | 1kgf/cm2 (14.5psi) | 10kgf/cm2 (145psi) | 50kgf/cm2 (725psi) | 100kgf/cm2 (1450psi) | 160kgf/cm2 (2320psi) | |
nitrogen |
20 | 68 | 0.00% | 0.22% | 1.2% | 2.4% | 3.89% |
| 200 | 392 | -0.01% | 0.13% | 0.74% | 1.5% | 2.42% | |
| 400 | 752 | -0.02% | 0.08% | 0.52% | 1.1% | 1.70% | |
hydrogen |
20 | 68 | -0.01% | 0.10% | 0.61% | 1.2% | 2.00% |
| 200 | 392 | -0.02% | 0.05% | 0.37% | 0.76% | 1.23% | |
| 400 | 752 | -0.02% | 0.03% | 0.25% | 0.53% | 0.86% | |
water (Saturated water vapor) |
100 | 212 | 0.20% | ||||
| 180 | 356 | 2.1% | |||||
| 263 | 505.4 | 8.6% | |||||
| 310 | 590 | 22% | |||||
| 364 | 687.2 | 41.8% | |||||
Cold Valley Intelligent Technology (Shanghai) Co., Ltd. is a proud member of the esteemed Hanshan (Cold Mountain) Intelligent Technology Co., a leader in innovation.
Established with a vision in the bustling heart of Shanghai in 2013, the Hanshan Intelligent Technology Co., Ltd. group has been pioneering advances in technology.
Our founding members hail from prestigious global automation firms, bringing over two decades of rich expertise in the automation industry, with a decade focused on consulting and implementing cutting-edge digital solutions. We are dedicated to delivering exceptional automation and digitization products and services to a worldwide clientele, all from our strategically located headquarters in Shanghai, China.
With a strong foothold in the petrochemical sector for over 20 years, our in-depth knowledge of automation and digitalization requirements spans the entire spectrum of upstream, midstream, and downstream enterprises. We offer specialized products and solutions, along with comprehensive lifecycle services, for industries ranging from petroleum and chemicals to electric power, biomedicine, APIs, food and beverage, spirits, metallurgy, and non-ferrous metals.
Established with a vision in the bustling heart of Shanghai in 2013, the Hanshan Intelligent Technology Co., Ltd. group has been pioneering advances in technology.
Our founding members hail from prestigious global automation firms, bringing over two decades of rich expertise in the automation industry, with a decade focused on consulting and implementing cutting-edge digital solutions. We are dedicated to delivering exceptional automation and digitization products and services to a worldwide clientele, all from our strategically located headquarters in Shanghai, China.
With a strong foothold in the petrochemical sector for over 20 years, our in-depth knowledge of automation and digitalization requirements spans the entire spectrum of upstream, midstream, and downstream enterprises. We offer specialized products and solutions, along with comprehensive lifecycle services, for industries ranging from petroleum and chemicals to electric power, biomedicine, APIs, food and beverage, spirits, metallurgy, and non-ferrous metals.
Frequently Asked Questions
Q: How do I select the right product?
A: Upon receiving your inquiry, we will equip you with an all-encompassing technical document, allowing you to meticulously verify the process parameters and technical specifications you need. Our expert team will then tailor the best model recommendation to suit your unique requirements.
Q: I would like a confirmed model. Can you provide that?
A: Absolutely. Once you inform us of the model you're interested in, we will ensure it meets your needs. If there's a more cost-effective option available, we'll offer those as well. After confirming the model's suitability, we will gladly provide a formal quotation
User Reviews
Write a review
File a complaint
Supplier Review
Summary by Vivian
TRUST STARS
3.5/5
0 Reviews
Cold Valley Intelligent Technology (Shanghai) Co., Ltd. is a company based in China that offers FOB trade terms and specializes in a wide range of advanced industrial sensors and measurement devices, including the Advanced 26GHz Frequency Meter for High Temperature Liquid Measurement, Advanced AMS 2140 Vibration and Gas Analyzer for Enhanced Machinery Health, Advanced Liquid Analysis pH Sensors with 3-Year Support, Advanced Remote Monitoring Industrial Pressure Sensor for Accurate Readings, Advanced Smart Used Compact Pressure Gauge Transducer Transmitter Gauge Sensor with IoT Sensor and Silicone Design, Advanced Three-Way Ball Valve Control System with Electromagnetic Integration, Advanced Wirelesshart Acoustic Temperature Monitoring System with Rosemount 708, AMS 2140 Advanced Machinery Health Analyzer with One-Channel Vibration Data, AMS 2140 Machinery Health Analyzer Vibration Analyzer A21402c99zhna9h Analysis Measurements, Ashcroft High-Performance Pressure Sensor for Liquid Measurement and Control Pressure, Durable MW50 Flow Switch for Precision Industrial Flow Measurement Solutions, Durable Pressure Transmitter for Oil, Gas, and Water Applications, Durable Rosemount Pressure Transmitter for Reliable Industrial Use, Eja 510e Eja 530e Yokogawa Compact Used Pressure Transmitter Guage Transducer Differential Pressure Eja 110e Ejx, Emerson High-Performance Wireless Vibration Sensor for Extreme Temperatures, High Precision Liquid Level Meter Using Advanced Wavelength Tech, High Precision Rosemount Pressure Sensor for Differential Measurement, High-Performance Pressure Switch for Reliable Readings and Longevity, High-Performance V-Type Pressure Reducing Valve for Fluid Control, High-Precision Mfi Series Gas Flow Meter for Industrial Applications, High-Temperature Liquid Level Meter with Innovative Signal Technology, Highpeak 26GHz Non-Contact Radar Level Meter for Liquid Measurement, Highpeak Precision Liquid Level Meter for Short Wavelength Measurement, Highpeak Precision Radar Liquid Level Meter for Accurate Measurement, Rate Multi-Stage Pressure Reducing Regulating Valve, Reliable Non-Contact Meter for Accurate Liquid Level Detection, Reliable Rosemount 1056 Liquid Analysis System for Turbidity, Reliable Temperature Resistant Pressure Sensor for Industrial Monitoring, Rosemount 1056 Dual Input Transmitter with Advanced Features, and Rosemount 3051CD Tg Ta Cg Coplanar Differential Submersible Remote Control Graphical Smart Display Used Compact Pressure Transmitter Gauge Transducer.
Company Verification
0/4
Profile Completeness
56%
Avg. Product Score
0/5
Responsiveness
0%
Certification
Hanshan award 1, Hanshan award 2, SGS, Trademark Registration Certificate
Related searches
Frequently Asked Questions (FAQs)
How can I buy & import Frequency Meters from China?
You can contact verified China supplier Cold Valley Intelligent Technology (Shanghai) Co., Ltd. through platforms like Freshdi.com to purchase Advanced Mps3000 Series Pulse Radar Level Meter for Accurate Measurements. For direct inquiries, please contact Mr. Handy Han, the company’s representative. The supplier has a 3.5-star rating on Freshdi and has verified. You’ll receive product details, pricing, and shipping terms directly from supplier.
What are the payments and trade terms for Advanced Mps3000 Series Pulse Radar Level Meter for Accurate Measurements?
For Advanced Mps3000 Series Pulse Radar Level Meter for Accurate Measurements, Cold Valley Intelligent Technology (Shanghai) Co., Ltd. accepts LC, T/T, D/P, PayPal as the preferred payment method, the trade term is FOB, EXW, CIF, and shipments are typically arranged from port Shanghai, ningbo, ensuring secure and timely international delivery.
What is the current price of Advanced Mps3000 Series Pulse Radar Level Meter for Accurate Measurements?
The supplier Cold Valley Intelligent Technology (Shanghai) Co., Ltd. offers Advanced Mps3000 Series Pulse Radar Level Meter for Accurate Measurements at negotiation.
What are the specifications of Advanced Mps3000 Series Pulse Radar Level Meter for Accurate Measurements from China?
Advanced Mps3000 Series Pulse Radar Level Meter for Accurate Measurements is sourced from China and meets international export standards. Key specifications include: HS Code: 9026100000, Transport Package: Wooden, Model NO.: MPS3300, Production Capacity: 100000peices/Years, Display Type: Decile Calibration, Measuring Medium: Liquid Solid, Trade Term: FOB, EXW, CIF, Payment Term: LC, T/T, D/P, PayPal
You are viewing details for Advanced Mps3000 Series Pulse Radar Level Meter for Accurate Measurements. The information provided here is either posted directly by the supplier, who is responsible for its accuracy, or collected by Freshdi AI from publicly available sources. Freshdi strives to make product information as useful and reliable as possible, but we do not guarantee complete accuracy. If you notice any incorrect or misleading details, please use the Report Product option so our team can review and address it quickly.
$2,000
/ Piece
Min. order: 1 Piece
Mr. Handy Han
Year Established: 2024-10-27
Visit Store
