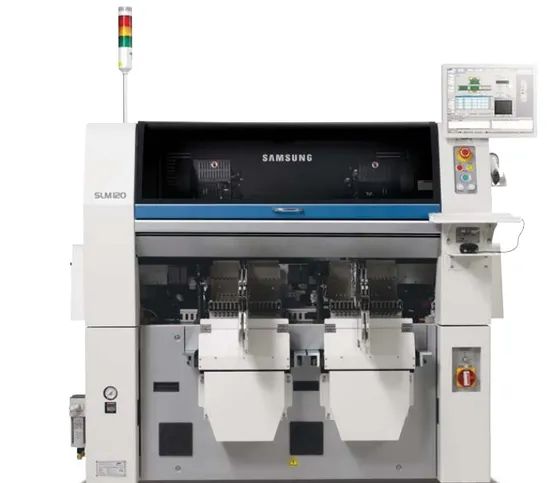

Advanced Samsung SLM120 Chip Mounter for LED Assembly Model NO. SLM120 Trademark Hanhwa Warranty 6 Months Origin South
Piece
Negotiable
Product information
High-quality Advanced Samsung SLM120 Chip Mounter for LED Assembly Model NO. SLM120 Trademark Hanhwa Warranty 6 Months Origin South supplied by SCANSMT CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
1
Specification:
1000*1982*1350
Warranty:
6 Months
HS Code:
8501320000
Automatic Grade:
Automatic
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Hanhwa
Precision:
High Precision
Specifications
Production Capacity:
1
Specification:
1000*1982*1350
Warranty:
6 Months
HS Code:
8501320000
Automatic Grade:
Automatic
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Hanhwa
Precision:
High Precision
Type:
High-speed Chip Mounter
Certification:
ISO, CE
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Model NO.:
SLM120
Port Of Loading:
Shenzhen Port
Origin:
South Korea
Transport Package:
Woodern Packing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-09-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Product descriptions from the supplier
Product Description
Samsung SLM100 Series LED Mounter | 43K CPH | Simultaneous Pickup | 1,200mm Boards | LED Rank Management
World's First Dedicated LED Placement System with Patented Feeder Technology:

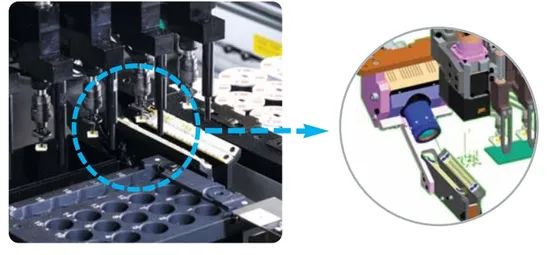

Revolutionary Feeder Design: Simultaneously picks 5 LED components with one feeder (Patent Pending) – unique in SMT industry.
High-Speed Performance:
SLM110: 21,500 CPH via 5-spindle single gantry + Flying Vision.
SLM120: 43,000 CPH via dual-gantry (10 spindles) – doubles throughput.
±80μm Placement Accuracy: Ensures precision for 0603 to 32mm ICs (H8.5mm).

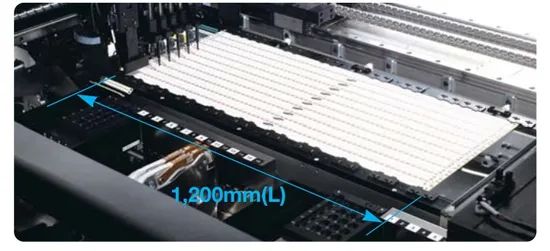

Long LED Board Expertise: Handles 1,200mm PCBs (e.g., lighting panels) via parallel processing:
Places two 380×356mm boards simultaneously or one 1,200×356mm board.
LED-Specific Innovations:
Flip-Over Detection: Vision system prevents defective placement.
Rank Management: Barcode integration tracks LED brightness grades.
Rank Alarm: Prevents mismatched component grades during production.
On-the-Fly Vision: Zero stoppage imaging maintains maximum speed.

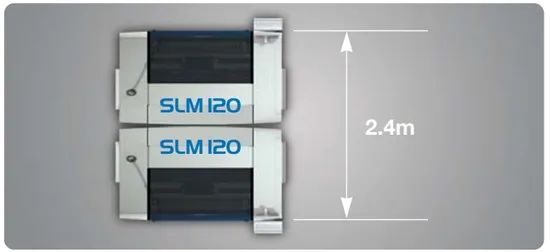

Compact Footprint: 1,650×1,200mm base enables parallel machine arrangements.
Automation-Ready:
Auto feeder link for uninterrupted production.
Built-in tape cutter (Optional).
Key Specs (Document-Verified):
» PCB Thickness: 0.38–4.2mm
» Feeder Capacity: SLM110: 16ea / SLM120: 32ea
» Power: AC220V±20V 50/60Hz 3Phase (SLM110: 2.6kVA / SLM120: 4.3kVA)
» Air: 0.5–0.7MPa (SLM110: 160 NL/min / SLM120: 330 NL/min)

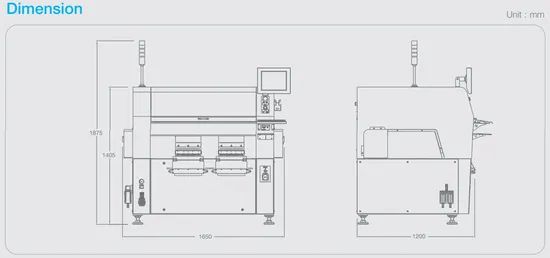

» Dimensions: 1,650(L) × 1,200(D) × 1,405(H) mm
» Weight: SLM110: ~1,200kg / SLM120: ~1,250kg
» Feeder Capacity: SLM110: 16ea / SLM120: 32ea
» Power: AC220V±20V 50/60Hz 3Phase (SLM110: 2.6kVA / SLM120: 4.3kVA)
» Air: 0.5–0.7MPa (SLM110: 160 NL/min / SLM120: 330 NL/min)
» Dimensions: 1,650(L) × 1,200(D) × 1,405(H) mm
» Weight: SLM110: ~1,200kg / SLM120: ~1,250kg
