Advanced Self-Learning Press Brake for Dynamic Metal Forming
1 Set
$15,0001 Set
$8,000Product information
High-quality Advanced Self-Learning Press Brake for Dynamic Metal Forming supplied by Anhui Hawei Intelligent Equipment Co., Ltd.. Bulk wholesale pricing ranges from $8,000 to $15,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
MOQ:
1
Warranty:
1-year
Production Capacity:
2000sets/Year
Slider Travel (D):
250 mm
Weight:
32 Ton
Package Gross Weight:
32000.000kg
Column Distance (B):
3800 mm
Throat Depth (C):
400 mm
Specifications
MOQ:
1
Warranty:
1-year
Production Capacity:
2000sets/Year
Slider Travel (D):
250 mm
Weight:
32 Ton
Package Gross Weight:
32000.000kg
Column Distance (B):
3800 mm
Throat Depth (C):
400 mm
Bending Force:
4000 kN
Bending Length (A):
5000 mm
Package Size:
5000.00cm * 2400.00cm * 3200.00cm
Oil Tank:
550 L
Open Height (E):
580 mm
Return Speed:
60 mm/S
Progress Rate:
7 mm/S
HS Code:
84622300
Approaching Speed:
90 mm/S
Origin:
Anhui, China
Automation:
Automatic
Trademark:
CNHAWE
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Suitable For:
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Trade Term:
FOB, CIF, CFR, EXW
Condition:
New
Keywords:
Press Brake
Type:
Press Brake
Certification:
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Port Of Loading:
Shanghai Port, Ningbo Port
Transport Package:
Standard Packaging or Customized
Specification:
Standard specifications or customized
Payment Methods:
Support payments in USD
Payment Term:
T/T, LC
Model NO.:
WC67K-400-5000
Product Name:
Wc67K Torsion-Sync Nc Press Brake
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-08-29
Annual Revenue Amount:
Not specified
Numbers Of Employees:
50
Preferred Payment Term:
T/T, LC
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port, Ningbo Port
Certificates:
Electro-hydraulic Servo CNC Press Brake, MACHINERY DIRECTIVE ATTESTATION of CONFORMITY, Other certificates, Patent Certificate
Product descriptions from the supplier
SONA2024 2.2.1

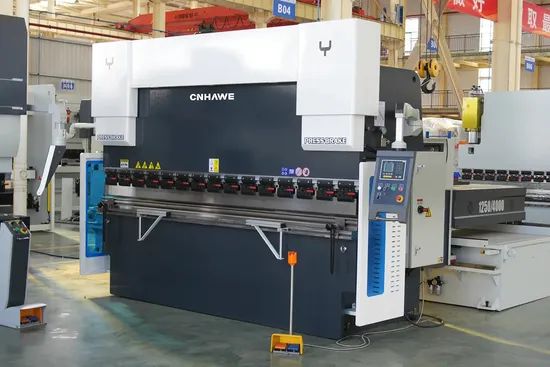

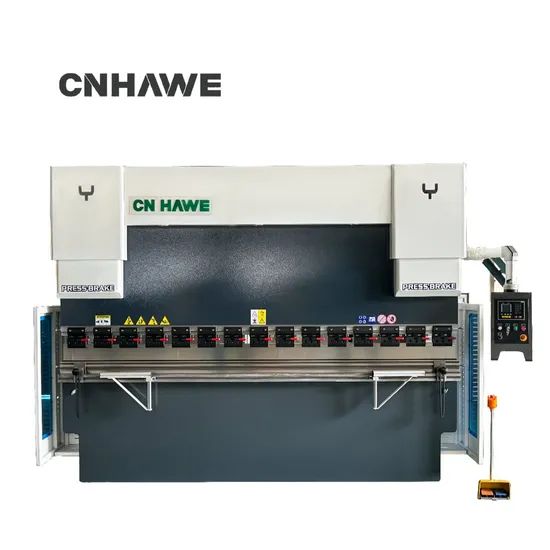

WC67K Torsion-Sync NC Press Brake
The NC press brake's robust construction ensures durability and long-term performance, even in the most demanding production environments. The NC press brake is an economical hydraulic bending machine with a competitive price, straightforward installation, easy operation, and handy after-sales service. These advantages have rendered the NC press brake a favored option in the global market.
Moreover, the NC press brake is equipped with a user-friendly interface that allows operators to program and adjust settings with ease. This minimizes the learning curve and increases productivity, as operators can quickly become proficient with the machine. The availability of various bending tools and accessories further enhances the machine's versatility, making it suitable for a wide range of applications from simple to complex.
Moreover, the NC press brake is equipped with a user-friendly interface that allows operators to program and adjust settings with ease. This minimizes the learning curve and increases productivity, as operators can quickly become proficient with the machine. The availability of various bending tools and accessories further enhances the machine's versatility, making it suitable for a wide range of applications from simple to complex.
Specification
Applications
1. General Metal Fabrication & Job Shops:The backbone for diverse, small to medium-batch production of brackets, frames, and enclosures across various local industries.
2. Structural & Building Components:Forms structural supports, brackets, trim, and framing elements for construction, warehouses, and agricultural buildings.
3. Industrial Machinery Guards & Housings:Fabricates protective covers, panels, and casings for factory equipment and machinery.
4. Material Handling & Storage:Produces shelving units, cart components, pallet rack supports, and warehouse equipment parts.
5. Door, Window & Gate Manufacturing:Bends frames, hinges, and reinforcement components for industrial doors, metal windows, and gates.
6. Commercial Kitchen Equipment:Forms counter bases, cabinet bodies, hoods, and structural parts for stainless steel kitchen fixtures.
7. Transportation & Trailer Manufacturing:Fabricates body panels, chassis reinforcements, and internal components for trailers, trucks, and buses.
8. Agricultural Equipment:Creates durable parts, guards, and structural components for farming machinery and implements.
9. Fencing & Security Products:Bends posts, rails, and panels for metal fences, barriers, and security enclosures.
10. Signage & Display:Forms metal bases, boxes, and frames for both indoor and outdoor commercial signage and display systems.
Right elevation
Rront elevation
Back elevation
Technical Specifications
Model | Bending Force | Bending Length(A) | OilTank | Approaching Speed | Progress Rate | Retum Speed | Column Distance(B) | Throat Depth(C) | Slider Travel(D) |
Unit | KN | mm | L | mm/s | mm/s | mm/s | mm | mm | mm |
30t/1600 | 300 | 1600 | 80 | 120 | 17 | 160 | 1300 | 200 | 80 |
30t/2000 | 300 | 2000 | 100 | 140 | 17 | 160 | 1600 | 200 | 80 |
40t/2500 | 400 | 2500 | 170 | 110 | 15 | 90 | 2030 | 250 | 100 |
63t/2500 | 630 | 2500 | 170 | 100 | 10 | 70 | 2050 | 250 | 120 |
63t/3200 | 630 | 3200 | 170 | 120 | 10 | 70 | 2510 | 250 | 120 |
80t/2500 | 800 | 2500 | 170 | 110 | 10 | 80 | 2050 | 250 | 120 |
80t/3200 | 800 | 3200 | 170 | 130 | 10 | 80 | 2510 | 250 | 120 |
100t/2500 | 1000 | 2500 | 260 | 90 | 7.5 | 70 | 2050 | 320 | 160 |
100t/3200 | 1000 | 3200 | 260 | 100 | 7.5 | 70 | 2510 | 320 | 160 |
100t/4000 | 1000 | 4000 | 260 | 120 | 7.5 | 70 | 3100 | 320 | 160 |
125t/3200 | 1250 | 3200 | 260 | 95 | 7 | 65 | 2510 | 320 | 160 |
125t/4000 | 1250 | 4000 | 260 | 110 | 7 | 65 | 3100 | 320 | 160 |
125t/5000 | 1250 | 5000 | 260 | 120 | 7 | 65 | 3800 | 320 | 160 |
125t/6000 | 1250 | 6000 | 260 | 130 | 7 | 65 | 4600 | 320 | 160 |
160t/2500 | 1600 | 2500 | 260 | 100 | 10 | 100 | 2050 | 350 | 200 |
160t/3200 | 1600 | 3200 | 260 | 110 | 10 | 100 | 2510 | 350 | 200 |
160t/4000 | 1600 | 4000 | 260 | 120 | 10 | 100 | 3100 | 350 | 200 |
160t/5000 | 1600 | 5000 | 260 | 130 | 10 | 100 | 3800 | 350 | 200 |
160t/6000 | 1600 | 6000 | 260 | 140 | 10 | 100 | 4600 | 350 | 200 |
200T/3200 | 2000 | 3200 | 435 | 110 | 10 | 100 | 2510 | 350 | 200 |
200T/4000 | 2000 | 4000 | 435 | 120 | 10 | 100 | 3100 | 350 | 200 |
200T/5000 | 2000 | 5000 | 435 | 120 | 7 | 80 | 3800 | 350 | 250 |
200T/6000 | 2000 | 6000 | 435 | 120 | 7 | 80 | 4600 | 350 | 250 |
250T/3200 | 2500 | 3200 | 435 | 90 | 9 | 100 | 2600 | 400 | 250 |
250T/4000 | 2500 | 4000 | 435 | 100 | 9 | 100 | 3300 | 400 | 250 |
250T/5000 | 2500 | 5000 | 435 | 110 | 8 | 100 | 3800 | 400 | 250 |
250T/6000 | 2500 | 6000 | 540 | 120 | 8 | 100 | 4600 | 400 | 250 |
300T/3200 | 3000 | 3200 | 540 | 90 | 8 | 75 | 2600 | 400 | 250 |
300T/4000 | 3000 | 4000 | 540 | 100 | 8 | 75 | 3100 | 400 | 250 |
300T/5000 | 3000 | 5000 | 550 | 110 | 8 | 75 | 3800 | 400 | 250 |
300T/6000 | 3000 | 6000 | 560 | 130 | 8 | 75 | 4600 | 400 | 250 |
400T/4000 | 4000 | 4000 | 540 | 70 | 7 | 60 | 3100 | 400 | 250 |
400T/5000 | 4000 | 5000 | 550 | 90 | 7 | 60 | 3800 | 400 | 250 |
400T/6000 | 4000 | 6000 | 550 | 100 | 7 | 60 | 4400 | 400 | 250 |
500T/4000 | 5000 | 4000 | 620 | 70 | 6 | 55 | 3100 | 500 | 320 |
500T/5000 | 5000 | 5000 | 620 | 90 | 6 | 55 | 3800 | 500 | 320 |
500T/6000 | 5000 | 6000 | 620 | 120 | 6 | 55 | 4410 | 500 | 320 |
500T/7000 | 5000 | 7000 | 620 | 130 | 6 | 55 | 5400 | 500 | 320 |
600T/4000 | 6000 | 4000 | 650 | 80 | 6 | 65 | 3100 | 500 | 320 |
600T/5000 | 6000 | 5000 | 650 | 90 | 6 | 65 | 3800 | 500 | 320 |
600T/6000 | 6000 | 6000 | 650 | 110 | 6 | 65 | 4600 | 500 | 320 |
600T/7000 | 6000 | 7000 | 650 | 120 | 6 | 65 | 5400 | 500 | 320 |
Product Description

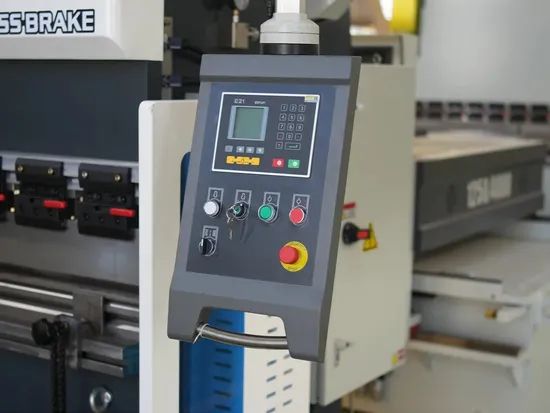

CNC Controller
The high-definition LCD screen of E21 controller supports bilingual Chinese and English, and displays programming parameters on one page, making programming faster and more convenient. Intelligent positioning of X and Y axes supports manual adjustment, eliminating the need for mechanical hand-operated positioning devices.
All buttons on the panel are micro switches and have been strictly tested for EMC, high and low temperature, vibration, etc. to ensure the stability and service life of the product. CE certification support overseas markets.
Moreover, we provide optional controllers like Estun E300P, Delem DA41T, and Cybelec CT8. These controllers provide enhanced angle programming capabilities, intuitive touch screen displays, and advanced R-axis control functions, all of which significantly improve the efficiency and user-friendliness of the bending process.
All buttons on the panel are micro switches and have been strictly tested for EMC, high and low temperature, vibration, etc. to ensure the stability and service life of the product. CE certification support overseas markets.
Moreover, we provide optional controllers like Estun E300P, Delem DA41T, and Cybelec CT8. These controllers provide enhanced angle programming capabilities, intuitive touch screen displays, and advanced R-axis control functions, all of which significantly improve the efficiency and user-friendliness of the bending process.
Motor
The Siemens electric motors, hailing from Germany, are renowned for their exceptional energy efficiency and energy-saving performance. These motors not only boast powerful starting torque and excellent operational performance but also feature low noise and low vibration characteristics, ensuring high reliability. Additionally, their power ratings and mounting dimensions adhere to the standards of the International Electrotechnical Commission (IEC), making operation easy and maintenance convenient. Through our customized services, we can adjust the output power and voltage configuration of the equipment based on the specific requirements of the customer's region.
Servo Hydraulic System
Our machines feature top-of-the-line hydraulic valves from the prestigious BOSCH Rexroth brand. These valves are designed to handle high pressure efficiently, ensuring durability while requiring minimal upkeep.
Designed for continuous performance under rated loads, our machines boast a robust hydraulic system that maintains stability and precision—all without any leaks.
Throughout their operation, our machines can execute multiple functions with ease: rapid descent, slow descent, bending at operational speeds, swift return to starting position, and an immediate emergency stop for the ram.
Designed for continuous performance under rated loads, our machines boast a robust hydraulic system that maintains stability and precision—all without any leaks.
Throughout their operation, our machines can execute multiple functions with ease: rapid descent, slow descent, bending at operational speeds, swift return to starting position, and an immediate emergency stop for the ram.
Back-gauge
Our machines boast a meticulously crafted rear stop assembly, independently engineered for supreme precision. This feature includes an adjustable stop finger and manual lifting function, complemented by a high-precision ball screw. Such design versatility ensures compatibility with diverse tools.
Front Support
Punch & Die Tools
The simple front support is made of aluminum alloy, which has a reliable strength, and is equipped with quick release elastic bolts, making it easy and fast to adjust the position of the two simple front supports.
Prior to initiating an order, it is essential to deliberate on the appropriate press brake punches and dies. Selecting the correct combination of punch and die is vital for attaining the desired bend configuration. Our offerings include tailored tooling solutions that align with the precise bending specifications provided by our clients.

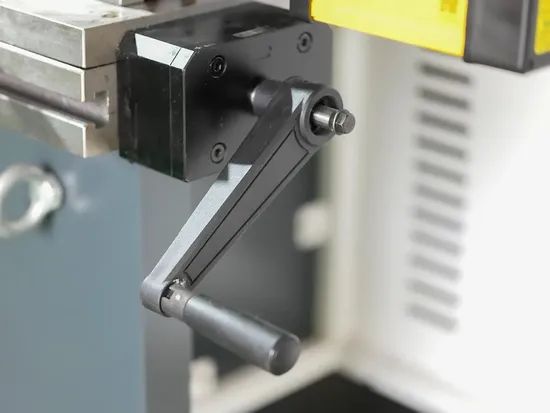

Manual Crowning
CNHAWE insists on self-developed and self-produced electric mechanical compensation crowning system, which is an effective solution to eliminate the impact of slider deformation on bending accuracy. This is achieved by adjusting the convexity of each position in the inner middle through multi-point compensation crowning or manual deflection compensation crowning. In addition, it can also correct angle errors at different positions within the workpiece. On the NC series press brake, we have also equipped a manually adjustable mechanical compensation crowning specifically for this purpose.

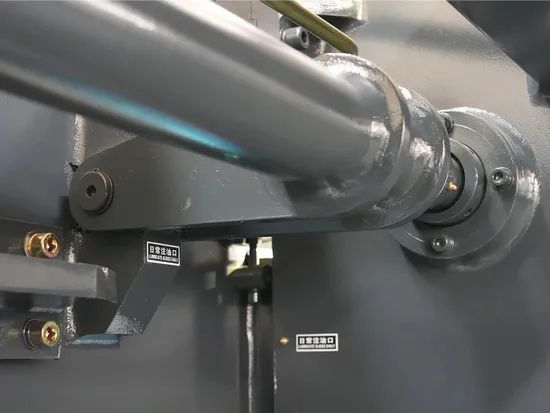

Torsion-Sync Bar
Ball Screw & Guideide
Using high-strength steel, the synchronous torsion bar controls the vertical movement of the slider. It has the advantages of simple structure, high strength, and low maintenance cost, making the NC series press brake stable and reliable, capable of producing many rough and precision sheet metal fabrication parts.
Using Schneider original parts imported from France, our machines have stable and durable performance, with a long service life. It is also equipped with original Estun electrical cabinet components, which have strong anti-interference ability and ensure stable electrical operation.
After Sales Service
Standard Warranty: Our comprehensive warranty safeguards your investment for 12 months or 2,000 operating hours, offering peace of mind and exceptional performance—whichever comes first.
Extended Warranty: Choose our optional extended warranty for up to 36 months of assured quality and support, keeping your investment secure and well-protected throughout its lifespan.
Global Support: Benefit from unparalleled global support with 24/7 technical assistance and a reliable supply of spare parts, ensuring smooth and efficient operations.
Training: We provide extensive training, both on-site and remotely, equipping your team with the skills to enhance productivity and operational efficiency through adept operation and maintenance.
Extended Warranty: Choose our optional extended warranty for up to 36 months of assured quality and support, keeping your investment secure and well-protected throughout its lifespan.
Global Support: Benefit from unparalleled global support with 24/7 technical assistance and a reliable supply of spare parts, ensuring smooth and efficient operations.
Training: We provide extensive training, both on-site and remotely, equipping your team with the skills to enhance productivity and operational efficiency through adept operation and maintenance.
Company Profile
FAQ
1. Are you a manufacturer or a trading company?
A manufacturer with over 20 years of sheet metalworking equipment production experience.
A manufacturer with over 20 years of sheet metalworking equipment production experience.
2. Where is your company located?
Ma'anshan, Anhui Province, China. We are 360 kilometers away from Shanghai Pudong International Airport(PVG). And 35 kilometers away from Nanjing Lukou International Airport(NKG), about a 30 minute drive.
Ma'anshan, Anhui Province, China. We are 360 kilometers away from Shanghai Pudong International Airport(PVG). And 35 kilometers away from Nanjing Lukou International Airport(NKG), about a 30 minute drive.
3 . How long does it take to deliver the machine?
We usually deliver machines within 30 days. For non-standard customized machines, the lead time will be longer but not exceed 50 days.
We usually deliver machines within 30 days. For non-standard customized machines, the lead time will be longer but not exceed 50 days.
4 . What is your acceptable payment?
Generally T/T and L/C payments are accepted by us, with a 30% deposit and 70% payment before delivery. But for those special clients, we have better optional payments.
Generally T/T and L/C payments are accepted by us, with a 30% deposit and 70% payment before delivery. But for those special clients, we have better optional payments.
5. What is your warranty period?
We offer a one-year warranty period for general version machines, and 2-3 years warranty for non-standard machines. It's kind of you to confirm the warranty period with our sales in advance.
We offer a one-year warranty period for general version machines, and 2-3 years warranty for non-standard machines. It's kind of you to confirm the warranty period with our sales in advance.
6. What services are included during the warranty period?
During the warranty period, we offer free replacement parts, excluding wearing parts.
During the warranty period, we offer free replacement parts, excluding wearing parts.
7. Do you accept OEM customization?
Yes, we accept it. Including appearance, color, configuration, and more. The price of customized machines may be slightly higher. Please consult our sales for details.
Yes, we accept it. Including appearance, color, configuration, and more. The price of customized machines may be slightly higher. Please consult our sales for details.
8 . What do you do for Quality Control work?
During the R&D phase, our powerful technicians and engineers gather the most cutting-edge technologies, combined with our decades of industry experience, to complete research and development work. To ensure the strength and stability of the frame, many large processing equipment, like tempering furnaces and shot blasting machines, are used. To ensure machine accuracy, five-axis CNC centers and floor boring and milling equipment are used. Standardized processes are strictly followed during the assembly phase. The final machine must undergo dual certification from both internal and external acceptance departments before it can be put into the market.
During the R&D phase, our powerful technicians and engineers gather the most cutting-edge technologies, combined with our decades of industry experience, to complete research and development work. To ensure the strength and stability of the frame, many large processing equipment, like tempering furnaces and shot blasting machines, are used. To ensure machine accuracy, five-axis CNC centers and floor boring and milling equipment are used. Standardized processes are strictly followed during the assembly phase. The final machine must undergo dual certification from both internal and external acceptance departments before it can be put into the market.
