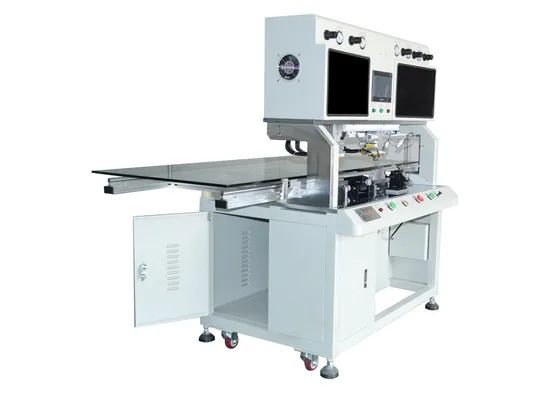

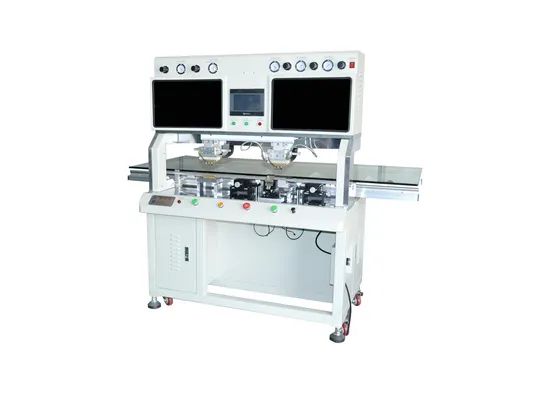

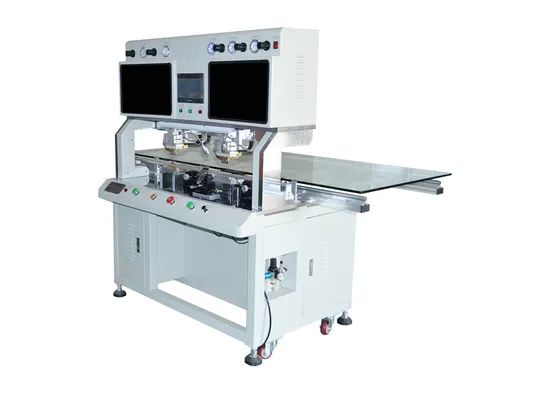

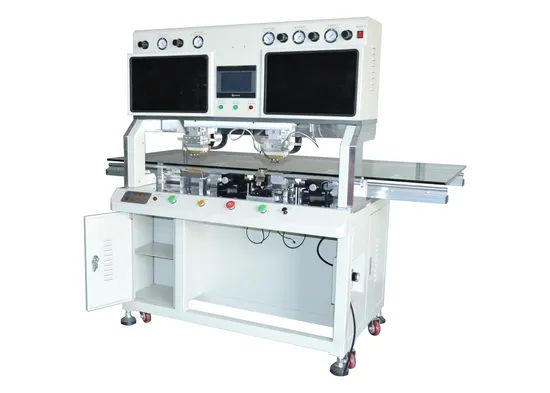

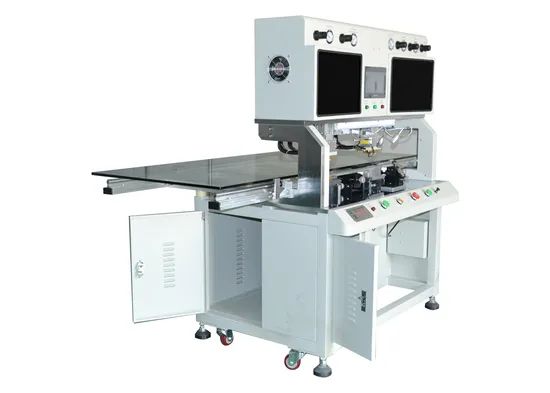

Advanced Technology Acf Bonding Machine Model
1-4 Piece
$4,2005 Piece
$4,000Product information
High-quality Advanced Technology Acf Bonding Machine Model supplied by Guangzhou Chuang Li You Machinery Co., Ltd.. Bulk wholesale pricing ranges from $4,000 to $4,200 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
1000
Package Size:
123.00cm * 92.00cm * 165.00cm
Package Gross Weight:
450.000kg
Specification:
450KG
Model NO.:
618SH
Trademark:
CLY
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specifications
Production Capacity:
1000
Package Size:
123.00cm * 92.00cm * 165.00cm
Package Gross Weight:
450.000kg
Specification:
450KG
Model NO.:
618SH
Trademark:
CLY
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF
Origin:
Guangzhou
Port Of Loading:
Guangzhou Huangpu Port
Payment Term:
LC, T/T
Payment Methods:
Support payments in USD
Training:
Teach Online or Learning for Training Videos
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-09-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Guangzhou Huangpu Port
Certificates:
CE
Product descriptions from the supplier
| Model NO. | 618SH | Use LCD Screen Repair | Tab Bonding |
| Other Name | LCD Repair Bonding Machine | Peak Power | 1500W |
| Voltage | AC220V | Hot Pressing Time | Can Be Set (S) |
| Work Pressure | 0.3~0.4 (MPa) | Machine Shape Size | 1800(L)X1200(W)X1520(H)mm |
| Peak Temperature | + / - 0.3 Degrees Celsius | Weight | 450kg |
Product Description
The system control is: DELTA - PLC control (single). Production parameters are stored for brands such as Samsung, LG, Sharp, Chi Mei, AUO, Huaxing Photoelectric, Hitachi, Hanyu Display, Huasheng, Zhonghua, etc. The system features four different temperature set points for precise control. PLC and touch screen communication allow for extended automatic control functions based on production needs. The system also includes automatic detection of abnormalities and quick maintenance through alarm display.
The stability control is provided by Panasonic - TC2. Imported temperature sensing line and Panasonic's newest chips (TC2) ensure accurate temperature control, fast heating time, higher temperature precision, and display of heating curves and parameters.
The operating interface is WV full-color PDA (single communication) with a 6.5-inch intelligent man-machine interface. The system is controlled by a programmable controller (PLC) for stable and reliable equipment operation.
The heating method is pulse heating mode with fast heating/cooling and auxiliary cooling functions. The system includes a high-quality titanium alloy head with automatic temperature compensation for precise temperature control.
The high precision counterpoint is achieved through a micrometer counterpoint with an advanced optical alignment system. The system allows for precise adjustments on X, Y, Z axes using high-precision micrometer regulators for accurate production.
The maintenance and brand size are unlimited, supporting screen cards such as TFT LCD, LED screen, TAB, COG, and PCB bonding. The 618SH model offers exclusive domestic original installed after-sales service and patented products.
Features:
- Repairs any inches below 100 inches.
- Refurbishes various screen issues like black belt, black line, color line, ribbons, multi-line, flower screen, black screen, white show, caused by FPC/TAB/COF.
- Pulse heating precision of +/-0.3ºC.
- Response time from room temperature to 180 degrees in 2 seconds.
- Plane precision (hot-pressing side): 0.005 mm.
- Low repair rate and easy operation.
Company name: Guangzhou Chuang Li You Machinery Co., Ltd.
| Model number | 618SH |
| Heating Mode | Pulse |
| PID Temperature Control System Brand | Siemens temperature control module |
| Temperature curve:Factory Reset | |
| Peak temperature + / - 0.3 degrees Celsius | |
| From room temperature to 180 degrees response time for 2 seconds | |
| Brand:the United State OMEAG | |
| Heat Press Head | Materials: titanium alloy |
| Place of origin: the United States | |
| Plane precision (hot-pressing side) : 0.005 mm | |
| Industrial Control Unit | PLCS:DELTA |
| HDMI:Weinview | |
| Imaging Unit | COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package) |
| PCB counterpoint: no | |
| Microscope magnification: 20 ~ 100 consecutive times | |
| Number of lens: 2 | |
| COF counterpoint display: 19 inch | |
| PCB counterpoint display:no | |
| Light above:yes | |
| Light down:no | |
| COF Trimming Unit | Place of origin: Taiwan |
| Type of guide rail:V guide rail | |
| Accuracy: 0.01 | |
| Adjustable direction: X/Y/R | |
| X-y range: + / - 6.5mm | |
| R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees | |
| COF Fixture | Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended |
| Lens Fine-Tuning Unit | Type of guide rail: precise cross rail . Control mode: X - Y - Z micrometer control |
| Position Detection | NO |
| Silicone Skin/Tefloon | Change position manually |
| LCD Drive(Platform) | Sliding or fixed optional manually |
| Alarm | Abnormal:temperature/thermocouple anomaly/actions |
| Heat Seal Head Counterpoint | Independent pneumatic,Pressure reducing valve be adjusted manually |
| Control Way | Touch screen + button operation |
| Parameter Setting | According to the need to set to storage more groups of hot-pressing parameters |
| Voltage | AC220 v |
| Peak Power | 1500W |
| Weight | 450kg |
| Size Of Machine (mm) | 1800(L)X1200(W)X1520(H)mm |
Product Description: LCD TV Repair Bonding Machine
Company Name: Guangzhou Chuang Li You Machinery Co., Ltd.
Payment and Delivery:Payment terms include EXW/FOB/CIF, with options for T/T payment. Delivery time is approximately one week.
Warranty:Standard 1-year warranty with lifelong technical support.
Training:Two training methods available: factory training and video training. More details can be foundhere.
Packaging:The machine is carefully packaged for shipping.
Installation:A video guide for machine installation is provided for easy setup.
Features:
- Efficient LCD TV repair bonding capabilities
- Reliable performance with a 1-year warranty
- Comprehensive training options for user convenience
- Secure packaging for safe shipping
- Easy installation process with instructional video guide
Product Description
Company Name:Guangzhou Chuang Li You Machinery Co., Ltd.
Specifications:
- Equipment Model Number:618SH (Double Head)
Features:
- Double head manual platform automatic pressure machine
- Used for screen repair and bonding
Benefits:
- Efficiently repair screens with precision
- Easy bonding process for various materials
Product Description:
Introducing the cutting-edge 618SH device from Guangzhou Chuang Li You Machinery Co., Ltd., designed for FPC, COF, TAB, LCD Panel, and PCB combination bonding. This versatile device is compatible with LCD panels ranging from 7" to 100" and supports panel thickness from 0.3mm to 1.1mm (Double glass).
The 618SH offers multiple bonding IC options, with the ability to set the panel direction as X or Y Unidirection. The bonding IC size can be easily adjusted with a replaceable blade according to IC specifications.
With a fast processing time of TFT, 3.8S/chip, and a production rate of TAB, 100 pcs/H, this device ensures efficient and accurate bonding. The bonding accuracy is within ±1.5μm, supporting 4K screens, with the highest positioning accuracy setting of ±0.5μm.
Equipped with a PID Temperature Control System by DELTA, the 618SH maintains peak temperature within +/- 0.3 degrees Celsius and offers rapid heating/cooling with auxiliary cooling functions. The hot pressing head, made of Japan Titanium, ensures precise bonding with a plane precision of 0.001mm.
Additional features include an image unit with Panasonic image processing system, COF trimming unit from Taiwan, and a lens spinner unit with X/Y/Z micrometer control. The device also includes alarm systems for pressure anomalies, temperature anomalies, thermocouple abnormalities, and action abnormalities.
The 618SH is a comprehensive solution for ACF/COF/TAB repairing, eliminating the need for additional accessories. With a compact body size of 1800x1200x1520mm (L*W*H) and a weight of 450KG, this device is a must-have for precision bonding applications.
Order the 618SH today and experience seamless LCD panel bonding with unmatched efficiency and accuracy.
| No. | Name | Model No. | Quantity | Unit | Specification | Remark |
| 1 | Double Head Bonding Machine | 618SH | 1 | Set | Double Head | |
| 2 | ACF Anisotropic Conductive Film | AC-7206U-18 | 1 | Piece | 1.2X50M | Glass special |
| 3 | ACF Anisotropic Conductive Film | AC-2056R-35 | 1 | Piece | 2.0X50M | PCB special |
| 4 | Acetone Liquid | BT-H1 | 1 | Bottle | 500ML | |
| 5 | Absolute Alcohol | CH3CH2OH | 2 | Bottle | 500ML | |
| 6 | ACF Removing Liquid | G-450 | 1 | Bottle | 500ML | |
| 7 | HitachiBlue Glue | 1 | Bottle | 100ML | ||
| 8 | FujiSilicone | 1 | Piece | 50M | ||
| 9 | Tefloon | 1 | Piece | 50M | ||
| 10 | Heating Solder Iron | 1 | Piece | 30W | ||
| 11 | Alcohol Bottle | 2 | Bottle | |||
| 12 | TAB Cutter | 1 | Piece | |||
| 13 | Optical Microscope | 1 | Piece | |||
| 14 | LCD Test Board | HXV59 | 1 | Piece | ||
| 15 | Air Compressor | OTS750 | 1 | Piece | Mute Oil-free | |
| 16 | Cleanroom Wipers | 1 | Piece | |||
| 17 | Cotton Swab | 1 | Piece | |||
| 18 | Handheld Magnifier | 1 | Piece | |||
| 19 | Precision Tweezers | Elbow, Straight | 2 | Piece | High Hardness Hyperfine |
