Advanced UV Energy Meter for Laboratory Use and Research Applications
1-9 Piece
$46510 Piece
$455Product information
High-quality Advanced UV Energy Meter for Laboratory Use and Research Applications supplied by Shenzhen Lianxiang Instrument Equipment Co., Ltd.. Bulk wholesale pricing ranges from $455 to $465 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Irradiance Measuring Range:
0 - 200000 MW/Cm²
Energy Measuring Range:
0 - 999999 Mj/Cm²
Irradiance Resolution:
1 MW/Cm²
Package Gross Weight:
1.000kg
Production Capacity:
10000 Units/Year
Power Supply:
2 AAA Alkaline Dry Batteries
Weight:
225g
Package Size:
26.50cm * 22.50cm * 10.00cm
Specifications
Irradiance Measuring Range:
0 - 200000 MW/Cm²
Energy Measuring Range:
0 - 999999 Mj/Cm²
Irradiance Resolution:
1 MW/Cm²
Package Gross Weight:
1.000kg
Production Capacity:
10000 Units/Year
Power Supply:
2 AAA Alkaline Dry Batteries
Weight:
225g
Package Size:
26.50cm * 22.50cm * 10.00cm
Lead Time:
5 days (1 - 1 Pieces)6 days (2 - 10 Pieces)To be negotiated ( > 10 Pieces)
HS Code:
9031809090
Transport Package:
Carton Box
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Diameter 120mm * Thickness 13mm
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Trademark:
LX
Model NO.:
LX128
Port Of Loading:
ShenZhen Port
Origin:
Shenzhen, China
Payment Methods:
Support payments in USD
Test Hole Diameter:
φ10mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-05-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
ShenZhen Port
Certificates:
Business License, Software Copyright Registration Certificate
Product descriptions from the supplier
SONA2024 2.2.1
Product Description

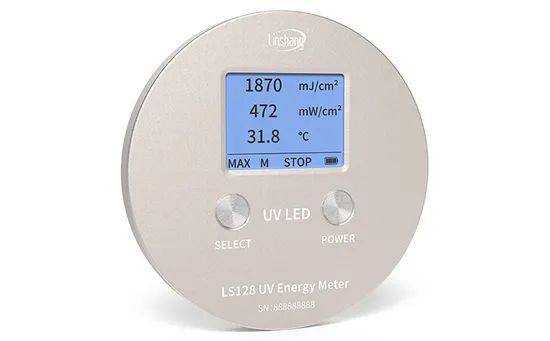

LX128 UV Energy Meter
LX128 is a professional UV energy meter for testing UV LED light sources and has various excellent achievements:
1.The first UV energy meter for UV LED light source testing.
2.The first wide-range UV energy meter with a range of 200W/cm².
3.The first UV energy meter for a wide spectrum (340nm-420nm).

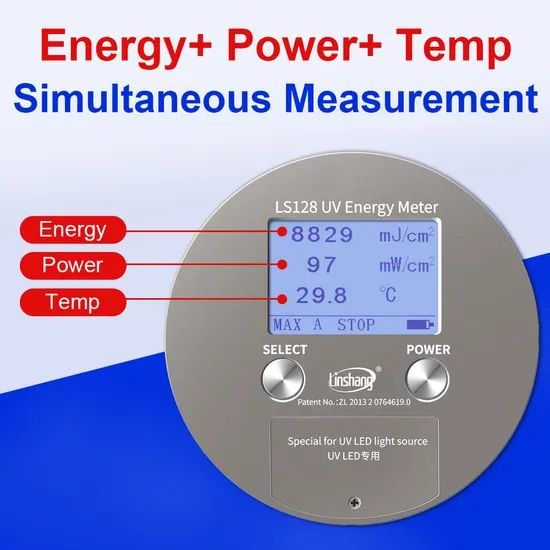

4.The first UV energy meter that measures temperature and power at the same time and can display process curves.

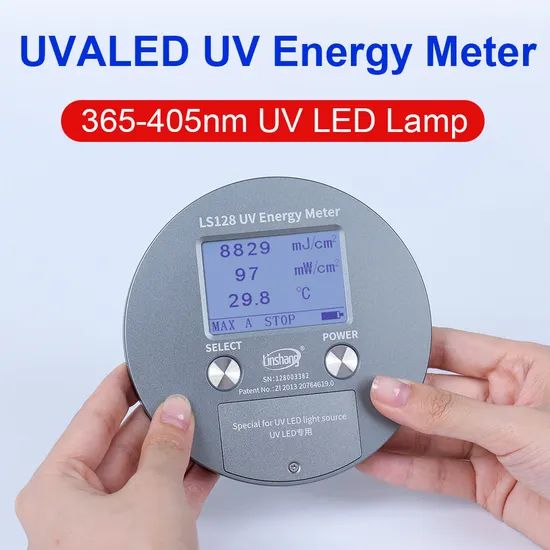

Its spectral response range is 340nm-420nm and it can test various wavelengths of 365nm, 375nm, 385nm, 395nm, 405nm and other UV LED light source.
2.The first wide-range UV energy meter with a range of 200W/cm².
3.The first UV energy meter for a wide spectrum (340nm-420nm).
4.The first UV energy meter that measures temperature and power at the same time and can display process curves.
Its spectral response range is 340nm-420nm and it can test various wavelengths of 365nm, 375nm, 385nm, 395nm, 405nm and other UV LED light source.
Specification
Parameter | LX128 UV Energy Meter |
Application | Light intensity, energy and temperature measurement of UV LED light sources |
Spectral Range | 340nm - 420nm, calibrated at 395nm UV LED light sources |
Irradiance Measuring Range | 0 - 200000 mW/cm² |
Irradiance Resolution | 1 mW/cm² |
Energy Measuring Range | 0 - 999999 mJ/cm² |
Energy Measuring Accuracy (H is the Standard Value) | H<5mW/cm²:±0.5mW/cm² H>=5mW/cm²:±10%H, ±5% (typical) |
Temperature Measuring Range | -55°C - +125°C |

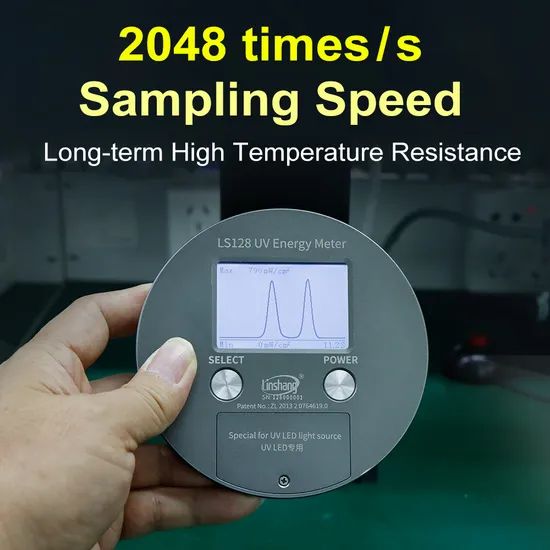

Sampling Speed | 2048 times/second |
Irradiance Data Storage Interval | 32 times/second |
Temperature Data Storage Interval | 2 times/second |
Recording Period | 32 min |
Power Supply | 2 AAA alkaline dry batteries |
Display | 240*160 Dot matrix LCD |
Test Hole Diameter | Φ10mm |
Dimension | Diameter 120mm * thickness 13mm |
Weight | 225g |
Features
Dual Measurement Modes
The device supports two operation modes. In Manual mode, users start and stop measurements manually. In Auto mode, measurements start or stop automatically when UV intensity crosses a customizable threshold.

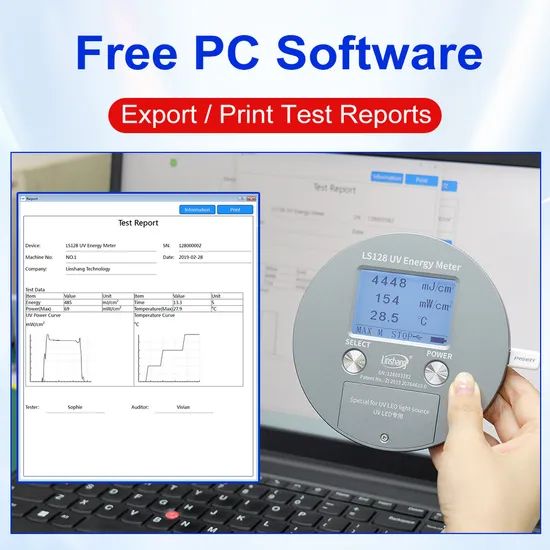

Advanced PC Software
Connect the meter to a PC for data export, test result printing, and detailed report generation.
Integrated Temperature Measurement
Equipped with a fast and precise temperature sensor, it accurately records the real-time temperature inside UV curing machines.
Heat-Resistant Design
Built with a heat-insulated layer, the device can operate reliably in environments up to 100°C for extended periods. Learn more: Usage Time of Linshang UV Energy Meter at Various High Temperatures.
Broad Spectral Response
Thanks to its wide spectral sensitivity, the device can measure any UV LED light source with a peak wavelength between 365nm and 405nm.
Four Display Interfaces for Comprehensive Data Monitoring
The meter provides four interfaces to monitor and record UV source data:
Max Values Interface: Shows cumulative energy, peak power, and maximum temperature
RT Interface: Records the duration of UV exposure

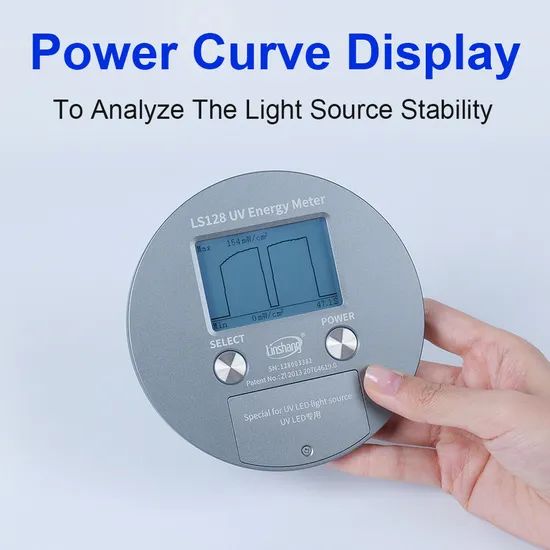

Temperature and Power Curve Interface: Displays real-time temperature changes and UV intensity variations
All interfaces can be accessed and switched freely.
Max Values Interface: Shows cumulative energy, peak power, and maximum temperature
RT Interface: Records the duration of UV exposure
Temperature and Power Curve Interface: Displays real-time temperature changes and UV intensity variations
All interfaces can be accessed and switched freely.
Certifications
Packaging
No. | Description | Quantity | Unit |
1 | LX128 UV Energy Meter | 1 | pcs |
2 | USB Cable | 1 | pcs |
3 | Antistatic Gloves | 1 | pcs |
4 | Cross Head Screw-driver | 1 | pcs |
5 | User Manual | 1 | pcs |
6 | Certificate/Warranty Card | 1 | pcs |
7 | Plastic Box Dimension 25*21*7cm (L*W*H) | 1 | pcs |
8 | Calibration Report | 1 | pcs |
Company Profile
FAQ
Q: 1. The difference between LX120 and LX128 UV energy meters
A: LX120 UV energy meter is mainly used to detect 365nm UV high pressure mercury lamp, while LX128 UV energy meter is mainly used to detect 365nm, 385nm, 395nm and 405nm UV LED light sources.
Q: Whether a traceable calibration certificate is included?
A:LX120 and LX136 are professional UV energy meters used to detect 365nm high-pressure mercury lamps, which can be ensured to pass the inspection of the Metrology Institute and obtain a calibration certificate (approved by CNAS and ilac-MRA). The cost of the calibration certificate is about US$340 ; LX128 and LX137 are UV energy meters that are professionally used to detect UV LED light sources. There is no unified inspection standard for LED light sources, each light source and UV energy meter manufacturer has their own calibration standards. We can provide the factory calibration reports for these two UV LED energy meters, but no calibration certificates can be provided.
A: LX120 UV energy meter is mainly used to detect 365nm UV high pressure mercury lamp, while LX128 UV energy meter is mainly used to detect 365nm, 385nm, 395nm and 405nm UV LED light sources.
Q: Whether a traceable calibration certificate is included?
A:LX120 and LX136 are professional UV energy meters used to detect 365nm high-pressure mercury lamps, which can be ensured to pass the inspection of the Metrology Institute and obtain a calibration certificate (approved by CNAS and ilac-MRA). The cost of the calibration certificate is about US$340 ; LX128 and LX137 are UV energy meters that are professionally used to detect UV LED light sources. There is no unified inspection standard for LED light sources, each light source and UV energy meter manufacturer has their own calibration standards. We can provide the factory calibration reports for these two UV LED energy meters, but no calibration certificates can be provided.
Q: What's the lead time for orders?
A: 5–6 days.
A: 5–6 days.
Q: How to calibrate UV energy meter, how often do I need to calibrate and how much does it cost?
A: To calibrate the UV energy meter, please send the instrument back to the manufacturer. Generally, it is recommended to calibrate it once a year. If the storage environment is good and the frequency of use is not high, the calibration period can also be extended according to user needs. The first calibration is free, and the cost of each subsequent calibration is US$50.
A: To calibrate the UV energy meter, please send the instrument back to the manufacturer. Generally, it is recommended to calibrate it once a year. If the storage environment is good and the frequency of use is not high, the calibration period can also be extended according to user needs. The first calibration is free, and the cost of each subsequent calibration is US$50.
Q: May we arrange a factory visit prior to purchase?
A: Certainly! We warmly welcome your visit and will arrange hotel accommodations as well as airport pickup for your delegation.
A: Certainly! We warmly welcome your visit and will arrange hotel accommodations as well as airport pickup for your delegation.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email for a quote, then confirm with a PO.
A: Contact us via email for a quote, then confirm with a PO.
Q: Why Become a Distributor for Shenzhen Lianxiang Instrument Equipment Co., Ltd.?
A: Our instruments are renowned as high-end products, with booming demand in fast-growing markets like Southeast Asia, Africa, and Latin America. Globally, sectors such as environmental monitoring and industrial quality inspection continue to see rising demand, offering vast collaboration prospects. Join us now to seize the golden opportunities in the instrumentation market!
A: Our instruments are renowned as high-end products, with booming demand in fast-growing markets like Southeast Asia, Africa, and Latin America. Globally, sectors such as environmental monitoring and industrial quality inspection continue to see rising demand, offering vast collaboration prospects. Join us now to seize the golden opportunities in the instrumentation market!
