Advanced Universal Signal Input Paperless Data Loggers with Color LCD
1-9 Piece
$39010 Piece
$350Product information
High-quality Advanced Universal Signal Input Paperless Data Loggers with Color LCD supplied by Hangzhou Pangu Automation System Co., Ltd. Bulk wholesale pricing ranges from $350 to $390 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Power Supply:
(176~264)VAC,47~63Hz (24VDC Can Be Customized)
Incoming:
1-40 Channels
Screen Size:
10.4
Display:
10.4 Inches LCD Screen (640*480 Point)
Production Capacity:
20000
Boundary Dimension:
288(W)X288(H)X168(D)mm
HS Code:
3301969
Package Size:
41.00cm * 38.00cm * 26.00cm
Specifications
Power Supply:
(176~264)VAC,47~63Hz (24VDC Can Be Customized)
Incoming:
1-40 Channels
Screen Size:
10.4
Display:
10.4 Inches LCD Screen (640*480 Point)
Production Capacity:
20000
Boundary Dimension:
288(W)X288(H)X168(D)mm
HS Code:
3301969
Package Size:
41.00cm * 38.00cm * 26.00cm
Package Gross Weight:
6.500kg
Specification:
About 6.5KG
Output:
Alarm Output Relay
Print:
C4
Certification:
CE, ISO
Transport Package:
Carton Packaging
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Screen:
Color Screen Paperless Recorders
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trade Term:
FOB, CFR, CIF, EXW
IP Rating:
IP44
Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Trademark:
PANGU
Type:
Paperless Logger
Measuring Medium:
Pressure
Communication:
RS232 or RS485
Port Of Loading:
Shanghai Port, Ningbo Port
Payment Methods:
Support payments in USD
SD Card Memory Size:
U Disk 16g
External Storage:
U Disk Support (Standard USB2.0 Communication Inte
Model NO.:
VX8100R/U/L/TP8
Origin:
Zhejiang
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2001-02-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
47
Preferred Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Shanghai Port, Ningbo Port
Certificates:
ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
Company Profile
Hangzhou Pangu Automation System Co., Ltd. was established in 2001 and has been dedicated to the design, development, manufacture, sales and service of automation instruments.
The company is a national high-tech enterprise, holding dozens of invention and utility model patents related to its products. It also holds the copyright of multiple embedded software and computer software, has participated in the drafting of numerous national standards, and has taken the lead in undertaking major national instrument special projects.
The company has passed the ISO9001 quality assurance system certification, enabling the use of information technology tools, automated production and inspection equipment, and perfect craftsmanship to manufacture high-quality products.
The company's products have been widely applied in industries such as petroleum, chemical engineering, electrical power, thermal power, metallurgy, building materials, food, pharmaceutical manufacturing, environmental protection and municipal administration. It is also exported to countries and regions such as India, Pakistan, Malaysia, Turkey, Thailand, Russia, South Korea and Taiwan.
The company has a professional and efficient R&D, manufacturing and service team, with over 15 years of experience and application experience accumulated from the installation of more than 100,000 instruments worldwide.
Hangzhou Pangu has always been committed to providing customers with excellent products and services, making products made in China synonymous with superior quality!
Product Overview

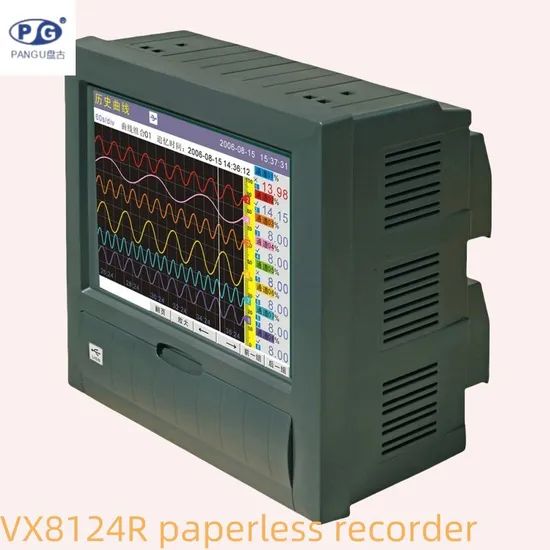

VX8100 color screen paperless recorder
VX8100 maximum 40 channel all-purpose input paperless recorder can input DC current,DC voltage,
frequency,millivolt,thermocouple,RTD,and other signals.It has sensor isolation power distribution output,relay alarm output,transmitter output,flow totalizer,temperature and
pressure,compensation,cumulativestatements,historical data storage,printing,and remote communication function.
frequency,millivolt,thermocouple,RTD,and other signals.It has sensor isolation power distribution output,relay alarm output,transmitter output,flow totalizer,temperature and
pressure,compensation,cumulativestatements,historical data storage,printing,and remote communication function.
Functional characteristics
1.Using the latest large scale integrated circuits,international famous factory components.
2.High-speed,high-performance 32-bit ARM microprocessor,which can achieve 40-way signal detection,
recording,display and alarm.

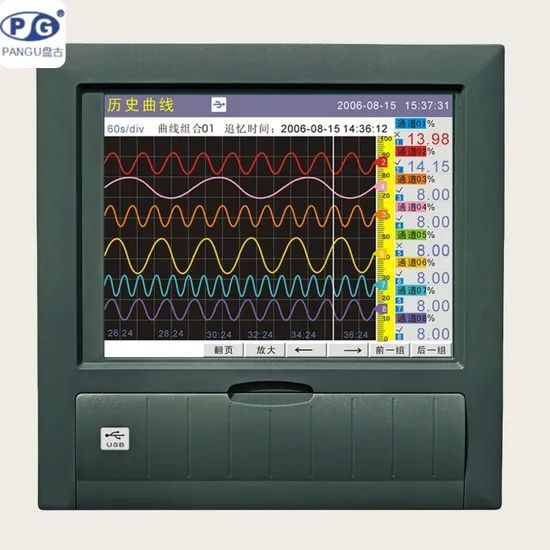

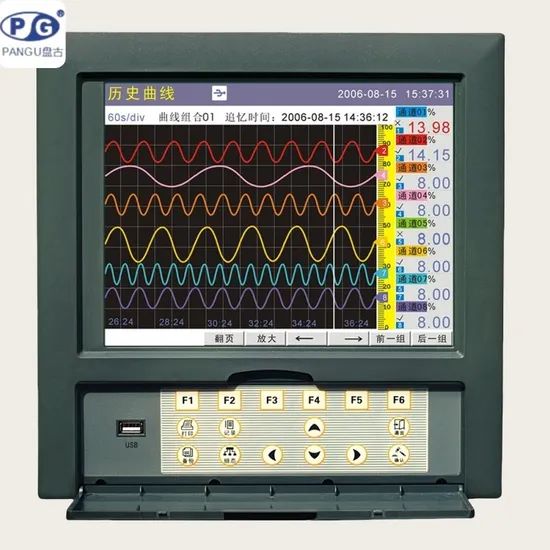

3.10.4 inches 640x480 dot-matrix TFT high brightness color graphic LCD display,LED backlight,clear
picture quality,wide viewing angle.
4.All isolated all-purpose input,can enter a variety of signals,no jumper,can be configured by software.
5.The new switching power supply,working properly within the range of 85VAC~265VAC.
6.Integrated hardware real time clock,the clock can be accurate under power-down situations.
7.Provide transmitter 24VDC isolated power distribution.
8.aluminum sealed enclosure and internal shield,which can ensure the instrument is working properly in
harsh environments.
9.Large-capacity FLASH memory chip store historical data,and never lost data when it is in power-down.
10.24 relay alarm output.
1.Software locks guarantee user configuration safety.
2.Chinese menu configuration can freely configurable configure and display engineering bit number,
engineering units.
3.Engineering quantities display range:-9999 to 19999,also supports the degree of vacuum operation and
scientific notation display.
4.While indicating lower and lower limit,lower limit,upper limit of each channel,upper and upper limit alarm,
record and display the most recent 187 alarm information.
5.Each channel supports flow accumulation function,providing hour reports,8 hour class report,12 hour
class report,daily report+monthly report and other reports.
6.Up to 12 sets of temperature and pressure compensation,support plates,and other vortex street and
other flow device and steam,water,gas and other general compensation medium compensation operation.

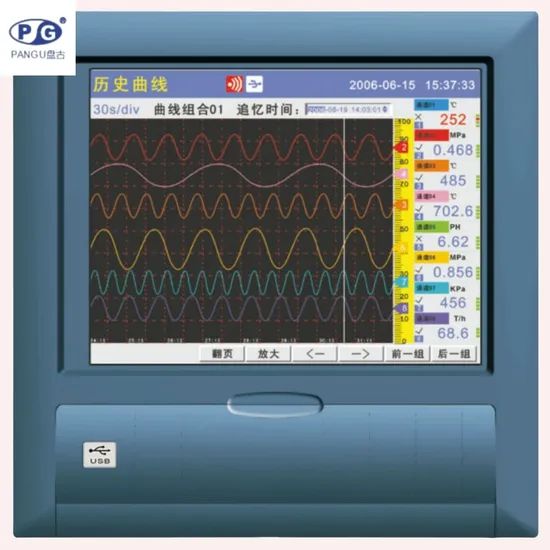

7.Curve display mode can select horizontal curve or vertical curve.
8.Provide 5 sets of curve combination,each set can freely select curve channel and curve color
9.Built GB231 secondary character font(6500 characters).
1.It can input various standard signals: DC current, DC voltage, frequency, millivolt, thermocouple, and thermal resistor.
2.The full-range accuracy of the signal is ±0.2%.
3.Provide standard 4-20mA transmission output.
| Input mode | Input Type | measurement range |
| I | 4~20mA | 4.00~20.00mA |
| 10mA | 0.00~10.00mA | |
| V | 5V | 0.000~5.000V |
| 10V | 0.000~10.000V | |
| 20mV | 0.00mV~20.00mV | |
| 100mV | 0.00mV~100.00mV | |
| R | 350Ω | 0.0~350.0Ω |
| RTD | Pt100 | -200.0~650.0ºC |
| Cu50 | -50.0~150.0ºC | |
| Cu53 | -50.0~150.0ºC | |
| BA1 | -200.0~650.0ºC | |
| BA2 | -200.0~650.0ºC | |
| TC | S | -50.0~1768.0ºC |
| R | -50.0~1768.0ºC | |
| B | 500~1820ºC | |
| K | -200.0~1372.0ºC | |
| N | -200.0~1300.0ºC | |
| E | -200.0~1000.0ºC | |
| J | -200.0~1200.0ºC | |
| T | -200.0~385.0ºC | |
| WRE5-26 | 0~2310ºC | |
| F1 | 700~2000ºC | |
| F2 | 700~2000ºC | |
| FR | Fr | 0~10000Hz |
| Selection table | ||||
| Type | Function | Specification | Description | |
| VX8108 | 8 channel input | |||
| VX8116 | 16 channel input | |||
| VX8124 | 24 channel input | |||
| VX8132 | 32 channel input | |||
| VX8140 | 40 channel input | |||
| Function | R | General records | ||
| F | Temperature and pressure compensation |
|||
| C | PID controlling | |||
Additional specification |
/T /A /C |
4 | 4 channel 4-20mA output*1 | |
| 8 | 8 channel 4-20mA output*1 | |||
| 12 | 12 normally open contact output | |||
| 24 | 24 normally open contact output | |||
| 2 | RS232 communication | |||
| 3 | RS485 communication | |||
| 4 | Micro printer terminal*2 | |||
| /U | USB function | |||
| /L | Accumulate/Report | |||
| *1 VX8132 cannot adapt T8;VX8140 cannot adapt T4/T8. *2 Sudport private micro printer onlv. |
||||
