Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils

Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils - Image 1
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils - Image 2
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils - Image 3
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils - Image 4
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils - Image 5
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils - Image 1
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils - Image 2
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils - Image 3
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils - Image 4
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils - Image 5

1 Roll

$688

Product information

High-quality Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils supplied by Anping County Shanwei Metal Products Co., Ltd. Bulk wholesale pricing is $688 per Roll with a minimum order of 1 Roll. Inquiry for latest prices.

Thickness:

0.05mm-5.0mm

Swdxlwd:

0.3X0.6mm,0.5X1.0mm,0.6X1.2mm,0.8X1.6mm

Package Gross Weight:

10.000kg

Package Size:

150.00cm * 13.00cm * 15.00cm

Length:

30m,50m

Production Capacity:

50 Ton/Month

Specification:

70-80g/m2, 100-110g/m2, 50 micron thickness

HS Code:

7419994000

Specifications

Thickness:

0.05mm-5.0mm

Swdxlwd:

0.3X0.6mm,0.5X1.0mm,0.6X1.2mm,0.8X1.6mm

Package Gross Weight:

10.000kg

Package Size:

150.00cm * 13.00cm * 15.00cm

Length:

30m,50m

Production Capacity:

50 Ton/Month

Specification:

70-80g/m2, 100-110g/m2, 50 micron thickness

HS Code:

7419994000

Origin:

China

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Trade Term:

FOB, EXW, CFR, CIF

Trademark:

SW

Model NO.:

SW-E

Payment Methods:

Support payments in USD

Payment Term:

T/T

Transport Package:

Water-Proof Paper, Air Bubble Film, Carton

Port Of Loading:

Xingang Tianjin

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Year Established:

2018-05-01

Annual Revenue Amount:

Not specified

Numbers Of Employees:

Not specified

Preferred Payment Term:

T/T

Preferred Trade Term:

FOB, EXW, CFR, CIF

Port Of Loading:

Xingang Tianjin

Certificates:

SGS

Product descriptions from the supplier

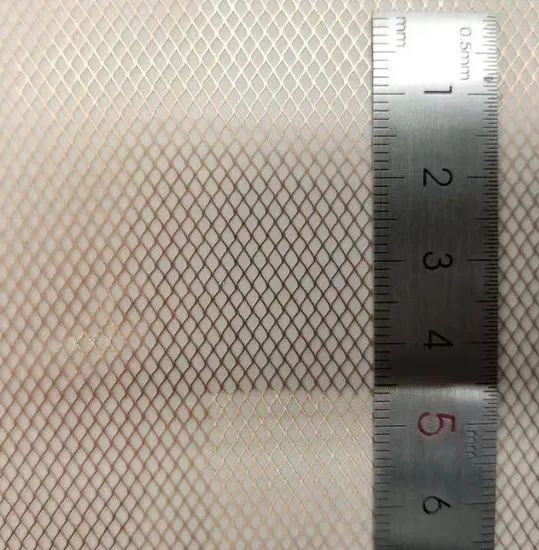

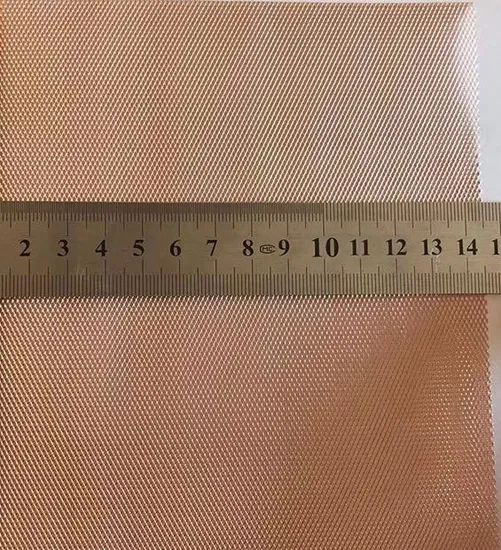

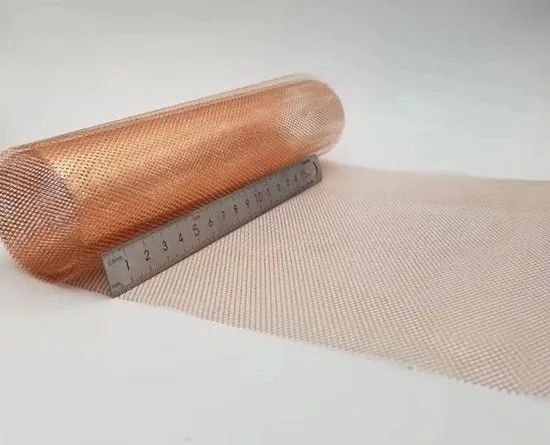

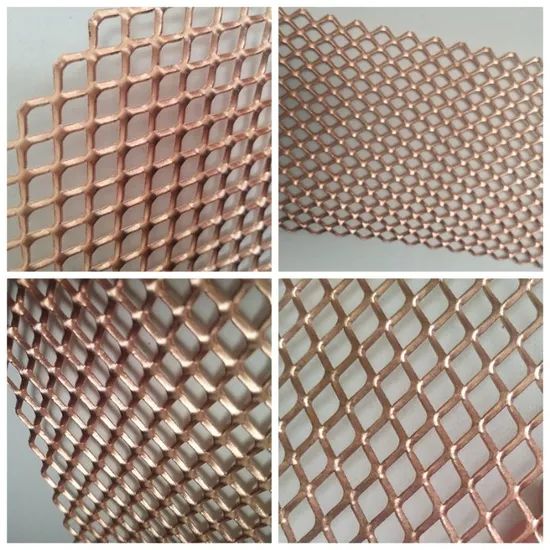

Precision expanded metal screen,also names diamond hole mesh,the process is using metal sheet by machine stamping and drawing .
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils
Expanded metal mesh specification
Item Size (mm)
Mesh thickness 0.04-5.0
Mesh hole 0.3x0.6,0.5x1.0,0.6x1.2,0.8x1.6,1x2,1.25x2.5,1.5x2,2x2.5,1.5x3,2x3,2x4,3x6,4x8,5x10,6x12,8x16,10x20,15x30,
20x40,30x60 etc
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils
Expanded metal mesh material :stainless steel,aluminum,copper,silver,nickel,titanium,etc.
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen FoilsAerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils
Expanded metal mesh can be used in many kinds of industries,such as aerospace,construction mesh,titanium anode,chemical industry,filter media,hydrogen making,speaker griller, current collector of battery, EMI/EMP shielding,wind energy etc.
Expanded copper mesh and Expanded aluminum mesh applied in aerospace main usage is :lightening strike protection in composite aircraft structure.

Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils
Copper diamond mesh specification
Item Weight g/m2(+6%) LWD mm (+0.01mm) Thickness (+0.005mm) Open Area %(+5%) Resistivity (mΩ)
LWD SWD
Cu73 73 2.54 0.050 80 ≤3.12 ≤12.00
Cu 73A 73 2.54 0.100 80 ≤3.12 ≤12.00
Cu108 107 2.54 0.102 75 ≤2.10 ≤6.30
Cu142 142 2.54 0.152 80 ≤1.60 ≤4.80
Cu195 195 2.54 0.152 65 ≤1.10 ≤3.60
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen FoilsAerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen FoilsAerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils
Aluminum diamond mesh specification
Item Weight g/m2(+6%) LWD mm (+5%) Thickness(+0.01mm) OpenArea%  (+5%)
AL66 66 1.90 0.051 52
AL78 78 2.03 0.102 52
AL136 136 2.03 0.122 60
Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen FoilsAerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils
Micro copper mesh advantage: good conductivity and heat transfer performance, non-magnetic, corrosion resistance,wear resistance,strong sound insulation,signal shielding etc.

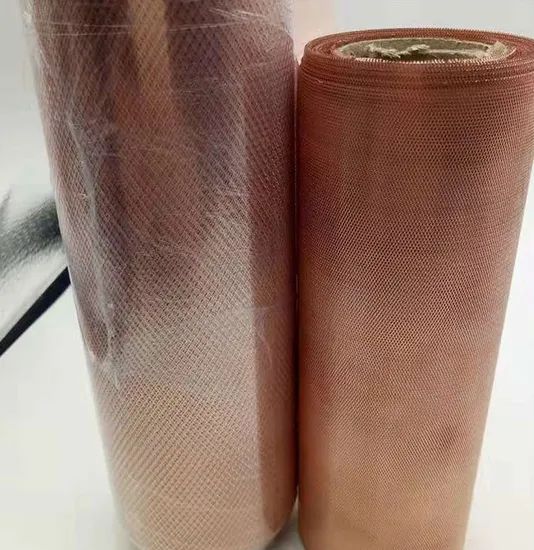

Micro mesh package:water-proof paper, air bubble film,carton.Anping County Shanwei Metal Products Co.,Ltd , expanded micro mesh professional manufacturer.

Aerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen FoilsAerospace Aircraft Composite-Based Structures Lightning Strike Protection Precision Micro Grid Hole Expanded Copper Silver Aluminum Nickel Mesh Screen Foils
