Ak164 Proiessional CNC Automatic Lathe
Piece
Negotiable
Product information
High-quality Ak164 Proiessional CNC Automatic Lathe supplied by Weihai Hanming Automation Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
1000pic/Year
Specification:
1985× 1321× 1692mm
Model NO.:
AK164
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Certification:
GS
Performance Classification:
High-End CNC Machine Tools
Payment Term:
LC, T/T
Specifications
Production Capacity:
1000pic/Year
Specification:
1985× 1321× 1692mm
Model NO.:
AK164
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Certification:
GS
Performance Classification:
High-End CNC Machine Tools
Payment Term:
LC, T/T
Condition:
New
Transport Package:
Woodencase
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-07-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Not specified
Product descriptions from the supplier
Application of machine:
The AK164 CNC system excels at manufacturing high-accuracy, intricate small to medium components across sectors including automotive, electronics, telecommunications, IT, healthcare, aerospace, hardware, mechanical systems, and hydraulic systems. With a maximum clamp bar size of 38mm, it supports continuous 24-hour autonomous operation.
Multiple system selection (FANUC/ SYNTEC),
The guide sleeve is interchanged with no guide, sleev
Rich tooling capacity,
Easy to expel iron filings,
Part of it can be turned into turning instead of grinding,
Tool change fast,,
Strong cutting force for alloy steel and stainless steel
Technical-parameters
|
Items |
AK164 |
||
|
Mechanic |
System |
FANUC Oi TF-PLUS |
SYNTEC 22TB |
|
/Max.RPM |
Main10,000min¹/Sub8,000min¹ |
Main8,000min¹/Sub6,000min¹ |
|
|
Max.Turning Diameter |
φ16mm |
||
|
Main Spindle Stroke |
150mm |
||
|
Rapid traverse speed |
24m/min |
||
|
Tools |
O.D Tools |
6X[12×12] |
|
|
Front work tools |
3X[φ25-ER16] |
||
|
() Cross Driven Tools(integration) |
3X[ER16] |
||
|
Motors |
Main |
3.7/5.5KW |
3.9KW |
|
Sub |
0.55/1.1KW |
0.75KW |
|
|
Cross |
0.5KW |
0.75KW |
|
|
Drive |
0.75KW |
||
|
Coolant |
0.25KW |
||
|
Others |
Coolant tank capacity |
180L |
|
|
Lubrication tank capacity |
1.8L |
||
|
Central Height |
1,050mm |
||
|
Weight |
3,000Kg |
||
|
(xx)The size(L×W×H) |
1985×1321×1692mm |
||
|
NC NC Control |
/Controllable Axes |
5axis/4axis |
|
|
LCD |
LCD 8.4" |
||
|
System standard parameters |
Standard |
||
|
Rigid tapping |
Standard |
||
|
Helical interpolation |
Standard |
||
|
Standard units |
Floodlight |
The product output device |
|
Transfonner |
Centralized lubrication system |
|
|
The spindle axis C + brake |
Synchronus rotary guide bush holder unit |
|
|
0.001. C axis resolution: 0.001° |
Auxiliary shaft workpiece ejection device |
|
|
Air blow on Sub spindle |
Cooling box |
|
|
Optionanl units |
Bar feeder |
Front power tools |
|
Oil cooler |
4axis cross tools |
|
|
Chip conveyor |
cut-off tool detector |
|
|
High pressure pump |
4axis or 5axis LN tools |
|
|
Thread whirling rings |
lOaxis LN tools |
Machine size drawing
Machine performance advantage

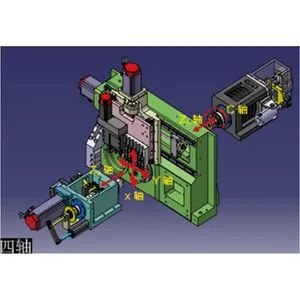

Function composition
Finished products bvthe machine tool
Machine Parts
Communication Parts
Medical Parts
Automobile Parts
Communication Parts
