All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature

All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 1
All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 2
All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 3
All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 4
All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 5
All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 6
All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 1
All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 2
All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 3
All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 4
All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 5
All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature - Image 6

1 PC

$90,000

1 PC

$120,000

Product information

High-quality All-in-One Framing and Gluing Machine with Three Systems Humidity ≤80% Weight 3200kg Beat ≤30 Seconds Trademark Yilipv Temperature supplied by YiLi Pv Tech Factory Ltd. Bulk wholesale pricing ranges from $90,000 to $120,000 per PC with a minimum order of 1 PC. Inquiry for latest prices.

Compressed Air:

0.6-0.8MPa

Warranty:

12 Months

After Sales Service:

24 Hours Online Support

Temperature:

25±5℃

Weight:

3200kg

Voltage:

3ψ5W, 380V, 50/60Hz

Specification:

5600*3200*2500mm

Trade Term:

FOB, CIF, CFR, EXW

Specifications

Compressed Air:

0.6-0.8MPa

Warranty:

12 Months

After Sales Service:

24 Hours Online Support

Temperature:

25±5℃

Weight:

3200kg

Voltage:

3ψ5W, 380V, 50/60Hz

Specification:

5600*3200*2500mm

Trade Term:

FOB, CIF, CFR, EXW

Origin:

Jiangsu, China

Payment Term:

LC, D/P, PayPal, Western Union, Small-amount payment

Panel Size:

Length (1634-2500 mm) Width (986-1400mm)

Port Of Loading:

Shanghai Port

Model NO.:

Trinity Solar Framing Machine

Transport Package:

Wooden Box

Trademark:

Yilipv

Beat:

≤30 Seconds

Humidity:

≤80%

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Not specified

Year Established:

2014-04-22

Annual Revenue Amount:

Not specified

Numbers Of Employees:

56

Preferred Payment Term:

LC, D/P, PayPal, Western Union, Small-amount payment

Preferred Trade Term:

FOB, CIF, CFR, EXW

Port Of Loading:

Shanghai Port

Product descriptions from the supplier

Product Description

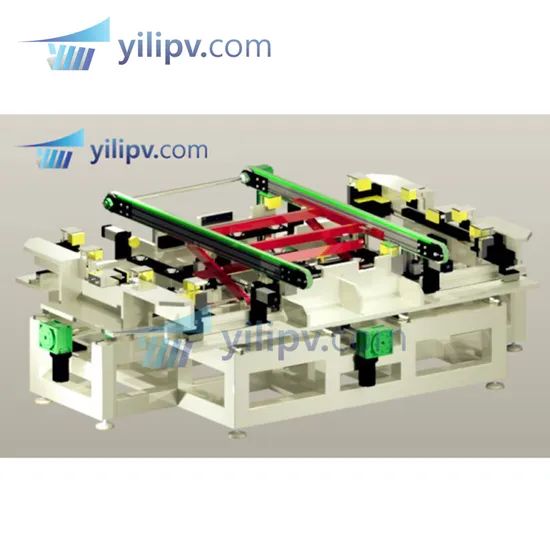

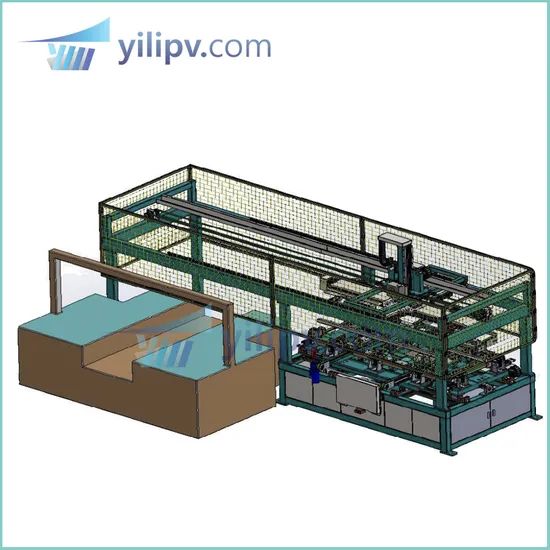

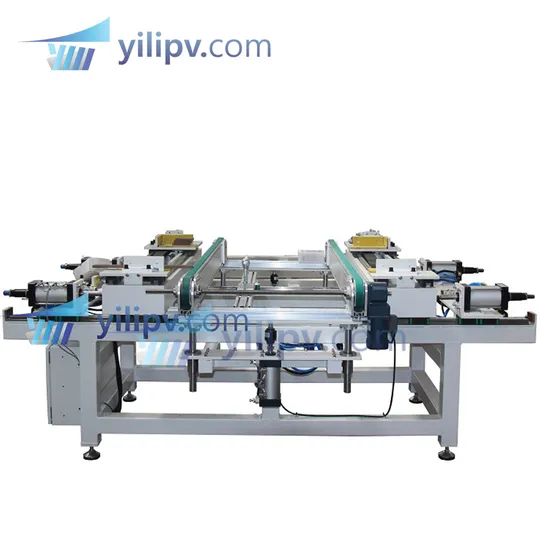

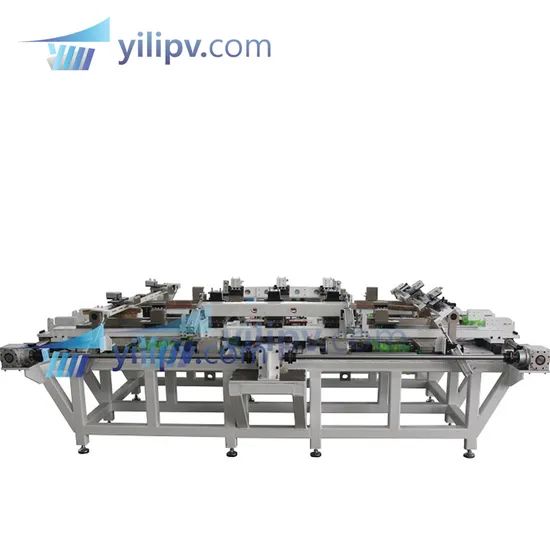

 All-in-One Framing and Gluing Machine with Three Systems
1.The glue overflow is even and bubble-free and has the function of corner pressing.
2.Plane error <=0.5mm, long side size of the solar panel error ±0.5 mm, short side size error ±0.5 mm, diagonal size error ≤1 mm;
3.The all-in-one framing and gluing machine is composed of three systems, which work through I/O signal docking.
4.The host PLC communicates with the servo through CANopen and is equipped with an HMI human-machine interface to facilitate parameter setting.
5.Functionally, the equipment formula parameter function facilitates customers to switch between different component specifications quickly.
6.The glue overflow framing machine is equipped with frame-sensing devices on the four sides to ensure the stable operation of the equipment.
7.A suction cup is installed in the middle of the framing machine. The panel are vacuumed before framing to improve the flatness and glue overflow effect of the Solar panel.


Product Parameters

Item Parameters
Panel size Length (1634-2500 mm) Width (986-1400mm)
Beat ≤30 seconds
Transmission speed 0~20M/min
Machine size 5600*3200*2500mm
Weight 3200kg
Compressed Air 0.6-0.8Mpa
Voltage 3ψ5W, 380V, 50/60Hz
Power 5370W+5750W
Temperature 25±5ºC
Humidity ≤80%
Warranty 12 Months

FAQ
All-in-One Framing and Gluing Machine with Three Systems
Packaging & Shipping

All-in-One Framing and Gluing Machine with Three Systems

Company Profile

All-in-One Framing and Gluing Machine with Three Systems YiLi Pv Tech Ltd adheres to the principle of quality first, customer first. We take quality and the company's reputation as the life of our enterprise. We are willing to wholeheartedly serve our customers with excellent products and a thoughtful service system before, during, and after-sales.
We sincerely welcome customers to contact and negotiate cooperation details with our company and service. We have our own independent finishing and roughing workshop to ensure the precision and quality of parts processing. Our experienced production and assembly team is the guarantee to ensure production progress and good after-sales service.
YiLi PV Tech Ltd. was established in 2008 and is one of China's pioneer manufacturers of photovoltaic module production equipment. We are a comprehensive high-tech enterprise with integrated R&D, sales and marketing, manufacturing, installation, and after-sales service.
Our company has more than 100 employees, including 23 people in the R&D department, more than 35 on-site installers, more than 24 people for after-sales, nearly 40 employees in the workshop, five employees in the overseas sales and marketing department, and six employees in the domestic sales department.
Our company provides a turnkey solution for a fully packaged production line and equipment for solar module manufacturers. The leading equipment includes, but is not limited to, a photovoltaic module automatic production line, multi-layer and multi-cavity laminating machine, robot typesetting machine, frame integrated machine, auxiliary equipment, and other series.
Our products and equipment are exported to the United States, Mexico, South Korea, Turkey, India, Jordan, and over twenty other countries and regions.
Customized Design and Products to Accommodate Your Needs.
According to customer's needs, we design and develop products that are compatible with all central solar cell and panel production techniques, including,but not limited to: Conventional, Double Glass, Half-Cut, MBB, Shingled, Heterojunction, Topcon and other different production processes and needs. Applicable solar module types: Conventional solar modules, Half-cut solar modules, MBB solar modules, Shingled solar modules, Double-glass solar modules, Flexible solar modules, Back-contact solar modules, and Lightweight solar modules.
YiLi Pv after-sales team introduction:
YiLi Pv focuses on overseas markets and has established after-sales offices in the United States and Ahmedabad, India. Our company directly employs six experienced Indian after-sales engineers to provide local after-sales services for our machines exported to India. In southern India, we can reach the customer's factory within 6 hours to deal with complex machine problems; in northern India, we can reach the customer's factory within 12 hours.

Our Advantages
