Aluminum Wood Pattern Moulds Making 5axis CNC Router Voltage 380V Inverter Delta CNC or Not CNC Warranty 1 Year Weight 10000kgs
Piece
Negotiable
Product information
High-quality Aluminum Wood Pattern Moulds Making 5axis CNC Router Voltage 380V Inverter Delta CNC or Not CNC Warranty 1 Year Weight 10000kgs supplied by Jinan Artech Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
1 Year
Weight:
10000kgs
Production Capacity:
20sets/Month
Working Area:
3000X6000X1000mm
Specification:
3000X6000x1000mm
Voltage:
380V
HS Code:
84659900
Model NO.:
ART3060
Specifications
Warranty:
1 Year
Weight:
10000kgs
Production Capacity:
20sets/Month
Working Area:
3000X6000X1000mm
Specification:
3000X6000x1000mm
Voltage:
380V
HS Code:
84659900
Model NO.:
ART3060
Trademark:
ARTECH
Product Name:
Aluminum Wood Pattern Moulds Making 5axis CNC Rout
Z Axis Transmission:
Ball Screw
CNC Or Not:
CNC
Inverter:
Delta
Trade Term:
FOB, CIF, CFR, EXW
X Y Axis Transmission:
Gear Rack
Spindle:
Hiteco 12kw Qir Cooling Spindle
Motor:
Japan Yaskawa Servo Motor
Payment Term:
LC, T/T
Port Of Loading:
Qingdao Port
Origin:
Shandong China
Transport Package:
Strong Plywood Case
Control System:
Syntec
Table:
T.Slot Table
Guide Rail:
Taiwan Hiwin Square Guide Rail
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-08-18
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Product descriptions from the supplier

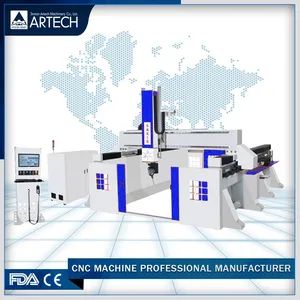

Aluminum Wood Pattern Moulds Making 5axis CNC Router
Feature:
1. Syntec control system from taiwan, with high performance and competitive price. Professional famous brand in 5 axis machine line.
2. HSD ATC water cooling spindle from Italy, with strong cutting ability, low noise, it can ensure the machine working for long time.
3. Original YASKAWA Servo motors & drivers from Japan, ensure the machine's stronger strength and high accuracy.
Technical Parameter:
| Number | Main Description | Parameter |
| 1 | X Y Z A C 5 Axis working area | 3000*6000*1000mm*+100°/-40°,+-220° |
| 2 | 5 axis head | Imported From Italy Hiteco |
| 3 | Operating system | Syntec controller system from Taiwan |
| 4 | SPINDLE | Italy spindle , |
| 5 | Motor and driver | Japan Yaskawa servos motor and drivers |
| 6 | Reducer | Japanese Shimpo reducer |
| 7 | Frequency Inverter | Delta inverter from Taiwan |
| 8 | Transmission system X Y axis | Gear Rack and guide rail pinion |
| 9 | Transmission system Z axis | Ball screw |
| 10 | Rails | Original 30mm hiwin rails from Taiwan |
| 11 | Oil lubrication | Yes ,Automatic type |
| 12 | Spindle speed | 0-20000rmp |
| 13 | Spindle rated speed | 0-12000rmp |
| 14 | Working voltage | AC380V (220V) |
| 15 | Command language | G code |
| 16 | Interface | CF card, ethernet |
| 17 | Software option | 5 axis postprocessor powermill |
| 18 | Running | Temperature:0 -45 centigrade |
| 19 | Tool ATC | 8 pieces auto tools changer |
1. Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.
2. Advertising industry:advertising materials such as PVC,acrylic,double color plate.
3. Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.
4. Metal industry:carving aluminum,copper,stainless steel and so on.
Package and Delivery:Package Detail: 1.Outside package:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity.
And we can package according to your requests.
Delivery Detail: For atandard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients' specific requirements,it will be 15 to 30 working days after payment.
After Sale Service:
1. Engineers availbal to service machinery overseas.
2. 1 year guarantee for whole machine.
3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine,we will provide the best price for you.
6. Friendly English version manual and operation video CD disk.
Company Information:
Artech is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, "Brand ArtechCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
FAQ:
Q1 For offer the most suitable machine,how should i do ?
1).The exact material you want to engrave/cut? (such as wood, acrylic, cloth, fabric, leather, metal.... ? )
2). For the Spindle Power, may I know the cutting or engraving depth you want?
3). The working area you demand? (such as max dimension of material, width*length,1200*1200mm,1300*2500mm,2000*3000mm, etc...
4). Do you want to engrave on planar &flat surface or round &curved surface?
If yes,the machine shall be added optional items, such as rotary attachment. if you can provide some pictures of your products,that would be great! after your tell us these,we will send you more information about the machine and price.
Q2.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.
Q3.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q4.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
