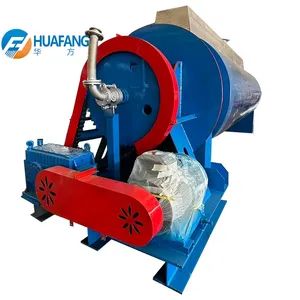

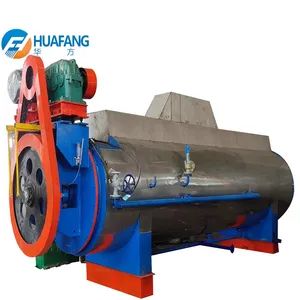

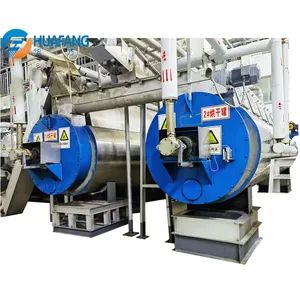

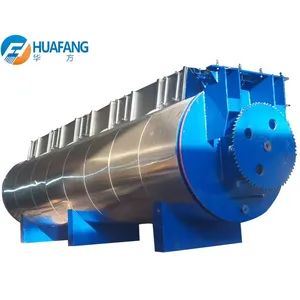

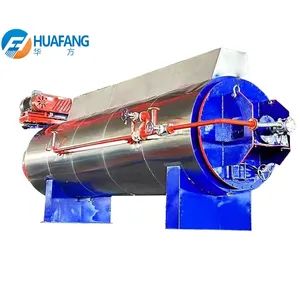

Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer

Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 1
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 2
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 3
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 4
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 5
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 6
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 1
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 2
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 3
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 4
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 5
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer - Image 6

Set

Negotiable


Product information

High-quality Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer supplied by Zhucheng Huafang Environmental Protection Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.

Warranty:

1 year

Package Gross Weight:

2000.000kg

Production Capacity:

5-10 Sets Per Month

Capacity:

5-20t/Batch

Package Size:

500.00cm * 180.00cm * 300.00cm

HS Code:

8401200000

Mixing Capacity:

Accepting Custom Orders

Specification:

Accepting custom orders

Specifications

Warranty:

1 year

Package Gross Weight:

2000.000kg

Production Capacity:

5-10 Sets Per Month

Capacity:

5-20t/Batch

Package Size:

500.00cm * 180.00cm * 300.00cm

HS Code:

8401200000

Mixing Capacity:

Accepting Custom Orders

Specification:

Accepting custom orders

Insulation Material:

Aluminum Silicate Insulation

Main Material:

Carbon Steel, Stainless Steel

Origin:

China

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Mixing Drum Shape:

Coil and Disc

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Working:

Continuous Agitation

Trade Term:

FOB, CIF, CFR, EXW

Trademark:

HF

Features:

High Efficiency and Energy Saving

Condition:

New

Model NO.:

Oil Melting Tank

Function:

Oil and Fat Smelting

Port Of Loading:

Qingdao Port

Application Area:

Slaughter Waste, Oil Refining, Meat Powder

Application:

Slaughter Waste, Oil Refining, Meat Powder

Equipment Location:

Slaughterhouse, Farm, Animal Feed Factory

Stirring Type:

Spiral

Transport Package:

Standard Wooden Crate or Bare Packaging

Heating Method:

Steam Heating

Payment Methods:

Support payments in USD

Payment Term:

T/T, LC

Cooling Method:

Water Cooling

After Sales Service:

on-Site Expert Assistance

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Year Established:

2019-03-15

Annual Revenue Amount:

Not specified

Numbers Of Employees:

18

Preferred Payment Term:

T/T, LC

Preferred Trade Term:

FOB, CIF, CFR, EXW

Port Of Loading:

Qingdao Port

Product descriptions from the supplier

SONA2024 2.2.1
Equipment for slaughtering waste meat powder and oil-Oil melting tank
Product Description
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer
Product features:
Reasonable structural design, mostly made of corrosion-resistant alloy steel for industrial use (resistant to special grease corrosion); The core component consists of a spiral coil (increasing heat exchange area and improving heating efficiency) with a low-speed stirring device (to avoid oil stratification, local overheating, and uneven heating); The outer side of the tank is wrapped with insulation layer (such as rock wool, polyurethane, etc., to reduce heat loss), with a feeding port, observation window, and safety valve at the top, and a discharge port at the bottom. The interface is complete and the layout is practical.
Heating and temperature control major; Using indirect heating (the thermal conductive medium does not directly contact the grease); High temperature control accuracy, equipped with thermocouple+PLC intelligent temperature control system, temperature error ± 1-3 ℃, can accurately set and maintain target temperature (adjustable from 30-200);
The medium can be steam (suitable for high temperature rapid heating) or thermal oil (suitable for medium and low temperature long-term constant temperature), suitable for different process requirements. Safe and reliable operation, equipped with over temperature alarm, over pressure protection, liquid level detection, dry burning protection and other devices to eliminate the risk of fire and leakage; During production and operation, there is no open flame, low noise, and minimal vibration. The enclosed design prevents oil evaporation and odor diffusion, meeting environmental and safety standards.
Function:
Solid oil melting: Quickly convert block shaped and solid oils (such as palm oil, pork board oil, industrial lubricating grease) into liquid and oil residue, thereby separating and solving the problem of recycling and reusing solid pork board oil; Precise heating treatment: According to the process requirements, solid animal fat raw materials are transported to the melting tank, and by heating to the target temperature, the oil in the raw materials is extracted and melted. Auxiliary mixing and stirring: The machine is equipped with a stirring function to make the temperature more uniform, prevent oil residue from settling at the bottom of the tank, and prevent the phenomenon of sticking to the pot.
Usage:
Usage: Food processing industry: Oil factories, melting and heating of vegetable oils such as palm oil and soybean oil (for easy refining and filling); Meat Products Factory: Refining and processing raw materials such as lard and butter wool to produce different types of oils and fats with varying degrees of precision. Oils and fats can be used as food ingredients and industrial product additives.
Chemical and industrial fields: lubricant/grease factories; Melting and heating modification of industrial lubricating grease and gear oil.
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer
Advantages:
Guaranteed oil quality, indirect heating+uniform heat exchange, avoiding carbonization and oxidation of oil caused by local high temperature, preserving the nutrition and flavor in oil, and ensuring the stable performance of industrial oil;
High energy consumption and low efficiency, spiral coil has a large heat exchange area, and heating efficiency is more than 30% higher than traditional straight tube heating; The insulation layer design reduces heat loss and reduces long-term energy consumption;
Widely applicable scenarios: It can handle different types of oils and fats such as animal oil, vegetable oil, industrial oil, etc. The temperature range is adjustable from 30-200 ℃, and supports various specifications from small experimental equipment to large industrial tanks. Easy operation and maintenance: The intelligent temperature control system supports one click setting and automatic temperature replenishment, reducing manual intervention; The tank and coil are easy to clean, and the key components (temperature control valve, safety valve, water delivery valve group) are easy to maintain and have a long service life; Compliant with industry standards, chemical grade materials are corrosion-resistant and high-temperature resistant, designed for enclosed spaces, meet environmental requirements, have complete safety protection devices, and are compatible with compliance requirements in various industries.
Specification
(Custom configurations available upon request.)
Model

Tank dimensions
(Diameter,Length)
(mm)
Volume
(m³)
Design pressure
(Mpa)
Work stress
(Mpa)
Design temperature
(℃)
Operating temperature
(℃)
Processing
Capacity
(t)
Motor power
(KW)
HFHG-16
Φ1600X7500
15
0.8
0.6
180
160
5 T/batch
45
HFHG-18
Φ1800X8000
20
0.8
0.6
180
160
8 T/batch
75
Packing & Delivery
Step 1: Customized protective packaging
Step 2: Specialization fixation and identification
Step 3: Controllable Transportation and Delivery
Our commitment:
What you have received is not only an environmentally friendly device with excellent performance, but also a peace of mind that has been carefully cared for and is in good condition. We carefully complete the last mile before delivery, allowing you to start a new chapter of green business without worry.
Choose us, safety and professionalism are always present.
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer
After Sales Service
Standard Warranty:12 months or 2,000 operating hours (whichever comes first).
Extended Warranty:Optional coverage up to 36 months.
Global Support:24/7 technical assistance and spare parts supply.
Training:On-site or remote operation/maintenance training.
Company Profile
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer
Zhucheng huafang environmental protection equipment co., ltd.
Zhucheng huafang environmental protection equipment co., ltd. is a modern machinery manufacturing enterprise integrating research and development, design, production and sales. Located in shandong province zhucheng economic development zone, the east coastal city of Qingdao, south which the emerging port city, the location is superior, the company covers an area of 40000 square meters, mainly engaged in animal harmless treatment equipment, livestock and poultry disposal equipment, feather powder equipment ,eat hutch garbage disposal equipment, slaughter waste treatment facilities, waste processing equipment such as environmental protection equipment.
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer
Animal Fat Drying Machine for Rendering Plants-Stainless Steel Automatic Dryer
Why Choose Us?

1.Scaled-up production base ensures stable and reliable supply
2.Ultimate cost-effectiveness, manufacturer direct sales to benefit customers
3.Deep customization service, precise matching of needs
4.Comprehensive worry free service, running through the entire project
Pre sales Transparency
Specialization in sales
Instant after-sales service: We provide 7×24 online technical support.
FAQ
Q:What are the payment terms?
A:T/T and L/C  are acceptable,T/T will be more appreciated,30% deposit before production,70% balance before shipment.

Q:What is the delivery time?
A:At least 20 days after the deposit recipit,depend on how many machines included in the line.

Q:How to pack the machine?
A:Standard packaging

Q:How to install after the machines arriving destination?
A:Our engineer will go to customers site if you need,but need to pay installation fee accord with the contract.

Q:Do you offer guarantee for the products?
A:Yes, we offer 1 years warranty to our products.

Q:What after-services do you provide?
A:Send engineers for installation, trial running and training workers at customer's site.Handling the problems occurred during use. Supply spare and wearing parts on discount.Help customers to solve any other problems .

Q:Do you support shippinginsurance ?
A:Yes, we offer sea shipping

Q:How canlvisit your factory?
A:You can request a factory visit via ourinquiry form, email, or WhatsApp; we'llarrange a guided tour with prior notice.

Q:Can lget a customized consultation for my product needs?
A:Yes, we offer free product consultation. Please submit your requirements via formor contact sales to schedule a detailed discussion.
