Anti-Counterfeiting Code RFID Garment Hang Tag Printer Printing Machine

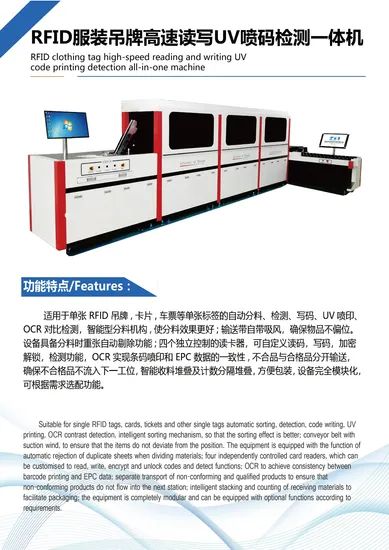

Functions and features of the printer


      Suitable for single RFID tag, card, ticket and other single label 3 sign automatic material, detection, coding, UV printing, OCR contrast detection, intelligent material separation mechanism, so that the material separation effect is better; The conveyor belt has its own suction to ensure that the items are not deflected. The equipment has the function of automatically removing resheet when dividing material; Four independently controlled card readers, can customize the code reading, code writing, encryption unlock, detection function, OCR to achieve the consistency of barcode printing and EPC data, non-conforming products and qualified products are delivered separately to ensure that unqualified products do not flow into the next station, intelligent material stacking and counting number separation stacking, convenient packaging, equipment is completely modular, can be selected according to demand functions.

Equipment description:

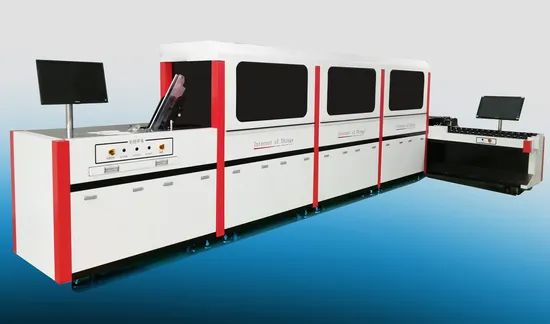

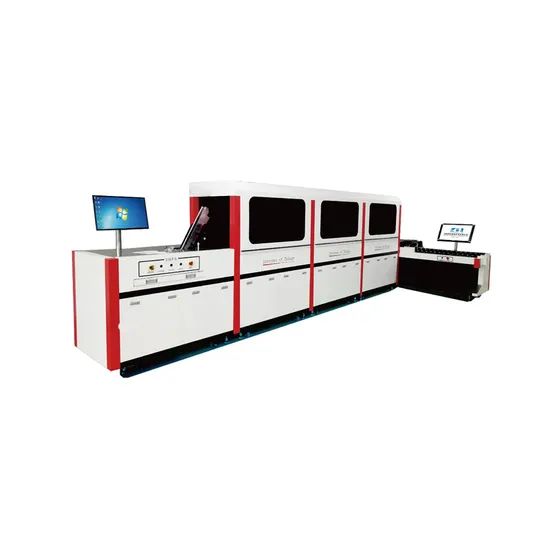

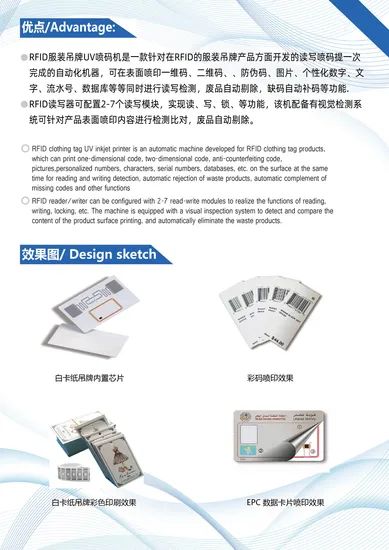

RFID clothing tag UV inkjet machine is an automatic machine for reading and writing inkjet code developed in RFID clothing tag products, which can print one-dimensional code, two-dimensional code, anti-counterfeiting code, pictures, personalized numbers, text, serial number, database and so on at the same time for reading and writing detection, automatic elimination of waste products, automatic code complement and other functions



The RFID reader can be configured with 2-7 read and write modules to achieve reading, writing, locking, and other functions. The machine is equipped with a visual detection system to detect and compare the printed content on the surface of the product, and the waste products are automatically eliminated.

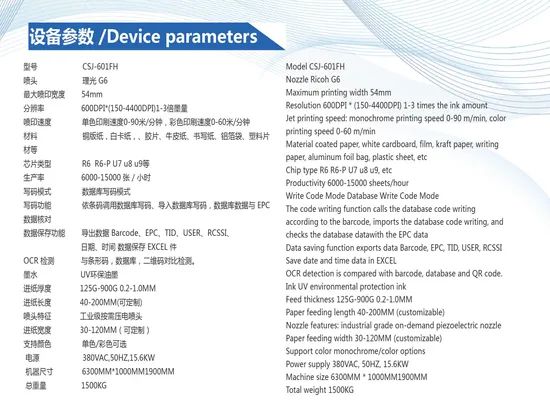

Technical data


1)Ink: Environmental friendly UV ink

2)Reolution:600DPI*(150-4400DPI)1-3 times the amount of ink

3)Productivity:6000-15000 sheets/h

4)Feed thickness: 0.2-1.0MM

5)Feed Width: 30-120MM(customizable)

6)Feed Length:40-200MM(customizable)

7)Printing Material:Coated paper. White cardboard, film, kraft paper, plastic sheet, etc

8)Print Speed: monochrome 0-90 m/min,color 0-60 m/min

9)Color: Monochrome/color options

10)System:WIN7/WIN10

11)Support Files: BMP/JPG/PDF/TIFF

12)Working environment: 15-35 relative humidity 20%-80%

13)Equipment size:6300mm*1000mm*1900mm

14)Input power supply:380VAC,50HZ

15)Overall Power:15.6KW

14)Weight: 1500KG

15)Printer head features:Industrial piezoeletric printer head on demand

16)Chip type:R6 R6-P U7 U8 U9,etc

17)OCR detection: Compared with bar code, database, two-dimensional code detection

18)Code write mode: database code write mode

19)Coding function: Call database coding according to bar code, import database coding, database and EPC

20)Data saving function: Export data Barcode, EPC, TID, USER, RCSSI, date, time and save data to EXCEL
