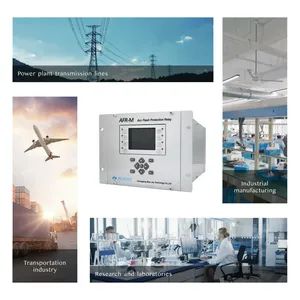

Arc Flash Sensors Over Current Protection Relay with 48 Arc Flash Detection Interfaces
Piece
Negotiable
Product information
High-quality Arc Flash Sensors Over Current Protection Relay with 48 Arc Flash Detection Interfaces supplied by Chongqing Blue Jay Technology Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Gross Weight:
0.650kg
Specification:
10*10*10
Transport Package:
10*10*10
Package Size:
10.00cm * 10.00cm * 10.00cm
Production Capacity:
1000 Piece/Pieces Per Day
Number Of Pole:
3
Phase:
3
Electricity Type:
AC & DC
Specifications
Package Gross Weight:
0.650kg
Specification:
10*10*10
Transport Package:
10*10*10
Package Size:
10.00cm * 10.00cm * 10.00cm
Production Capacity:
1000 Piece/Pieces Per Day
Number Of Pole:
3
Phase:
3
Electricity Type:
AC & DC
Model NO.:
AFR-M
Trademark:
Blue Jay
Origin:
Chongqing, China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Type:
Electric Parameter Relay
Action Principle:
Electromagnetic Type
Trade Term:
FOB, CIF, EXW
Load:
High Power Relay
Payment Term:
LC, T/T, Western Union
Size:
Miniature
Protect Feature:
Sealed
Protective Characteristics:
Sealed Relay
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2009-05-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
Not specified
Certificates:
Certificate of Conformity, CERTIFICATE OF QUALITY MANAGEMENT SYSTEM, Certification, Certification for Multi-channel Energy Meter, EC Declaration of Conformity, Testing Report, Testing Report for Low Voltage Products, Verification of Compliance
Product descriptions from the supplier
Arc protection relays are mainly used to detect arc faults in electrical systems and protect equipment and personnel in electrical systems from arc faults. Arc protection relays can detect arcs by monitoring parameters such as current, voltage, and electric power, and quickly disconnect the power supply before an electrical fire occurs, thereby reducing the risk of fire.
Arc protection relays are usually used in medium and high voltage power distribution systems, control cabinets, transformers,generators, motors and other electrical equipment. They adopt the dual-criteria principle of arc light detection and overcurrent detection, and have the characteristics of fast protection action and high reliability.
* Complete digital design, simple principle;
* Strong electrical performance;
* Comprehensive record of fault information;
* Double criterion of over-current and arc, high reliability;
* Optical fiber transmits, strong electromagnetic interference resistance;
* Programmable logic of trip exit;
* Fast exit tripping, short total fault clearing time.
| AFR-S | AFR-M12 | AFR-M24 | AFR-M36 | AFR-M48 | |
| Basic parameter of arc flash relays | |||||
| Power supply | 85~265Vac/dc, optional 48Vdc | ||||
| Consumption | Monitoring Stanby <5W DO trig <10W |
Monitoring Stanby <8W DO trig <10W |
|||
| Rated current (In) | 5A or 1A | ||||
| Protection range | 0~20 In | ||||
| Burden | 0.5VA | ||||
| Protect current accuracy | <2% | ||||
| Protect frequency accuracy | 0.1Hz | ||||
| Arc signal & control | |||||
| Sensor type | lens point fiber optic sensors(1) or bare fiber optic sensors(2) | ||||
| Arc sensor access channels | 3 | 12 | 24 | 36 | 48 |
| DO relay channels | 6 | 4 | 4 | 9 | 9 |
| Trip coil contact | AC250V/8A fast relay, passive node | ||||
| Trip operation time | <10ms @ only arc protection | ||||
| <20ms @ overcurrent + arc protection | |||||
| Safety isolation | 2500V isolation capacity | ||||
| Binary inputs | 5 | 12 | 12 | 16 | 16 |
| Others | |||||
| Comm port | RS485 MODBUS-RTU | 1* RS485 MODBUS-RTU 1* 10/100M Adaptive Default 192.168.12.2/192.168.13.2 IEC-60870-5-103 |
|||
| SOE record | 512 | 512 | 512 | 512 | 512 |
| Waveform capture | / | 8 | 8 | 8 | 8 |
| Optional modules | Wireless joints temperature monitor Smoke detector |
||||
