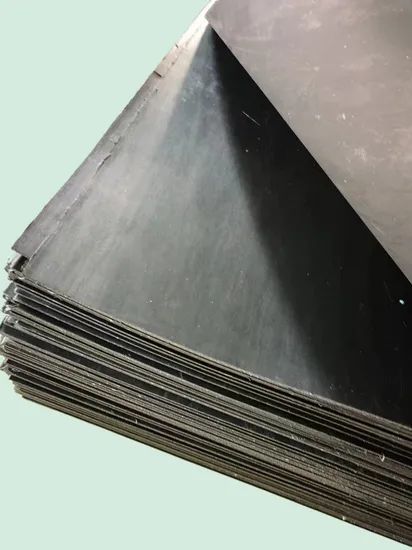

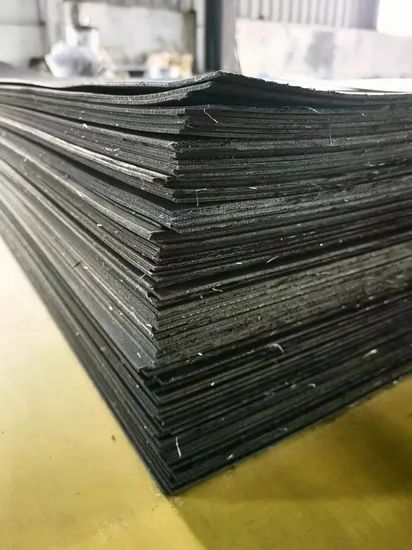

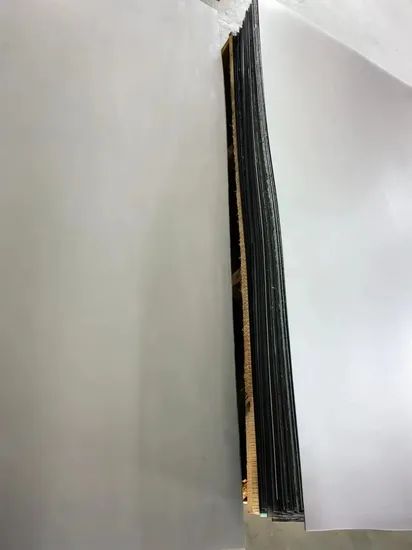

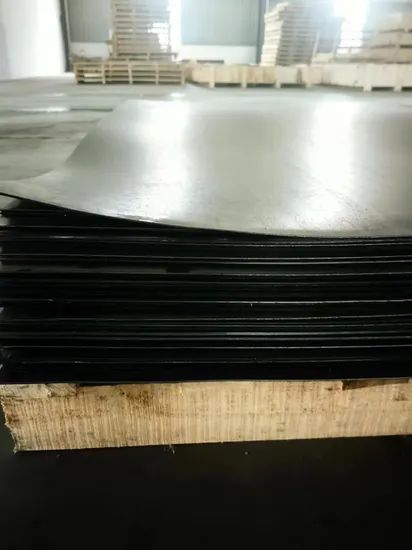

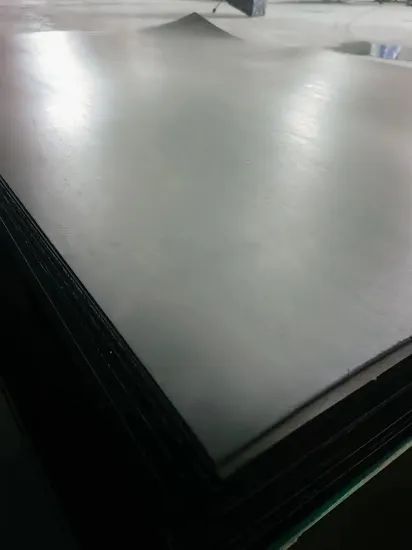

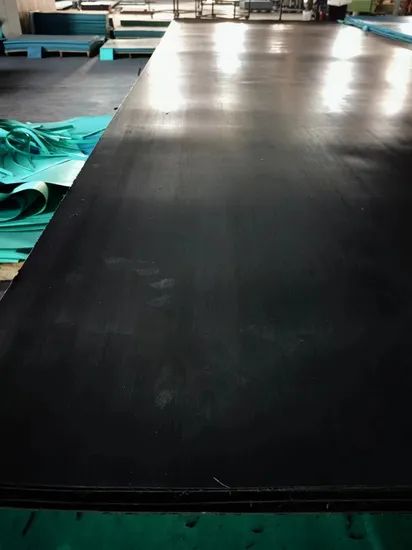

Asbestos Free Graphite Rubber Plate Gasket Material
250 kg
$7.68250 kg
$10.99Product information
High-quality Asbestos Free Graphite Rubber Plate Gasket Material supplied by Jiangsu Sealstars Sealing Technology Co., Ltd.. Bulk wholesale pricing ranges from $7.68 to $10.99 per kg with a minimum order of 250 kg. Inquiry for latest prices.
Temperature Resistance:
-40-350
Thickness:
0.5-4.0mm
Specification:
1500*1500/1500*4000/1500*4500
Package Size:
160.00cm * 160.00cm * 24.00cm
Package Gross Weight:
250.000kg
Production Capacity:
50000PCS/Year
Model NO.:
5350
Trademark:
BTT
Specifications
Temperature Resistance:
-40-350
Thickness:
0.5-4.0mm
Specification:
1500*1500/1500*4000/1500*4500
Package Size:
160.00cm * 160.00cm * 24.00cm
Package Gross Weight:
250.000kg
Production Capacity:
50000PCS/Year
Model NO.:
5350
Trademark:
BTT
Balance:
Balanced
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Primary Composition:
Fiber,NBR
Temperature:
High Temperature Mechanical Seal
Speed:
High-Speed Mechanical Seal
Certification:
ISO9001
Application:
Industry
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Transport Package:
Non Fumigation Wooden Box
Port Of Loading:
Shanghai Port
Standard:
Standard, Nonstandard
Payment Methods:
Support payments in USD
Performance:
Temperature
Type:
Various
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-04-24
Annual Revenue Amount:
Not specified
Numbers Of Employees:
53
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO14001, ISO45001:2018
Product descriptions from the supplier
Product Description
Product introduction
This product is made of non-metallic material as filler, nitrile rubber as binder, organic and inorganic fiber as frame, and is made of environmentally friendly sealing plate by roller pressing. Resistance to oil, water and general acid and alkali. The operating temperature is -50-350ºC.Model: NY5350
Specifications: 1530*1000mm, 1530*1530mm, 1530*2000mm, 1530*4100mm, 1530*4580mm.
Main thickness: 0.5-3.0mm
Main colors:black
The product thickness is greater than 0.8mm clip-on steel wire.
| Number | Test item | Unit | Parameter value | |
| 1 | Density,ASTMF-1315 | G/cm3 | 1.7±0.1 | |
| 2 | Strength,ASTMF-152 | Mpa | ≥7.0 | |
| 3 | Compression,ASTMF-36 | % | 7-17 | |
| 4 | Resilient rate ,ASTMF-36 |
% | ≥45 | |
| 5 | Sealing,ASTMF-37 | Ml/min | ≤1.0 | |
| 6 | Always gentle and soft | Bend on a round bar with a diameter 12 times the nominal thickness of the sample. | No crack | |
| 7 | Impregnated IRM903 oil performance (149±2ºC, 5h) | Thickening rate | % | 0-15 |
| Weight gain rate | % | ≤20 | ||
| 8 | Performance after immersion of ASTM Fuel Oil B (21ºC-30ºC, 5h) | Thickening rate | % | 0-15 |
| Weight gain rate | % | ≤20 | ||
| Note 1: The gasket material with thickness greater than 3.0mm shall not be tested for transverse tensile strength Note 2: screen reinforced gasket material, do not do transverse tensile strength and nitrogen leakage rate test |
||||
Material properties: non - asbestos fiber graphite rubber sheet
Performance introduction
Specifications: 1530*1000mm, 1530*1530mm, 1530*2000mm, 1530*4100mm, 1530*4580mm.
Main thickness: 0.5-5mm, 5.0mm above the board can be bonded.
Main colors: blue, green, black
The product thickness is greater than 0.8mm clip-on steel wire.
Our certificate
Jiangsu Sealer Sealing Technology Co., Ltd. was founded in 2013, is located in the beautiful Siyang. The company registered capital of 34.7 million yuan, covers an area of 102 acres, annual production capacity of 2000 tons, the company employees a total of 86 people, including R & D personnel 8 people, the company mainly produces high-quality asbestos-free sealing rubber sheet, is a research and development, production, sales in one of the high-tech seal production enterprises.
The company spirit of "honesty, faith first" purpose, "quality of survival, credibility and development, scale and market" business philosophy, actively play professional advantages, constantly expand market share, to build first-class brand. The company involves a wide range of fields, products have been widely used in chemical industry, shipbuilding, nuclear power and other industries, some products have been for Shangchai, tin chai and other engine enterprises supporting, has a wealth of sealing materials research and development and production experience.
FAQ
Q1: Are you a factory?
A1:Yes, we have our own factory and technical team.
Q2: How many workers do you have in your factory?
A2:We have 69 employees, 80% of whom have been with us for more than 5 years.
Q3: How do you do quality control?
A3:We implement the 9001 standard, from raw materials, samples, operation, semi-finished products to finished products for sampling and control.
Q4: Are customizations and small orders available?
A4:Yes, samples and drawings are provided, and we provide customized services.
Q5: What about the delivery date?
A5:1) It takes 3-5 days for regular samples and 7-10 days for custom samples.
2) Mass production for 15-20 days. If it's an emergency, we have a green channel
Q6: How do you handle customer complaints?
A6:If it is our fault, we can exchange it or refund it.
Our factory has been upgrade and expand, product of quality and yield has been improve. We have a wide range of models.We can reinforced wire mesh,coated graphite,print tag,cut and customize according to your require.
