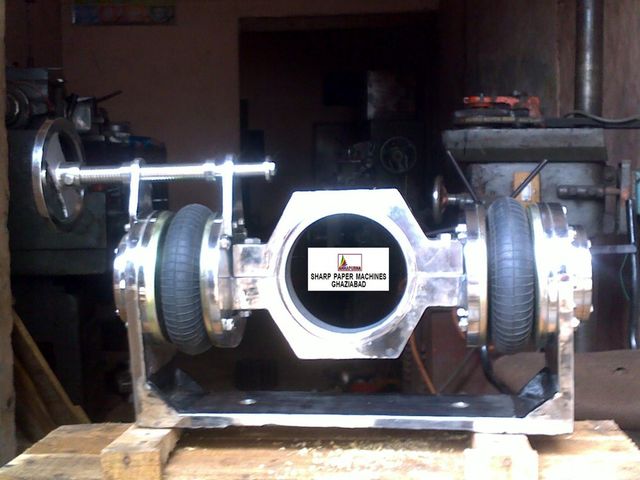

Auto Guide for Felt and Wire Part Air_consumption Low Max_air_pressure 0.4 Mpa Material_options Ss Or Ms Plate_contact_force 2.4
Negotiable
Product information
High-quality Auto Guide for Felt and Wire Part Air_consumption Low Max_air_pressure 0.4 Mpa Material_options Ss Or Ms Plate_contact_force 2.4 supplied by Sharp Paper Machines. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Max Air Pressure:
0.4 Mpa
Max Operating Temperature:
120 °c To 140 °c (optional)
Plate Contact Force:
2.4 N
Air Pressure Range:
2.5 – 3.5 Bar
Machine Speed Range:
80 Rpm To 1200 Rpm
Housing Diameter Range:
80 To 280 Mm
Operation Mode:
Available With Manual Positioning
Unbalanced Condition Response:
Double Inlet Allows Different Actions On The Air Rides Of Wire/felt Guide
Specifications
Max Air Pressure:
0.4 Mpa
Max Operating Temperature:
120 °c To 140 °c (optional)
Plate Contact Force:
2.4 N
Air Pressure Range:
2.5 – 3.5 Bar
Machine Speed Range:
80 Rpm To 1200 Rpm
Housing Diameter Range:
80 To 280 Mm
Operation Mode:
Available With Manual Positioning
Unbalanced Condition Response:
Double Inlet Allows Different Actions On The Air Rides Of Wire/felt Guide
Operating Environment:
Easily Usable At Any Wet Or Dry Area, Anywhere In Plant
Mounting Flexibility:
Flexible Mounting Position Ensures Smooth Operation
Fabric Handling:
Gentle To The Fabric Due To Gravity Loading
Tracking Accuracy:
Highest Tracking Accuracy For Most Demanding Applications
Air Consumption:
Low
Reaction Time:
Minimum Reaction Time Result In Accurate Tracking
Fabric Loss Risk:
No Risk Of Losing Fabric Due To Broken Spring
Spring Requirement:
No Spring Needed
Valve Operation Mode:
Normally Closed (nc) With Stable Fabric, No Air Consumption
Palm Sensor Type:
Proportional Palm Valve
Contact Pressure Adjustability:
Reduced And Adjustable
Hysteresis Compensation:
Reduced Hysteresis To Compensate Uneven Edges
Setup Complexity:
Simple Set-up
Valve Inlet Type:
Single Or Double Inlet
Material Options:
Ss Or Ms
Trade Term:
To be discussed
Payment Term:
To be discussed
Width Range:
Upto 3000mm Wide : 80-160; From 3000 To 3800mm : 140-200; Over 3800mm Wide Upto 4500mm : 160-250
Installation Position:
Vertical Or Horizontal
Maintenance Requirement:
Zero Maintenance
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2009
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
Applications :-
A definite advantage for Every Paper Mill & Textile Mills , Proportional bellows Auto Guide avoids damage to wire or felt caused by their cross-directional movements, over running or pre-mature creasing and the resultant loss of production.
Proportional bellows operated auto guide is the most convenient, reliable and economical device using mill's normal air supply for its auto operation.
FEATURES:-
Gentle to the fabric due to gravity loading simple set-up
No spring needed - No risk of loosing fabric due to broken spring
For Machines Speed 80 RPM TO 1200 RPM
Easilly Can be used at any Wet or Dry Area, Anywhere in Plant.
Easily to Installed in Any Position Vertical to Horizontal.
Minimum Reaction Time Result in Accurate Tracking.
Highest tracking accuracy for most demanding applications
The Auto Guide design generation of Guides for accurate Guiding of Wires and Felt. Designed to Guide the Fast Running Fabrics.
Compact and reliable assembly.
Easy Install & Zero maintenance.
Proportional and accurate response
Available with manual positioning.
Flexible Mounting PositionEnsure Smooth Operation
Low Air Consumption
Execution in SS or MS
Technical Specification For Auto Guide:-
Upto 3000mm wide : 80-160
From 3000 to 3800mm : 140-200
Over 3800mm wide upto 4500mm : 160-250
MATERIAL : Availabe SS and MS
Housing Dia : Available 80 to 280 Max.
Machine Speed : 80 RPM to 1200 RPM
Technical Specification for Palm Sensor Assembly (Plate Type):-
Pneumatic Pressure: 2.5 – 3.5 bar
Dead Zone : +/- 7.5mm
Max. Operating Temperature : 1200C to 1400C (Optional)
Max Air Pressure : 0.4Mpa
Plate Contact : 2.4 N
Type of Palm Sensor : Proportional palm valve
PRESSURE BALANCE PALM VALVE :-
Pneumatic valve.
Double or single inlet.
Reduced and adjustable contact pressure.
Reduced hysteresis to compensate uneven edges.
Low air consumption.
Easy to operate.
Low maintenance.
Valve alternatively add or bleed air to and the Fabric guide.
With stable Fabric the valve is Normally Closed (NC),consequence is no air consumption.
Max operating temperature: 120 °C or 140 °C.Optional)
Max air pressure: 0.4 MPa.
Single inlet - Balanced control
Double inlet - Split control
When unbalance conditions occours the double inlet allows different actions on the air rides of wire/felt guide.
