Automated Liquid Drink Filling System Structure Linear Material Type Liquid Packaging Wrapping Film Automatic Grade Automatic

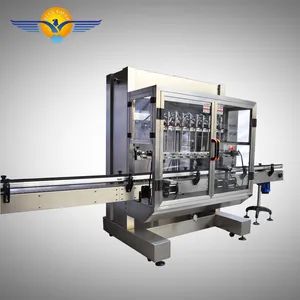

Straight flow liquid filling machine
This machine is a kind of high-tech filling equipment which is controlled by microcomputer (PLC) programmable, photoelectric sensing and pneumatic execution. This machine is specially used for food, such as: liquor, soy sauce, vinegar, condiment, vegetable oil, syrup, mineral water and other edible liquid and pesticide chemical liquid filling. Filling measurement is accurate, no bubbles, no dripping. Suitable for filling all kinds of bottles (including special-shaped bottles).

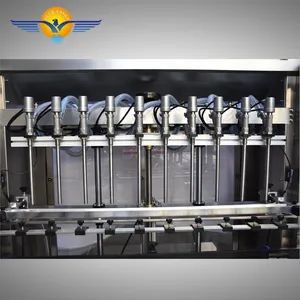

Suitable for filling containers of different specifications, the filling specifications can be changed in a few minutes, the filling cycle is short, and the production capacity is high. The replacement of filling specifications does not need to add spare parts, only need to be adjusted to complete, the user can choose the filling quantity according to their own production capacity to determine the number of filling heads, touch the operation of the color screen, can display the production status, operating procedures, filling methods, etc., the screen is intuitive, simple operation, easy maintenance. Each filling head is equipped with a bottle mouth setting to ensure accurate alignment of the filling material.

technical specification

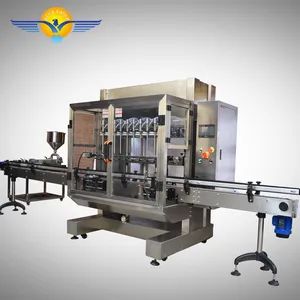

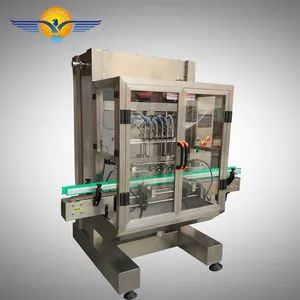

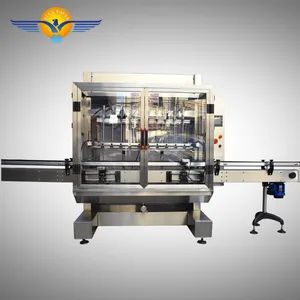

product display

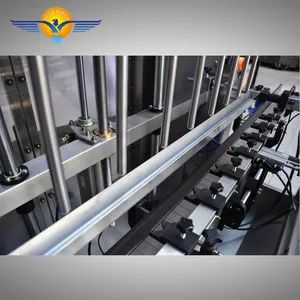

The design selects the linear group into the bottle, the bottle out of the way, so that the filling function is expanded, all shapes of containers, can be effectively filled in the equipment, the selection of imported gas filling valve, to ensure that the filling process without drip, no salivation, powerful PLC software support, can achieve the ideal filling operation, man-machine interface, all operations are completed on the touch screen.

Filling using fixed flow channel parameters, control filling time to achieve different metering filling. The precise filling time of the pneumatic
valve can be set to 0.01 seconds, which can control the measurement accuracy within the error range of ±1%, reduce unnecessary material loss, and improve the user's economic benefits. The measurement of each filling head can be adjusted individually to achieve consistent filling measurement. The machine set the bottle into the technical program, no bottles, counting is not in place, not filling, only when the number of bottles recorded by the counter is consistent with the number of bottles set. The amount of filling can be initially adjusted to the required filling amount, and then fine-tuned to obtain the ideal filling measurement accuracy.
