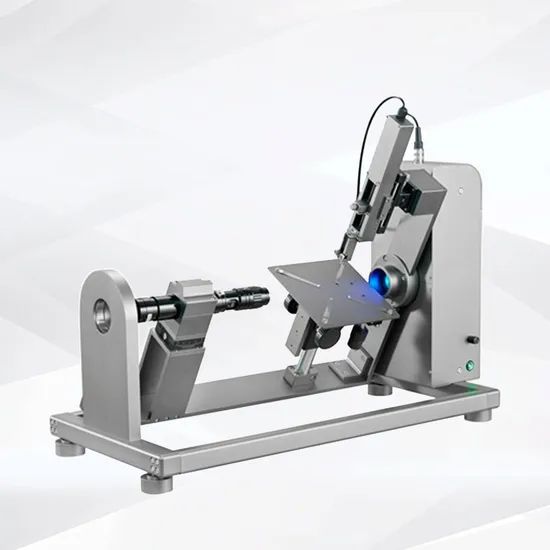

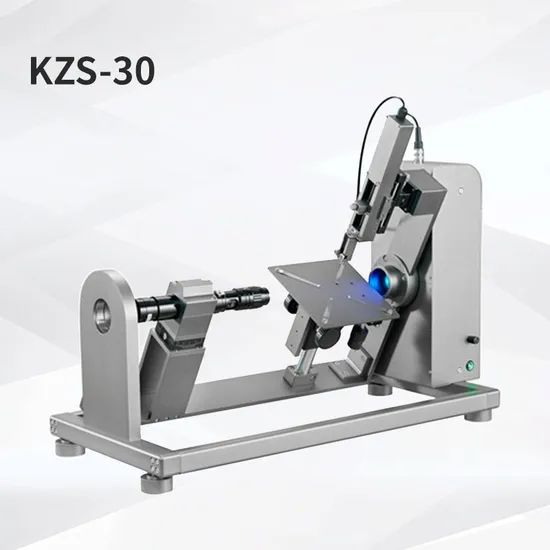

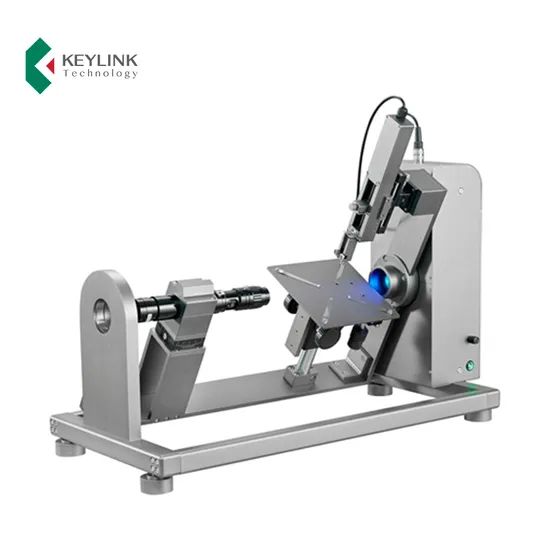

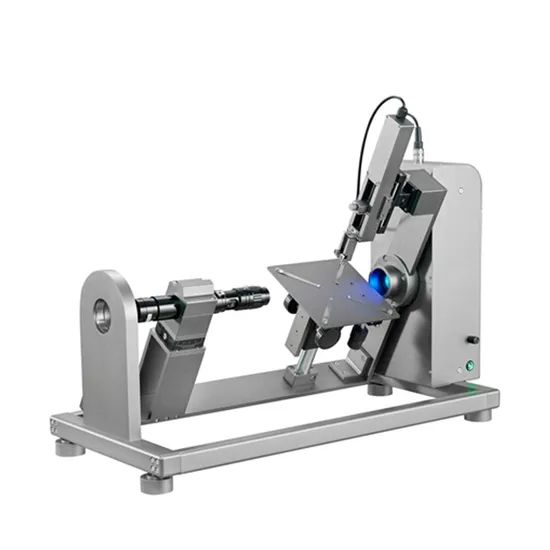

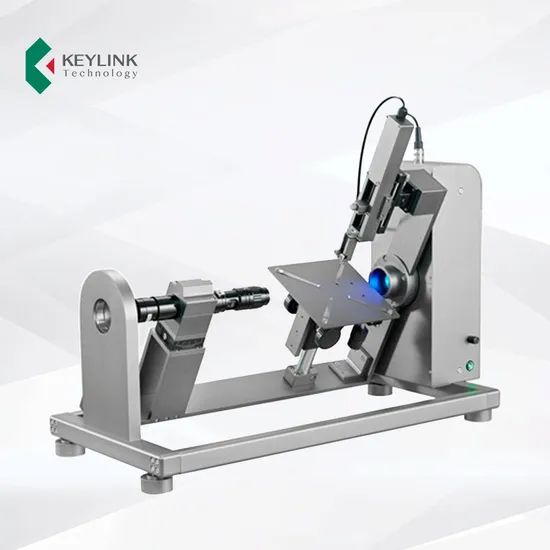

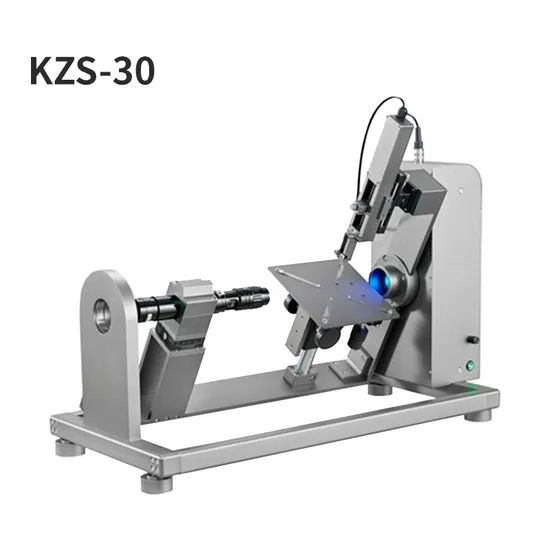

Automated Optical Contact Angle Instrument
1 Piece
$1,0001 Piece
$2,000Product information
High-quality Automated Optical Contact Angle Instrument supplied by Keylink Technology Co., Ltd.. Bulk wholesale pricing ranges from $1,000 to $2,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Contact Angle Measurement Range:
0-180°
Package Gross Weight:
10.000kg
Power Supply:
100-240V
Production Capacity:
1000sets/Year
Sample Platform Size:
180mm×180mm
Power:
30W
Package Size:
580.00cm * 480.00cm * 200.00cm
HS Code:
8479899990
Specifications
Contact Angle Measurement Range:
0-180°
Package Gross Weight:
10.000kg
Power Supply:
100-240V
Production Capacity:
1000sets/Year
Sample Platform Size:
180mm×180mm
Power:
30W
Package Size:
580.00cm * 480.00cm * 200.00cm
HS Code:
8479899990
Weight:
About 10kg
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Size Of The Whole Machine:
Clean Machine
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Contact us
Drip Method:
Differential Manual Drip
Trade Term:
FOB, CIF, CFR, EXW
Trade Terms:
Fob
Measurement Method:
Fully Automatic, Semi-Automatic, Manual
Trademark:
KEYLINK
Model NO.:
KZS-30
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Ningbo Port
Customized:
No
Feature:
Precision Measuring Device
Payment Methods:
Support payments in USD
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-01-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
48
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port
Certificates:
Others
Product descriptions from the supplier
| Contact Angle Measuring Instrument | |||||
| Parameters of the whole machine | Lighting Systems | ||||
| Machine size | 540mm×480mm×200mm | Light source | Industrial single-wave cold light source with concentrating environmental protection shield, life of more than 30,000 hours | ||
| Weight | about 10KG | Wavelength | 460nm | ||
| Power supply AC | 100-240V | Light source adjustment | Hard and soft common control, infinitely adjustable speed | ||
| Power | 4.0-6.0A | Software Specification | |||
| Sample platform size | 180mm×180mm | Contact Angle Measuring Range | 0-180° | ||
| Sample size | 200×200×30mm | Contact angle resolution accuracy | 0.001° | ||
| Adjustment range | Front and rear adjustment X-axis manual, stroke 80mm, precision 0.1mm Left-right adjustment Y-axis manual, stroke 50mm, precision 0.1mm Up and down adjustment Z-axis Manual, stroke 80mm, precision 0.1mm |
Software interface | Dual interface, separate Chinese interface and English interface | ||
| Drip system | Administrator privileges | Operator and administrator privileges and independent operation interface. | |||
| Dropping method | Differential manual dropping | Audit trail | Record the operation and settings of all personnel, and can export data | ||
| Dropping travel range Adjustable X-axis | 100mm, precision 0.1mm. | Software Algorithms | Resolution fitting method, arc method, θ/2, tangent method, goniometric method, width and height method, LY method, circular method, elliptic method, oblique elliptic method. | ||
| Up and down adjustment Y-axis | 100mm Precision 0.1mm | Analytical methods | Drop impact technique, filament approach, evolving wetting process, hanging drop technique, reversed hanging drop technique, surface-bound drop method, microgap technique, three-dimensional structure analysis, gas bubble encapsulation method | ||
| Control mode | Differential manual control | Analysis methods | Wettability analysis, static analysis, real-time dynamic analysis, photo analysis, video analysis, | ||
| Dropping precision | 0.1μl | Measurement method | Fully automatic, semi-automatic, manual Surface tension range None |
||
| Syringe Micro-volume loader Volume |
1000μl | Surface tension resolution accuracy | None | ||
| Optical System | Dynamic tension | None | |||
| Camera | Customized industrial CCD with imported chip | Surface Energy Measurement Methods | OWRK, Zisman, EOS, Fowkes, Wuwim, Dispersion, Polarity (algorithms and liquid libraries can be added) | ||
| Camera frame rate | 60fps (can be upgraded to higher frame rate) | Adhesion Functions | One click automatic analysis | ||
| Camera Pixel | 1.3 megapixel | Spreading coefficient | one-click automatic analysis | ||
| Lens | Telecentric zoom customized lens |
Wetting function | One click automatic analysis | ||
| Focal length | U95mm | Data Reporting | One-click automatic generation, can be exported/printed EXCEL, Word, PDF, Spectrogram and other report formats | ||
| Magnification | 0.7-4.5x | ||||
1. What is the shipping warehouse location?
Answer:Our main shipping warehouse is located in Zhejiang, China, and we ship globally via trusted logistics partners. We also accommodate customer-preferred shipping methods or carriers.
2.What is the production lead time?
Answer:Lead time varies based on order size and product type:
- For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays.
- We expedite production to meet tight deadlines whenever possible, especially before holidays like the Spring Festival.
3.Can I customize my order (e.g., specific configurations or spare parts)?
Answer:Yes, customization is available! We can tailor machine configurations, spare parts, and accessories (e.g., nozzles or cable lengths) based on your specific requirements. Please share your customization needs during the order confirmation process.
4.What are the payment terms?
Answer:We offer flexible payment terms, including:
- Full payment before shipping
- 50% deposit upon order confirmation.
- Remaining balance before shipment.
Payments are typically made via SWIFT transfer. For long-term partners, we can explore customized payment plans based on mutual agreement.
5.What kind of after-sales support do you provide?
Answer:We offer comprehensive after-sales support, including:- Technical Assistance: Troubleshooting via email, phone, or video calls.
- Spare Parts: Quick access to replacement parts for machines under warranty or through spare part orders.
- Documentation: User manuals, maintenance guides, and troubleshooting SOPs for all products.
- On-Site Support: For critical issues, we can dispatch technicians to your location (subject to availability and agreement).
