Automatic Accurl Tc-Max1250 CNC Punching Press Machine Condition New HS Code 84621090 Trademark Accurl Punch Force 25 Tons
set
Negotiable
Product information
High-quality Automatic Accurl Tc-Max1250 CNC Punching Press Machine Condition New HS Code 84621090 Trademark Accurl Punch Force 25 Tons supplied by ACCURL CNC MACHINE (ANHUI) MANUFACTORY CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
120 PCS/Year
Punch Force:
25 Tons
Max. Sheet Thickness:
4mm
Max. Processing Size:
5000*1250mm (with Second Position)
Specification:
5190*3250*2550mm
Max. Traversing Speed:
80m/Min
HS Code:
84621090
Trademark:
Accurl
Specifications
Production Capacity:
120 PCS/Year
Punch Force:
25 Tons
Max. Sheet Thickness:
4mm
Max. Processing Size:
5000*1250mm (with Second Position)
Specification:
5190*3250*2550mm
Max. Traversing Speed:
80m/Min
HS Code:
84621090
Trademark:
Accurl
Automatic Grade:
Automatic
Certification:
CE, RoHS, ISO 9001
Controlling Mode:
CNC
Origin:
China(Mainland)
After Sales Service Provided:
Engineers Available to Service Machinery Overseas
Trade Term:
FOB, CIF, EXW, CFR
Precision:
High Precision
Power Source:
Hydraulic Pressure
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Slider Movement:
Multi Station
Condition:
New
Slider Drive Mechanism:
Rack Press
Port Of Loading:
Shannghai Port
Main Motor:
Siemens Electrical
Servo System:
Siemens Servo Drive

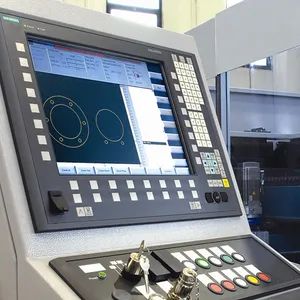

CNC System:
Siemens Sinumerik 840d Windows XP
Model NO.:
TC-MAX1250
Transport Package:
Wooden Cases for CNC Punch Press
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-06-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
98
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, EXW, CFR
Port Of Loading:
Shannghai Port
Certificates:
CE
Product descriptions from the supplier
Automatic Accurl TC-MAX1250 CNC Punching Press Machine
SERVO CNC TURRET PUNCH PRESS MAX SF SERIES
The new generation of ACCURL turret punch is a low energy, high efficiency turret punch with low environmental and maintenance costs. The ACCURL can be configured in 22 or 33 ton options. The ACCURL was designed with a thick turret to ensure longevity of the machine and its tools and to minimize tool deflection.ACCURL performs full punches, hovering, marking and forming operations.The SF model can be upgraded with our Ultra Package which can decrease part processing times by up to 40%.
The ACCURL comes standard with the following features:
Automatic Tool and Linear Components Lubrication System
Pneumatic Ball Transfer and Brush Table for ease of loading/unloading
Vacuum Assist System for slug removal
32 Stations 2 Auto indexing stations
One Mirror-Type Safety System to guard entire work envelope
Man-Sensors on moving tables
Sheet Jam Protectors to detect warped material
Sheet-gripper sensors to detect loose material
Pneumatic Ball Transfer and Brush Table for ease of loading/unloading
Vacuum Assist System for slug removal
32 Stations 2 Auto indexing stations
One Mirror-Type Safety System to guard entire work envelope
Man-Sensors on moving tables
Sheet Jam Protectors to detect warped material
Sheet-gripper sensors to detect loose material
SOLID FRAM E STRUCTURE
The ACCURL turret punch utilizes an O-frame structure for rigidity and reliability throughout the life cycle of the machine.
QUALITY ENBINEERINS
All frame configurations are field tested and engineered to last using FEA.
QUALITY ENBINEERINS
All frame configurations are field tested and engineered to last using FEA.

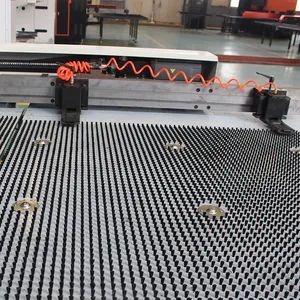

MIXED BALL AND BRUSH TABLE
The standard configuration features a mixed ball and brush table that comes with an
integrated pneumatic ball transfer table to ease loading and unloading.
integrated pneumatic ball transfer table to ease loading and unloading.
SHEET JAM PROTECTORS
Sheet Jam Protectors automatically detects deformed or buckled sheets and automatically
stops the machine when triggered.
stops the machine when triggered.
DROP CHUTE & CONVEYOR
The part Drop Chute and Conveyor options allow processing and sorting to be automated and simplified.

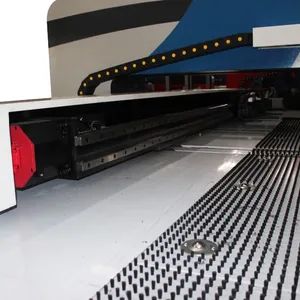

AUTOMATIC CLAMP POSITIONING
Automatic Clamp Positioning reduces set up time and errors, and provides machine run time flexibility and productivity.

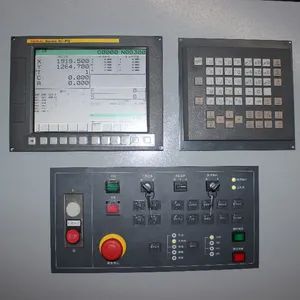

MAXIMUM CONTROL
The ACCURL turret punch comes with a FANUC Oi-PD LCD mounted controller. The setup includes an ACCURL Operator panel and FANUC MDI panel.
The FANUC controller allows for precise and reliable machine control, as well as providing a way to monitor secondary systems and keep track of maintenance tasks.
The FANUC controller allows for precise and reliable machine control, as well as providing a way to monitor secondary systems and keep track of maintenance tasks.
CAD/C AM NESTING SOFT WARE
The G-code for the Oi-PD controller can be generated from nesting software. The operator may nest multiple parts, maximize sheet utilization and streamline their workflow to ensure their turret punch is working in peak condition.

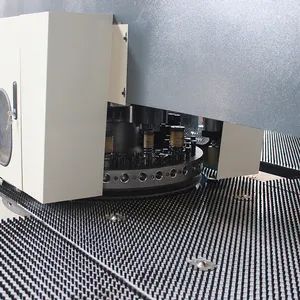

THICK TURRET TOOLING
The ACCURL is compatible with thick turret tooling. The wide variety of specialty tools combined with the programmable ram means the ACCURL can deliver for any application.
Reduce additional operations by utlilizing ACCURL's support of tapping and other specialty tooling.ACCURL SPECIFICATION
|
Item
|
unit
|
MAX-SF-30T
|
MAX-SF-50T
|
|
Punching Capacity
|
Ton
|
30
|
50
|
|
X Traverse Length
|
mm
|
2500±10
|
2500±10
|
|
Y Traverse Length
|
mm
|
1250±10
|
2500±10
|
|
Max sheet size
|
mm
|
1250*5000
|
1250*5000
|
|
Max sheet Thickness
|
mm
|
6.35
|
8.35
|
|
Max sheet weight
|
kg
|
110
|
160
|
|
X Axis Traverse speed
|
m/min
|
120
|
100
|
|
Y Axis Traverse speed
|
m/min
|
105
|
80
|
|
Max Traverse speed
|
m/min
|
128
|
105
|
|
Punching speed at 25mm Pitch
|
Hist/min
|
450
|
380
|
|
Nibbling speed
|
Hist/min
|
1200
|
1050
|
|
Tools Type
|
|
Thick Turret
|
|
|
Max Punching Diameter
|
mm
|
88.9
|
|
|
Number of Tool Stations
|
|
32/42/52
|
|
|
Number of Auto Index Stations
|
Pcs(type)
|
4(2B+2C)/3(2B+C)/2(B+C)
|
|
|
Turret Rotating Speed
|
rpm
|
33
|
33
|
|
Auto Index Rotationg Speed
|
rpm
|
100
|
100
|
|
Ram Stroke Distance
|
mm
|
0~31
|
0~31
|
|
Working Tables Size
|
|
Brush+Supporting Ball Set
|
|
|
Number of Sheet Clamps
|
pcs
|
3
|
3
|
|
Air supply
|
NL/min
|
250
|
250
|
|
Air Pressure
|
|
6
|
6
|
|
Size of Control cabinet
|
|
1350*700*2185
|
|
|
CNC Controller
|
|
Fanuc Oi-PD
|
|
|
Number of Controllable Axes
|
|
4
|
|
|
Ram Memory
|
|
512
|
|
|
Serial Interface
|
|
PS232/RJ45/PCMCIA
|
|
|
Punching Precision
|
|
±0.1
|
|
|
Machine Dimension(L*W*H)
|
|
5940*5220*2420
|
5940*5220*2420
|
|
Net weight(approx.)
|
|
13500
|
15800
|
