Automatic CNC Window Door Making UPVC Window Machine Double Head Cutting Saw Machine
Piece
Negotiable
Product information
High-quality Automatic CNC Window Door Making UPVC Window Machine Double Head Cutting Saw Machine supplied by Shandong Seth Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Servo Motor:
2*0.4kw +0.75kw
Motor Power:
2*3.00kw
Package Gross Weight:
2100.000kg
Weight:
2300kg
Speed:
3000r/Min
Voltage:
380V/220V/as Clients' Requirement
Maximum Cutting Slope:
45°150×175mm 90°150×280mm
Package Size:
580.00cm * 160.00cm * 180.00cm
Specifications
Servo Motor:
2*0.4kw +0.75kw
Motor Power:
2*3.00kw
Package Gross Weight:
2100.000kg
Weight:
2300kg
Speed:
3000r/Min
Voltage:
380V/220V/as Clients' Requirement
Maximum Cutting Slope:
45°150×175mm 90°150×280mm
Package Size:
580.00cm * 160.00cm * 180.00cm
Dimensions:
6800× 1500× 1800 mm
Specification:
7800*1800*1600mm
Total Power:
9.00kw
Sawing Angle:
90 Degree and 45 Degree
Automatic Grade:
Automatic
Certification:
CE, SGS/BV
CNC Or Not:
CNC
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Origin:
Jinan
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Sawing Width:
Max 150mm
Sawing Length:
Max5000mm Min 280mm
Condition:
New
Port Of Loading:
Qingdao Port
Cutting Surface Roughness:
Ra12.5μm
Trademark:
SETH
Model NO.:
SETH-CNC-500*5000FOM
Payment Methods:
Support payments in USD
Transport Package:
Wooden Box
Planeness Of Cutting Surface:
± 0.02m
Repetitive Length Accuracy:
±0.02mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-08-18
Annual Revenue Amount:
Not specified
Numbers Of Employees:
36
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
AAA, AAA grade, BV, CE, patrner ship, SGS, SGS certificate
Product descriptions from the supplier
SONA2024 2.2.1

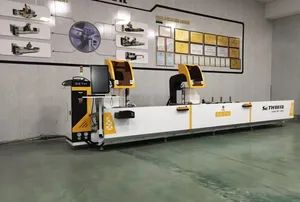

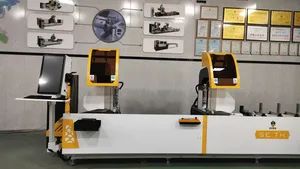

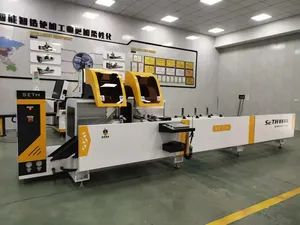

CNC Double-head Precision Cutting Saw for Aluminum Profile
Model: SETH-CNC-500*5000FOM
Mainly used for cutting industrial aluminum profile ,aluminum curtain wall materials, it can also be used for cutting PVC and wooden profiles.
This machine adopts CNC technology and can automatically locate, cut and unload profiles of different specifications and sizes.
High quality aluminum special saw blades are selected, with an outer diameter of up to 550mm/600mm/650mm, high line speed, and high processing accuracy.
This machine adopts CNC technology and can automatically locate, cut and unload profiles of different specifications and sizes.
High quality aluminum special saw blades are selected, with an outer diameter of up to 550mm/600mm/650mm, high line speed, and high processing accuracy.
CNC transmission adopts high standard gears and racks, with high transmission accuracy, accurate positioning, and smooth operation.
The high-precision spindle ensures stable rotation of the saw blade and effectively improves the surface quality of the machined parts.
The high-precision spindle ensures stable rotation of the saw blade and effectively improves the surface quality of the machined parts.
Please enter the title here
1,Suitable for adjusting cutting angles 45° and 90° for industrial aluminum profiles, thermal break aluminum doors and windows, and curtain wall profiles. The CNC control system can achieve advanced functions such as optimized cutting of profiles.
2,The whole machine adopts European models, with a neat appearance and grand style.
3,Directly connected saw blade with imported motor.
4,Saw blade feed using pneumatic-hydraulic damping cylinder transmission for stable cutting.
5,High-precision imported cutting saw blade for smooth cutting section.
6,Imported servo motor with reducer.
7,Can input the dimensions of multiple profiles to be cut at once, enabling continuous cutting of different lengths.
8,Direct input of processing dimensions without the need to return to reference points when changing cutting lengths. The worktable is equipped with a saw blade sealing device for effective chip removal.
9,Equipped with a follow-up opening and closing saw cover for safety and reliability in a good working environment.
10,Each machine head has two air cylinder clamps to secure the profiles for safe and reliable cutting.
2,The whole machine adopts European models, with a neat appearance and grand style.
3,Directly connected saw blade with imported motor.
4,Saw blade feed using pneumatic-hydraulic damping cylinder transmission for stable cutting.
5,High-precision imported cutting saw blade for smooth cutting section.
6,Imported servo motor with reducer.
7,Can input the dimensions of multiple profiles to be cut at once, enabling continuous cutting of different lengths.
8,Direct input of processing dimensions without the need to return to reference points when changing cutting lengths. The worktable is equipped with a saw blade sealing device for effective chip removal.
9,Equipped with a follow-up opening and closing saw cover for safety and reliability in a good working environment.
10,Each machine head has two air cylinder clamps to secure the profiles for safe and reliable cutting.
Specification
shandong SETH Machinery co.,ltd. is a premier manufacturer of high-end intelligent equipment, seamlessly integrating research, production, and sales. Our expertise lies in the innovative research, development, manufacturing, and sales of cutting-edge industrial aluminum processing equipment, alongside specialized aluminum door and window machinery, aluminum curtain wall systems, and plastic door and window solutions. Powered by an exceptional research and development team and a cadre of professional technical staff, we are committed to delivering superior quality equipment. Chengjiang is steadfast in its mission to pioneer the most advanced door, window, and curtain wall processing technology in China, setting new benchmarks in the industry.
Technical Specifications
Input power supply | 380V/50Hz |
Saw cutting motor: | 2×3.0kW |
Motor speed: | 3000r/min |
Servo motor: | 2×1.0kW+1×1.5kW 4,050r/min |
Working air pressure: | 0.5~0.8MPa |
Air consumption: | 60L/min |
Saw blade specifications: | 500×30×4.4 Z=144 |
Feeding speed: | 0~3m/min |
Machine head movement speed range: | 0~20m/min |
Saw cutting length: | Maximum 6,000mm Minimum 280mm at 90° Maximum 6,000mm Minimum 280mm at 45° Plus two profile heights |
Cutting width: | 150mm |
Cutting height: | 280mm |
Saw cutting angle: | 45° and 90° |
Repeated fixed-length error: | ±0.2mm |
Dimensions: | 7,800×1,500×2,040mm |
Weight: | Approximately 2,300kg |
switching cabinet
After Sales Service
Standard Warranty: 24months for main parts
Extended Warranty:Optional coverage up to 36 months.
Global Support:24/7 technical assistance and spare parts supply.
Training:On-site or remote operation/maintenance training.
Extended Warranty:Optional coverage up to 36 months.
Global Support:24/7 technical assistance and spare parts supply.
Training:On-site or remote operation/maintenance training.
Company Profile
SHAN DONG SETH Machinery Co., Ltd.
The company has rich experience in production and R&D, more than 10 national patents, passed ISO9001 international quality management system
certification, excellent product design and development engineers, skilled production engineers, experienced high-level production management team
and after-sales service personnel, providing you with a strong guarantee from product design, production to after-sales service.
certification, excellent product design and development engineers, skilled production engineers, experienced high-level production management team
and after-sales service personnel, providing you with a strong guarantee from product design, production to after-sales service.
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Double Head Cutting Machine for Aluminum
Glass Cleaning Machine
cnc drilling and milling machine
cnc machining center
IG PROCESSING MACHINERY
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
