Automatic Continuous Wire Cable Extrusion Machine with PLC Electric Control
Set
Negotiable
Product information
High-quality Automatic Continuous Wire Cable Extrusion Machine with PLC Electric Control supplied by Dongguan Wirecan Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
12 Months
Production Capacity:
4set Per Month
HS Code:
84772090
Cable Diameter:
According to Different Extruder Size
Automatic Grade:
Automatic
Origin:
China
Usage:
Extruding
Trade Term:
FOB, CIF, CFR, EXW
Specifications
Warranty:
12 Months
Production Capacity:
4set Per Month
HS Code:
84772090
Cable Diameter:
According to Different Extruder Size
Automatic Grade:
Automatic
Origin:
China
Usage:
Extruding
Trade Term:
FOB, CIF, CFR, EXW
Machine Size:
GF-50/70/80/90/120
Certification:
ISO
Application:
PVC Wire and Cable Extrusion
Suitable Material:
PVC/PE
Transport Package:
Plastic Film+Wooden Package
Port Of Loading:
Shenzhen Port
Motor:
Siemens
Screw:
Single-Screw
Payment Term:
T/T,L/C
Service:
Technical Support,Training
Payment Term:
To be discussed
Model NO.:
WRK-860
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2015-10-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
CE
Product descriptions from the supplier
1,Cable making Equipment application:
Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.
2,Cable making equipment Technical parameters:
3. Equipment configuration
Can be optional for PLC control,infuse color machine (for the production of double-color wire), etc. the concrete configuration can be adjustable according to client's requirement.
Our main products:
What we can do for you ?
Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.
2,Cable making equipment Technical parameters:
| Technical parameters | ||||||
| Machine type | GF-25 | GF-30 | GF-35 | GF-45 | GF-50 | GF-60 |
| Pay off type | motorized | motorized/double-shaft | ||||
| Screw diameter | Φ25 | Φ30 | Φ35 | Φ45 | Φ50 | Φ60 |
| Screw L/D | 26:1 | |||||
| Max.extrusion output | 20kg/h | 30kg/h | 40kg/h | 50kg/h | 70kg/h | 110kg/h |
| Motor power | 7.5HP | 10HP | 10HP | 15HP | 15HP | 20HP |
| Wire diameter | Φ0.2-1.0 | Φ0.2-2.0 | Φ0.4-2.5 | Φ0.6-3.0 | Φ0.6-4.0 | Φ0.8-8.0 |
| Cooling device | Folding type W/U type | |||||
| Haul-off power | 2HP | 2HP | 2HP | 3HP | 3HP | 4HP |
| Wire-storage length | 250m | |||||
| Max. Line speed | 500m/min | |||||
| Take-up type | Double shaft bundle packaging/shaft packaging | |||||
| machine type | GF-65 | GF-70 | GF-80 | GF-90A | GF-90B | GF-120 | GF-150 | GF-200 | ||||
| pay-off shaft | double-shaft type | 800-1600 | 1000-2000 | 1600-2500 | 1600-3150 | |||||||
| screw diameter | ø65 | ø70 | ø80 | ø90 | ø120 | ø150 | ø200 | |||||
| screw L/D | 25:01:00 | |||||||||||
| MAX. extrusion output | 130kg/h | 150kg/h | 200kg/h | 250kg/h | 280kg/h | 400kg/h | 650kg/h | 900kg/h | ||||
| motor power | 25HP | 30HP | 40HP | 50HP | 60HP | 70HP | 100HP | 150HP | ||||
| wire diameter | ø1.2-10mm | ø1.5-12mm | ø2.0-20mm | ø3.0-25mm | ø10-40mm | ø15-60mm | ø30-120mm | above ø40mm | ||||
| cooling device | single layer/double layers U type | single layer U type | ||||||||||
| haul-off power | 5HP | 7.5HP | 10HP | 15HP | 20HP | 10HP | ||||||
| MAX. line speed | 500m/min | 450m/min | 400m/min | 200m/min | 100m/min | 60m/min | 60m/min | |||||
| take-up type/power | double-shaft bundle packaging | ø1000mm-2000mm | ø1600mm-2500mm | ø1600mm-3150mm | ø2000mm-3500mm | |||||||
| No. | All parts' name | Qty |

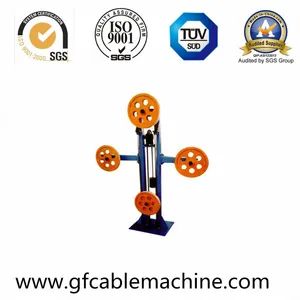

| 1 | Pay off rack | 1set |
| 2 | Copper wire pre-heater | 1set |
| 3 | Straightener platform | 1set |
| 4 | Main motor(free-adjustable) | 1set |
| 5 | Automatic dryer and hopper | 1set |
| 6 | Electric apparatus main control cabinet | 1set |
| 7 | Movable water trough | 1set |
| 8 | Laser diameter gauge | 1set |
| 9 | High speed printing machine | 1set |
| 10 | Fixed water-trough | 1set |
| 11 | Double-wheel capstan | 1set |
| 12 | Horizontal wire-accumulator | 1set |

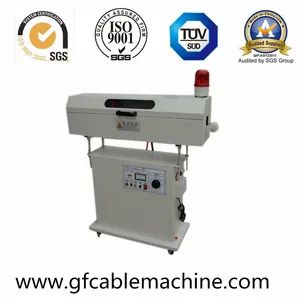

| 13 | High frequency sparker | 1set |
| 14 | Double-shaft take-up machine | 1set |
Can be optional for PLC control,infuse color machine (for the production of double-color wire), etc. the concrete configuration can be adjustable according to client's requirement.
