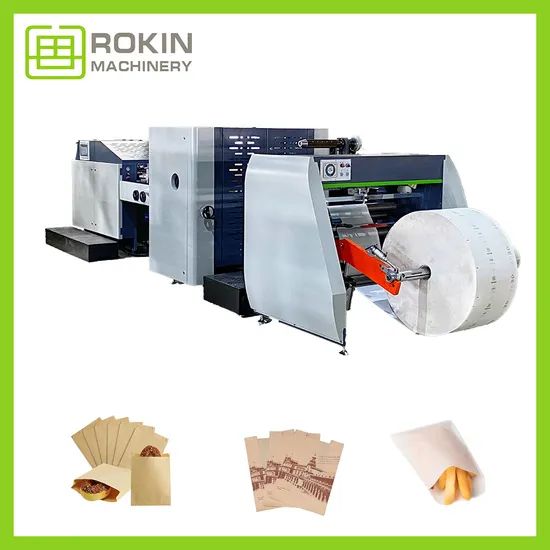

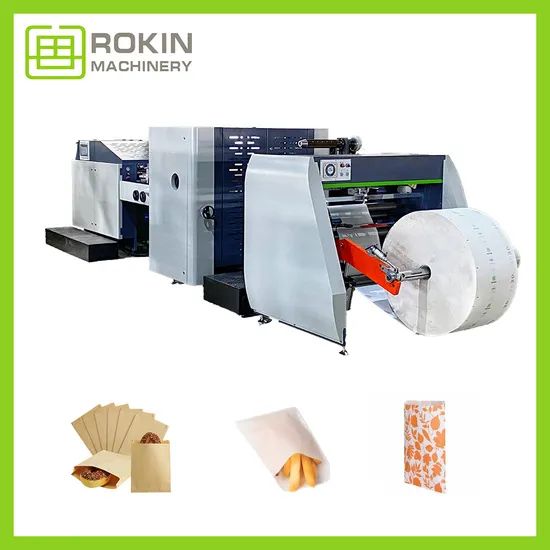

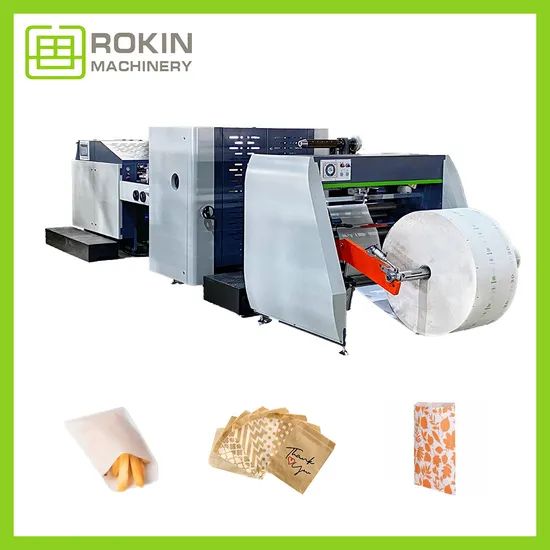

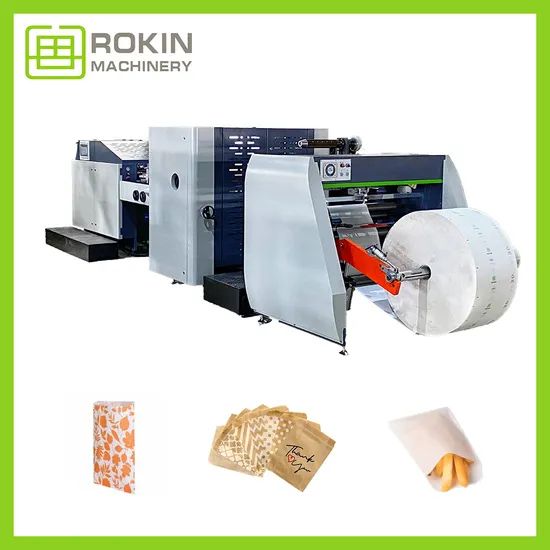

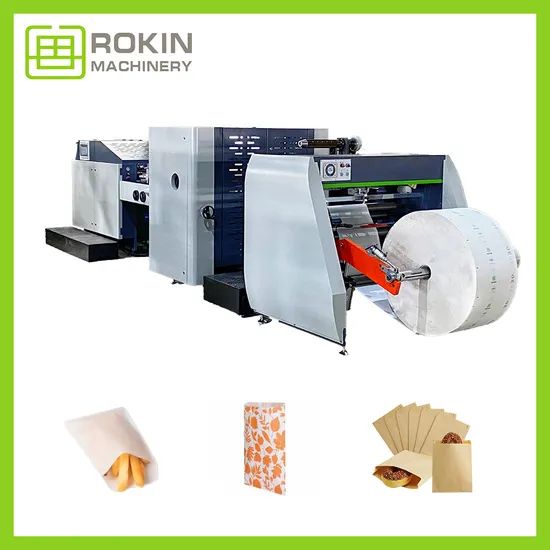

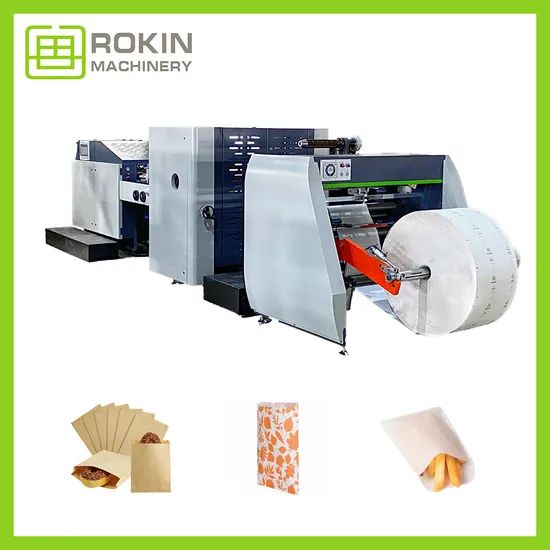

Automatic Craft Paper Bag Making Machine
1-19 Set
$47,00020 Set
$36,000Product information
High-quality Automatic Craft Paper Bag Making Machine supplied by Wenzhou Rokin Machinery Co., Ltd. Bulk wholesale pricing ranges from $36,000 to $47,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Max. Paper Bag Speed:
100-500PCS/Min
Paper Roll Width:
100-760mm
Long:
110-450mm
Paper Bag Cutting Length (C):
110-450mm
Production Capacity:
200 Sets
Paper Thickness:
35-80G/M2
Weight:
4500 Kgs
Paper Bag Width (W):
70-250mm
Specifications
Max. Paper Bag Speed:
100-500PCS/Min
Paper Roll Width:
100-760mm
Long:
110-450mm
Paper Bag Cutting Length (C):
110-450mm
Production Capacity:
200 Sets
Paper Thickness:
35-80G/M2
Weight:
4500 Kgs
Paper Bag Width (W):
70-250mm
Width:
70-250mm
HS Code:
8441200000
Characteristic:
Automatic Glue
Machine Type:
Bag Forming Machine
Origin:
China
Computerized:
Computerized
Trade Term:
FOB, CIF, CFR, EXW
Bag Type:
Food Paper Bag
Speed:
High
Size And Shape:
L6800*W1600*H1600mm
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Ningbo Port, Shanghai Port
Material:
Paper
Model NO.:
RKJD-250
Trademark:
ROKIN
Usage:
Shopping Bag, Garment Bag, Leisure Food Bag, Bread Bags, Airsickness Bag, Fruit Bag
Transport Package:
Wooden Case or Film Packing
Specification:
customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-06-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
70
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
CE
Product descriptions from the supplier
Product Description
This paper bag production line is designed to manufacture various round-handle paper bags, including food packaging and retail shopping bags. It excels in rapidly producing medium and large-format paper bags. The system integrates side sealing, roll folding, paper roll cutting, bottom folding, bottom sealing, bottom shaping, and bag ejection in a single continuous process. Featuring intuitive operation, high productivity, reliability, and significant labor cost reduction, it offers optimal performance. A built-in photoelectric sensor adjusts cut length for consistent accuracy. Powered by a Yaskawa PLC control system, the machine delivers smooth, reliable operation. A dedicated bag collection tray with automatic counting enhances packing workflow. Capable of handling a wide range of bag dimensions at high speed, it is particularly well-suited for use in food and apparel sectors.
| Model | RKJD-250 | RKJD-350 | |
| Paper bag cutting length (C) | 110-450mm | 155-715mm | |
| Paper bag length (L) | 100-440mm | 150-710mm | |
| Paper bag width (W) | 70-250mm | 70-350mm | |
| Side insert width(G) | 20-120mm | 20-120mm | |
| Bag mouth height | 15/20mm | 15/20mm | |
| Paper thickness | 35-80g/m2 | 35-80g/m2 | |
| Max. Paper bag speed | 50-500pcs/min | 50-700pcs/min | |
| Paper roll width | 100-760m | 100-980mm | |
| Paper roll diameter | Dia1000mm | Dia1000mm | |
| Inner diameter of the paper roll | Dia 76mm | Dia76mm | |
| Machine supply | 380V, 50Hz, three phase, four wires | ||
| Power | 10KW | 20KW | |
| Weight | 4500 KGS | 6500KGS | |
| Dimension | L6800*W1600*H1600mm | L7500*W2300*H1800mm | |
1. The human-machine touch screen interface, the work condition can be shown in real- time.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving,long life.
6.Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control,avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor
Wenzhou Rokin Machinery Co., Ltd. produces fully automatic paper bag machines, square-bottom paper bag machines, V-bottom paper bag machines, case manufacturing machines, cardboard slitting machines, and other associated machinery.
A: We are the manufacturer and have over 200 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city.
Q: How is the quality of your machine?
A: With more than two decades in the machinery industry, quality is at the core of our business. We source from globally recognized brands and maintain an internal quality control team. Every machine component is individually verified against technical specifications. Our strong focus on reliability and outstanding post-sale support has built a trusted presence worldwide. Comprised of seven dedicated engineers, we also collaborate with leading research institutions to continuously improve. Our mission is to deliver top-tier packaging solutions to our clients.
Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper. Second, sizes of the paper bag, thickness of paper.Send sample bag picture if available.
Then we will recommend the right machine to you!
