Automatic Cutter Suction Dredger Diesel-Powered High-Capacity Sand Dredging
1-4 Piece
$75,0005 Piece
$63,000Product information
High-quality Automatic Cutter Suction Dredger Diesel-Powered High-Capacity Sand Dredging supplied by Shandong Wanrun Intelligent Equipment Co., Ltd.. Bulk wholesale pricing ranges from $63,000 to $75,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Rotational Speed:
0-30/Minute
Warranty:
12 Months
Package Size:
1700.00cm * 400.00cm * 125.00cm
Specification:
17m*4m*1.25m
Sludge Discharge Pipe Inner Diameter:
200mm
Total Power Installation:
205-224kw
Inner Diameter Of Suction Pipe:
250mm
Package Gross Weight:
27000.000kg
Specifications
Rotational Speed:
0-30/Minute
Warranty:
12 Months
Package Size:
1700.00cm * 400.00cm * 125.00cm
Specification:
17m*4m*1.25m
Sludge Discharge Pipe Inner Diameter:
200mm
Total Power Installation:
205-224kw
Inner Diameter Of Suction Pipe:
250mm
Package Gross Weight:
27000.000kg
Production Capacity:
30 Sets Per Month
Dredging Capacity:
500-3000m3/Hr
Working Capacity:
500m³/H
Lead Time:
60 days (1 - 1 Pieces)To be negotiated ( > 1 Pieces)
Dredging Depth:
6m-10m
Discharge Distance:
800m
Slot Type:
CTS
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Transport Package:
Container/Bulk Carrier
Engine Brand:
Cummins/Weichai/Other Customized Requirements
Diesel Engine:
Cummins/Weichai/Yuchai/Other Customized Solutions
Customized:
Customized
Colour:
Customized
Application:
Dredging
Trade Term:
FOB, CIF, CFR, EXW
Control System:
Hydraulic Control System
Cyclone Type:
Hydrocyclone
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
After Sales Service:
Online Guidance / on-Site Guidance by Overseas Eng
Machinery Test Report:
Provided
Video Outgoing Inspection:
Provided
Port Of Loading:
Qingdao Port
Origin:
Shandong China
Payment Methods:
Support payments in USD
Model NO.:
WR
Trademark:
wanrun
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-12-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
9
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE, ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
Name: Diesel Engine
Brand: World famous CUMMINS brand
Our products are popular nationwide and exported to Russia, the USA, Indonesia, the Philippines, India, Ethiopia, South Africa, Singapore, and more, earning customer praise for our rich experience and excellent products.
We adhere to honesty, prioritize customer service, aim for quality and excellent service, and strive for enterprise growth through reputation. Our goal is to provide great products and services.
WANRUN looks forward to creating a brilliant future with customers globally!
Wanrun Cutter Suction Dredger
Shandong Wanrun Intelligent Equipment Co., Ltd., a professional dredger manufacturer, offers one-stop dredging solutions with 10+ years' experience. Their hydraulic cutter suction dredgers feature rotating cutter heads and high-pressure sand pumps for excavation, transport, and unloading in ports, waterways, rivers, lakes, and lagoons. Equipped with winch-driven spud-pole systems and dismountable structures, these vessels excel in heavy-duty operations like hydraulic filling. Ideal for port, channel, or reservoir maintenance, sand winning for construction, land reclamation, and polluted soil removal. Wanrun CSDs, part of the Yongli product line, provide benefits of serial production: rapid delivery, proven technology, easy maintenance, and competitive pricing. The CSD series is globally accepted, offering quick returns and significant operational benefits.
Specification
Model | Water flow | Dredging Depth | Lift | Discharge Distance | Whole weight |
CSD150 | 500m3/h | 6m | 36m | 800m | 40000kg |
CSD200 | 900m3/h | 8m | 49m | 1000m | 50000kg |
CSD250 | 1500m3/h | 12m | 56m | 1200m | 65000kg |
CSD300 | 2500m3/h | 15m | 57m | 1500m | 95000kg |
CSD350 | 4000m3/h | 15m | 58m | 2000m | 150000kg |
CSD450 | 5000m3/h | 15m | 55m | 2000m | 190000kg |
CSD500 | 6000m3/h | 16m | 62m | 2500m | 220000kg |
CSD600 | 7000m3/h | 18m | 68m | 3000m | 250000kg |
Please note:
The prices shown are a general reference. To obtain precise pricing and model recommendations for your project, please get in touch. We'll work with you to create a tailored plan that fits your specific situation.
Cutter suction dredger parameters are tailored to customer needs.
The cutter suction dredger operates efficiently. The cutter head rapidly spins, loosening seabed sediment, forming a slurry of sediment and water. The powerful mud pump creates suction, drawing the slurry through the suction pipe, pressurizing and propelling it through a discharge pipeline to designated spoil grounds or reclamation sites.
Cutter suction dredgers are widely used in dredging operations, infrastructure construction, sand mining, and similar applications. During operation, the rotating cutter head is lowered to the seabed and engages with sediment layers. Its rapid rotation agitates and mixes the sediment with water, forming a slurry. This slurry is then drawn into the dredger through the suction inlet under the action of the slurry pump, transferred by the onboard pumping system, and finally discharged ashore via pipelines. This process allows the cutter suction dredger to perform continuous dredging, transport, and discharge operations, making it a highly efficient, cost-effective solution for underwater excavation.
Cutter suction dredgers are widely used in dredging operations, infrastructure construction, sand mining, and similar applications. During operation, the rotating cutter head is lowered to the seabed and engages with sediment layers. Its rapid rotation agitates and mixes the sediment with water, forming a slurry. This slurry is then drawn into the dredger through the suction inlet under the action of the slurry pump, transferred by the onboard pumping system, and finally discharged ashore via pipelines. This process allows the cutter suction dredger to perform continuous dredging, transport, and discharge operations, making it a highly efficient, cost-effective solution for underwater excavation.
Our dredgers are available in self-propelled or non-self-propelled configurations, designed as portable cutter suction units. The hull features a modular, box-type structure that can be easily disassembled and is equipped with horizontal shifting devices, a cutter ladder lifting system, spud carriage devices, and a deck crane. Optional accessories include anchoring poles and trolley systems.
These dredgers are generally capable of dredging, conveying, and discharging mud and sand. A centrifugal pump generates sufficient vacuum for efficient material intake. The dredge pump is powered by the main diesel engine via a reduction gearbox, while an alternator driven by an auxiliary diesel engine supplies electricity for the vessel's power and lighting needs. An additional generator set provides electricity for lighting and emergency use when the dredger is idle.
The cutter head is driven by a hydraulic motor, and its bearing assembly is equipped with a sealed lubrication unit. Dredger positioning and advancement are achieved through the alternating swing of spuds, which are raised and lowered by hydraulic cylinders.
These dredgers are generally capable of dredging, conveying, and discharging mud and sand. A centrifugal pump generates sufficient vacuum for efficient material intake. The dredge pump is powered by the main diesel engine via a reduction gearbox, while an alternator driven by an auxiliary diesel engine supplies electricity for the vessel's power and lighting needs. An additional generator set provides electricity for lighting and emergency use when the dredger is idle.
The cutter head is driven by a hydraulic motor, and its bearing assembly is equipped with a sealed lubrication unit. Dredger positioning and advancement are achieved through the alternating swing of spuds, which are raised and lowered by hydraulic cylinders.
A cutter suction dredger (CSD) is essential marine engineering equipment, vital for various maritime and coastal projects. Celebrated for advanced design and capabilities, the CSD is key to large-scale, complex dredging operations globally.
Excavation
Our Automated Cutter Suction Dredger features a robust auger head with sharp cutting teeth, spinning at high speeds to cut, stir, and pulverize submerged materials, including mud, clay, and soft rock.
Suction
The auger head is supported by a sturdy auger bridge with an internal mud suction pipe. Once the auger loosens materials, the ship's mud pump creates a vacuum, drawing in water and mud through the suction pipe.
The auger head is supported by a sturdy auger bridge with an internal mud suction pipe. Once the auger loosens materials, the ship's mud pump creates a vacuum, drawing in water and mud through the suction pipe.
Transportation
Collected mud is pressurized and conveyed through a mud pipe system within the dredger's hull.
Direct Shore Discharge/Blowing and Filling:
Mud travels through an extended discharge pipeline from the ship's stern to land or shoal for filling.
Loading the Barge
Alternatively, mud is smoothly transferred into a versatile mud barge beside the dredger, ensuring efficient transport to the designated dumping or filling area.
Dredger Photon
Name: dredger phonton
Photon material: Ship steel plate
Structure: Can be dismantle and assemble at working site
Photon material: Ship steel plate
Structure: Can be dismantle and assemble at working site
Photon quantity: two side photons and one main photon
Power System
Name: Diesel Engine
Brand: World famous CUMMINS brand
Weichai brand or as required
Power: 60-2000Kw
Function: Supply power to the dredger
Power: 60-2000Kw
Function: Supply power to the dredger
This robust diesel engine serves as the primary power source for the entire vessel, reliably supplying the mechanical and electrical energy necessary for all key systems. It directly drives the dredge pump via a reduction gearbox, while also powering onboard hydraulic systems, positioning devices, and other essential dredging equipment. Paired with the auxiliary generator set, it ensures continuous and stable operation of the dredger under complex working conditions.
Please enter the title here
Sand Dredging Pump
At the core of the dredging operation is the high-performance Sand Dredging Pump. Engineered for extreme durability and efficiency, it is designed to handle dense, abrasive slurry mixtures continuously.
Key Specifications:
Pump Flow Rate: 100 - 7,000 m³/h
Sand Output Capacity: 40 - 1,500 m³/h (dry solids equivalent)
Maximum Discharge Distance: 100 - 3,000 meters
Primary Material: High-chromium alloy, ensuring superior wear resistance and an extended service life in abrasive environments.
Sealing Method: Reliable packing seal system, designed for easy maintenance and robust performance under demanding conditions.
This robust pump is responsible for creating the vacuum necessary to draw the slurry from the cutter head and providing the pressure to transport the mixture over long distances to the designated discharge point, forming the critical link in the continuous dredging process.
Please enter the title here
Controlling system
Working cabin with controlling system
Control desk: Integrated control Delixi electrical accessories Working chair 1 set
Hydraulic winch
Drive type: Hydraulic drive Hydraulic bridge winch Hydraulic Side winch With wire rope and fix anchor

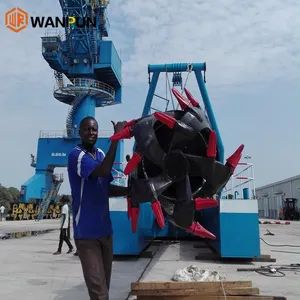

Cutter Head
Drive type: Hydraulic drive
Teeth type: Replaceable alloy teeth
Teeth type: Replaceable alloy teeth
Cutter teeth quantity: Multi teeth
Hydraulic System
Cutter head hydraulic system
Spud hydraulic system
Winch hydraulic system
Hydraulic pump
Hydraulic oil tank and pipes
Discharge system
HDPE pipes with floaters
Connection rubber hose
Discharge distance customized
Spud system
Drive type: Hydraulic drive
Quantity: 2/4 sets
Packing & Delivery
Company Profile
Shandong Wanrun Intelligent Equipment Co., Ltd.
Shandong Wanrun Intelligent Equipment Co., Ltd. Located in Huanglou Industrial Park, Qingzhou City, Shandong Province, offering a superior environment and convenient transportation.
WANRUN integrates development and manufacturing, offering dredgers, cleaning boats, sand dredgers, and amphibious equipment. We design and produce tailored products based on customer needs and environments.
Our products are popular nationwide and exported to Russia, the USA, Indonesia, the Philippines, India, Ethiopia, South Africa, Singapore, and more, earning customer praise for our rich experience and excellent products.
We adhere to honesty, prioritize customer service, aim for quality and excellent service, and strive for enterprise growth through reputation. Our goal is to provide great products and services.
WANRUN looks forward to creating a brilliant future with customers globally!
Our Service
Pre-Sales Service
1. Receiving inquiries2. Studying usage conditions
3. Introducing our dredger
4. Propose optimal solutions
1. Receiving inquiries2. Studying usage conditions
3. Introducing our dredger
4. Propose optimal solutions
After-Sales Service
1. Design outlet with 3D drawing2. Produce as per design
3. Test machine pre-shipment
4. Installation and training services
1. Design outlet with 3D drawing2. Produce as per design
3. Test machine pre-shipment
4. Installation and training services
More Machine
We produce the following dredgers:
1. Cutter Suction Dredger
2. Jet Suction Dredger
3. Bucket Chain Dredger (gold and diamond)
4. Sand Pump Dredger
5. Amphibious Dredger
For other dredgers, click the product pictures to learn more.
1. Cutter Suction Dredger
2. Jet Suction Dredger
3. Bucket Chain Dredger (gold and diamond)
4. Sand Pump Dredger
5. Amphibious Dredger
For other dredgers, click the product pictures to learn more.
