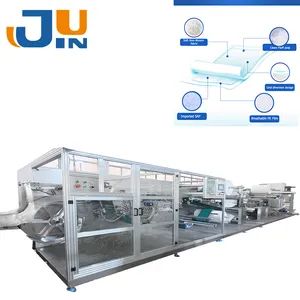

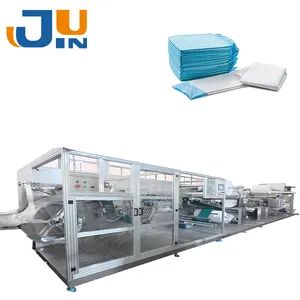

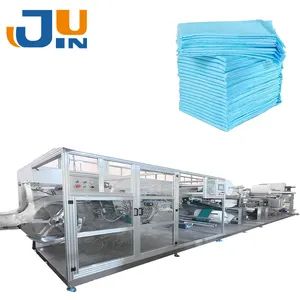

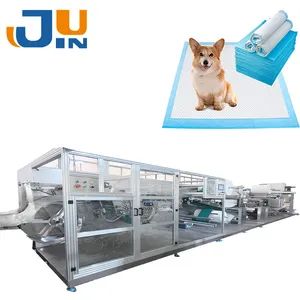

Automatic Disposable Waterproof Under Pad/Pet Pad Machine Origin China Condition New Trademark JUJIN HS Code 84418090 Specification 22× 2× 3

1. Crushing molding part: Using high-precision saw blade crusher, can crush untreated pulp and fully treated pulp. The wood pulp is fed by pneumatic lifting, and the feed amount of the wood pulp is controlled by frequency conversion and matched with the speed of the main engine. The polymer is applied quantitatively by servo control, and the applied transverse dimension is adjustable.
2. Raw material unwinding part: upper and lower toilet paper, non-woven fabric and bottom film are each configured with two rolls of material rack, using active servo control unwinding, tension automatic and accurate adjustment.
3. The main part of the equipment: the whole frame of the equipment is welded with 100 standard square tubes, and the wall panel is made of steel plate with a thickness of more than 15 mm. The entire machine adopts high precision servo motor and variable frequency motor hybrid drive, except for the box and the wind box of the cotton core part, the other parts are servo drive.
4. Main box part: cotton core flattening box and pressing mesh box each set (frequency conversion motor drive); A set of cotton core cutting box (3KW servo drive, cutting accurate and stable); A set of three-roll traction box (servo motor drive, can accurately adjust the tension requirements of longitudinal coating); A set of finished cutting box (servo drive, cutting length position accurate and stable); Waste removal device (using manual button signal, programmed to output waste from the waste channel to the waste box); The transverse folding part of the finished product (servo drive, transverse folding in half, can accurately adjust the folding position); The finished product arrangement part (adopts large size hot wheel arrangement mechanism, with servo drive, so that the products are arranged neatly, and the count is accurate); Finished product conveyor (table length is not less than 1.8 meters, the use of frequency conversion electrical drive, and the speed of the main engine match).
5.  Air duct and air duct part: The main air duct of the equipment is made of iron pipe to ensure the stability of the air duct and eliminate static electricity, and the branch air duct is made of PVC or steel wire hose with regulating valves. The main gas path of the whole machine adopts steel gas pipe, and is equipped with air source processing components to ensure the dry and clean air source.
6. Electrical parts: high-precision servo motor drive, each component speed program real-time tracking adjustment. Adopt large man-machine interface, multi-parameter real-time adjustable. The heating part of the equipment adopts mercury conductive ring and is equipped with high precision temperature controller.



Changzhou JUJIN Automation Equipment Co., Ltd. is located in Changzhou City, Jiangsu Province. It is only 180 kilometers away from Shanghai and Shanghai Port.

The company was established in 2008 and has had 16 years of manufacturing experience so far. There are more than 100 employees in the entire company.

The company has three major products. Firstly, there are disposable medical products, such as medical bed cover machines and surgical hole drape of various sizes.
Secondly, there are hotel products, like disposable toilet seat covers, disposable sanitary napkins, disposable towels and so on.
Thirdly, there are hygienic consumables such as baby bibs, baby aprons, pet pads and so on. Besides the above mature models, JUJIN can also manufacture customized machines. The company has its own design team. Up to now, the customized machines of the company have been sold to more than 25 countries. JJUJIN provides one-stop services from design to transportation. Customers from all over the world are welcomed.



1.Q: Are you a factory or trading company?
A: We are a factory ,welcome the clients.

2.Q:How stable are your automation equipment?
A: Our automation equipment undergoes strict quality inspections and long - term actual operation tests. Key components are all selected from high - quality brands. In terms of design, advanced control systems and redundant designs are adopted to ensure the equipment remains stable during long - term continuous operation and reduce the probability of malfunctions. Meanwhile, we provide a complete after - sales maintenance service and respond to your equipment maintenance needs promptly.

3.Q: What is the after - sales response time in case of equipment failure?
A: We have a professional and strong after - sales team, and there are resident offices in some domestic regions. When you report an equipment failure, for customers in the city, we promise to arrive on - site within 24 hours. For customers outside the city, generally, we will arrive within 48 - 72 hours depending on the distance, to troubleshoot and solve problems for you in a timely manner. For overseas customers, we will provide a preliminary solution within 2 hours after receiving the feedback. If on - site service is required, we will arrange professional technicians to go as soon as possible according to the actual situation.

4.Q: Is the equipment operation complex? Do you provide training?
A: Our equipment is designed with user - friendly operation in mind, equipped with a human - oriented operation interface and detailed operation manuals. Meanwhile, we provide free professional training services for every customer who purchases our equipment, including the operation method of the equipment and key points of daily maintenance, to ensure that your operators can master the use of the equipment proficiently. The training methods can be on - site training or online video training according to your needs.

5.Q:Can the equipment be customized according to our special requirements?
A: Certainly. We have a professional R & D and technical team with rich experience in non - standard customization. You can inform us in detail of your special requirements, such as equipment functions, dimensions, production efficiency, etc. We will conduct an evaluation and design according to your requirements and provide you with customized automation equipment solutions.

6.Q:What is the production efficiency of your medical equipment?
A: The production efficiency of different types of medical equipment varies. The specific production efficiency may vary slightly according to the product specifications and process requirements. Our technical team will recommend the most suitable equipment model for you according to your production needs and provide a detailed production efficiency evaluation report.
