Automatic Drying Tunnel Equipment Bottom 15PCS Trademark Tamprinter Vulcanization 180~230 Belt Mesh Hole 2X2 mm Origin China(Mainland)

Product Description

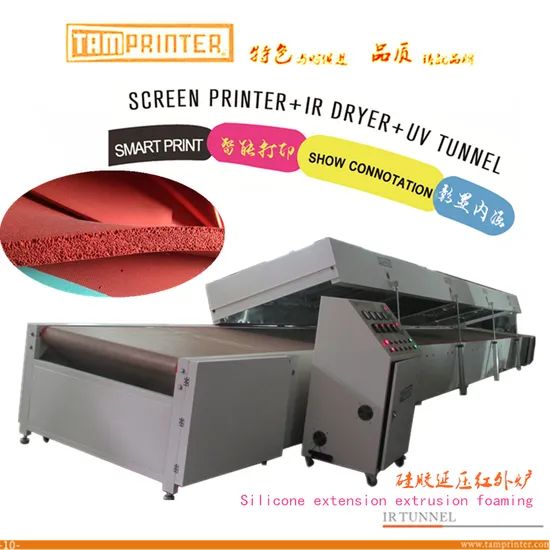

silicone sponge rubber manufacturing tunnel oven

480v 3phase 60hz
Independent power control cabinet
14 m * 1.4m * 1.3m
Inlet 2m  Outlet 2m
 4 zones ,2.5m per heat zones.
2+2.5+2.5+2.5+2.5+2=14
370W*2PCS motors control 2 belt
2 belt speed controllers adjust each 7 m (2 +2.5+2.5 m)
Teflon belt width: 1.2 m
Belt mesh hole 2 x 2mm
Vulcanization: 180~230 Celsius
far infrared Lamp heat to top and bottom
Top 15pcs
Bottom 15pcs
15*1kw+15*1kw= 30kw
(top and bottom heaters on separate controls)
Internal circulation fan 750W*4PCS
4 cylinder Lift open oven cover
2 'Exit'=Exhaust gas or smoke exhaust

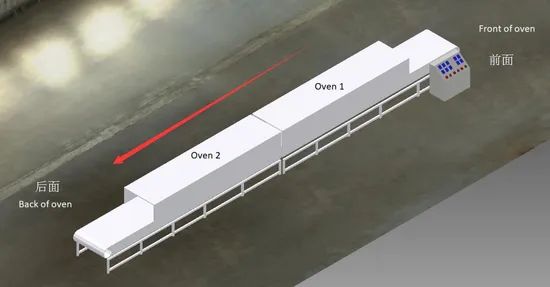

3d drawing for tunnel dryer

Why Silicone?

Benefits of using silicone rubber

1,TEMPERATURE

Silicone rubber is one of the few elastomers that has the ability to perform in extreme temperatures on both sides of the scale.  The range of silicone sponge products will withstand temperatures of -76°F to +446°F for sustained periods in application, whilst the special grades formulated with the addition of heat stabilisers take the maximum working temperature of the silicone as high as  +570°F.

2.  WEATHERING

Silicone has incredible resistance to weathering and environmental influences.  Over time, there is very little change to the properties of silicone when exposed to the elements.  Silicone is also resistant to ozone, oxidation, ultraviolet light, corona discharge, cosmic radiation, ionising radiation and general weathering.

3.  INERTNESS

Silicone  rubber  is  a  stable  elastomer  that  will  not  cause  staining,  corrosion, or  deterioration  of  other  materials  it  has  contact  with  and  does  not  support fungal growth.

4.  LOW COMPRESSION SET

Excellent compression set properties of sponge silicone makes it the elastomer of choice for sealing applications at adverse temperatures ranges.

5.  VERSATILITY

Silicone   extrusions   are   used   in   a   wide   range   of   everyday   products   and equipment  and  are  usually  used  for  sealing  applications.    Commonly  used  in industrial   and   commercial   applications   where   there   can   be   extensive temperature  variations  from  light  fittings  and  door  seals  in  ovens  to  gaskets in  HVAC  and  automotive,  especially  the  new  breed  of  electric  vehicles  being developed.

Payment Terms :tt


Product Image

Tamprinter only focuses on one thing: how to make your label and sticker screen printing work choose a better set of equipment solutions.

Company Profile

SHENZHEN TAMPRINTER PRINTING MACHINERY CO.,LTD. is a wholly-owned subsidiary of the Tamprinter printing machinery group limited designed to take up the invenstment ,design and construction of the most professional plastic sheet and paper screen printing machinery for world. We have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.

Tamprinter printing machinery group limited  (referred to as: Tamprinter brand printer supplier) is one of the first settled Made-In-China labels &  stickers screen printing machinery foreign trade service market cross-border electricity providers.
Tamprinter are ****** and Made-In-China,Diytrade Gold service provider, has service throughout the printing industry of more than 85 country.
The main business is providing one-stop solution, mainly offer  Screen Printing Complete Equipment for service for the manufacturer of technical labels, stickers, labels. such as Aluminium labels printing ,Aluminium ceiling auto screen print, stainless labels printing, polycarbonate labels screen printing, brass signs screen printing, PVC signs embossing,3M self-adhesive stickers printing market. . . Etc.

In March 2013 the company strategic upgrades, invested Three  millions to build a new printer factory , the depth of integration of B2B, the rich resources, the establishment of professional project team operates its own brand - TAMPRINTER, development of screen printing machinery products, to sheet  screen printing equipments as an opportunity to develop more new business models and the extension of explosive force. We always adhere to the user first value and service concept, and strive to become the most word-of-mouth electricity supplier, and strive for service millions of labels and stickers manufacturer .



Original intention(bodhicitta-samutpada):

People oriented management in enterprise, Good business is business for responsibility, People share prosperity and responsibility together!



Key products:

Screen printing machine,UV curing machine, IR tunnel dryer.
