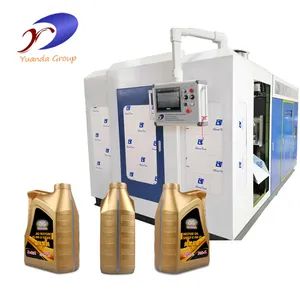

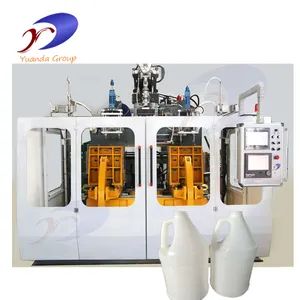

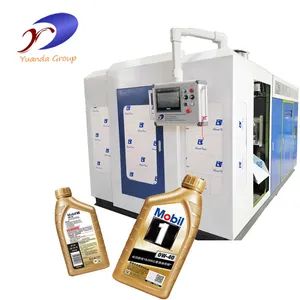

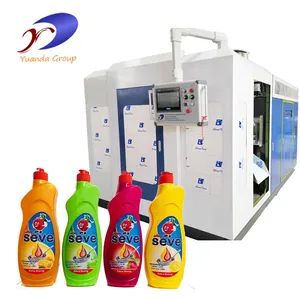

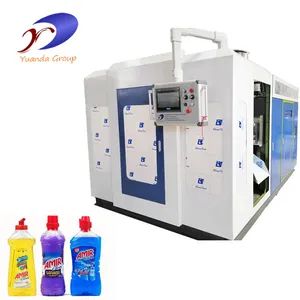

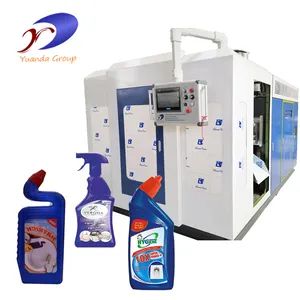

Automatic Extrusion Blow Molding Machine
Piece
Negotiable
Product information
High-quality Automatic Extrusion Blow Molding Machine supplied by Tongda (China) Machinery Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
After Sales Service:
24 Month
Max Volume:
5000ml
Production Capacity:
600 Sets Per Year
HS Code:
84773020
Automation:
Automatic
Application:
Bottles, Jars, Jerry Cans, Plastic Containers
Certification:
CE, ISO9001:2008, QS
Origin:
China
Specifications
After Sales Service:
24 Month
Max Volume:
5000ml
Production Capacity:
600 Sets Per Year
HS Code:
84773020
Automation:
Automatic
Application:
Bottles, Jars, Jerry Cans, Plastic Containers
Certification:
CE, ISO9001:2008, QS
Origin:
China
Computerized:
Computerized
Color:
Customized
Making Method Of Parison:
Extrusion-Blow Molding
Trade Term:
FOB, EXW, CIF
Transport Package:
Film Packing
Raw Material:
HDPE
Specification:
High Speed injection blow molding machine
Advantage:
High Speed with Low Energy Consumption
Payment Term:
LC, T/T, Western Union
Technical Process:
One Step Extrude and Blowing
Suitable Material:
PE/PP/HDPE/LDPE/PETG/PVC
Port Of Loading:
SHANGHAI
Station:
Two Station
Model NO.:
YD80II
Trademark:
Yuanda Group
Mold Automation:
with Extrude and Blowing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2023-04-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CIF
Port Of Loading:
SHANGHAI
Certificates:
Advanced Company certification, Audited Supplier certification, Export base famous Company, HighTechnology Certification
Product descriptions from the supplier
Yuanda Group, established in 1970, specializes in the design, development, and manufacturing of plastic forming machinery, including extrusion blow molding, PET blow molding, injection blow molding (IBM), and injection molding systems, along with auxiliary components like cooling units and power generation systems. Leveraging over three decades of industry expertise, we deliver end-to-end solutions for plastic production facilities both domestically and internationally, backed by robust technical assistance and state-of-the-art, fully integrated equipment.
Our blow molding equipment delivers top-tier quality in China, thanks to our advanced expertise in the sector. Critical components undergo rigorous evaluation using ADAMS simulation and ANSYS finite element analysis, reflecting cutting-edge industry standards. As a result, the machines boast extended durability and are gaining increasing international recognition.
Each assembly machine undergoes individual scrutiny by dedicated staff, and all operational procedures follow ISO9001 guidelines. Our blow molding equipment surpasses competitors due to our unique manufacturing technique and superior materials, as shown in the images below.
Our Certification
Our service process is structured into four phases: pre-sale, production, on-site setup, and post-purchase support. Through consistent, reliable interaction and top-tier technical assistance, we tailor the most suitable solution for each client.
Workflow Process
Our Advantages
Yuanda Group can supply the best complete line according to client product requirement1. Advanced servo system , Moog valve from Japan , high precision and high speed , save energy and high efficient
2. Act as optional , client can choose the 3D manipulator, in order to reduce labor cost and improve production efficienty
3. Advanced hydraulic cylinder , all technical sourced from Germany , floating adjustable movement , quickly speed and quiet
4. Machine can connect with the leak tester in line , convenience , save labor cost
5. Heater cover material stainless steel with ceramic heater inside , safty , long life and energy saving 30%
6. Oil pump from USA , mainly parts from Europe, best quality
7. Flex arm clamping enhance template structure, strong Power , high precision !
8.Servo motor from Physis Italy ,high speed , save energy and high efficient
Color touch display featuring Moog technology sourced from Japan, offers intuitive user interface, includes remote control functionality enabling real-time troubleshooting, configuration, and updates, allowing clients to resolve issues efficiently and instantly.
10. Machine can connect with the conveyor in line directly, convenience , save labor cost, save space
11. Hydraulic system and valves from Yuken Industry Japan
12. Aviation military-grade wire connector , stable ,safe and easy to install
Yuanda Group has built strong international credibility through its superior blow molding equipment and outstanding post-sale support. Its machinery has been shipped to the United States, Poland, Mexico, Colombia, Peru, Argentina, Chile, Indonesia, Malaysia, Vietnam, Saudi Arabia, South Africa, Egypt, and other countries.
about many other advanced technical data, please require me !
| Max. Product volume | 6 liters |
| Dry Cycle time | 5 second |
| Screw diameter | 80mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 18.5 KW |
| Screw heating capacity | 6 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 120KG/H |
| Oil pump drive power | 7.5 KW |
| Clamping force | 65KN |
| Max.size of mold | 148-568mm |
| Mold stroke | 330 X 370mm |
| Max.die diameter | 160mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.6 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 50 L/MIN |
| Size of Machine | 4.0x2.3x2.7m |
| Weight of machine | 5.5 ton |
Because of rapid technological advancement and strict technical security, equipment such as blow molding machines, extrusion blow molding systems, injection blow molding units, PET blow molding solutions, injection molding systems, blow molds, plastic bottle production machines, and plastic bottle molds are availablebottle machine ,relevant advanced technical parameters must be consulted our sales engineers.
500ml 1L 2L 3L 4L 5L Single Head With Double Stations Plastic ExtrusionBlow MoldingMouldingMachine Of Lowest Price
