Automatic High Quality PP Leno Bag Weaving Cutting Sewing Making Machine
1-2 Piece
$50,0003 Piece
$45,000Product information
High-quality Automatic High Quality PP Leno Bag Weaving Cutting Sewing Making Machine supplied by Changzhou Niulan Machinery Co., Ltd. Bulk wholesale pricing ranges from $45,000 to $50,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
200
Output:
25 Pieces Per Minute
Weight:
3.8t
Voltage:
380V
Specification:
6m*6mi
HS Code:
8477800000
Origin:
China
Computerized:
Computerized
Specifications
Production Capacity:
200
Output:
25 Pieces Per Minute
Weight:
3.8t
Voltage:
380V
Specification:
6m*6mi
HS Code:
8477800000
Origin:
China
Computerized:
Computerized
Transport Package:
Container
Machine Type:
Cutting & Sewing Machine
Trade Term:
FOB, CIF, CFR, EXW
Sealing & Cutting:
Heat-Sealing Heat-Cutting
Speed:
High
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Model NO.:
NL650
Trademark:
Niulan
Port Of Loading:
Shanghai Port
Stitch Style:
Single & Double
Layer:
Single, Double
Seals Mode:
Trilateral Seals
Type:
Weaving Machine
Continuous Rolled:
Yes
Fold:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-09-16
Annual Revenue Amount:
Not specified
Numbers Of Employees:
15
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
High tech certification, Invention Patent, Patent Certificate, Technology certification
Product descriptions from the supplier
SONA2024 2.2.1
Product Description

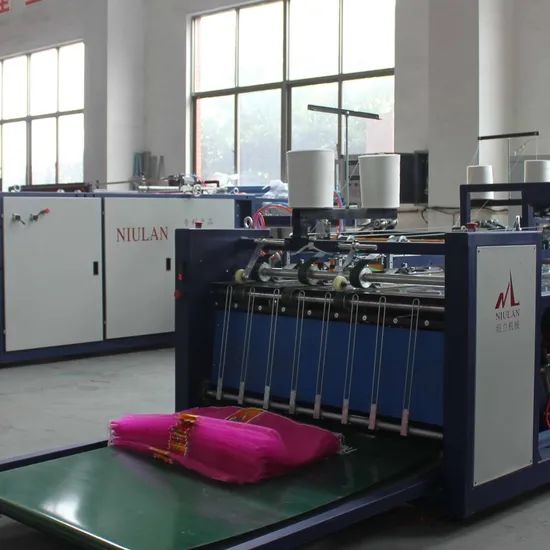

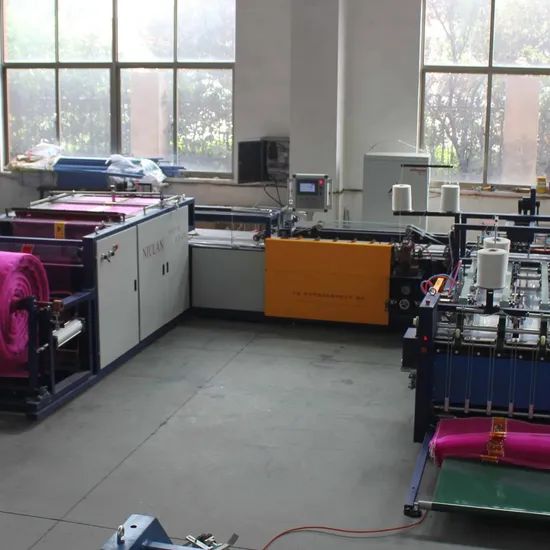

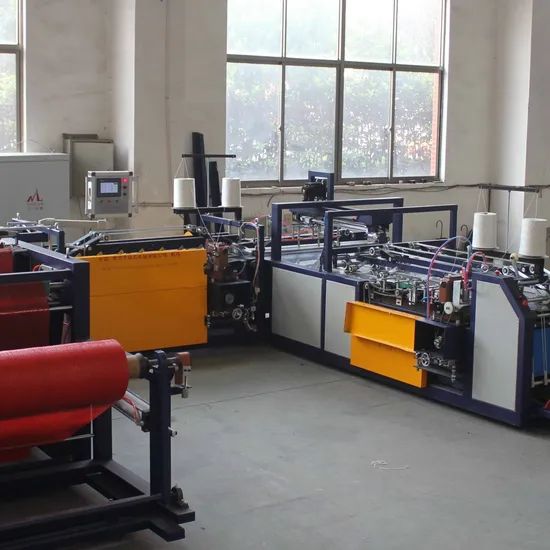

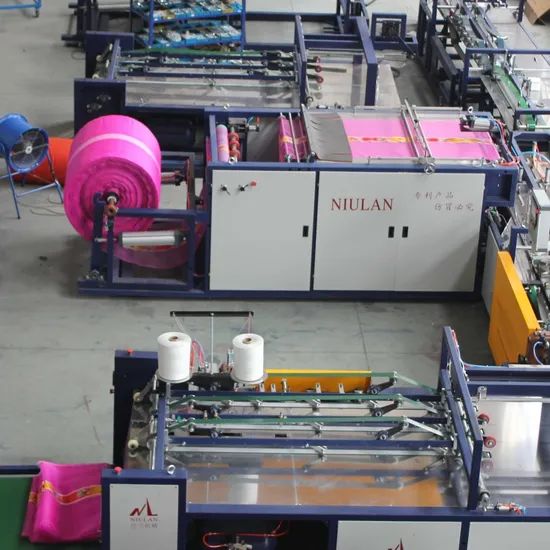

L Mesh Bag cutting and sewing machine
It is suitable for PP and PE leno bag flat fabric in roll, automatic cutting off, folding and sewing, bottom sewing.
From fabric uncoiler-auto color mark tracking-thermo cutting---sidewise folding---conveying by mechanical arm----belt conveying---sewing (single or double folding optional)-another side conveying---bag bottom sewing (single or double folding optional)---finished bag automatic counting and stacking.
The woven cloth will be automatically thermally cut off in a fixed length and sewed, and laborsaving can be realized. Driven by servo motor, the length of bag can be precisely controlled. Sticking is avoided after the bag being thermally cut off. The machine will stop automatically when the cloth is over. Pneumatically driving is adopted in cloth releasing and can be easily operated.
Characteristics:

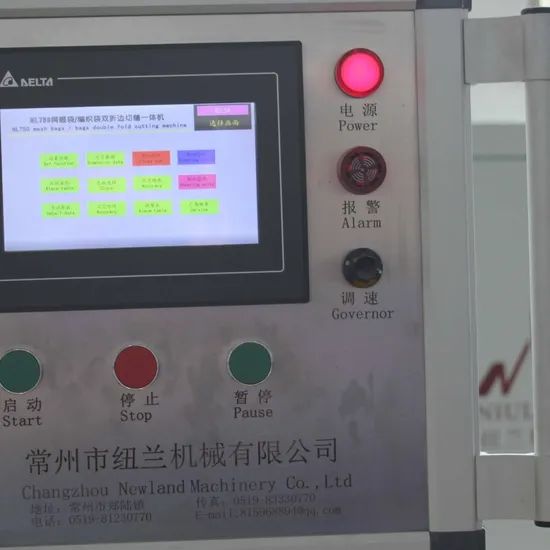

PLC control, touch screen operation.
Servo motor bag feeding, high cut to length accuracy
System alarm, electric problem, working condition will show on touch screen.
Special thermo cutting blade
Equip with mesh bag width wise folding device
Main electric parts using Taiwan brands, more reliable
China first invention: down press mechanical arm, to make sure bag piece delivery stable and rapidly.
Bag bottom can be single or double fold and sew.
From fabric uncoiler-auto color mark tracking-thermo cutting---sidewise folding---conveying by mechanical arm----belt conveying---sewing (single or double folding optional)-another side conveying---bag bottom sewing (single or double folding optional)---finished bag automatic counting and stacking.
The woven cloth will be automatically thermally cut off in a fixed length and sewed, and laborsaving can be realized. Driven by servo motor, the length of bag can be precisely controlled. Sticking is avoided after the bag being thermally cut off. The machine will stop automatically when the cloth is over. Pneumatically driving is adopted in cloth releasing and can be easily operated.
Characteristics:
PLC control, touch screen operation.
Servo motor bag feeding, high cut to length accuracy
System alarm, electric problem, working condition will show on touch screen.
Special thermo cutting blade
Equip with mesh bag width wise folding device
Main electric parts using Taiwan brands, more reliable
China first invention: down press mechanical arm, to make sure bag piece delivery stable and rapidly.
Bag bottom can be single or double fold and sew.
Main Technical Parameter
Max. dia. of unwinding cloth | 1200mm |
Max width of roll fabric | 1150mm |
Bag width range | 180-600mm (monofilament bag); 280-600mm (flat tape bag) |
Bag Length range | 450-1050mm |
Length accuracy | ±2mm |
Bottom folding width | 20-30mm |
Production capacity | 15-21pcs/min |
Stitching range | 7-12mm |
compressed air supply | 0.6 m3/min |
Total motor | 6.1 kw |
Heating power | 2kw |
Weight (About) | 1800kg |
Overall dimensions (L×W×H) | 7000×4010×1500mm |
Electric parts list:
Name | Model | remark | ||
1 | Servo motor | ESBA-30C-PSB152B27T -1KW | 3 pieces | Taiwan Delta |
2 | PLC | DVP-32ES | 1 | Taiwan Delta |
3 | Touch screen | MT-506L | 1 | China brand |
4 | Color mark switch | XL-101 | 1 | Panasonic |
5 | Inverter | VFD007-M21A | 5 | Taiwan Delta |
6 | Temperature control | EXT5-8011 | 1 | China |
7 | Photo cell switch | E3JK-DS30M1 | 8 | Omron |
8 | Power switch | AC220V/DC24V/4.5A | 1 | China |
9 | Circuit breaker | D20 | 1 | SCHNEIDER |
10 | Circuit breaker | D16 | 1 | SCHNEIDER |
11 | Circuit breaker | D10 | 1 | SCHNEIDER |
12 | Circuit breaker | D6 | 7 | SCHNEIDER |
13 | AC contactor | CJX1-22 | 4 | SCHNEIDER |
14 | AC contactor | CJX1-12 | 1 | SCHNEIDER |
15 | Cooling fan | AC220V | 2 | |
16 | Connecting terminal | 60A | 15 | China |
17 | Connecting terminal | 35A | 70 | China |
18 | Air cylinder | MAL32×25-CA | 4 | China |
19 | Air cylinder | SC63×100-S | 1 | China |
20 | Air cylinder | SC100×175-CB-CA-I | 2 | China |
21 | Air cylinder | SC40X25 | 4 | China |
22 | Magnetic valve | 4V200 | 7 | China |
23 | Manual valve | 3 | China | |
24 | Three connected pieces | BFC3000 | 1 | China |
