Automatic Horizontal CNC Grinding Machine for Cylinders Inner Circle
Piece
Negotiable
Product information
High-quality Automatic Horizontal CNC Grinding Machine for Cylinders Inner Circle supplied by Wuxi Golp Cnc Machinery Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Rated Power:
10-20kw
Roundness Of Inner Bore:
2um
Production Capacity:
30 Sets Per Year
Cylindricaity Of Inner Bore:
3um
Weight Of Machine Tool:
4800
Maximum Strok Of Feed Mechanism:
500mm
Automatic Grade:
Automatic
Certification:
CE, ISO 9001
Specifications
Rated Power:
10-20kw
Roundness Of Inner Bore:
2um
Production Capacity:
30 Sets Per Year
Cylindricaity Of Inner Bore:
3um
Weight Of Machine Tool:
4800
Maximum Strok Of Feed Mechanism:
500mm
Automatic Grade:
Automatic
Certification:
CE, ISO 9001
Controlling Mode:
CNC
Origin:
China
Cylindrical Grinder Type:
End Cylindrical Grinder
Trade Term:
FOB
Model NO.:
GK250
Trademark:
GOLP
Processing Object:
Gear
Model No.:
Gk250
Abrasives:
Grinding Wheel
Precision:
High Precision
Type:
Internal Grinding Machine
Condition:
New
Surface Roughness Of Inner Bore:
Ra0.4um
Payment Term:
To be discussed
Transport Package:
Waterproof Film Wrapped, Wooden Case Package
Specification:
standard
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
Audit Report, Business License, SGS Certificate
Product descriptions from the supplier

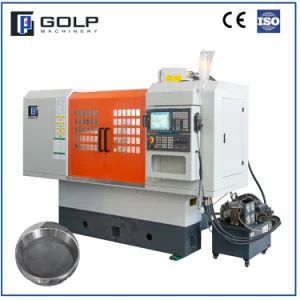

ΔThis CNC internal grinding machine features X and Z axis movement and is primarily designed to shape internal holes, stepped holes, inner end surfaces, and outer end surfaces of the workpiece. The entire grinding process operates automatically(with automatic feed,withdrawal , rough grinding and finegrinding); Automatic dressing of grinding wheel,automatic compensation, etc.).
ΔThe machine is mounted on the workpiece housing, with the table shifting horizontally and the grinding wheel assembly performing a reciprocating motion. Both the table and the grinding wheel unit are powered by a servo motor via ball screws, each utilizing linear guide rails.
ΔThe rotation speed of work piece spindle and grinding wheel spindle are controlled by frequency converer to reaize stepless speed regulaton.
ΔThe machine features a front-accessible control unit and a separate electrical enclosure. The enclosure's protective shell offers either a partially or fully enclosed design, selectable by the user.

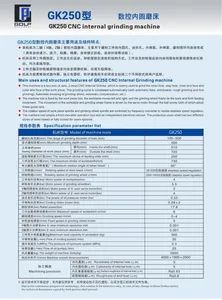

| Model of machine tools | GK250 | |
| The range of grinding diameter of hole(mm) | 100-500 | |
| Maximum grinding depth (mm) | 500 | |
| Swing diameter of work piece (mm) | Inside the shell(mm) | 510 |
| Outside the shell (mm) | 720 | |
| The maximum stroke of feeding slide(mm) | 200 | |
| The maximum stroke of workbench(mm) | 730 | |
| Maximum rotation angle of lather head(° ) | 30° | |
| Rotating speed of work piece (r/min) | 30-500stepless speed regulation | |
| Rotating speed of grinding wheel (r/min) | 2000-10000(stepless speed regulation) | |
| Motor power of workpiece(kw) | 4 | |
| Motor power of grinding wheel(kw) | 5.5 | |
| Motor power of X-axis servo motor(kw) | 2 | |
| Motor power of Z-axis servo motor(kw) | 4 | |
| The power of oil pressure motor (kw) | 0.55 | |
| Cooling motor power (kw) | 0.09×2 | |
| Rated power(kw) | 17.8 | |
| Maximum speed of workbench m/min | 6 | |
| Grinding speed m/min | 0-4 | |
| Feed speed of grinding wheel m/min | 5 | |
| X-axis minimum resolution mm | 0.001 | |
| Z-axis minimum resolution(mm) | 0.001 | |
| Maximum load capacity of workpiece (kg) | 300 | |
| Flow of cooling pump(L/min) | 30 | |
| The pressure of hydraulic system (MPa) | 0.4 | |
| Flow of oil pump(L/min) | 25 | |
| The weight of machine tools(kg) | 5600 | |
| Machine overall dimension(mm) | 4000× 1900×2000 | |
| Roundness of internal hole(um) | 3 | |
| Machining precision |
Cylindricity of internal hole(um) | 5 |
| Surface roughness of internal hole (um) | Ra0.63 |
|
| Roughness of end face(um) | Ra0.8 |
|
Wuxi Golp CNC Machinery Co., Ltd. stands in Wuxi, at the heart of the Yangtze River Delta—China’s most vibrant economic zone. As a recently established brand, we focus exclusively on advanced CNC machine tools. Our core offerings include die-casting equipment, CNC punching systems, powder compaction machines, and other cutting-edge intelligent solutions along with complementary products. Guided by our principles of excellence, trust, and customer-centricity, we strive to become a key player in the worldwide intelligent manufacturing sector.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: Every item we produce meets ISO9001 and CE standards. A rigorous quality control check is conducted prior to factory shipment to ensure our customers receive top-tier machinery.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
